Axle Parts Dana S135-S-1A
View Larger

Axle Parts


See Below  ▼ Dana
More Products from Dana
  Share

Overview

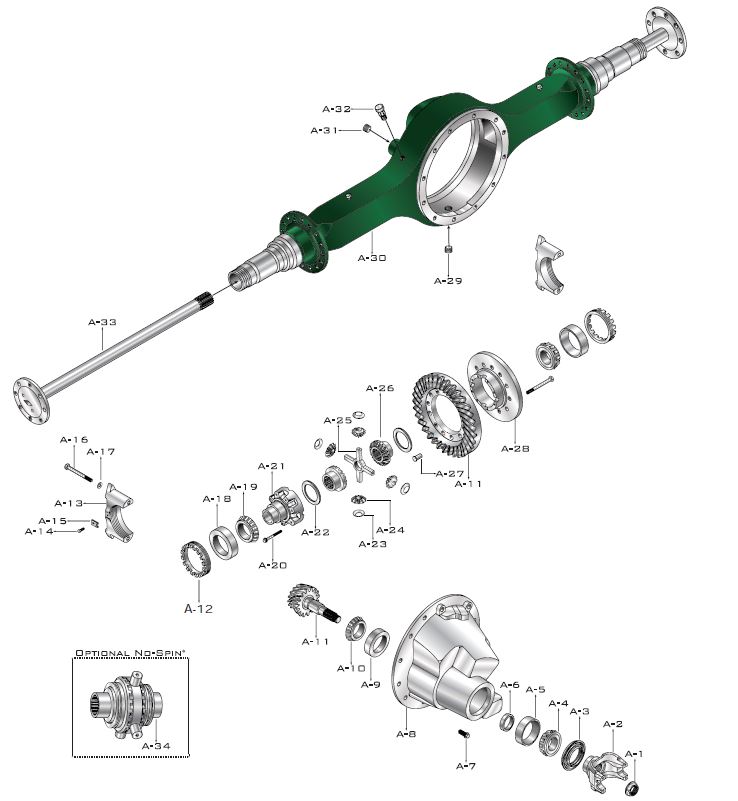

Axle Parts
Item No. Part Number Name Carrier Qty Price Buy
1
HN130
Flanged Hex Nut 1 Log in to see
prices
3+
029HH100
Pinion Oil Seal 1 Log in to see
prices
4+
HB104
Outer Pinion Bearing Cone 1 Log in to see
prices
5+
MJAHA101
Outer Pinion Bearing Cup 1 Log in to see
prices
7
HM101
Carrier Mounting Bolt Grade 8, 1/2" 13 Unc X 1-3/8" 10 Log in to see
prices
7
HM102
Carrier Mounting Bolt Grade 8, 1/2" 13 Unc X 2-1/4" 4 Log in to see
prices
8
360CS100-X
Carrier Sub-Assembly (Includes Items 5, 9, 13, 16, 17) 1 Log in to see
prices
12
360HR101
Adjusting Ring 2 Log in to see
prices
14
HM201
Hex Bolt 2 Log in to see
prices
15
360HR102
Adjusting Ring Lock 2 Log in to see
prices
16+
070HM142-3
Differential Bearing Cap Bolt 4 Log in to see
prices
17+
HN140
Differential Bearing Cap Washer 4 Log in to see
prices
18+
HA102
Differential Bearing Cup 2 Log in to see
prices
19+
HB105
Differential Bearing Cone 2 Log in to see
prices
20+
HM179
Differential Case Bolt 8 Log in to see
prices
21+
360DT101
Differential Case Cap Half 1 Log in to see
prices
24+
360KS101XQG
Differential Pinion Mate 4 Log in to see
prices
27
HM204
Ring Gear Rivet 12 Log in to see
prices
28+
360DU101
Differential Case Flange Half 2.81 Thru 3.21 Ratio 1 Log in to see
prices
28+
360DU103
Differential Case Flange Half 3.38 Thru 3.73 Ratio 1 Log in to see
prices
28+
360DU105
Differential Case Flange Half 3.91 Thru 4.44 Ratio 1 Log in to see
prices
28+
360DU107
Differential Case Flange Half 4.78 Thru 5.38 Ratio 1 Log in to see
prices
28+
360DU109
Differential Case Flange Half 6.14 Thru 7.17 Ratio 1 Log in to see
prices
29
MJAHM106
Magnetic Drain Plug 1 Log in to see
prices
31
MJAHM120
Filler Plug 1 Log in to see
prices
32
MJAHN110
Vent Plug 1 Log in to see
prices
33
360SR104-1
Axle Shaft (1-3/4" X 36 Splines) 38.62" Length (Stght. Flg. Holes) 2 Log in to see
prices
33
360SR109
Axle Shaft (1-3/4" X 36 Splines) 40.00" Length (Tapered Flg. Holes) 2 Log in to see
prices
33
GGASR102-1
Axle Shaft (1-3/4" X 36 Splines) 38.62" Length (Tapered Flg. Holes) 2 Log in to see
prices
34
360GN100
No-Spin Differential (Optional) All 1 Log in to see
prices

Specifications

  Product NameAxle Parts
  Brand NameDana
