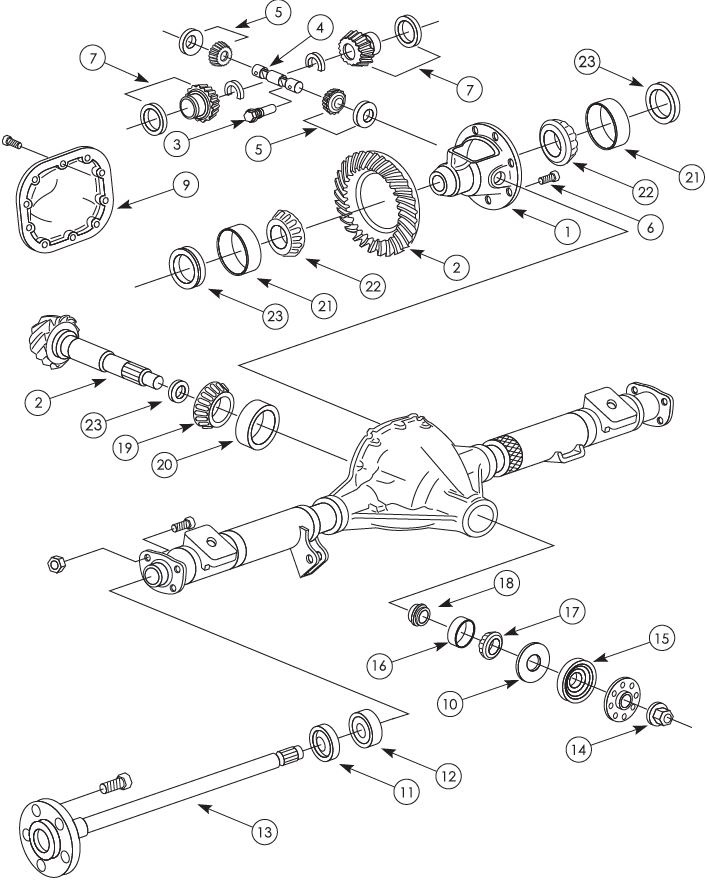

| Item No. |
Part Number |
Name | R.G. Size | Ratios | Req | Spline | Table Name | Years | Price |
Buy |
|
| 1 |
E7TZ 4204 B
|
Case Assembly (Locking)(Fits WFC, WFM & 87/WFJ Axle)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 1 |
E4DZ 4204 B
|
Case Assembly (Locking)(Fits 1986 WFJ Axle)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 1 |
E7TZ 4204 A
|
Case Assembly (Non-Locking)(Fits WAC, WAA Axle) (Empty)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 2 |
F7.5-308
|
Crown & Pinion, 3.08 Ratio, Quality Gear
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 2 |
F7.5-345
|
Crown & Pinion, 3.45 Ratio, Quality Gear
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 2 |
F7.5-373
|
Crown & Pinion, 3.73 Ratio, Quality Gear
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 2 |
F7.5-410
|
Crown & Pinion, 4.10 Ratio, Quality Gear
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 2 |
F7.5-456
|
Crown & Pinion, 4.56 Ratio, Quality Gear
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 3 |
14056196
|
Pinion Shaft Lock Pin 0.312-18X1.70 (0.240 Pin Dia)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 4 |
D8BZ 4211 A
|
Pinion Shaft (Non Locking)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 4 |
E4SZ 4211 A
|
Pinion Shaft (Locking)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 5 |
YL5Z 4215 CA
|
Pinion Gear Kit
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 6 |
D5AZ 4216 A
|
Ring Gear Bolts (7/16"-20x3/4)
| | | 10 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 7 |
E9SZ 4236 D
|
Side Gear Kit ( 2 Gears/2 Washers)( WAA, WAC, Non-Lock)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 9 |
M-4033-A304
|
Chrome Differential Cover (Ford Motorsports)
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 10 |
D5AZ 4670 A
|
Slinger
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 11 |
NAT 8660S
|
Seal, Axle
| | | 2 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 12 |
INA 5707
|
Bearing, Axle
| | | 2 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 13 |
--
|
Axle Shaft Refer to Table
| | | | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 23 |
GM10MSK
|
Master Shim Kit
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| Ni |
F5ZZ 4947 BA
|
Clutch Pack (Locking)
| | | 2 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| Ni |
E9TZ 4309 A
|
ABS Ring
| | | 1 | | Ford 7 1/2" Differential | | Log in to see
prices |
|
|
| 14, 15, 16, 17, 18, 19, 20, 21, 22 |
R75
|
Master Overhaul Kit
| | | 1 | | Ford 7 1/2" Master Overhaul Kit | | Log in to see
prices |
|
|
| 14 |
NV96386
|
Nut, Pinion
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 15 |
CRS 18190
|
Seal, Pinion
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 16 |
KOY M88010
|
Bearing, Outer Pinion (Cup)
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 17 |
KOY M88048
|
Bearing, Outer Pinion (Cone)
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 18 |
B7A 4662 A
|
Crush Sleeve
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 19 |
KOY M802011
|
Bearing, Inner Pinion (Cup)
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 20 |
KOY M802048
|
Bearing, Inner Pinion (Cone)
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 21 |
KOY LM501314
|
Bearing, Diff Side, (Cup)
| | | 2 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 22 |
KOY LM501349
|
Bearing, Diff Side, (Cone)
| | | 2 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| Ni |
NSS
|
Gasket
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| Ni |
NSS
|
Shim Kit
| | | 1 | | R75 - Master Rebuild Kit | | Log in to see
prices |
|
|
| 3 |
14056196
|
Lockscrew 0.312-18X1.70 (0.240 Pin Dia)
| | | 1 | | F7.5-SPGK - Internal Nest Kit 28SPL | | Log in to see
prices |
|
|
| 4 |
D8BZ 4211 A
|
Cross Shaft
| | | 1 | | F7.5-SPGK - Internal Nest Kit 28SPL | | Log in to see
prices |
|
|
| 5 |
YL5Z 4215 CA
|
Pinion Gear Kit (2xGear, 2xWasher)
| | | 1 | | F7.5-SPGK - Internal Nest Kit 28SPL | | Log in to see
prices |
|
|
| 7 |
E9SZ 4236 D
|
Side Gear (Locking)
| | | 2 | | F7.5-SPGK - Internal Nest Kit 28SPL | | Log in to see
prices |
|
|
| 7 |
NSS
|
Side Gear Washer
| | | 2 | | F7.5-SPGK - Internal Nest Kit 28SPL | | Log in to see
prices |
|
|
| 3 |
14056196
|
Lockscrew
| | | 1 | | YL5Z 4215 CA - Internal Nest Kit 28SSPL Locking | | Log in to see
prices |
|
|
| 5 |
YL5Z 4215 CA
|
Pinion Gear Kit (2xGear, 2xWasher)
| | | 1 | | YL5Z 4215 CA - Internal Nest Kit 28SSPL Locking | | Log in to see
prices |
|
|
| 7 |
E9SZ 4236 D
|
Side Gear (Locking) (2xGear)
| | | 2 | | YL5Z 4215 CA - Internal Nest Kit 28SSPL Locking | | Log in to see
prices |
|
|
|
162C57A
|
Detroit Locker
| 7 1/2" | 4.56 & Down | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2" | All | Log in to see
prices |
|
|
|
912A316
|
Truetrac
| 7 1/2" | All | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2" | 1983 & Up | Log in to see
prices |
|
|
|
AUB 542048
|
Auburn Gear Limited Slip (Pro Series)
| 7 1/2" | All | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2", | 1978 & Up | Log in to see
prices |
|
|
|
AUB 542023
|
Auburn Gear Limited Slip (Street Series)
| 7 1/2" | All | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2", | 1978 & Up | Log in to see
prices |
|
|
|
1830
|
Lock-Right Locker
| 7 1/2" | All | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2", | 1978 & Up | Log in to see
prices |
|
|
|
M-4204-C75
|
Ford SVO Track Lock
| 7 1/2" | All | | 28 Spline | Limited Slips And Lockers Available For Ford 7 1/2", | 1978 & Up | Log in to see
prices |
|
|
 |
