| Item No. |
Part Number |
Name | OEMs* | Remarks Flange Holes | Remarks Length | Remarks | Qty Per Axle | Price |
Buy |
|
|

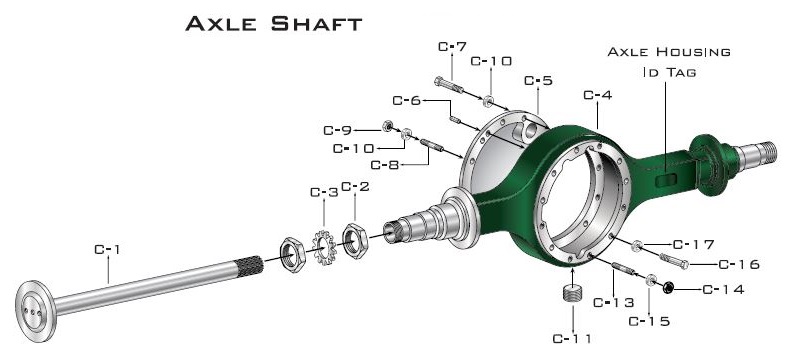

110887
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| | 8 (.760") thru holes | 40-1/8" | | | Log in to see
prices |
|
|
|
126877
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| 1 | 8 (.948") taper holes | 40-5/8" | | | Log in to see
prices |
|
|
|
110884QG
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| 3, 7 | 8 (.640") taper holes | 41-5/16" | | | Log in to see
prices |
|
|
|
110888QG
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| 2, 5, 6 | 6 (.635") thru holes | 41-5/16" | | | Log in to see
prices |
|
|
|
110884QG
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| 1 | 8 (.948") taper holes | 41-19/32" | | | Log in to see
prices |
|
|
|
127008
|
Axle Shaft D402 (P) - 41 splines, 2.100" O.D.
| 5, 6 | 8 (.635") thru hole | 44-3/8" | | | Log in to see
prices |
|
|
| 2 |
19186
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (0.47" thick) D341, 34D | 4 | Log in to see
prices |
|
|
| 2 |
78944
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (3/8" thick) D381, 381-P, 402, 402-P, 38D | | Log in to see
prices |
|
|
| 2 |
95372
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (0.562" thick) D381, 381-P, 402, 402-P, 38D | | Log in to see
prices |
|
|
| 2 |
11249
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (17/32" thick) all except D341 | | Log in to see
prices |
|
|
| 2 |
119881
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (outer) all except D341 | 2 | Log in to see
prices |
|
|
| 2 |
119882
|
Hub Bearing Adjuster Nut - Forward and Rear Axles
| | | | (inner) all except D341 | 2 | Log in to see
prices |
|
|
| 3 |
30714
|
Bearing Adjuster Lockwasher - Forward and Rear Axles
| | | | | 2 | Log in to see
prices |
|
|
| 3 |
11245
|
Bearing Adjuster Lockwasher - Forward and Rear Axles
| | | | | | Log in to see
prices |
|
|
| 3 |
119883
|
Bearing Adjuster Lockwasher - Forward and Rear Axles
| | | | all except D341 | | Log in to see
prices |
|
|
| 4 |
--
|
Axle Housing Assy. - Forward and Rear
| | | | See OEM Catalog | 1 | Log in to see
prices |
|
|
| 5 |
--
|
Axle Housing Cover (forward axle only)
| | | | | 1 | Log in to see
prices |
|
|
| 6 |
7641E
|
Axle Housing Cover Locating Dowel
| | | | | 2 | Log in to see
prices |
|
|
| 7 |
119784
|
Axle Housing Cover Cap Screw
| | | | | 1 | Log in to see
prices |
|
|
| 8 |
47500
|
Axle Housing Cover Stud
| | | | | 11 | Log in to see
prices |
|
|
| 9 |
42364
|
Nut
| | | | | 11 | Log in to see
prices |
|
|
| 10 |
90415
|
Lockwasher
| | | | | 11 | Log in to see
prices |
|
|
| 11 |
54254
|
Magnetic Drain Plug
| | | | | | Log in to see
prices |
|
|
| 12 |
54254
|
Magnetic Filler Plug (rear axle)
| | | | 3/4" | | Log in to see
prices |
|
|
|
75130
|
Magnetic Filler Plug (rear axle) (not illustrated)
| | | | 1" | | Log in to see
prices |
|
|
| 13 |
36435
|
Stud
| | | | | 10 | Log in to see
prices |
|
|
| 14 |
90208
|
Nut
| | | | | 10 | Log in to see
prices |
|
|
| 15 |
90422
|
Lockwasher
| | | | | 10 | Log in to see
prices |
|
|
| 16 |
38589
|
Cap Screw
| | | | | 2 | Log in to see
prices |
|
|
| 17 |
90422
|
Lockwasher
| | | | | 2 | Log in to see
prices |
|
|
| 13 |
36435
|
Stud
| | | | | 12 | Log in to see
prices |
|
|
| 14 |
90208
|
Nut
| | | | | 12 | Log in to see
prices |
|
|
| 15 |
90422
|
Lockwasher
| | | | | 12 | Log in to see
prices |
|
|
 |
.JPG "Differential Lockout (Current Production)"){kind=small}
Differential Lockout (Current Production).JPG "Forward Tandem Axle"){kind=small}
Forward Tandem Axle
