BW 4405 (1995-98 Ford Explorer & Ranger w/ 4.0L Electric Shift) Borg Warner BW4405ES
View Larger

BW 4405 (1995-98 Ford Explorer & Ranger w/ 4.0L Electric Shift)


See Below  ▼ Borg Warner
More Products from Borg Warner
  Share

Overview

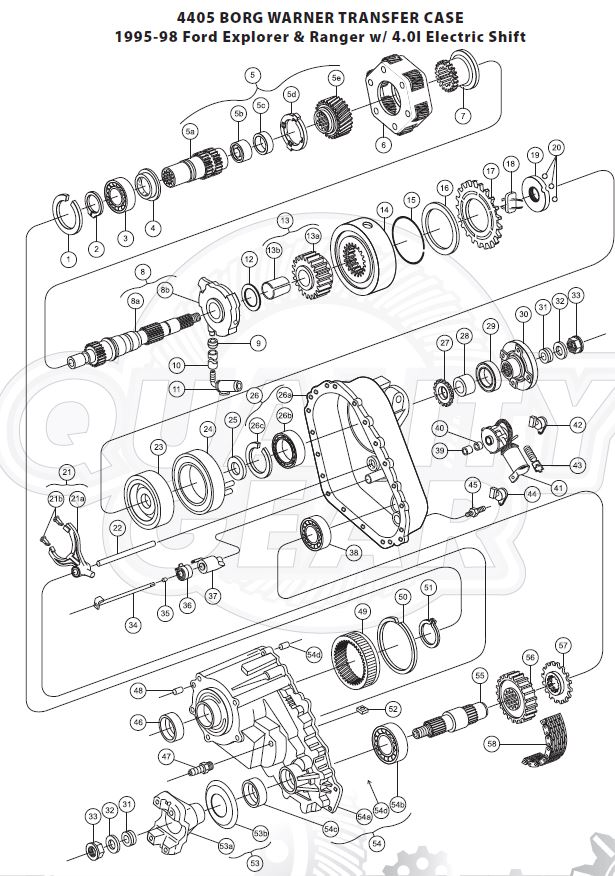

BW 4405 (1995-98 Ford Explorer & Ranger w/ 4.0L Electric Shift)
Item No. Part Number Name Notes Price Buy
1
1000 139 043
Ring, Retaining Log in to see
prices
2
1000 139 040
Ring, Retaining Log in to see
prices
3
6209NR
Bearing, Input Can Use 1900 130 008 Log in to see
prices
4
4405 179 004
Hub, Circular Log in to see
prices
5
4405 689 002
Assy, Input shaft Log in to see
prices
5A
4405 189 002
Shaft, Input Log in to see
prices
5B
M18161
Bearing, Input Pocket Log in to see
prices
5C
1345 127 002
Bushing, Input Pocket Log in to see
prices
5D
1350 014 001
Thrust Plate Log in to see
prices
5E
1350 165 001
Gear, Sun Log in to see
prices
6
1354 659 002
Assy, Planetary Carrier Log in to see
prices
7
1354 089 002
Hub, Reduction Log in to see
prices
8
4405 671 002
Assy, Mainshaft Log in to see
prices
8A
4405 171 008
Mainshaft Log in to see
prices
8B
4400 508 004
Assy, Gerotor Pump Log in to see
prices
9
1900 056 007
Hose Clamp Log in to see
prices
10
1900 034 008
Hose Log in to see
prices
11
4400 238 002
Filter Log in to see
prices
12
1900 193 020
Washer, Thrust Log in to see
prices
13
4405 644 001
Assy, Chain Drive Sprocket W/ Bushing # (All Exc. Below) Log in to see
prices
13
4405 644 002
Assy, Chain Drive Sprocket W/O Bushing # 1.00" Chain Assy # 4405-012 Log in to see
prices
13A
4405 144 005
Sprocket, Chain Drive w/o bushing (all exc. below) Log in to see
prices
13A
4405 144 007
Sprocket, Chain Drive w/o bushing 1.00" chain assy # 4405-012 Log in to see
prices
13B
1900 127 009
Bushing, Drive Sprocket All Exc. Below - Use 4405 644 001 Log in to see
prices
13B
1900 127 012
Bushing, Drive Sprocket Assy # 4405-012 - Use 4405 644 002 Log in to see
prices
14
4411 625 001
Assy, Clutch Pack All Log in to see
prices
15
4400 248 001
Washer, Insulator Log in to see
prices
16
4405 147 004
Armature Log in to see
prices
17
1900 139 039
Ring, Retaining Log in to see
prices
18
1900 156 006
Wave Spring Log in to see
prices
19
4405 099 011
Apply Cam Log in to see
prices
20
1900 109 002
Ball 3 Req'D Log in to see
prices
21
4405 596 002
Assy, Shift Fork Log in to see
prices
21A
nss
Fork, Shift Log in to see
prices
21B
1356 235 001
Pad, Shift Fork 2 Req'D Log in to see
prices
22
4405 100 001
Shift Rail Log in to see
prices
23
4400 712 001
Assy, Coil & Cam Housing Log in to see
prices
Ni
4405 099 012
Cam Log in to see
prices
Ni
4405 212 902
Coil Housing Log in to see
prices
24
4400 645 020
Assy, Electric Coil Log in to see
prices
Ni
1900 048 004
Washer, Coil 3 Req'D Log in to see
prices
Ni
1300 149 002
Nut, Coil 3 Req'D Log in to see
prices
25
1900 132 008
Assy, Thrust Bearing Log in to see
prices
26
4405 539 004
Assy, Rear Case Half 1995-97 Assy # 4405-007,008 Log in to see
prices
26
4405 539 007
Assy, Rear Case Half 1998 Assy # 4405-010 Log in to see
prices
26
4405 539 008
Assy, Rear Case Half 1998-99 Assy # 4405-011, 012 Log in to see
prices
26A
4405 039 007
Case, Rear Half 1995-97 Assy # 4405-007,008 Log in to see
prices
26A
4405 039 008
Case, Rear Half 1998 Assy# 4405-010 Log in to see
prices
26A
4405 039 009
Case, Rear Half 1998-99 Assy# 4405-011,012 Log in to see
prices
26B
6306
Bearing, Mainshaft Can Use 1900 130 010 Log in to see
prices
26C
1900 139 007
Ring, Retaining Log in to see
prices
Ni
1900 183 009
Bolt, Case 17 Req'D (M8X1.8X40) All Exc. Below Log in to see
prices
Ni
1900 183 023
Bolt, Case 17 Req'D (M8X1.8X40) Assy# 4405-011 Log in to see
prices
Ni
1900 183 024
Bolt, Case 17 Req'D (M8X1.8X35) Assy# 4405-012 Log in to see
prices
Ni
1300 052 003
Drain/Fill Plug 2 Req'D Assy# 4405-007,008,010 Log in to see
prices
Ni
1900 052 008
Drain/Fill Plug 2 Req'D Assy# 4405-011,012 Log in to see
prices
Ni
1300 146 003
Bolt, Speedo Plate Log in to see
prices
Ni
1356 014 002
Plate, Speedo Log in to see
prices
27
4405 151 006
Wheel, Upper Tone Log in to see
prices
28
4405 110 001
Gear, Speedo 7T Assy# 4405-007,008 Log in to see
prices
28
1900 053 024
Spacer, Speedo Gear Assy #4405-010 - 012 Log in to see
prices
29
16485
Seal, Rear Output Can Use 1900 044 009 Log in to see
prices
30
1300 031 006
Flange, Output Companion Log in to see
prices
31
1000 044 012
Washer, Rubber 2 Req'D Log in to see
prices
32
1000 047 016
Washer 2 Req'D Log in to see
prices
33
1900 149 001
Nut, Output 2 Req'D Log in to see
prices
34
1354 122 002
Shift Shaft Log in to see
prices
35
1350 053 002
Spacer, Shaft 1995-97 Assy# 4405-007,008 Log in to see
prices
36
1350 156 008
Spring Log in to see
prices
37
4405 099 009
Cam, Shift 1995-97 Assy# 4405-007,008 Log in to see
prices
37
4405 099 013
Cam, Shift Assy# 4405-010,011,012 Log in to see
prices
37
4405 099 014
Cam, Shift Assy# 4405-010,011,012 Log in to see
prices
38
6206
Bearing, Front Output Can Use 1000 130 008 Log in to see
prices
39
1300 127 002
Sleeve (Self Lube) Log in to see
prices
40
3687
Seal, Shift Shaft Can Use 1300 044 001 Log in to see
prices
41
4405 648 006
Assy, Shift Motor Log in to see
prices
Ni
1900 056 001
J-Clips 2 Req'D Log in to see
prices
Ni
1900 183 012
Bolts, Shift Motor Mount 3 Req'D Log in to see
prices
42
4400 640 043
Sensor, Upper Speed Log in to see
prices
43
1900 056 003
Retainer, Connector Log in to see
prices
44
4400 640 007
Sensor, Lower Speed Log in to see
prices
45
1900 146 004
Stud 4 Req'D Log in to see
prices
46
16485
Seal, Input Can Use 1900 044 009 Log in to see
prices
47
1900 072 005
Breather Log in to see
prices
48
1900 043 008
Dowel Pin Log in to see
prices
49
1354 162 001
Gear, Planetary Ring Log in to see
prices
50
1900 139 026
Ring, Retaining Log in to see
prices
51
1900 139 034
Ring, Retaining Log in to see
prices
52
1000 012 002
Magnet Log in to see
prices
53
1300 531 005
Assy, Front Output Yoke Log in to see
prices
53A
1300 031 005
Yoke, Front Output Assy #4405-007 Log in to see
prices
53B
1350 035 002
Deflector Log in to see
prices
54
4405 565 007
Assy, Front Case Half 1995-96 Assy# 4405-007 Log in to see
prices
54
4405 565 009
Assy, Front Case Half 1997-98 Assy# 4405-008,010 Log in to see
prices
54
4405 565 008
Assy, Front Case Half 1998-99 Assy# 4405-011,012 Log in to see
prices
54A
4405 065 008
Case, Front Half Assy# 4405-007,008,010 Log in to see
prices
54A
4405 065 010
Case, Front Half Assy# 4405-011,012 Log in to see
prices
54B
6207
Bearing, Front Output All Exc. Below Can Use 1900 130 010 Log in to see
prices
54B
6306
Bearing, Front Output Assy# 4405-007 Can Use 1345 130 001 Log in to see
prices
54C
16485
Seal, Front Output Can Use 1900 044 009 Log in to see
prices
54D
1900 043 008
Dowel Pin 2 Req'D Log in to see
prices
55
4405 671 006
Assy, Front Output Shaft Assy# 4405-008,010,011 Log in to see
prices
55
4405 671 007
Assy, Front Output Shaft Assy# 4405-012 Log in to see
prices
55
4405 171 001
Shaft, Output Assy# 4405-007 Log in to see
prices
56
4405 144 006
Sprocket, Chain Driven All Exc. Below Log in to see
prices
56
4405 144 008
Sprocket, Chain Driven 1.00" Chain Assy# 4405-012 Log in to see
prices
57
4405 151 005
Wheel, Lower Tone Log in to see
prices
58
HV051
Chain 1.25" Wide Up To 97 Log in to see
prices
58
440-143-014
Chain 1.00" Wide 1998-Up Assy# 4405-012 Log in to see
prices
Ni
TC4405
Kit, Bearing & Seal Log in to see
prices
Ni
SK4405
Kit, Seal & Gasket Log in to see
prices
Ni
SP4405-50
Kit, Small Parts Log in to see
prices

Specifications

  Product NameBW 4405 (1995-98 Ford Explorer & Ranger w/ 4.0L Electric Shift)
  Brand NameBorg Warner
