Home » LD Transfer Case » Borg Warner

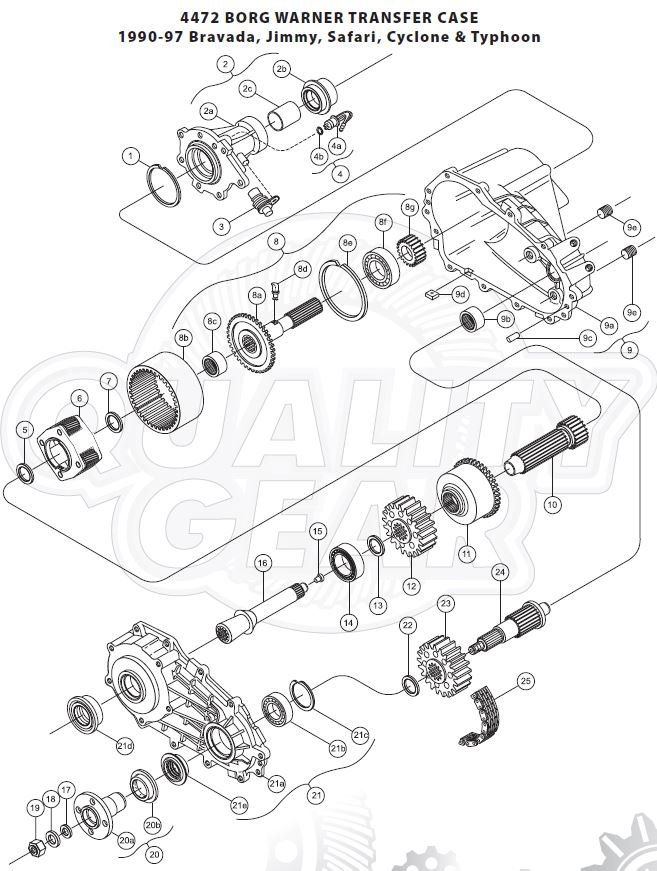

BW 4472 (1990-97 Bravada, Jimmy, Safari, Cyclone, & Typhoon) Borg Warner BW4472
View Larger

BW 4472 (1990-97 Bravada, Jimmy, Safari, Cyclone, & Typhoon)


See Below  ▼ Borg Warner
More Products from Borg Warner
  Share

Overview

BW 4472 (1990-97 Bravada, Jimmy, Safari, Cyclone, & Typhoon)
Item No. Part Number Name Notes Price Buy
1
1900 139 003
 Ring, Retaining Log in to see
prices
2
4472 566 001
 Assy, Extension Housing All Exc. Below Log in to see
prices
2
1372 566 001
 Assy, Extension Housing Assy# 4472-004 Log in to see
prices
2
4472 566 002
 Assy, Extension Housing Assy# 4472-001, 007, 009, 011 Log in to see
prices
2a
4472 066 001
 Housing, Extension All exc. below Log in to see
prices
2A
1372 066 001
 Housing, Extension Assy# 4472-004 Log in to see
prices
2A
4472 066 002
 Housing, Extension Assy# 4472-001, 007, 009, 011 Log in to see
prices
2b
18687
 Seal, Extension Housing All exc. below -Can use 1300 044 014 Log in to see
prices
2B
15041
 Seal, Extension Housing Can use 1300 044 013 Assy# 4472-001, 004, 007, 009, 011 Log in to see
prices
2c
1356 127 001
 Bushing, Extension Housing All exc. below Log in to see
prices
2C
1300 127 007
 Bushing, Extension Housing Assy# 4472-001, 004, 007, 009, 011 Log in to see
prices
NI
1900 183 010
 Bolt, Extension Housing 7 Req'd-All exc. below Log in to see
prices
Ni
1900 183 010
 Bolt, Extension Housing 6 Req'd-Assy# 4472-010, 012, 013 Log in to see
prices
3
1370 640 001
 Sensor, Speed Log in to see
prices
NI
11503080
 Bolt, Speed Sensor Log in to see
prices
4
1900 572 003
 Assy, Breather & O-Ring Log in to see
prices
4A
1900 072 003
 Breather Log in to see
prices
4B
1000 141 014
 O-Ring, Breather Log in to see
prices
5
1900 193 005
 Washer, Thrust Log in to see
prices
6
4472 659 003
 Assy, Planetary Carrier Log in to see
prices
NI
4472 659 001
 Carrier, Planetary Log in to see
prices
Ni
4472 163 001
 Gear, Pinion 4 Req'd Log in to see
prices
Ni
1900 193 001
 Washer, Thrust 8 Req'd Log in to see
prices
Ni
1900 042 002
 Shaft, Pinion 4 Req'd Log in to see
prices
7
1900 193 006
 Washer, Thrust 4 Req'D Log in to see
prices
8
4472 671 002
 Assy, Output Shaft All exc. below Log in to see
prices
8
1372 671 003
 Assy, Output Shaft Assy# 4472-001, 004, 007, 009, 011 Log in to see
prices
8A
4472 171 002
 Shaft, Output All exc. below Log in to see
prices
8A
1372 171 003
 Shaft, Output Assy# 4472-001, 004, 007, 009, 011 Log in to see
prices
8B
1372 162 001
 Gear, Planetary Ring Log in to see
prices
8C
BH1310
 Bearing, Needle Log in to see
prices
8D
1900 034 001
 Scoop, Oil Log in to see
prices
8E
1900 139 001
 Ring, Retaining Log in to see
prices
8F
6208ZNBR
 Bearing, Rear Output Can use 1900 130 001 Log in to see
prices
8G
1370 110 002
 Rotor, Speedo Log in to see
prices
9
1372 565 001
 Assy, Rear Case Half Log in to see
prices
9A
1372 065 001
 Case, Rear Half Log in to see
prices
9B
JH1612
 Bearing, Frt. Output Rear Can use 1900 132 007 Log in to see
prices
9C
1300 043 005
 Pin, Dowel 2 Req'd Log in to see
prices
9D
1000 012 002
 Magnet Log in to see
prices
9E
1900 052 008
 Plug, Drain/Fill 2 Req'd Log in to see
prices
10
4472 665 001
 Assy, Sun Gear Log in to see
prices
NI
4472 165 001
 Gear, Planetary Sun Log in to see
prices
NI
1900 127 004
 Bushing Log in to see
prices
11
1372 625 001
 Coupling, Viscous Log in to see
prices
12
1372 144 001
 Sprocket, Drive Log in to see
prices
13
1900 053 001
 Spacer Log in to see
prices
14
6009
 Bearing, Input Can use 1900 130 002 Log in to see
prices
15
1352 034 002
 Tube, Lubricating Log in to see
prices
16
4472 189 001
 Shaft, Input Log in to see
prices
17
1900 044 002
 Ring, Sealing Log in to see
prices
18
1000 047 016
 Washer Log in to see
prices
19
1900 149 001
 Nut, Yoke Log in to see
prices
20
4472 531 001
 Assy, Front Output Flange All exc. below Log in to see
prices
20
4472 531 002
 Assy, Front Output Flange Assy# 4472-007, 008, 010, 012, 013 Log in to see
prices
20A
4472 031 001
 Flange, Front Output All exc. below Log in to see
prices
20A
4472 031 002
 Flange, Front Output Assy# 4472-007, 008, 010, 012, 013 Log in to see
prices
20B
1300 035 001
 Deflector Log in to see
prices
21
4472 539 001
 Assy, Front Case Half All exc. below Log in to see
prices
21
4472 539 003
 Assy, Front Case Half Assy# 4472-011 - 013 Log in to see
prices
21A
4472 039 001
 Case, Front Half All exc. below Log in to see
prices
21A
4472 039 003
 Case, Front Half Assy# 4472-011 - 013 Log in to see
prices
21B
6207
 Bearing, Front Output Can use 1345 130 001 Log in to see
prices
21C
1900 139 007
 Ring, Retaining Log in to see
prices
21D
17502
 Seal, Input Can use 1000 044 054 Log in to see
prices
21E
18994
 Seal, Front Output Can use 1300 044 009 Log in to see
prices
NI
1900 127 003
 Bushing, Front Case Log in to see
prices
22
1372 053 002
 Space Log in to see
prices
23
1372 144 002
 Sprocket, Driven Log in to see
prices
24
4472 171 001
 Shaft, Output Log in to see
prices
25
--
 Chain 1.75" wide All exc. below Log in to see
prices
25
4472 143 001
 Chain 1.75" wide 1.75" wide Assy# 4472-007, 009, 011 Log in to see
prices
NI
1900 183 010
 Bolt, Case 11 Req'd-Assy# 4472-001, 007, 009, 011 Log in to see
prices
Ni
1900 183 010
 Bolt, Case 10 Req'd-Assy# 4472-013 Log in to see
prices
Ni
1900 183 010
 Bolt, Case 9 Req'd-Assy# 4472-004 - 006, 008 Log in to see
prices
Ni
1900 183 010
 Bolt, Case 8 Req'd-Assy# 4472-010, 012 Log in to see
prices
Ni
1900 146 001
 Stud 2 Req'd-Assy# 4472-010, 012, 013 Log in to see
prices
Ni
4472 185 002
 Bracket Assy# 4472-004-006, 008, 010, 012 Log in to see
prices
Ni
1900 183 004
 Bolt 2 Req'd-Assy# 4472-004-006, 008, 010, 012 Log in to see
prices
Ni
TC1372XJ
 Kit, Bearing & Seal Log in to see
prices
Ni
SK1372XJ
 Kit, Seal & Gasket Log in to see
prices
Ni
SP1372-50
 Kit, Small Parts Log in to see
prices

Specifications

  Product NameBW 4472 (1990-97 Bravada, Jimmy, Safari, Cyclone, & Typhoon)
  Brand NameBorg Warner

Documents

BW - 4472.pdf
