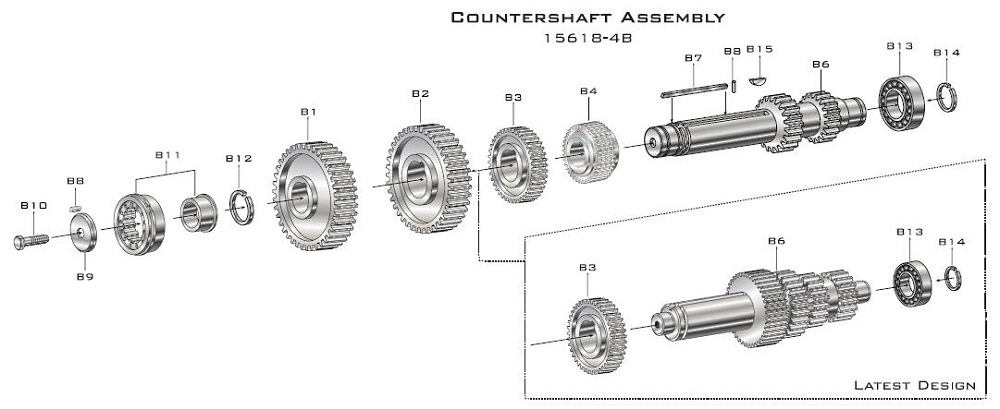

Countershaft Assy

Overview

Countershaft Assy

Item No.	Part Number	Name	Kit/Assys	Replaced Parts	Notes	Qty	Price	Buy
B1	FUL 21586	Drive Gear-Cntrshft		22271		2	Log in to see prices
B2	FUL 15953	Pto Gear - Lower				1	Log in to see prices
B2	FUL 16390	No Longer Available			OPTIONAL IF PTO GEARS ARE NOT USED	2	Log in to see prices
B2	FUL 20840	Pto Gear - Upper		15952		1	Log in to see prices
B3	FUL 21588	3Rd Gear-Cntrshft				1	Log in to see prices
B4	FUL 21590	2Nd Gear-Cntrshft			THIS GEAR IS STILL AVAILABLE IF USED WITH THE EXISTING 21592 COUNTERSHAFT, BUT IF THE COUNTERSHAFT NEEDS TO BE REPLACED THEN THIS GEAR WILL BE PROVIDED WITH THE A-5746 C/S ASSY (SEE LATEST DESIGN), ALL KEYS AND PINS WILL ALSO BE PROVIDED WITH THE C/S ASSY	2	Log in to see prices
B6	FUL A-6689	Cntrshft W/1St & 2Nd		A - 5746 ,A - 5873 ,K - 2939 ,K - 2968		2	Log in to see prices
B7	FUL 21596	Key				2	Log in to see prices
B8	FUL 62511	Roll Pin	A-6340, A-6689, K-2433			4	Log in to see prices
B9	FUL 4304605	Retainer		19548	ROLL PIN NO LONGER REQUIRED	2	Log in to see prices
B10	FUL X-7-1005	Capscrew			5/8"-18X1-3/4"	2	Log in to see prices
B11	FUL 4304599	Bearing	K-2994, K-2997	4302677 4304598		2	Log in to see prices
B12	FUL 19198	Snap Ring				2	Log in to see prices
B13	FUL 4303031	Bearing	K-2994, K-2997	14366		2	Log in to see prices
B14	FUL 14317	Snap Ring	K-2433, K-2994, K-2997			2	Log in to see prices
B15	FUL X-6	Key				2	Log in to see prices
