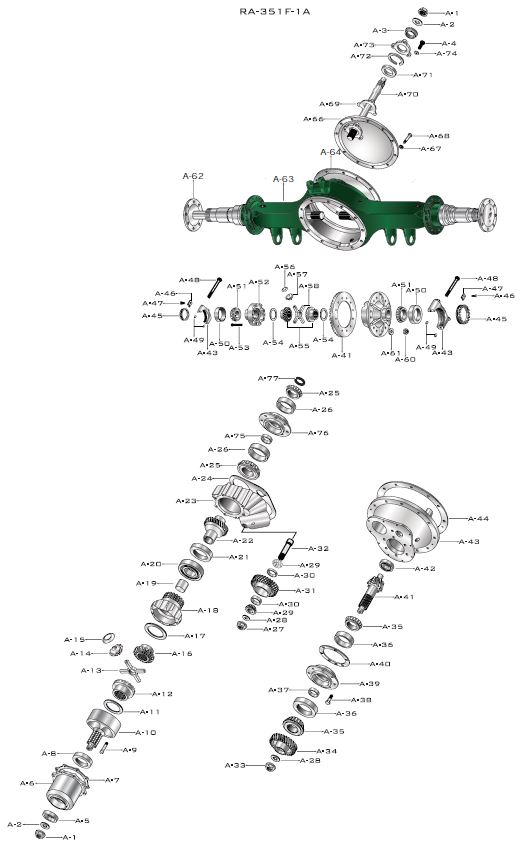

Item No. |
Part Number |
Name | Qty | Price |
Buy |
|
1 |
95205QG
|
Nut, Companion Flg
| 2 | Log in to see prices |
|
|
2 |
214757R2
|
Washer, Companion Flg Nut
| 2 | Log in to see prices |
|
|
3 |
NAT 415013N
|
Seal, Output Shaft Oil
| 1 | Log in to see prices |
|
|
4 |
26310R1
|
Bolt, Ret To Cover
| 4 | Log in to see prices |
|
|
5 |
NAT 415147N
|
Seal, Inter Diff. Hsg Oil
| 1 | Log in to see prices |
|
|
6 |
474015C1
|
Housing Inter Diff.
| 1 | Log in to see prices |
|
|
6 |
583164C1
|
Screw, 12 Pt Hsg To Case
| 8 | Log in to see prices |
|
|
6 |
586045C1
|
Plug, Pipe Sq Socket 3/8
| 2 | Log in to see prices |
|
|
7 |
474517C2
|
Gasket, Eliminator 50Cc Tube
| 1 | Log in to see prices |
|
|
8 |
ST679
|
Bearing, Inter Diff. Frt
| 1 | Log in to see prices |
|
|
8 |
227331R1
|
Shim, Input Brg .005 In. Thk
| A.R. | Log in to see prices |
|
|
8 |
227332R1
|
Shim, Input Brg .010 In. Thk
| AR | Log in to see prices |
|
|
9 |
227327R1
|
Bolt, Inter Diff. Spider Fwd Half
| 8 | Log in to see prices |
|
|
11 |
612686R1
|
Washer, Frt Side Gear Thrust
| 1 | Log in to see prices |
|
|
11 |
463346C1
|
Bearing, Frt Side Gear Thrust
| 1 | Log in to see prices |
|
|
12 |
417854C1
|
Gear Inter Diff. Frt Side
| 1 | Log in to see prices |
|
|
13 |
436830C2
|
Spider, Inter Diff.
| 1 | Log in to see prices |
|
|
14 |
436831C1
|
Gear, Inter Diff. Pinion
| 4 | Log in to see prices |
|
|
15 |
88015H
|
Washer, Pinion Thrust
| 4 | Log in to see prices |
|
|
16 |
441143C1
|
Gear, Inter Diff. Rear Side
| 1 | Log in to see prices |
|
|
17 |
227279R1
|
Washer, Rear Side Gear Thrust
| 1 | Log in to see prices |
|
|
19 |
243496R1
|
Bushing, Inter Diff. Case
| 1 | Log in to see prices |
|
|
20 |
SKF 122SL
|
Bearing, Input Shaft Rear
| 1 | Log in to see prices |
|
|
21 |
227283R3
|
Ring, Diff. Clutch
| 1 | Log in to see prices |
|
|
22 |
487526C91
|
Gear, Input Dr
| 1 | Log in to see prices |
|
|
23 |
474018C1
|
Case, Inter Diff. Carrier
| 1 | Log in to see prices |
|
|
23 |
583164C1
|
Screw, Flg 12 Pt 1/2 X 1-1/4 In
| 11 | Log in to see prices |
|
|
23 |
20126R1
|
Pin, Shift Fork
| 1 | Log in to see prices |
|
|
23 |
17158R1
|
Pin, Slt
| 1 | Log in to see prices |
|
|
23 |
586049C1
|
Plug, Pipe Sq-Socket 3/4 In. Drain
| 1 | Log in to see prices |
|
|
25 |
KOY L610549
|
Bearing, Cone Input Gear 2 Rear
| 2 | Log in to see prices |
|
|
26 |
NTN L610510
|
Components-32./ Bearing, Cup Input Gear Rear
| 2 | Log in to see prices |
|
|
27 |
19392R1
|
Nut, Idler Shft Stop 1-1/8Nf
| 1 | Log in to see prices |
|
|
28 |
227271R1
|
Washer - Idler Shft
| 1 | Log in to see prices |
|
|
28 |
214757R2
|
Washer - Dr Pinion Thrust
| 1 | Log in to see prices |
|
|
29 |
KOY 25877
|
36./ Bearing, Cone Idler Gear
| 2 | Log in to see prices |
|
|
30 |
KOY 25821
|
Bearing, Cup Idler Gear
| 2 | Log in to see prices |
|
|
31 |
487524C91
|
Gear, W/Cup, Idler
| 1 | Log in to see prices |
|
|
31 |
227420R2
|
Spacer, Idler Gear Brg .395 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
329579C2
|
Spacer, Idler Gear Brg .975 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
329580C2
|
Spacer, Idler Gear Brg .980 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227415R2
|
Spacer, Idler Gear Brg .985 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
329581C2
|
Spacer, Idler Gear Brg .990 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227416R2
|
Spacer, Idler Gear Brg .995 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227417R2
|
Spacer, Idler Gear Brg 1.000 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227418R2
|
Spacer, Idler Gear Brg 1.005 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227419R2
|
Spacer, Idler Gear Brg 1.010 In. Thk
| A.R. | Log in to see prices |
|
|
31 |
227414R2
|
Spacer, Idler Gear Brg 1.015 In. Thk
| A.R. | Log in to see prices |
|
|
32 |
227351R1
|
Shaft, Idler Gear
| 1 | Log in to see prices |
|
|
33 |
83799QG
|
Nut, Dr Pinion
| 1 | Log in to see prices |
|
|
33 |
19415R1
|
Pin, Roll
| 1 | Log in to see prices |
|
|
34 |
487536C1
|
Gear, Pinion Shft Dr
| 1 | Log in to see prices |
|
|
35 |
KOY 72225C
|
Bearing, Cone Pinion
| 2 | Log in to see prices |
|
|
36 |
KOY 72487
|
Bearing, Cup Pinion
| 2 | Log in to see prices |
|
|
37 |
360453C1
|
Spacer, Pinion Brg .718 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
360457C1
|
Spacer, Pinion Brg .722 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
360461C1
|
Spacer, Pinion Brg .726 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
360465C1
|
Spacer, Pinion Brg .730 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
360469C1
|
Spacer, Pinion Brg .734 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
393975C1
|
Spacer, Pinion Brg .738 In. Thk
| A.R. | Log in to see prices |
|
|
37 |
393979C1
|
Spacer, Pinion Brg .742 In. Thk
| A.R. | Log in to see prices |
|
|
38 |
1691152C1
|
Bolt, Pinion Brg Cage
| 6 | Log in to see prices |
|
|
39 |
359358C11
|
Cage, W/Cups Brg
| 1 | Log in to see prices |
|
|
40 |
255751C1
|
Shim, Pinion Brg Cage .003 In. Thk
| A.R. | Log in to see prices |
|
|
40 |
255751C1
|
Shim, Pinion Brg Cage .005 In. Thk
| A.R. | Log in to see prices |
|
|
40 |
227354R1
|
Shim, Pinion Brg Cage .010 In. Thk
| A.R. | Log in to see prices |
|
|
40 |
227354R1
|
Shim, Pinion Brg Cage .030 In. Thk
| A.R. | Log in to see prices |
|
|
41 |
597237C91
|
Gear Set, Ring And Pinion 3.73-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597238C91
|
Gear Set, Ring And Pinion 3.91-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597239C91
|
Gear Set, Ring And Pinion 4.10-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597240C91
|
Gear Set, Ring And Pinion 4.44-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597241C91
|
Gear Set, Ring And Pinion 4.78-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597242C91
|
Gear Set, Ring And Pinion 5.37-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597243C91
|
Gear Set, Ring And Pinion 6.14-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597244C91
|
Gear Set, Ring And Pinion 6.57-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597245C91
|
Gear Set, Ring And Pinion 7.17-1 Ratio
| 1 | Log in to see prices |
|
|
41 |
597246C91
|
Gear Set, Ring And Pinion 8.17-1 Ratio
| 1 | Log in to see prices |
|
|
42 |
NTN MU1307TM
|
Bearing, Pinion Pilot Roller
| 1 | Log in to see prices |
|
|
43 |
474020C92
|
Carrier, W/Caps Diff.
| 1 | Log in to see prices |
|
|
43 |
1691150C1
|
Bolt, Carr To Hsg
| 12 | Log in to see prices |
|
|
43 |
181701
|
Bolt, Hex-Hd 1/2Nf X 1-5/8 In.
| 2 | Log in to see prices |
|
|
43 |
124934
|
Nut, Hex Jam 1/2Nf
| 2 | Log in to see prices |
|
|
43 |
5/8 R
|
Washer, Fl 5/8 In.
| 12 | Log in to see prices |
|
|
44 |
161026R3
|
Gasket, Eliminator 50Cc Tube
| 1 | Log in to see prices |
|
|
45 |
69208R1
|
Adjuster, Diff. Brg
| 2 | Log in to see prices |
|
|
46 |
3/16 X 1 P
|
Pin, Cotter 3/16 X 1 In.
| 2 | Log in to see prices |
|
|
47 |
157491R2
|
Lock, Diff. Brg Adj
| 2 | Log in to see prices |
|
|
48 |
24895R1
|
Bolt, Diff. Brg Cap
| 4 | Log in to see prices |
|
|
48 |
25712R1
|
Washer, Diff. Brg Cap Bolt
| 4 | Log in to see prices |
|
|
50 |
KOY 47820
|
Bearing, Cup Diff.
| 2 | Log in to see prices |
|
|
51 |
KOY 47890
|
Bearing, Cone Diff
| 2 | Log in to see prices |
|
|
52 |
864358R2
|
Case, Diff. Pl Half
| 1 | Log in to see prices |
|
|
53 |
1691256C1
|
Bolt, Diff. Case 3.73 Thru 4.44-1 Ratio
| 8 | Log in to see prices |
|
|
53 |
1691255C1
|
Bolt, Diff. Case 4.78 Thru 8.17-1 Ratio
| 8 | Log in to see prices |
|
|
54 |
157494R1
|
Washer, Diff. Side Gear Thrust
| 2 | Log in to see prices |
|
|
55 |
161027R2
|
Gear, Diff. Side - 16 Spl.
| 2 | Log in to see prices |
|
|
55 |
571357C1
|
Gear, Diff. Side - 39 Spl.
| 2 | Log in to see prices |
|
|
56 |
864360R1
|
Washer, Diff. Pinion Thrust
| 4 | Log in to see prices |
|
|
57 |
864357R2
|
Gear, Diff. Pinion
| 4 | Log in to see prices |
|
|
58 |
864356R2
|
Spider, Diff.
| 1 | Log in to see prices |
|
|
59 |
505756C1
|
Case, Diff. Flg Half 3.73 Thru 4.44-1 Ratio
| 1 | Log in to see prices |
|
|
59 |
505757C1
|
Case, Diff. Flg Half 4.78 Thru 8.17-1 Ratio
| 1 | Log in to see prices |
|
|
60 |
157490R1
|
Rivet, Ring Gear To Diff. Case
| 12 | Log in to see prices |
|
|
61 |
27293R1
|
Nut, Diff. Case Bolt
| 8 | Log in to see prices |
|
|
62 |
109389R1
|
Shaft, Axle 2 In. X 16 Splines
| 1 | Log in to see prices |
|
|
62 |
2502179C1
|
39 Splines Automated Axle Shaft
| 1 | Log in to see prices |
|
|
62 |
144423H
|
Nut, Hex Lk 5/8Nf
| 16 | Log in to see prices |
|
|
62 |
895478R2
|
Gasket, Axle Shaft Flg
| 2 | Log in to see prices |
|
|
63 |
595573C1
|
Hend Susp
| 1 | Log in to see prices |
|
|
63 |
595574C1
|
4-Spg And Reyco
| 1 | Log in to see prices |
|
|
63 |
595575C1
|
Air Plug
| 1 | Log in to see prices |
|
|
63 |
586049C1
|
Magnetic Drain
| 1 | Log in to see prices |
|
|
63 |
586048C1
|
Temp Sender Hole
| 1 | Log in to see prices |
|
|
63 |
FUL 7935
|
Breather, Axle Hsg Vent 1/8 In.
| 1 | Log in to see prices |
|
|
63 |
91916R91
|
Breather, Axle Hsg Vent 3/8 In.
| 1 | Log in to see prices |
|
|
64 |
474517C2
|
Gasket, Eliminator 50Cc Tube
| 1 | Log in to see prices |
|
|
69 |
474517C2
|
Gasket, Eliminator 50Cc Tube
| 1 | Log in to see prices |
|
|
70 |
227334R2
|
Shaft, Output
| 1 | Log in to see prices |
|
|
71 |
SKF 210
|
Bearing, Output Shaft
| 1 | Log in to see prices |
|
|
72 |
660433R1
|
Ring, Brg Ret Snap
| 1 | Log in to see prices |
|
|
73 |
332678C2
|
Retainer, Output Shft Brg
| 1 | Log in to see prices |
|
|
74 |
25709R1
|
Washer, Fl 3/8 In.
| 4 | Log in to see prices |
|
|
75 |
344639C1
|
Spacer, Brg .185 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
344643C1
|
Spacer, Brg .189 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
344655C1
|
Spacer, Brg .201 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
344649C1
|
Spacer, Brg .195 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
344661C1
|
Spacer, Brg .207 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
366347C1
|
Spacer, Brg .213 In. Thk
| A.R. | Log in to see prices |
|
|
75 |
366350C1
|
Spacer, Brg .219 In. Thk
| A.R. | Log in to see prices |
|
|
76 |
344618C21
|
Retainer, W/Cups Rear Input Gear Brg
| 1 | Log in to see prices |
|
|
76 |
24840R1
|
Bolt, Brg Ret
| 5 | Log in to see prices |
|
|
77 |
388355C1
|
Nut, Input Gear Brg Ret
| 1 | Log in to see prices |
|
|
77 |
468082C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 3.73-1 Ratio
| | Log in to see prices |
|
|
77 |
493852C92
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 3.91-1 Ratio
| | Log in to see prices |
|
|
77 |
468083C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 4.10-1 Ratio
| | Log in to see prices |
|
|
77 |
468084C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 4.44-1 Ratio
| | Log in to see prices |
|
|
77 |
468085C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 4.78-1 Ratio
| | Log in to see prices |
|
|
77 |
468086C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 5.37-1 Ratio
| | Log in to see prices |
|
|
77 |
468087C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 6.14-1 Ratio
| | Log in to see prices |
|
|
77 |
468088C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 6.57-1 Ratio
| | Log in to see prices |
|
|
77 |
468089C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 7.17-1 Ratio
| | Log in to see prices |
|
|
77 |
468090C97
|
Differential, Std 2 In. X 16 Splines Pre-Automated Axle Shaft 8.17-1 Ratio
| | Log in to see prices |
|
|
77 |
572236C91
|
2 In. X 39 Splines Automated Axle Shaft 3.73-1 Ratio
| | Log in to see prices |
|
|
77 |
572237C91
|
2 In. X 39 Splines Automated Axle Shaft 3.91-1 Ratio
| | Log in to see prices |
|
|
77 |
572238C91
|
2 In. X 39 Splines Automated Axle Shaft 4.10-1 Ratio
| | Log in to see prices |
|
|
77 |
572239C91
|
2 In. X 39 Splines Automated Axle Shaft 4.44-1 Ratio
| | Log in to see prices |
|
|
77 |
572240C91
|
2 In. X 39 Splines Automated Axle Shaft 4.78-1 Ratio
| | Log in to see prices |
|
|
77 |
572241C91
|
2 In. X 39 Splines Automated Axle Shaft 5.37-1 Ratio
| | Log in to see prices |
|
|
77 |
572242C91
|
2 In. X 39 Splines Automated Axle Shaft 6.14-1 Ratio
| | Log in to see prices |
|
|
77 |
572243C91
|
2 In X 39 Splines Automated Axle Shaft 6.57-1 Ratio
| | Log in to see prices |
|
|
77 |
572244C91
|
2 In. X 39 Splines Automated Axle Shaft 7.17-1 Ratio
| | Log in to see prices |
|
|
77 |
572245C91
|
2 In. X 39 Splines Automated Axle Shaft 8.17-1 Ratio
| | Log in to see prices |
|
|
|
