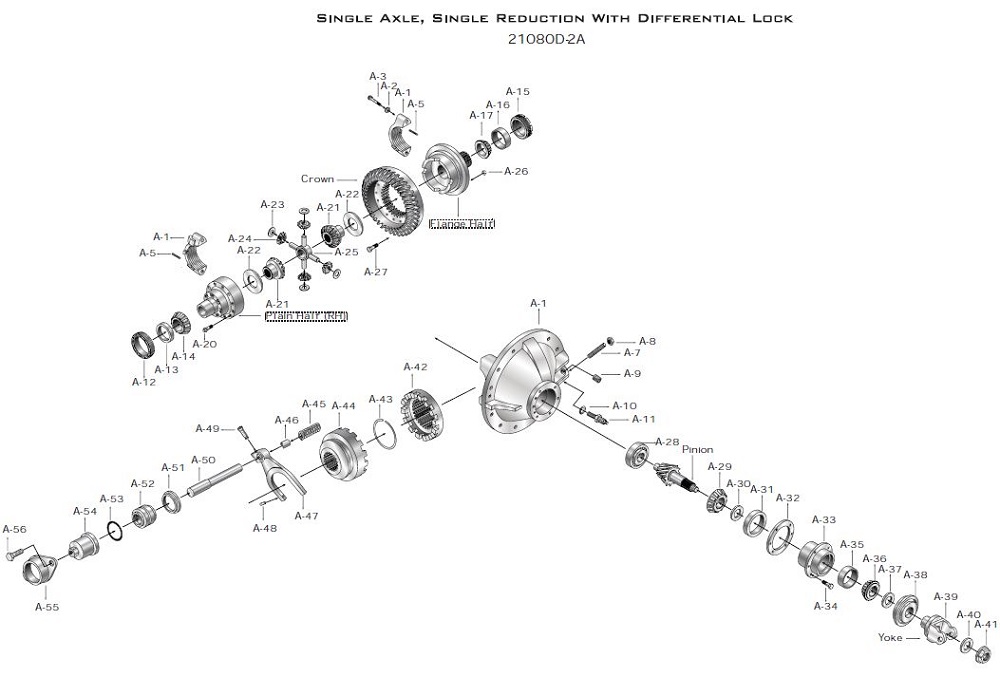

Single Axle-Single Reduction Eaton-Spicer 21080D-24
View Larger

Single Axle-Single Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Single Axle-Single Reduction
Item No. Part Number Name Qty Price Buy
213744
Basic Overhaul Kit 1 Log in to see
prices
A-1
210701
Diff. Carrier & Bearing Caps 1 Log in to see
prices
210697
Carrier Casting No. (Nss) 1 Log in to see
prices
A-2
210288
Flat Washer 4 Log in to see
prices
A-3
210095
Bearing Cap Screw 4 Log in to see
prices
A-5
90873
Cotter Pin - Rh 1 Log in to see
prices
A-5
210464
Cotter Pin - Lh 1 Log in to see
prices
A-7
126193
Ring Gear Thrust Screw 1 Log in to see
prices
A-8
210184
Thrust Screw Jam Nut 1 Log in to see
prices
A-9
90325
Pipe Plug 1 Log in to see
prices
A-10
126618
Washer 1 Log in to see
prices
A-11
129035
Switch 1 Log in to see
prices
A-12
210179
Diff. Bearing Adjuster - Rh 1 Log in to see
prices
A-13
KOY 493
Diff. Bearing Cup - Rh 1 Log in to see
prices
A-14
KOY 497
Diff. Bearing Cone - Rh 1 Log in to see
prices
A-15
210286
Diff. Bearing Adjuster - Lh 1 Log in to see
prices
A-16
NTN 592A
Diff. Bearing Cup - Lh 1 Log in to see
prices
A-17
TIM 598
Diff. Bearing Cone - Lh 1 Log in to see
prices
212007
Wheel Diff. Case Kit 3.08 - 3.70 Log in to see
prices
212008
Wheel Diff. Case Kit 3.90 - 4.33 Log in to see
prices
A-18
126858
Diff. Case (Flange Half) (Nss) 3.08 - 3.70 Log in to see
prices
A-18
126859
Diff. Case (Flange Half) (Nss) 3.90 - 4.33 Log in to see
prices
A-19
210507
Diff. Case (Plain Half) (Nss) 1 Log in to see
prices
A-20
210513
Diff. Case Cap Screw 12 Log in to see
prices
119393QG
Wheel Diff. Kit 1 Log in to see
prices
A-21
108142
Side Pinion 4 Log in to see
prices
A-22
108145QG
Side Pinion Thrust Washer 4 Log in to see
prices
121790
Ring Gear Bolt & Nut Kit 1 Log in to see
prices
A-23
108141QG
Spider 1 Log in to see
prices
121786
Wheel Diff. Less Side Gear Kit 1 Log in to see
prices
A-24
118959
Diff. Side Gear 36 Involute Splines 2 Log in to see
prices
A-25
83726QG
Side Gear Thrust Washer 2 Log in to see
prices
A-26
126215
Nut 16 Log in to see
prices
A-27
126221
Bolt 16 Log in to see
prices
A-28
129947E
Pinion Pilot Bearing 1 Log in to see
prices
A-29
126286
Pinion Bearing Cone (Inner) 1 Log in to see
prices
A-31
126287
Pinion Bearing Cup (Inner) 1 Log in to see
prices
A-32
113876
Pinion Bearing Cage Shims 0.003" Log in to see
prices
A-32
113877
Pinion Bearing Cage Shims 0.005" Log in to see
prices
A-32
113878
Pinion Bearing Cage Shims 0.010" Log in to see
prices
A-32
113879
Pinion Bearing Cage Shims 0.020" Log in to see
prices
A-32
113880
Pinion Bearing Cage Shims .030" Log in to see
prices
127843
Pinion Bearing Cage & Cup Assy 1 Log in to see
prices
A-33
127844
Cage (Nss) 1 Log in to see
prices
A-34
210094
Bearing Cage Cap Screw 6 Log in to see
prices
A-35
KOY HM813810
Pinion Bearing Cup (Outer) 1 Log in to see
prices
A-36
NTN HM813841
Pinion Bearing Cone (Outer) 1 Log in to see
prices
A-38
210724
Pinion Oil Seal 1 Log in to see
prices
119796
Oil Seal & Shim Kit 1 Log in to see
prices
A-41
128049QG
Pinion Nut Flanged-Locknut 1 Log in to see
prices
A-42
126841
Fixed Curvic Clutch 1 Log in to see
prices
A-43
129433
Fixed Curvic Clutch Snap Ring 1 Log in to see
prices
A-44
127211
Sliding Curvic Clutch 1 Log in to see
prices
A-45
31038
Compression Spring 1 Log in to see
prices
A-46
210279
Switch Actuator 1 Log in to see
prices
A-47
126842
Shift Fork (Nss) 1 Log in to see
prices
219456
Shift Fork Sub-Assembly Incl. 47, 48 & 49 1 Log in to see
prices
A-48
210020
Shift Fork Spring Pin 1 Log in to see
prices
A-49
210191
Shift Fork Cap Screw 1 Log in to see
prices
A-50
210277
Push Rod 1 Log in to see
prices
A-51
210452
Shoulder Washer 1 Log in to see
prices
A-52
129290
Piston 1 Log in to see
prices
A-53
210180
O-Ring 1 Log in to see
prices
A-54
210640
Shift Cylinder Body 1 Log in to see
prices
126806
Diff. Lock Shift Cyl. Assy 1 Log in to see
prices
127675
Mounting Bracket (Nss) 1 Log in to see
prices
A-56
210182
Bracket Cap Screw 2 Log in to see
prices
A-61
107276
Gasket Compound Log in to see
prices

Specifications

  Product NameSingle Axle-Single Reduction
  Brand NameEaton-Spicer
