Two Speed Planetary Double Reduction Eaton-Spicer 22065P-1
View Larger

Two Speed Planetary Double Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

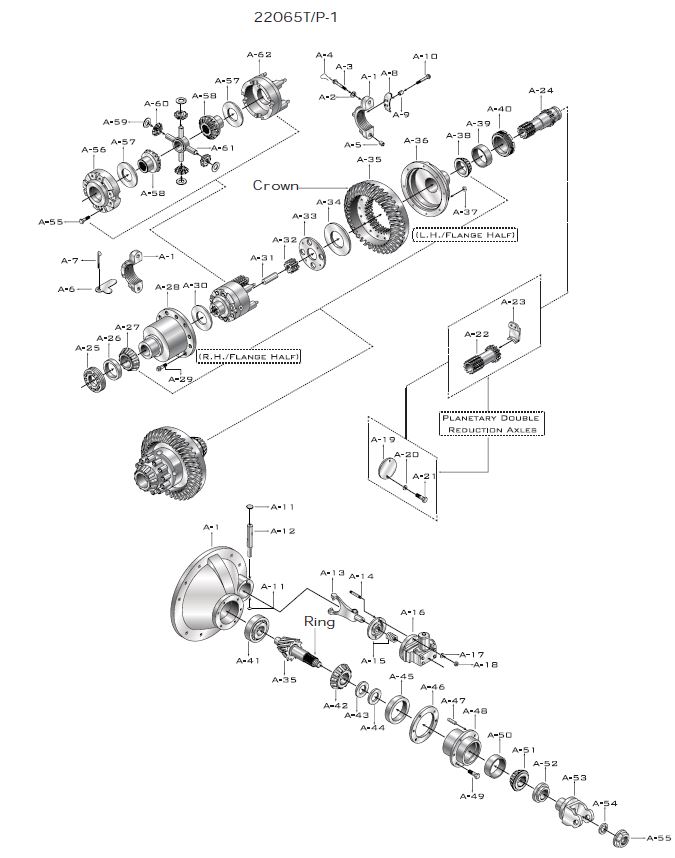

Two Speed Planetary Double Reduction
Item No. Part Number Name Qty Price Buy
*
110635
Kit - Basic Overhaul* 1 Log in to see
prices
A-1
109365
Kit- Diff Carrier & Bearing Caps 1 Log in to see
prices
A-1
107494
Carrier Sub-Assy 1 Log in to see
prices
A-2
32912
Flat Washer 4 Log in to see
prices
A-3
32732
Bearing Capscrew 4 Log in to see
prices
A-4
90538
Lockwire 4 Log in to see
prices
A-5
32730
Dowel Bushing 2 Log in to see
prices
A-6
13377
Bearing Adjuster Lock - Rh 1 Log in to see
prices
A-7
90873
Cotter Pin - Rh 1 Log in to see
prices
A-8
37745
Bearing Adjuster Lock - Lh 1 Log in to see
prices
A-9
37746
Dowel Bushing - Lh 2 Log in to see
prices
A-10
210601
Capscrew - Lh 2 Log in to see
prices
A-11*
30703
Expansion Plug - Upper* 1 Log in to see
prices
A-11*
9797
Expansion Plug - Lower* 1 Log in to see
prices
A-12
113801
Shift Fork Shaft Assy 1 Log in to see
prices
A-13
32613
Shift Fork Assy 1 Log in to see
prices
A-14
119863
Shift Form Mounting Stud 2 Log in to see
prices
A-15*
119855
Shift Fork Seal And Spring Assy* 1 Log in to see
prices
A-17
119857
Lockwasher 2 Log in to see
prices
A-18
63028
Stud Nut 2 Log in to see
prices
A-19
45521
Shift Unit Opening Cover-Metal 1 Log in to see
prices
A-20
90415
Lock Washer 2 Log in to see
prices
A-21
20807
Cap Screw 2 Log in to see
prices
A-22
113598
Sun Gear 1 Log in to see
prices
A-23
43178
Sun Gear Retainer 1 Log in to see
prices
A-25
110243
Diff. Bearing Adjuster - Rh 1 Log in to see
prices
A-26*
134301
Diff. Bearing Cup - Rh* 1 Log in to see
prices
A-27*
134300
Diff. Bearing Cone - Rh* 1 Log in to see
prices
A-28
110148QG
Gear Support Case - Rh 1 Log in to see
prices
A-29*
27827QG
Gear Support Thrust Washer - Rh* 1 Log in to see
prices
87955
Kit - Ring Gear Nut,Bolt & Washer 1 Log in to see
prices
A-30
44358
Bolt - Ring Gear 8 Log in to see
prices
A-31
60599
Nut - Ring Gear 8 Log in to see
prices
A-31A
129586
Washer 8 Log in to see
prices
A-32
27861
Idler Pinion Pin 4 Log in to see
prices
A-33
27835
Idler Pinion 4 Log in to see
prices
60608
Kit - Sliding Clutch Service Kit 1 Log in to see
prices
A-34
56931
High Speed Clutch Plate 1 Log in to see
prices
A-35*
43270QG
Gear Support Thrust Washer - Lh* 1 Log in to see
prices
A-36
113596
Sliding Clutch 1 Log in to see
prices
A-37
56932
Diff. Bearing Adjuster - Lh 1 Log in to see
prices
A-38*
027817
Diff. Bearing Cone - Lh* 1 Log in to see
prices
A-39*
027816
Diff. Bearing Cup - Lh* 1 Log in to see
prices
A-40
27838
Gear Support Case - Lh 1 Log in to see
prices
A-41*
830398
Pinion Pilot Bearing* 1 Log in to see
prices
A-42*
NTN 72200C
Pinion Bearing Cone - Inner* 1 Log in to see
prices
A-43
504016
Kit-Pinion Brg Spacer AR Log in to see
prices
A-44*
107567
Pinion Bearing Cage Shims 0.003"* 1 Log in to see
prices
A-44*
107568QG
Pinion Bearing Cage Shims 0.005"* 1 Log in to see
prices
A-44*
107569QG
Pinion Bearing Cage Shims 0.010"* 1 Log in to see
prices
A-44*
107570
Pinion Bearing Cage Shims 0.020"* 1 Log in to see
prices
A-45
133875
Pinion Bearing Cage & Cup Assy. - Standard 1 Log in to see
prices
A-45
133876
Parking Brake Models 1 Log in to see
prices
A-46*
129561
Pinion Bearing Cup - Inner* 1 Log in to see
prices
A-47*
012495
Pinon Bearing Cup - Outer* 1 Log in to see
prices
A-48*
012496
Pinion Bearing Cone - Outer* 1 Log in to see
prices
A-49
113325
Cap Screw 6 Log in to see
prices
114104
Kit - Oil Seal & Shim 1 Log in to see
prices
A-50*
127721
Oil Seal - Pinion* 1 Log in to see
prices
A-50A
119427
Oil Seal - Pinion 1 Log in to see
prices
A-52
127589QG
Pinion Nut 1 Log in to see
prices
101878
Kit - Wheel Diff Case 1 Log in to see
prices
A-53
96283
Diff. Case Capscrew 8 Log in to see
prices
A-54
96279
Diff Case - Rh - Nss 1 Log in to see
prices
A-55
101878
Diff. Case - Lh 4-Leg W/ Pin - 98182-Nss (Must Be Ordered As a Kit) 1 Log in to see
prices
114469
Kit - Wheel Diff Side Gear Kit 19055T 39 Inv Spline 1 Log in to see
prices
114470
Kit - Wheel Diff Side Gear Kit 21065T 41 Inv Spline 1 Log in to see
prices
118748
Kit - Wheel Diff Kit - Less Side Gear 1 Log in to see
prices
A-56
127386
Side Gear Thrust Washer 2 Log in to see
prices
A-57
110525
Diff. Side Gear - 39 Inv - 19055T 2 Log in to see
prices
A-57
110527
Diff. Side Gear - 41 Inv - 21,22, 23065T 2 Log in to see
prices
A-58*
27810QG
Side Pinion Thrust Washer* 4 Log in to see
prices
A-59
104139
Side Pinion 4 Log in to see
prices
A-60
128003
Spider 1 Log in to see
prices
A-61A
110829
No Spin Assembly - 39 Inv 1 Log in to see
prices
A-61B
110830
No Spin Assembly - 41 Inv 1 Log in to see
prices
A-62*
RTV 1473
RTV Sealant - 3oz Tube* 1 Log in to see
prices

Specifications

  Product NameTwo Speed Planetary Double Reduction
  Brand NameEaton-Spicer
