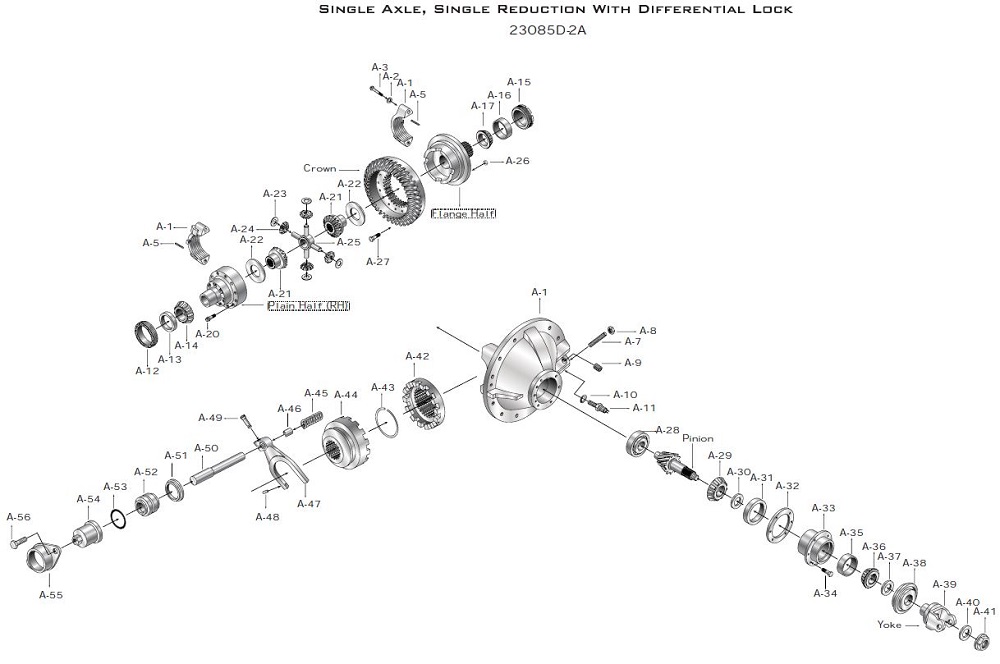

Single Axle-Single Reduction Eaton-Spicer 23085D-2A
View Larger

Single Axle-Single Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Single Axle-Single Reduction
Item No. Part Number Name Qty Per Axle Price Buy
A1
213744
Basic Overhaul Kit (Contents Identified With *)* 1 Log in to see
prices
A1
210701
Diff. Carrier & Bearing Caps 1 Log in to see
prices
A1
210697
Carrier Casting No. (Nss) 1 Log in to see
prices
A2
210288
Flat Washer 4 Log in to see
prices
A3
210095
Bearing Cap Screw 4 Log in to see
prices
A5
90873
Cotter Pin -Rh 1 Log in to see
prices
A5
210464
Cotter Pin -Lh 1 Log in to see
prices
A7
126193
Ring Gear Thrust Screw 1 Log in to see
prices
A8
210184
Thrustscrew Jam Nut 1 Log in to see
prices
A9
90325
Pipe Plug 1 Log in to see
prices
A10
126618
Washer 1 Log in to see
prices
A11
129035
Switch 1 Log in to see
prices
A12
210179
Diff. Bearing Adjuster -Rh 1 Log in to see
prices
A13
KOY 497
Diff. Bearing Cup -Rh* 1 Log in to see
prices
A14
27813
Diff. Bearing Cone -Rh* 1 Log in to see
prices
A15
210286
Diff. Bearing Adjuster -Lh 1 Log in to see
prices
A16
31824
Diff. Bearing Cup -Lh* 1 Log in to see
prices
A17
31825
Diff. Bearing Cone -Lh* 1 Log in to see
prices
A17
212007
Wheel Diff. Case Kit 3.08-3.70 Log in to see
prices
A17
212008
Wheel Diff. Case Kit 3.90-4.33 Log in to see
prices
A18
126858
Diff. Case (Flange Half) (Nss) 3.80-3.70 Log in to see
prices
A18
126859
Diff. Case (Flange Half) (Nss) 3.90-4.33 Log in to see
prices
A19
210507
Diff. Case (Plain Half) (Nss) 1 Log in to see
prices
A20
210513
Diff. Case Cap Screw 12 Log in to see
prices
121786
Wheel Diff.Less Side Gear Kit 1 Log in to see
prices
A21
118959
36 Involute Splines 2 Log in to see
prices
A22
83726QG
Side Gear Thrust Washer* 2 Log in to see
prices
A23
108145QG
Side Pinion Thrust Washer* 4 Log in to see
prices
A24
108142
Side Pinion 4 Log in to see
prices
A25
108141QG
Spider 1 Log in to see
prices
121790
Ring Gear Bolt & Nut Kit 1 Log in to see
prices
A26
126215
Nut 16 Log in to see
prices
A27
126221
Bolt 16 Log in to see
prices
A28
127826
Pinion Pilot Bearing* 1 Log in to see
prices
A29
126286
Pinion Bearing Cone (Inner)* 1 Log in to see
prices
A31
126287
Pinion Bearing Cup (Inner)* 1 Log in to see
prices
A32
113876
Pinion Bearing Cage Shims .003"* Log in to see
prices
A32
113877
Pinion Bearing Cage Shims .005"* Log in to see
prices
A32
113878
Pinion Bearing Cage Shims .010"* Log in to see
prices
113879
Pinion Bearing Cage Shim .020"* Log in to see
prices
113880
Pinion Bearing Cage Shim .030"* Log in to see
prices

Specifications

  Product NameSingle Axle-Single Reduction
  Brand NameEaton-Spicer
