Single Reduction With Wheel Differential Lock Eaton-Spicer DD461P-1A
View Larger

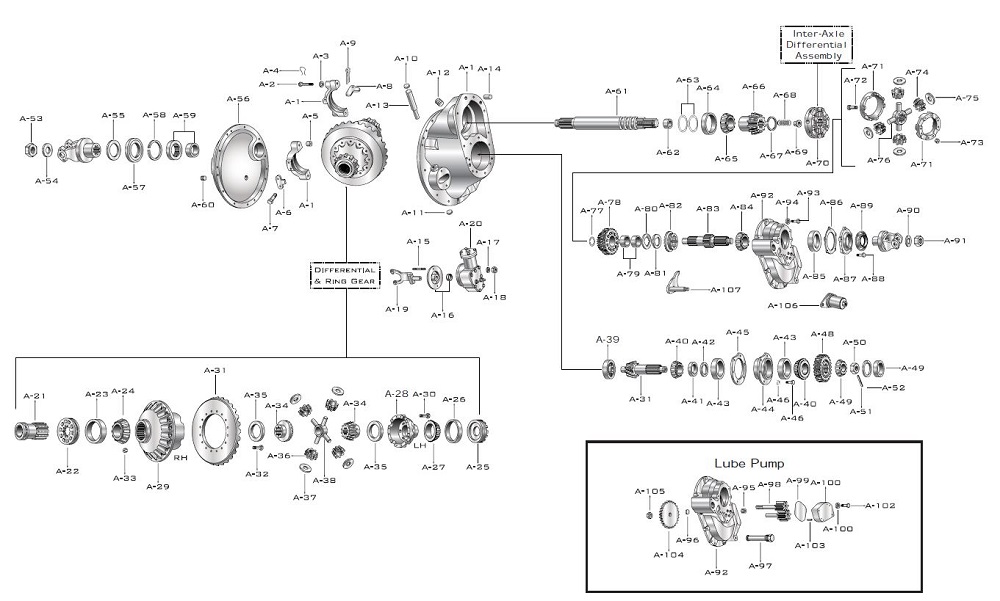

Single Reduction With Wheel Differential Lock


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Single Reduction With Wheel Differential Lock
Item No. Part Number Name Qty Per Axle Price Buy
*
217621
Basic Overhaul Kit (Contents Identified With *) 1 Log in to see
prices
A1
106710
Diff Carrier & Brg Cap Kit 1 Log in to see
prices
A2
32732
Bearing Cap Screw 4 Log in to see
prices
A3
32912
Flat Washer 4 Log in to see
prices
A4
12563
Lockwire 4 Log in to see
prices
A5
32730
Dowel Bushing 2 Log in to see
prices
A6
45448
Brg Cap Adjuster Lock (Rh) 1 Log in to see
prices
A7
210601
Capscrew 2 Log in to see
prices
A8
14275
Brg Cap Adjuster Lock (Lh 1 Log in to see
prices
A9
90876
Cotter Pin (Lh) 1 Log in to see
prices
A10
30703
Expansion Plug (Upper) 1 Log in to see
prices
A11*
9797
Expansion Plug (Lower) 1 Log in to see
prices
A12
90325
Plug 1 Log in to see
prices
A13
113801
Shift Fork Shaft Assy 1 Log in to see
prices
A14
7641
Carrier Cover Dowel Pin 2 Log in to see
prices
A15
119863
Shift Unit Mounting Stud 2 Log in to see
prices
A16
119855
Shift Fork Seal & Spring Assy 1 Log in to see
prices
A17
119857
Flat Washer 2 Log in to see
prices
A18
63028
Stud Nut 2 Log in to see
prices
A19
84508
Shift Fork & Roller Assy 1 Log in to see
prices
A21
E935088
Sliding Clutch 1 Log in to see
prices
A22
82451
Diff Brg Adjuster (Rh 1 Log in to see
prices
A23*
21632
Diff Brg Cup (Rh) 1 Log in to see
prices
A24
102660
Diff Brg Cone (Rh) 1 Log in to see
prices
A25
021637
Diff Brg Adjuster (Lh) 1 Log in to see
prices
A26*
KOY 42584
Diff Brg Cup (Lh) 1 Log in to see
prices
A27*
KOY 42381
Diff Brg Cone (Lh) 1 Log in to see
prices
217619
Wheel Diff Case Kits Ratios 3.55-4.11 1 Log in to see
prices
217620
Wheel Diff Case Kits Ratios 4.33-6.67 1 Log in to see
prices
A28
86777
Diff Case (Plain Half) Nss 1 Log in to see
prices
A29
128980
Diff Case (Flanged Half) Nss 1 Log in to see
prices
A30
88503
Diff Case Capscrew 12 Log in to see
prices
A32
70745QG
Bolt 16 Log in to see
prices
A33
60600
Nut 16 Log in to see
prices
114472
Wheel Diff Side Gear Kit Log in to see
prices
118749
Wheel Diff Kit W/O Side Gears Log in to see
prices
A34
93401
Diff Side Gear - 36 Involute 2 Log in to see
prices
A35*
27274QG
Side Gear Thrust Washer 2 Log in to see
prices
A36
86780
Side Pinion 4 Log in to see
prices
A37*
86781QG
Side Pinion Thrust Washer 4 Log in to see
prices
A38
86778
Spider 1 Log in to see
prices
A39*
126187
Pinion Pilot Brg 1 Log in to see
prices
A40*
KOY 72212C
Pinion Brg Cone 2 Log in to see
prices
A41*
78904
Pinion Brg Spacer Washer 1 Log in to see
prices
A43*
KOY 72487
Pinion Brg Cup 2 Log in to see
prices
A44
78914
Pinion Brg Cage & Cup Assy Cage # 78932 -Nss 1 Log in to see
prices
A45*
45461
Pinion Brg Cage Shim .003" AR Log in to see
prices
A45*
62829
Pinion Brg Cage Shim .005" AR Log in to see
prices
A45*
45462
Pinion Brg Cage Shim .010" AR Log in to see
prices
A45*
62830
Pinion Brg Cage Shim .020" AR Log in to see
prices
A45*
45463
Pinion Brg Cage Shim .030" AR Log in to see
prices
A46
37207
Lockwasher 6 Log in to see
prices
A47
62158
Bearing Cage Capscrew 6 Log in to see
prices
A48
119995
Pinion Helical Gear 1 Log in to see
prices
A49*
78916
Outer Pinion Support Brg & Race Assy 1 Log in to see
prices
A50
126182QG
Pinion Shaft End Nut 1 Log in to see
prices
A51
118807QG
Pinion Nut Spring Pin 1 Log in to see
prices
A52*
078937
Outer Pinion Brg Snap Ring 1 Log in to see
prices
A53
210508QG
Output Shaft Nut 1 Log in to see
prices
A54
128049QG
Output Shaft Washer 1 Log in to see
prices
A55
78922
Rear Brg Retaining Washer 1 Log in to see
prices
A56
107863
Axle Hsg Cover Assy Cover# 84546 -Nss 1 Log in to see
prices
A57*
210737
Output Shaft Oil Seal 1 Log in to see
prices
A58
078937
Bearing Snap Ring 1 Log in to see
prices
A59*
78936
Output Shaft Brg Assy 1 Log in to see
prices
A60
75130
Magnetic Filler Plug 1 Log in to see
prices
90898
Filler Plug 1 Log in to see
prices
A61
122419
Output Shaft Kit Shaft# 119991-Nss 41 Spl, 2.100" Dia. 1 Log in to see
prices
A62*
48922QG
Output Shaft Bushing 1 Log in to see
prices
A63*
78931
Output Shaft O-Ring 2 Log in to see
prices
A64*
KOY 33472
Output Shaft Brg Cup 1 Log in to see
prices
A65*
KOY 33275
Output Shaft Brg Cone 1 Log in to see
prices
A66
78911
Output Shaft Side Gear 1 Log in to see
prices
A67*
85994QG
Side Gear Snap Ring 1 Log in to see
prices
A68
127095
Output Shaft Compression Spring 1 Log in to see
prices
A69
51228
Output Shaft Thrust Bearing 1 Log in to see
prices
A70
121681QG
Inter-Axle Diff Assy 1 Log in to see
prices
A71
211252
Inter-Axle Diff Case Kit Case Half 126151-Nss 1 Log in to see
prices
A72
57636
Case Bolt 8 Log in to see
prices
A73
57637
Case Nut 8 Log in to see
prices
A74
95218
Side Pinion 4 Log in to see
prices
A75*
126180QG
Side Pinion Thrust Washer 4 Log in to see
prices
A77*
78909
Helical Side Gear Snap Ring 1 Log in to see
prices
A78
134174
Helical Side Gear & Bushing Assy Gear# 113328-Nss 1 Log in to see
prices
A79
75063QG
Helical Side Gear Bushing 2 Log in to see
prices
A80*
79034QG
Helical Side Gear Thrust Washer 1 Log in to see
prices
A81*
56360QG
Helical Side Gear "D" Washer 1 Log in to see
prices
A82
119948
Lockout Sliding Clutch 1 Log in to see
prices
A83
122418
Input Shaft Kitshaft# 119990-Nss, 46 Spl, 2.350" Dia. 1 Log in to see
prices
A84*
KOY JM511946
Input Shaft Brg Cone 1 Log in to see
prices
A85*
NTN JM511910
Input Shaft Brg Cup 1 Log in to see
prices
A86*
078918
Input Bearing Cover Shim .003" AR Log in to see
prices
A86*
078919
Input Bearing Cover Shim .005" AR Log in to see
prices
A86*
078920
Input Bearing Cover Shim .010" AR Log in to see
prices
A86*
113130
Input Bearing Cover Shim .020" AR Log in to see
prices
A87
111691
Input Brg Cover Assy Cover# 111690-Nss 1 Log in to see
prices
A88
126243
Bearing Cover Capscrew 5 Log in to see
prices
A89*
210736
Input Shaft Oil Seal 1 Log in to see
prices
A90*
126242
Input Shaft Nut Washer 1 Log in to see
prices
A91
126155QG
Input Shaft Nut 1 Log in to see
prices
A92
103536
Pdu Carrier Cover Assy Cover# 103526-Nss 1 Log in to see
prices
A93
90069
Carrier Cover Capscrew 8 Log in to see
prices
9309
Carrier Cover Capscrew 1 Log in to see
prices
81855
Carrier Cover Capscrew 1 Log in to see
prices
A94
90417
Lockwasher 10 Log in to see
prices
A95
90325
Pipe Plug 1 Log in to see
prices
A96
9797
Expansion Plug 1 Log in to see
prices
A97*
102611
Magnetic Filter Screen 1 Log in to see
prices
121302
Lube Pump Replacement Kit Log in to see
prices
A98
102625
Pump Gear & Shaft Assy 1 Log in to see
prices
A99*
102620
Cover O-Ring 1 Log in to see
prices
A100
102607
Lube Pump Cover 1 Log in to see
prices
A101
90419
Lockwasher 4 Log in to see
prices
A102
102618
Cover Capscrew 4 Log in to see
prices
A103
102617
Cover Dowel Pin 2 Log in to see
prices
A104
119946
Pump Drive Gear 1 Log in to see
prices
A105
111451
Drive Gear Locknut 1 Log in to see
prices
A106
123218
Air-Oper. Lockout Assy 1 Log in to see
prices
A107
103529
Shift Fork & Push Rod Assy 1 Log in to see
prices
A108*
RTV 1473
Rtv - Sealant AR Log in to see
prices

Specifications

  Product NameSingle Reduction With Wheel Differential Lock
  Brand NameEaton-Spicer
