Forward Axle Dual Range & Double Planetary Reduction Eaton-Spicer DT461-P-1
View Larger

Forward Axle Dual Range & Double Planetary Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

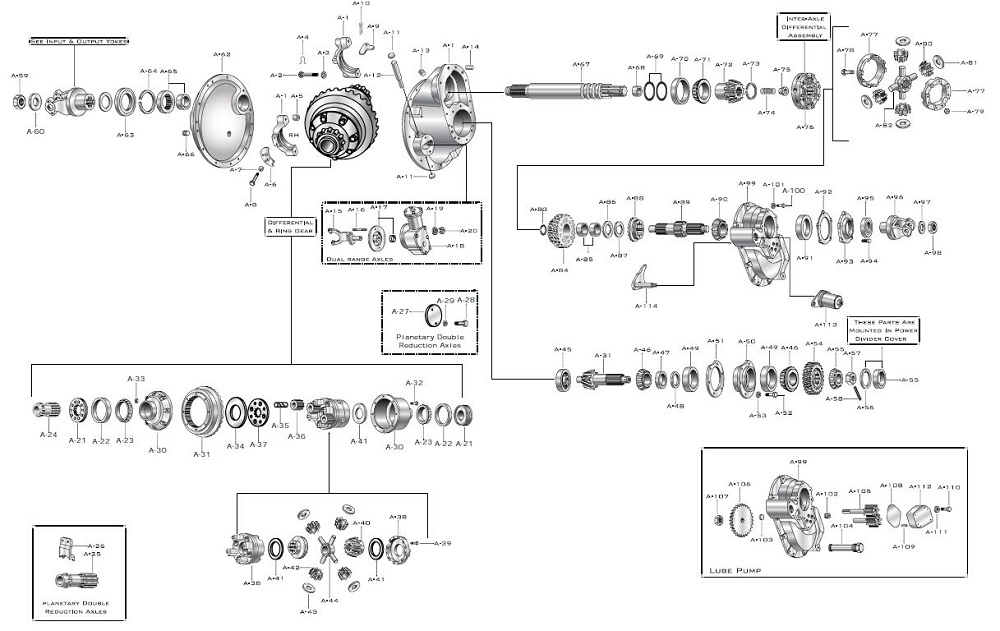

Forward Axle Dual Range & Double Planetary Reduction
Item No. Part Number Name Qty Price Buy
A1
106710
Diff. Carrier & Bearing Caps Carrier Casting No 110500 Nss 1 Log in to see
prices
A2
32732
Bearing Cap Screw 4 Log in to see
prices
A3
32912
Flat Washer 4 Log in to see
prices
A4
12563
Lockwire 4 Log in to see
prices
A5
32730
Dowel Bushing 2 Log in to see
prices
A6
78926
Bearing Cap Adjuster Lock (Rh) 1 Log in to see
prices
A7
37746
Dowel Bushing (Rh) 2 Log in to see
prices
A8
210601
Cap Screw (Rh) 2 Log in to see
prices
A9
14275
Bearing Cap Adjuster Lock (Lh) 1 Log in to see
prices
A10
90876
Cotter Pin (Lh) 1 Log in to see
prices
A11*
30703
Expansion Plug (Upper) 1 Log in to see
prices
A11*
9797
Expansion Plug (Lower) 1 Log in to see
prices
A12
113801
Shift Fork Shaft & "O" Ring Assy (Shaft 41103 Nss; "O" Ring 113140) 1 Log in to see
prices
A13
90325
Filler Plug 1 Log in to see
prices
A14
7641E
Carrier Cover Dowel Pin 2 Log in to see
prices
A15
84508
Shift Fork & Roller Assy 1 Log in to see
prices
A16
119863
Shift Fork Mounting Stud 2 Log in to see
prices
A17*
119855
Shift Fork Seal & Spring Assy 1 Log in to see
prices
A18
73503
Shift Unit Assy 1 Log in to see
prices
A19
119857
Lockwasher 2 Log in to see
prices
A20
63028
Stud Nut 2 Log in to see
prices
A21
126305
Diff. Bearing Adjuster (Rh) 1 Log in to see
prices
A21
021637
Diff. Bearing Adjuster (Lh) 1 Log in to see
prices
A22*
21632
Diff. Bearing Cup (Rh) 1 Log in to see
prices
A22*
KOY 42584
Diff. Bearing Cup (Lh) 1 Log in to see
prices
A23*
102660
Diff. Bearing Cone (Rh) 1 Log in to see
prices
A23*
KOY 42381
Diff. Bearing Cone (Lh) 1 Log in to see
prices
A24
126255
Sliding Clutch 1 Log in to see
prices
A25
119902
Sun Gear 1 Log in to see
prices
A26
43178
Sun Gear Retainer 1 Log in to see
prices
A27
45521
Shift Unit Opening Cover 1 Log in to see
prices
A28
20807
Cap Screw 2 Log in to see
prices
A29
90415
Lockwasher 2 Log in to see
prices
A30
126301
Gear Support Case (Rh) 1 Log in to see
prices
A30
108138
Gear Support Case (Lh) 1 Log in to see
prices
A32
44358
Bolt 8 Log in to see
prices
A33
60599
Nut 8 Log in to see
prices
A34*
43271
Thrust Washer (Rh) 1 Log in to see
prices
A35
126302
Idler Pinion Pin 4 Log in to see
prices
A36
126306
Idler Pinion 4 Log in to see
prices
A37
126307
High-Speed Clutch Plate 1 Log in to see
prices
A38
126304
Diff. Case W/Clutch Plate Pin 1 Log in to see
prices
A38
109270
Diff. Case (Rh) 1 Log in to see
prices
A39
96285
Diff. Case Cap Screw 4 Log in to see
prices
A39
96284
Diff. Case Cap Screw 8 Log in to see
prices
A40
118959
Diff. Side Gear 2 Log in to see
prices
A41*
83726QG
Side Gear Thrust Washer 2 Log in to see
prices
A41*
83726QG
Gear Support Thrust Washer 1 Log in to see
prices
A42
108142
Side Pinion 4 Log in to see
prices
A43*
108145QG
Side Pinion Thrust Washer 4 Log in to see
prices
A44
108141
Spider 1 Log in to see
prices
A45*
126187
Pinion Pilot Bearing 1 Log in to see
prices
A46*
KOY 72212C
Pinion Bearing Cone 2 Log in to see
prices
A47*
78904
Pinion Bearing Spacer Washer 1 Log in to see
prices
A49*
KOY 72487
Pinion Bearing Cup 2 Log in to see
prices
A50
78914
Pinion Bearing Cage & Cup Assy 1 Log in to see
prices
A51*
45461
Pinion Bearing Cage Shim .003" AR Log in to see
prices
A51*
62829
Pinion Bearing Cage Shim .005" AR Log in to see
prices
A51*
45462
Pinion Bearing Cage Shim .010" AR Log in to see
prices
A51*
62830
Pinion Bearing Cage Shim .020" AR Log in to see
prices
A51*
45463
Pinion Bearing Cage Shim .030" AR Log in to see
prices
A52
62158
Bearing Cage Cap Screw 6 Log in to see
prices
A53
37207
Lockwasher 6 Log in to see
prices
A54
119995
Pinion Helical Gear 1 Log in to see
prices
A55*
78916
Outer Pinion Support Brg & Race 1 Log in to see
prices
A56*
078937
Outer Pinion Bearing Snap Ring 1 Log in to see
prices
A57
126182QG
Pinion Shaft End Nut 1 Log in to see
prices
A58
118807QG
Pinion Nut Spring Pin 1 Log in to see
prices
A59
210508QG
Output Shaft Nut 1 Log in to see
prices
A60
128049QG
Output Shaft Washer 1 Log in to see
prices
A61
78922
Washer - Brg Spacer 1 Log in to see
prices
A62
217647
Axle Housing Cover Assy (Cover 84546) Nss 1 Log in to see
prices
A62
108099
Includes Items 63-66(Cover 78923) Nss 1 Log in to see
prices
A63*
127719QG
Output Shaft Oil Seal - (119429 or 210737) 1 Log in to see
prices
A64*
078937
Bearing Snap Ring 1 Log in to see
prices
A65*
118787
Output Shaft Bearing Race - Inner Log in to see
prices
A65*
118788
Output Shaft Bearing Race - Outer Log in to see
prices
A66
75130
Magnetic Filler Plug 1 Log in to see
prices
A66
90898
Retainer Plug 1 Log in to see
prices
A67
122419
Output Shaft Kit X(Shaft 119991, 41 Splines 2.100" Dia.) Nss 1 Log in to see
prices
A68*
48922QG
Output Shaft Bushing 1 Log in to see
prices
A69*
78931
Output Shaft "O" Ring 2 Log in to see
prices
A70*
KOY 33472
Output Shaft Bearing Cup (Inner) 1 Log in to see
prices
A71*
KOY 33275
Output Shaft Bearing Cone (Inner) 1 Log in to see
prices
A72
78911
Output Shaft Side Gear 1 Log in to see
prices
A73*
85994QG
Side Gear Snap Ring 1 Log in to see
prices
A74
127095
Output Shaft Compression Spring 1 Log in to see
prices
A75
51228
Output Shaft Thrust Bearing 1 Log in to see
prices
A76
121681QG
Inter-Axle Diff. Assy 1 Log in to see
prices
A77
126151
Case Half (Nss) 2 Log in to see
prices
A78
57636
Case Bolt 8 Log in to see
prices
A79
57637
Case Nut 8 Log in to see
prices
A80
95218
Side Pinion 4 Log in to see
prices
A81*
126180QG
Side Pinion Thrust Washer 4 Log in to see
prices
A82
130904
Spider 1 Log in to see
prices
A83*
78909
Helical Side Gear Snap Ring 1 Log in to see
prices
A84
134174
Helical Side Gear & Bushing Assy (Side Gear 113328) Nss 1 Log in to see
prices
A85*
75063QG
Helical Side Gear Bushing 2 Log in to see
prices
A86*
79034QG
Helical Side Gear Thrust Washer 1 Log in to see
prices
A87*
56360QG
Helical Side Gear "D" Washer 1 Log in to see
prices
A88
119948
Lockout Sliding Clutch 1 Log in to see
prices
A89
122418
Input Shaft Kit (Shaft 119990, 46 Splines 2.350" Dia.) Nss 1 Log in to see
prices
A90*
KOY JM511946
Input Shaft Bearing Cone 1 Log in to see
prices
A91*
NTN JM511910
Input Shaft Bearing Cup 1 Log in to see
prices
A92*
078918
Input Bearing Cover Shim .003" AR Log in to see
prices
A92*
078919
Input Bearing Cover Shim .005" AR Log in to see
prices
A92*
078920
Input Bearing Cover Shim .010" AR Log in to see
prices
A92*
113130
Input Bearing Cover Shim .020" AR Log in to see
prices
A93
111691
Input Brg. Cvr, Cup/Oil Seal Assy (Cover 111690) Nss 1 Log in to see
prices
A94
126243
Bearing Cover Cap Screw 5 Log in to see
prices
A95*
119430
Input Shaft Oil Seal - (119430 or 210736) 1 Log in to see
prices
A97*
126242
Input Shaft Nut Washer 1 Log in to see
prices
A98
126155QG
Input Shaft Nut 1 Log in to see
prices
A99
510792
Diff. Carrier Cover Assy (Cover 103526) Nss 1 Log in to see
prices
A100
90069
Carrier Cover Cap Screw 8 Log in to see
prices
A27
9309
Carrier Cover Cap Screw (long) Log in to see
prices
81855
Carrier Cover Cap Screw (socket head) Log in to see
prices
A101
90417
Lockwasher 10 Log in to see
prices
A102
90325
Pipe Plug 1 Log in to see
prices
A103
9797
Expansion Plug 1 Log in to see
prices
A104*
102611
Magnetic Filter Screen 1 Log in to see
prices
A105
102625
Pump Gear & Shaft Assy 1 Log in to see
prices
A106
119946
Pump Drive Gear 1 Log in to see
prices
A107
111451
Drive Gear Locknut 1 Log in to see
prices
A108*
102620
Cover "O" Ring 1 Log in to see
prices
A109
102617
Cover Dowel Pin 2 Log in to see
prices
A110
102618
Cover Cap Screw 4 Log in to see
prices
A111
90419
Lockwasher 4 Log in to see
prices
A112
102607
Lube Pump Cover 1 Log in to see
prices
A113
123218
Air-Oper. Lockout Assy/Comp 1 Log in to see
prices
A114
103529
Shift Fork & Push Rod Assy 1 Log in to see
prices
*
RTV 1473
Gasket Compound AR Log in to see
prices

Specifications

  Product NameForward Axle Dual Range & Double Planetary Reduction
  Brand NameEaton-Spicer
