Heavy Tandem Axle Eaton-Spicer R170-1A
View Larger

Heavy Tandem Axle


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

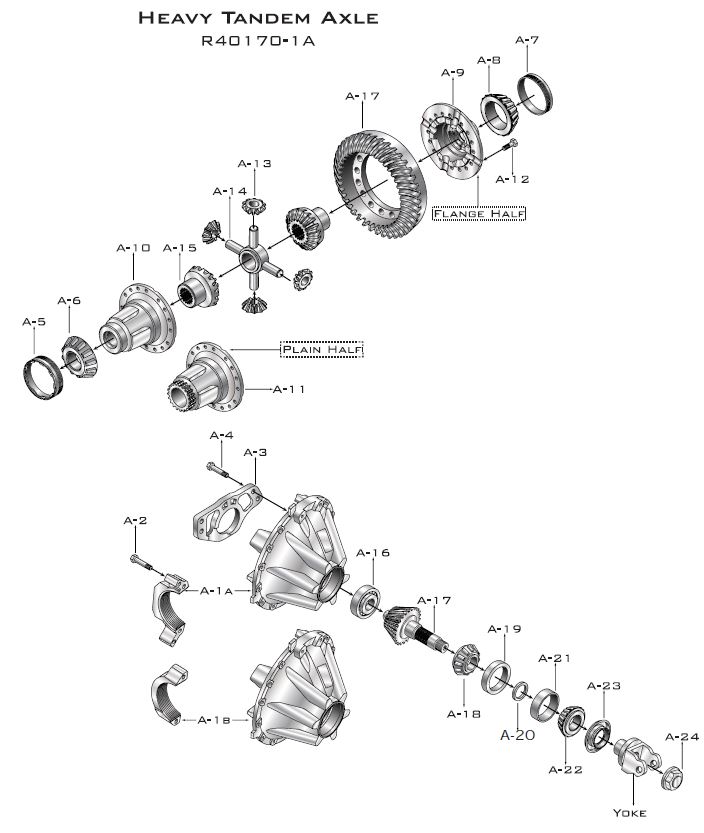

Heavy Tandem Axle
Item No. Part Number Name Notes Qty Price Buy
514013
Bearing Kit Contents Identified With * (ratios 2.69-3.91) S170S Series - ratios 2.69-3.91 1 Log in to see
prices
514014QG
Bearing Kit Contents Identified With * ( Ratio 4.10 - 7.17) S170S Series - ratios 4.10-7.17 1 Log in to see
prices
514015QG
Bearing Kit Contents Identified With * (Ratios 2.69-3.91) S170D - Diff Lock Series - ratios 2.69-3.91 1 Log in to see
prices
514240
Bearing Kit Contents Identified With * (Ratios 4.10-7.17) S170D - Diff Lock Series - ratios 4.10-7.17 1 Log in to see
prices
A-1A
513999
Diff Carrier & Bearing Caps R170, S170 models - see content below Log in to see
prices
A-1B
514000
Diff Carrier & Bearing Caps R170D, S170D diff lock mdls - see content below 1 Log in to see
prices
A-2
131016
Capscrew - Bearing Cap 6 Log in to see
prices
A-4
131017
Capscrew - Pilot Bearing Web See note 3 next page 4 Log in to see
prices
A-5
131044
Bearing Cup - Threaded Diff Plain Half Standard Model 1 Log in to see
prices
A-5
131048
Bearing Cup - Threaded Diff Plain Half Diff Lock Model 1 Log in to see
prices
A-6*
131041
Diff Bearing Cone - Flange Half Standard Model 1 Log in to see
prices
A-6
131042
Diff Bearing Cone - Flange Half Diff Lock Model 1 Log in to see
prices
A-7
131044
Bearing Cup - Threaded Diff Flange Half All Models 1 Log in to see
prices
A-8
131041
Bearing Cone - Diff Flange Half All Models 1 Log in to see
prices
504069
Ring Gear Bolt Kit Includes qty 16 of 131473 1 Log in to see
prices
A-12
131473
Ring Gear Bolt 16 Log in to see
prices
513868
Wheel Diff Side Gear Kit Includes items 13-15 Log in to see
prices
A-13
131040
Side Pinion 4 Log in to see
prices
A-14
131039
Spider 1 Log in to see
prices
A-15
300GD101
Side Gear - Differential 46 Involute 2 Log in to see
prices
131882
No Spin Assembly - 46 Inv 46 Inv Spline 1 Log in to see
prices
A-16
129947
Bearing - Pinion Pilot (Ratios 2.69 - 3.91) 1 Log in to see
prices
A-18
139968
Bearing Cone - Inner Pinion Replaces 131050 - Refer to bulletin HAXL-PNI-017 1 Log in to see
prices
A-19
139969
Bearing Cup - Inner Pinion Replaces 131051 - Refer to bulletin HAXL-PNI-017 1 Log in to see
prices
A-20
504042
Pinion Brg Spacer Kit Individual pinion spacers listed on page 26 A/R Log in to see
prices
A-21
139969
Bearing Cup - Outer Pinion Replaces 131051 - Refer to bulletin HAXL-PNI-017 1 Log in to see
prices
A-22
139970
Bearing Cone - Outer Pinion Replaces 131052 - Refer to bulletin HAXL-PNI-017 1 Log in to see
prices
131008K
Input Seal & Locknut Kit Includes items 23-25 1 Log in to see
prices
A-23
134323QG
Input Seal Also sold in 131008K kit also -replaces seal# 131008 1 Log in to see
prices
131095K
Input Nut Kit Includes item 24-25 1 Log in to see
prices
A-24
131095
Locknut - Pinion Socket size 69mm 1 Log in to see
prices
A-25
129293
Loctite Not illustrated 1 Log in to see
prices
A-26
RTV 1473
Rtv Sealant Not illustrated 1 Log in to see
prices

Specifications

  Product NameHeavy Tandem Axle
  Brand NameEaton-Spicer
