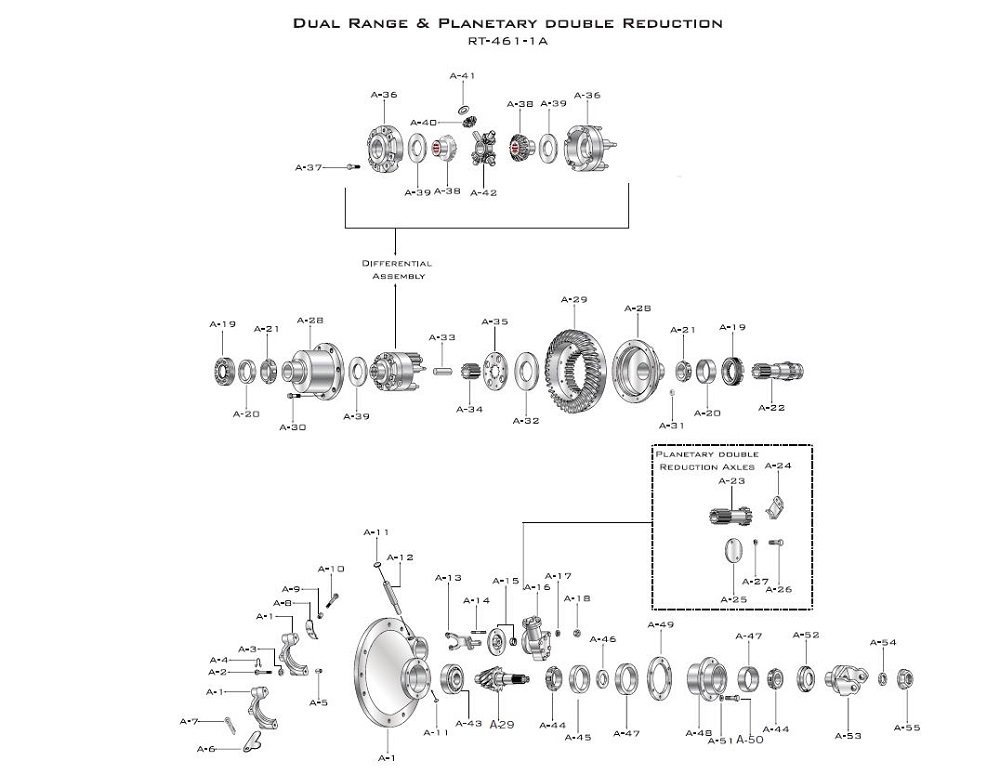

Rear Axle Dual Range &  Planetary Double Reduction Eaton-Spicer RT461-1A
View Larger

Rear Axle Dual Range & Planetary Double Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Rear Axle Dual Range & Planetary Double Reduction
Item No. Part Number Name Qty Price Buy
*
122424
Basic Overhaul Kit (Contents Identified With *) Log in to see
prices
A-1
98590
Diff. Carrier & Bearing Caps Carrier Casting No 127218R Nss 1 Log in to see
prices
A-2
32732
Bearing Cap Screw 2 Log in to see
prices
A-2
127180
Bearing Cap Screw 2 Log in to see
prices
A-3
32912
Flat Washer 4 Log in to see
prices
A-4
12563
Lockwire 4 Log in to see
prices
A-5
32730
Dowel Bushing 2 Log in to see
prices
A-6
14275
Bearing Cap Adjuster Lock (Rh) 1 Log in to see
prices
A-7
90876
Cotter Pin (Rh) 1 Log in to see
prices
A-8
78926
Bearing Cap Adjuster Lock (Lh) 1 Log in to see
prices
A-9
37746
Dowel Bushing 2 Log in to see
prices
A-10
210601
Adjuster Lock Cap Screw 2 Log in to see
prices
A-11*
30703
Expansion Plug (Upper) 1 Log in to see
prices
A-11*
9797
Expansion Plug (Lower) 1 Log in to see
prices
A-12
113801
Shift Fork Shaft & "O" Ring Assy (Shaft 41103 Nss; "O" Ring 113140) 1 Log in to see
prices
A-13
84508
Shift Fork & Roller Assy 1 Log in to see
prices
A-14
119863
Shift Fork Mounting Stud 2 Log in to see
prices
A-15*
119855
Shift Fork Seal & Spring Assy 1 Log in to see
prices
A-16
73507
Shift Unit Assy 1 Log in to see
prices
A-17
119857
Flat Washer 2 Log in to see
prices
A-18
63028
Stud Nut 2 Log in to see
prices
A-19
021637
Diff. Bearing Adjuster (Rh) 1 Log in to see
prices
A-19
126305
Diff. Bearing Adjuster (Lh) 1 Log in to see
prices
A-20*
KOY 42584
Diff. Bearing Cup (Rh) 1 Log in to see
prices
A-20*
KOY 68712
Diff. Bearing Cup (Lh) 1 Log in to see
prices
A-21*
KOY 42381
Diff. Bearing Cone (Rh) 1 Log in to see
prices
A-21*
KOY 68462
Diff. Bearing Cone (Lh) 1 Log in to see
prices
A-22
126255
Sliding Clutch 1 Log in to see
prices
A-23
119902
Sun Gear 1 Log in to see
prices
A-24
43178
Sun Gear Retainer 1 Log in to see
prices
A-25
45521
Shift Unit Opening Cover 1 Log in to see
prices
A-26
FUL 20807
Cap Screw 2 Log in to see
prices
A-27
90415
Lockwasher 2 Log in to see
prices
A-28
108138
Gear Support Case (Rh) 1 Log in to see
prices
A-28
126301
Gear Support Case (Lh) 1 Log in to see
prices
A-30
44358
Bolt 8 Log in to see
prices
A-31
60599
Nut 8 Log in to see
prices
A-32*
43271
Thrust Washer (Rh) 1 Log in to see
prices
A-33
126302
Idler Pinion Pin 4 Log in to see
prices
A-34
126306
Idler Pinion 4 Log in to see
prices
A-35
126307E
High-Speed Clutch Plate 1 Log in to see
prices
A-36
126304
Diff. Case W/Clutch Plate Pin 1 Log in to see
prices
A-36
109270
Diff. Case (Rh) 1 Log in to see
prices
A-37
96285
Diff. Case Cap Screw (Short) 4 Log in to see
prices
A-37
96284
Diff. Case Cap Screw (Long) 8 Log in to see
prices
A-38
118959
Diff. Side Gear 2 Log in to see
prices
A-39*
83726QG
Side Gear Thrust Washer 2 Log in to see
prices
A-39*
83726QG
Gear Support Thrust Washer 1 Log in to see
prices
A-40
108142
Side Pinion 4 Log in to see
prices
A-41*
108145QG
Side Pinion Thrust Washer 4 Log in to see
prices
A-42
108141
Spider 1 Log in to see
prices
A-43*
126187
Pinion Pilot Bearing 1 Log in to see
prices
A-44*
KOY 78215C
Pinion Bearing Cone (Inner) 1 Log in to see
prices
A-44*
KOY 72212C
Pinion Bearing Cone (Outer) 1 Log in to see
prices
A-45*
31366
Pinion Bearing Spacer Washer 1 Log in to see
prices
A-47*
NTN 78551
Pinion Bearing Cup (Inner) 1 Log in to see
prices
A-47*
KOY 72487
Pinion Bearing Cup (Outer) 1 Log in to see
prices
A-48
210592
Pinion Bearing Cage & Cup Assy 1 Log in to see
prices
A-49*
67920
Pinion Bearing Cage Shim .003" Log in to see
prices
A-49*
67921
Pinion Bearing Cage Shim .005" Log in to see
prices
A-49*
67922
Pinion Bearing Cage Shim .010" Log in to see
prices
A-49*
67923
Pinion Bearing Cage Shim .020" Log in to see
prices
A-49*
67924
Pinion Bearing Cage Shim .030" Log in to see
prices
A-50
113327
Bearing Cage Cap Screw 6 Log in to see
prices
A-51
90422
Lockwasher 6 Log in to see
prices
A-52*
210724
Output Shaft Oil Seal 1 Log in to see
prices
A-54
128049QG
Flat Washer 1 Log in to see
prices
A-55
210508QG
Pinion Nut 1 Log in to see
prices
*
RTV 1473
Gasket Compound AR Log in to see
prices

Specifications

  Product NameRear Axle Dual Range & Planetary Double Reduction
  Brand NameEaton-Spicer
