Rear Axle - Exploded View Eaton-Spicer R-40170R-1A
View Larger

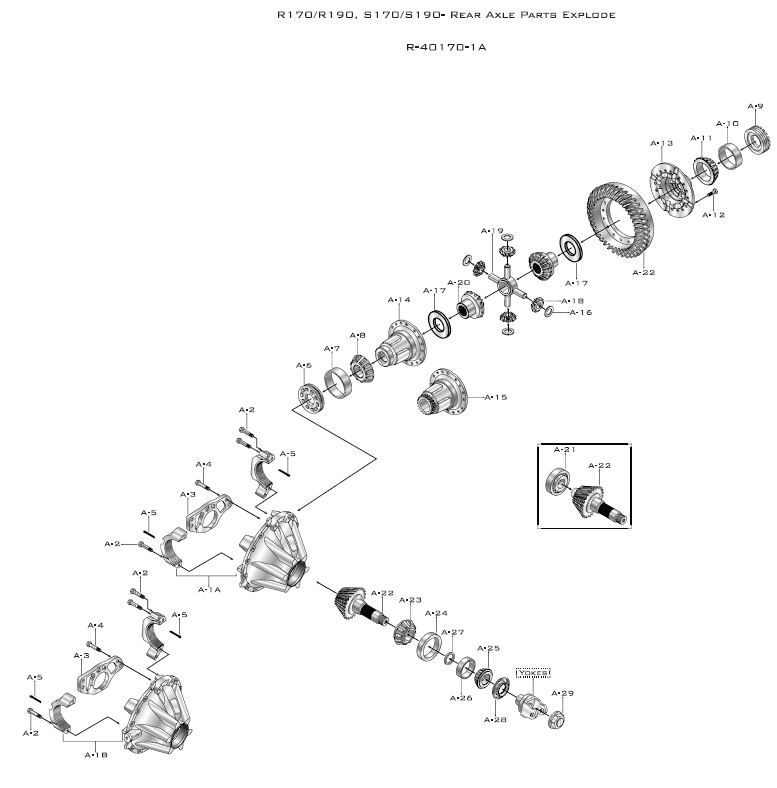

Rear Axle - Exploded View


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Rear Axle - Exploded View
Item No. Part Number Name Notes Qty Per Axle Price Buy
*
504029
Bearing Kit Contents Identified With * S170 Series - ratios 2.69-3.91 1 Log in to see
prices
*
504130QG
Bearing Kit Contents Identified With * S170 Series - ratios 4.10-7.17 1 Log in to see
prices
*
504131QG
Bearing Kit Contents Identified With * S170D - Diff Lock Series - ratios 2.69-3.91 1 Log in to see
prices
504132QG
Bearing Kit Contents Identified With * S170D - Diff Lock Series - ratios 4.10-7.17 1 Log in to see
prices
A-2
131016
Capscrew - Bearing Cap 6 Log in to see
prices
A-4
131017
Capscrew - Pilot Bearing Web 4 Log in to see
prices
A-5
90311
Cotter Pin 2 Log in to see
prices
A-6
139993
Bearing Adjuster - Plain Half 1 Log in to see
prices
A-7*
140012
Bearing Cup - Plain Half Diff Standard model 1 Log in to see
prices
A-7*
140020
Bearing Cup - Plain Half Diff Diff Lock model 1 Log in to see
prices
A-8*
140014
Bearing Cone - Plain Half Diff Standard model 1 Log in to see
prices
A-8*
140019
Bearing Cone - Plain Half Diff Diff Lock model 1 Log in to see
prices
A-9
139992
Bearing Adjuster - Flange Half 1 Log in to see
prices
A-10*
140012
Bearing Cup - Diff Flange Half All models 1 Log in to see
prices
A-11*
140014
Bearing Cone - Diff Flange Half All models 1 Log in to see
prices
504069
Kit - Ring Gear Bolt Includes qty 16 of 131473 1 Log in to see
prices
A-12
131473
Ring Gear Bolt 16 Log in to see
prices
A-13
--
Diff Case - Flange Half All models 1 Log in to see
prices
A-14
--
Diff Case - Plain Half Standard models 1 Log in to see
prices
A-15
--
Diff Case - Plain Half - Diff Lock Diff Lock models 1 Log in to see
prices
504096
Kit - Wheel Diff Side Gear W/ Washers Includes items 16-20 Log in to see
prices
A-16
300HS100-1
Thrust Washer - Side Pinion 4 Log in to see
prices
A-17
HS108-1
Thrust Washer - Side Gear 2 Log in to see
prices
A-18
131040
Side Pinion 4 Log in to see
prices
A-19
131039
Spider - Differential 1 Log in to see
prices
A-20
300GD101
Side Gear - Differential 46 Involute 2 Log in to see
prices
131882
No Spin Assembly - 46 Inv Spline Item not illustrated 1 Log in to see
prices
129947E
Bearing Pinion Pilot Log in to see
prices
A-23*
139968
Bearing Cone - Inner Pinion 1 Log in to see
prices
A-24*
139969
Bearing Cup - Inner Pinion 1 Log in to see
prices
A-25*
139970
Bearing Cone - Outer Pinion 1 Log in to see
prices
A-26*
139969
Bearing Cup - Outer Pinion 1 Log in to see
prices
A-27
504042
Kit - Pinion Brg Spacer Individual pinion spacers listed on Pg 29 A/R Log in to see
prices
131008K
Kit - Input Seal & Locknut Includes items 28-29, 30 1 Log in to see
prices
A-28*
134323QG
Input Seal Also sold in 131008K kit 1 Log in to see
prices
131095K
Kit - Pinion Nut Includes item 29-30 1 Log in to see
prices
A-29*
131095
Locknut - Pinion Socket size 69mm 1 Log in to see
prices
A-30*
129293
Loctite Adhesive .5Ml Tube Item not illustrated 1 Log in to see
prices
A-31*
RTV 1473
Rtv Sealant - 3Oz Item not illustrated 1 Log in to see
prices

Specifications

  Product NameRear Axle - Exploded View
  Brand NameEaton-Spicer
