Case (Front) Eaton Fuller 10308-10-94-15613
View Larger

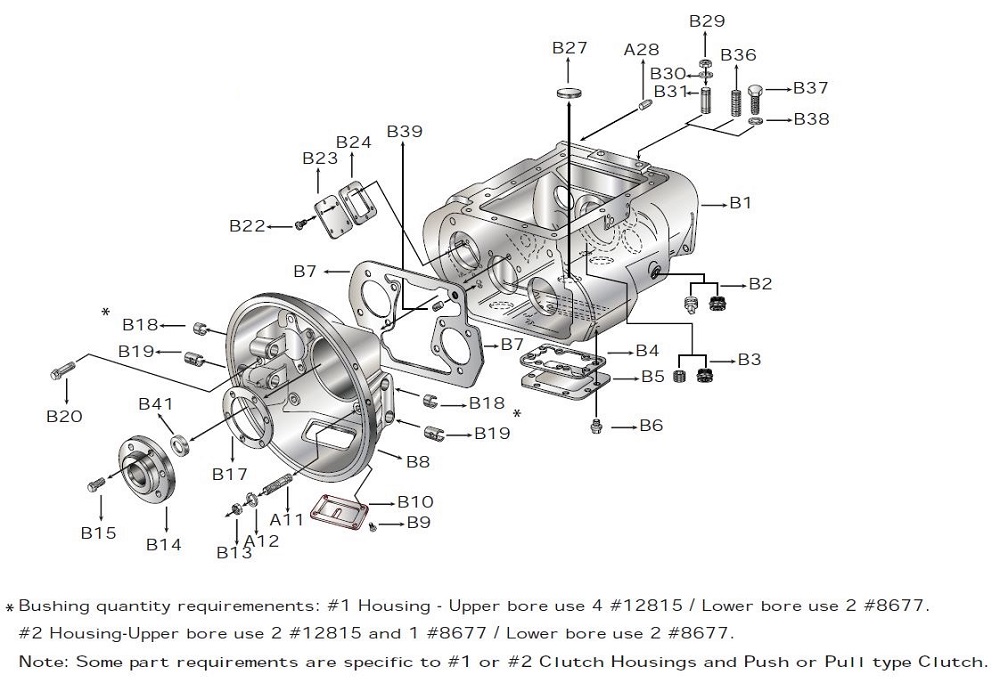

Case (Front)


See Below  ▼ Eaton Fuller
More Products from Eaton Fuller
  Share

Overview

Case (Front)
Item No. Part Number Name Kit/Assys Replaced Parts Notes Qty Price Buy
A1
S-1519
Case Assy 20500 FOR USE W/INTEGRAL PUMP 1 Log in to see
prices
A1
S-1820
Case Assy 4300445 FOR USE W/INTEGRAL PUMP FOR TAPERED ROLLER BEARINGS 1 Log in to see
prices
A2
4304023
Plug S-1519 4303747 1-1/16" MAGNETIC, O-RING INCLUDED 1 Log in to see
prices
A2
X-12-2007
Pipe Plug X12 2006 1 Log in to see
prices
A3
4304023
Plug S-1519 1-1/16" MAGNETIC, O-RING INCLUDED 1 Log in to see
prices
A3
X-12-1207
Pipe Plug X12 1202 ,X12 1206 3/4" MAGNETIC 1 Log in to see
prices
A4
4305310
Gasket K-2199 4302810 1 Log in to see
prices
A5
4302809
Pto Cover 16596 ,4300571 1 Log in to see
prices
A6
X-8-725
Capscrew X 8 724 7/16"-14X7/8" 8 Log in to see
prices
A7
4306584
Clutch Housing Gasket K-2199 4304815,4305668 1 Log in to see
prices
A8
A-3713
Clutch Housing Assy A - 3700 #1 PUSH-PULL IRON 1 Log in to see
prices
A8
A-3723
Clutch Housing Assy A - 3721 ,A - 3722 #2 PUSH-PULL IRON 1 Log in to see
prices
A9
X-8L-509
Capscrew 5/16"-18X1/2" QUANTITY DEPENDENT ON DESIGN 4 Log in to see
prices
A10
14507
Hand Hole Cover #2 PULL 1 Log in to see
prices
A10
4305230
Hand Hole Cover 11453 #1 PULL 1 Log in to see
prices
A11
4306583
Stud 5966 6 Log in to see
prices
A12
X-10-1005
Washer X 3 1000 ,X10 1000 ,X10 1004 1.23 X 6.60 6 Log in to see
prices
A13
X-1-1012
Hex Nut X-1-1005 .625-18 6 Log in to see
prices
A14
15111
Front Brg. Cover 2" PULL 1 Log in to see
prices
A14
18699
Front Brg. Cover 1-3/4" & 2" PULL W/SEAL 1 Log in to see
prices
A14
20550
Front Brg Cover K-1972, K-2468 2" PULL 1 Log in to see
prices
A15
X-8L-604
Capscrew 3/8"-16X1-1/4" 6 Log in to see
prices
A17
14311
Gasket K-2199 1 Log in to see
prices
A18
12815
Bushing A-3713, A-3723, K-2468 FOR #2 HOUSING UPPER 2 Log in to see
prices
A18
12815
Bushing A-3713, A-3723, K-2468 FOR #1 HOUSING UPPER 4 Log in to see
prices
A18
8677
Bushing A-3713, A-3723 FOR #2 HOUSING UPPER 1 Log in to see
prices
A19
8677
Bushing A-3713, A-3723 FOR #1 AND #2 HOUSING LOWER 2 Log in to see
prices
A20
X-8C-830
Hex Head Screw/Washer Assy X-8C-826 .500-13 X 1.490 2 Log in to see
prices
A20
X-8C-831
Hex Head Screw/Washer Assy X-8C-822 .500-13 X 3.460, USE ON HORIZONTAL CENTER LINE 2 Log in to see
prices
A22
X-8-686
Capscrew 3/8"-16X3/4" 6 Log in to see
prices
A23
14575
Pto Cover 4302254 1 Log in to see
prices
A24
4305309
Gasket K-2199 1684 1 Log in to see
prices
A27
14373
Magnet S-1519, S-1820 3 Log in to see
prices
A28
18128
Pin 2 Log in to see
prices
A29
X-1-1012
Hex Nut .625-18 2 Log in to see
prices
A30
X-10-1005
Washer X 3 1000 ,X10 1000 ,X10 1004 1.23 X 6.60 1 Log in to see
prices
A31
14554
Stud 14554 5/8" X 2-3/16" 2 Log in to see
prices
A36
23104
Plug 1712 2 Log in to see
prices
A37
X-8-1005
Capscrew 5/8"-11X1-1/4" 2 Log in to see
prices
A38
20814
Spacer 2 Log in to see
prices
A39
X-12-802
Pipe Plug X12 800 1/2" 1 Log in to see
prices
A41
16977
Seal K-1874 2" 1 Log in to see
prices

Specifications

  Product NameCase (Front)
  Brand NameEaton Fuller
