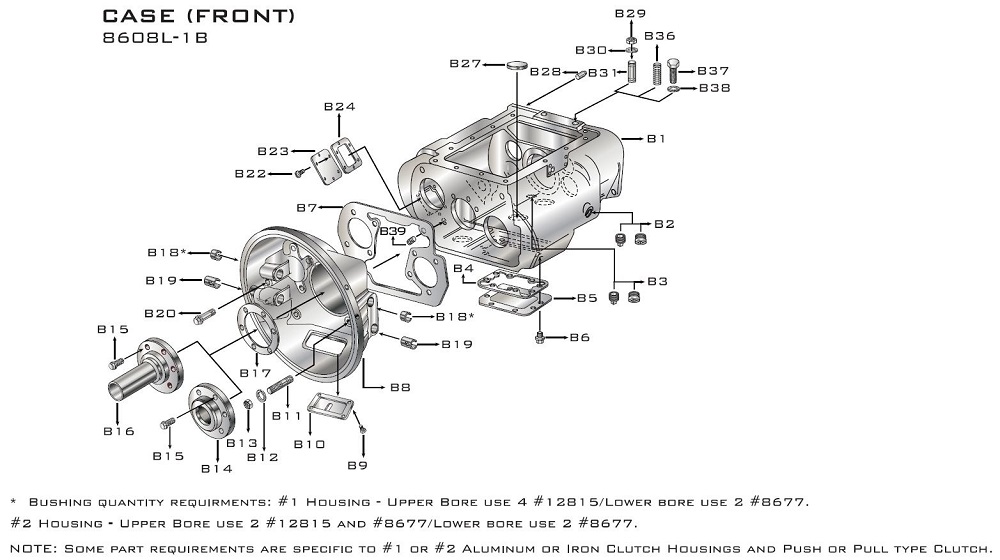

Case (Front)

See Below ▼

More Products from Eaton Fuller

Overview

Case (Front)

Item No.	Part Number	Name	Kit/Assys	Replaced Parts	Notes	Qty	Price	Buy
A1	FUL S-1318	Case Assy		15390		1	Log in to see prices
A1	FUL S-1519	Case Assy		20500		1	Log in to see prices
A2	FUL 4304023	Plug	S-1318, S-1519	4303747	1-1/16" MAGNETIC, O-RING INCLUDED	1	Log in to see prices
A2	FUL X-12-2007	Pipe Plug		X12 2006		1	Log in to see prices
A3	FUL 4304023	Plug	S-1318, S-1519	4303747	1-1/16" MAGNETIC, O-RING INCLUDED	1	Log in to see prices
A3	FUL X-12-1207	Pipe Plug		X12 1202 ,X12 1206	3/4" MAGNETIC	1	Log in to see prices
A4	FUL 4305310	Gasket	K-2199	4302810		1	Log in to see prices
A5	FUL 4302809	PTO Cover		16596 ,4300571		1	Log in to see prices
A6	FUL X-8-725	Capscrew		X 8 724	7/16"-14X7/8"	8	Log in to see prices
A7	FUL 4306584	Clutch Housing Gasket	K-2199	4304815, 4305668		1	Log in to see prices
A8	FUL A-3713	Clutch Housing Assy		A - 3700	#1 PUSH-PULL IRON	1	Log in to see prices
A8	FUL A-3723	Clutch Housing Assy		A - 3721 ,A - 3722	#2 PUSH-PULL IRON	1	Log in to see prices
A8	FUL A-4772	Clutch Housing Assy		A - 4344 ,A - 477	#2 PUSH-PULL ALUM.	1	Log in to see prices
A8	FUL A-6064	Clutch Housing Assy		A - 4342 ,A - 4770 ,A - 6062 ,A - 6063 ,A - 6065	#1 PUSH-PULL ALUM.	1	Log in to see prices
A9	FUL 239614	Screw		X-8L-509	5/16-18X.81 QUANTITY DEPENDENT ON DESIGN	4	Log in to see prices
A10	FUL 14506	Hand Hole Cover			#2 PUSH	1	Log in to see prices
A10	FUL 14507	Hand Hole Cover			#2 PULL	1	Log in to see prices
A10	FUL 4305230	Hand Hole Cover		11453	#1 PULL	1	Log in to see prices
A10	FUL 4305231	Hand Hole Cover		1565	#1 PUSH	1	Log in to see prices
A11	FUL 4306583	Stud		5966		6	Log in to see prices
A12	FUL X-10-1005	Washer		X 3 1000 ,X10 1000	1.23 X 6.60	6	Log in to see prices
A13	FUL X-1-1012	Hex Nut		X-1-1005	.625-18	6	Log in to see prices
A14	FUL 20550	Front Brg Cover	K-2468, K-2761, K-4125		2" PULL	1	Log in to see prices
A14	FUL 20552	Front Brg Cover	K-2345		1-3/4" PULL	1	Log in to see prices
A15	FUL X-8L-604	Capscrew			3/8"-16X1-1/4" USE 6 PCS WITH PULL TYPE COVER USE 4 PCS WITH PUSH TYPE COVER	6	Log in to see prices
A15	FUL X-8L-619	Capscrew			3/8"-16X1-1/4" - USE WITH PUSH TYPE COVER	2	Log in to see prices
A16	FUL 20549	Front Brg Cover			2" PUSH	1	Log in to see prices
A16	FUL 20551	Front Brg. Cover			1-3/4" PUSH	1	Log in to see prices
A17	FUL 14311	Gasket	K-2199			1	Log in to see prices
A18	FUL 12815	Bushing	A-3713, A-3723, A4772, A-6064, K-2468		FOR #1 HOUSING - UPPER	4	Log in to see prices
A18	FUL 12815	Bushing	A-3713, A-3723, A4772, A-6064, K-2468		FOR #2 HOUSING - UPPER	2	Log in to see prices
A18	FUL 8677	Bushing	A-3713, A-3723, A4772, A-6064		FOR #2 HOUSING - UPPER	1	Log in to see prices
A19	FUL 8677	Bushing	A-3713, A-3723, A4772, A-6064		FOR #1 AND #2 HOUSING - LOWER	3	Log in to see prices
A20	FUL X-8C-830	Hex Head Screw/Washer Assy		X-8C-826	.500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING	4	Log in to see prices
A20	FUL X-8C-831	Hex Head Screw/Washer Assy		X-8C-822	.500-13 X 3.460, FOR IRON HOUSING	2	Log in to see prices
A22	FUL X-8-686	Capscrew			3/8"-16X3/4"	6	Log in to see prices
A23	FUL 14575	PTO Cover		4302254		1	Log in to see prices
A24	FUL 4305309	Gasket	K-2199	1684		1	Log in to see prices
A27	FUL 14373	Magnet	S-1318, S-1519			3	Log in to see prices
A28	FUL 14334	Dowel				2	Log in to see prices
A29	FUL X-1-1012	Hex Nut			.625-18	2	Log in to see prices
A30	FUL X-10-1005	Washer		X 3 1000 ,X10 1000 ,X10 1004	1.23 X 6.60	2	Log in to see prices
A31	FUL 14554	Stud		1632 ,6579	5/8" X 2-3/16"	2	Log in to see prices
A36	FUL 23104	Plug		1712		2	Log in to see prices
A37	FUL X-8-1005	Capscrew			5/8"-11X1-1/4"	2	Log in to see prices
A38	FUL 20814	Spacer				2	Log in to see prices
A39	FUL X-12-802	Pipe Plug		X12 800	1/2"	1	Log in to see prices
