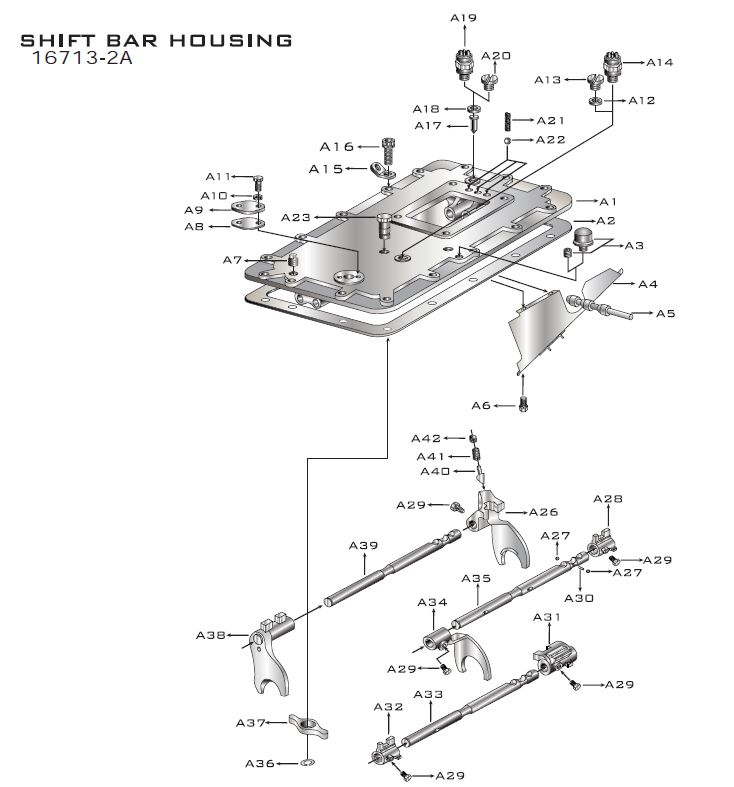

| Item No. |
Part Number |
Name | Kit/Assys | Replaced Parts | Notes | Qty | Price |
Buy |
|
| A1 |
FUL S-1445
|
Shift Bar Hsg
| | 18920 ,20135 ,20214 ,20215 ,20487 21135 ,4302452 | HOUSING ONLY (X) | 1 | Log in to see
prices |
|
|
| A2 |
FUL 4302676
|
Gasket
| K-2199, S-1527 | 14918 | | 1 | Log in to see
prices |
|
|
| A3 |
FUL 4304602
|
Breather
| K-3699, K-3700, K3720, K-3721 | 23605 | 1/4" NPT | 1 | Log in to see
prices |
|
|
| A3 |
FUL X-12-404
|
Pipe Plug
| | | 1/4" NPT | 1 | Log in to see
prices |
|
|
| A4 |
FUL 20070
|
Oil Trough
| S-1527 | | | 1 | Log in to see
prices |
|
|
| A5 |
FUL 20332
|
Air Valve Shaft
| S-1527 | 17177 | | 1 | Log in to see
prices |
|
|
| A6 |
FUL X-8-423
|
Capscrew
| | | 1/4"-20X1/2" | 2 | Log in to see
prices |
|
|
| A7 |
FUL X-12-603
|
Pipe Plug
| | X12 602 | 3/8" NPT | 1 | Log in to see
prices |
|
|
| A8 |
FUL 20209
|
Gasket
| S-1445, S-1527 | | | 1 | Log in to see
prices |
|
|
| A9 |
FUL 20199
|
Plate
| S-1445, S-1527 | 18724 | | 1 | Log in to see
prices |
|
|
| A10 |
FUL X-3-400
|
Lockwasher
| | | 1/4" | 2 | Log in to see
prices |
|
|
| A11 |
FUL X-8-406
|
Capscrew
| | | 1/4"-20X3/4" | 2 | Log in to see
prices |
|
|
| A12 |
FUL 17179
|
Gasket
| S-1445, S-1527 | | | 1 | Log in to see
prices |
|
|
| A13 |
FUL 4303655
|
Plug
| S-1445, S-1527 | 17178 | | 1 | Log in to see
prices |
|
|
| A14 |
FUL 22941
|
Neutral Light Switch
| | 12639 | SWITCH NORMALLY CLOSED | 1 | Log in to see
prices |
|
|
| A15 |
FUL 20815
|
Lifting Eye
| S-2172, S-2769 | 17105 | | 2 | Log in to see
prices |
|
|
| A16 |
FUL X-8L-602
|
Capscrew
| | | 3/8"-16X1-1/2" | 2 | Log in to see
prices |
|
|
| A16 |
FUL X-8L-604
|
Capscrew
| | | 3/8"-16X1-1/4"- OR USE 14 PCS OF X8L-604 WITH 2 PCS OF X-8L-602 | 16 | Log in to see
prices |
|
|
| A17 |
FUL 15899
|
Pin
| S-1445, S-1527 | | | 1 | Log in to see
prices |
|
|
| A18 |
FUL 15900
|
Gasket
| S-1445, S-1527 | | | 1 | Log in to see
prices |
|
|
| A19 |
FUL 22940
|
Reverse Light Switch
| | 16830 | SWITCH NORMALLY OPEN | 1 | Log in to see
prices |
|
|
| A20 |
FUL 4303656
|
Plug
| S-1445, S-1527 | 15917 | | 1 | Log in to see
prices |
|
|
| A21 |
FUL 15918
|
Spring
| K-2770, K-2801, K3345, K-3699, K3700, K-3720, K-3721, S1527 | | | 3 | Log in to see
prices |
|
|
| A22 |
FUL X-14-800
|
Steel Ball
| | | 1/2" | 3 | Log in to see
prices |
|
|
| A23 |
FUL K-3104
|
Actuator Pin Kit
| | 4303287 | | 1 | Log in to see
prices |
|
|
| A26 |
FUL 16131
|
Shift Yoke
| S-1219, S-1527 | | REVERSE/LO | 1 | Log in to see
prices |
|
|
| A27 |
FUL X-14-1200
|
Steel Ball
| | | 3/4" | 2 | Log in to see
prices |
|
|
| A28 |
FUL 14658
|
Shift Block
| S-1527 | | 1ST/2ND | 1 | Log in to see
prices |
|
|
| A29 |
FUL 3220
|
Lockscrew
| S-1527 | | | 5 | Log in to see
prices |
|
|
| A30 |
FUL 1634
|
Interlock Pin
| K-2801, S-1527 | | | 1 | Log in to see
prices |
|
|
| A31 |
FUL 19063
|
Shift Block
| S-1527 | | 3RD/OD | 1 | Log in to see
prices |
|
|
| A32 |
FUL 20120
|
Shift Block
| S-1527 | 18924 | 3RD/OD | 1 | Log in to see
prices |
|
|
| A33 |
FUL 18928
|
Yoke Bar
| S-1527 | 4302760 | 3RD/OD | 1 | Log in to see
prices |
|
|
| A34 |
FUL 18922
|
Shift Yoke
| S-1527 | | 1ST/2ND | 1 | Log in to see
prices |
|
|
| A35 |
FUL 18927
|
Yoke Bar
| S-1527 | | 1ST/2ND | 1 | Log in to see
prices |
|
|
| A36 |
FUL 4302070
|
Snap Ring
| K-3104, S-1527 | | | 1 | Log in to see
prices |
|
|
| A37 |
FUL 4303225
|
Actuator
| S-1527 | | | 1 | Log in to see
prices |
|
|
| A38 |
FUL 4305575
|
Shift Yoke
| K-3699, K-3700, K3720, K-3721, S-1527 | 20450 | 3RD/OD | 1 | Log in to see
prices |
|
|
| A39 |
FUL 18926
|
Yoke Bar
| S-1527 | | REVERSE/LO | 1 | Log in to see
prices |
|
|
| A40 |
FUL 10019
|
Plunger
| S-1219, S-1527 | | | 1 | Log in to see
prices |
|
|
| A41 |
FUL 6392
|
Spring
| S-1219, S-1527 | | | 1 | Log in to see
prices |
|
|
| A42 |
FUL 8968
|
Plug
| S-1219, S-1527 | | | 1 | Log in to see
prices |
|
|
| A999 |
FUL S-1527
|
Shift Bar Hsg Assy
| | 20215 ,21135 ,4302452 | COMPLETE (X) | 1 | Log in to see
prices |
|
|
 | |
