Case (Front) Eaton Fuller 10305-12-93-18918A
View Larger

Case (Front)


See Below  ▼ Eaton Fuller
More Products from Eaton Fuller
  Share

Overview

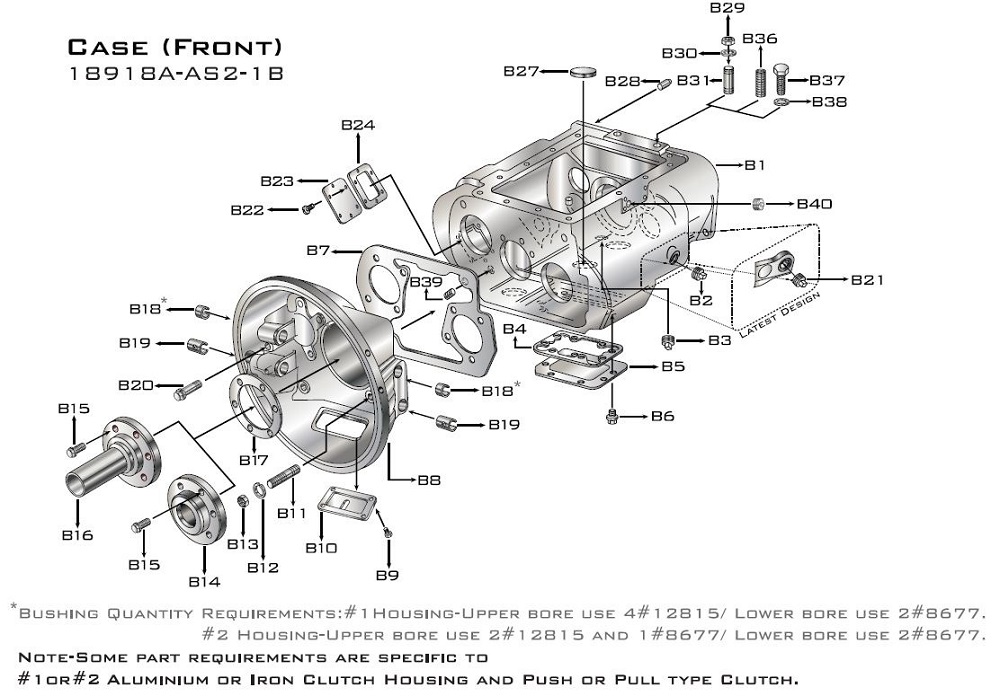

Case (Front)
Item No. Part Number Name Kit/Assys Replaced Parts Notes Qty Price Buy
B1
FUL S-3019
Case Assembly 691711 ,4305812 ,S - 2892 1 Log in to see
prices
B2
FUL X-12-2007
Pipe Plug X-12-2007 1 Log in to see
prices
B3
FUL X-12-1207
Pipe Plug X12 1202 ,X12 1206 3/4" MAGNETIC 1 Log in to see
prices
B4
FUL 4305310
Gasket K-3509 4302810 1 Log in to see
prices
B5
FUL 4302809
PTO Cover 16596 ,4300571 1 Log in to see
prices
B6
FUL X-8-725
Capscrew X 8 724 7/16"-14X7/8" 8 Log in to see
prices
B7
FUL 4306584
Clutch Housing Gasket K-3509, K-3671, K3672, K-3673, K3676, K-3677 4304815, 4305668 1 Log in to see
prices
B8
FUL A-3713
Clutch Housing Assy A - 3700 #1 PUSH-PULL IRON 1 Log in to see
prices
B8
FUL A-3723
Clutch Housing Assy A - 3721 ,A - 3722 #2 PUSH-PULL IRON 1 Log in to see
prices
B8
FUL A-4772
Clutch Housing Assy A - 4344 ,A - 4771 #2 PUSH-PULL ALUM. 1 Log in to see
prices
B8
FUL A-5992
Clutch Housing Assy 4301103 #1 PULL ALUM.(SPECIAL-LIGHTER WEIGHT) 1 Log in to see
prices
B9
FUL 239614
Screw X-8L-509 5/16-18X.81 QUANTITY DEPENDENT ON DESIGN 4 Log in to see
prices
B10
FUL 14506
Hand Hole Cover #2 PUSH 1 Log in to see
prices
B10
FUL 14507
Hand Hole Cover #2 PULL 1 Log in to see
prices
B10
FUL 4305230
Hand Hole Cover 11453 #1 PULL 1 Log in to see
prices
B10
FUL 4305231
Hand Hole Cover 1565 #1 PUSH 1 Log in to see
prices
B11
FUL 4306583
Stud 5966 6 Log in to see
prices
B12
FUL X-10-1005
Washer X 3 1000 ,X10 1000 ,X10 1004 1.23 X 6.60 6 Log in to see
prices
B13
FUL X-1-1012
Hex Nut X-1-1005 .625-18 6 Log in to see
prices
B14
FUL 20550
Front Bearing Cover 2" PULL 1 Log in to see
prices
B15
FUL X-8L-604
Capscrew K-3547 3/8"-16X1-1/4" 6 Log in to see
prices
B16
FUL 20549
Front Bearing Cover 2" PUSH 1 Log in to see
prices
B17
FUL 14311
Gasket K-3509 1 Log in to see
prices
B18
FUL 12815
Bushing A-3713, A-3723, A4772, A-5992 FOR #1 HOUSING UPPER 4 Log in to see
prices
B18
FUL 12815
Bushing A-3713, A-3723, A4772, A-5992 FOR #2 HOUSING UPPER 2 Log in to see
prices
B18
FUL 8677
Bushing A-3713, A-3723, A4772 FOR #2 HOUSING UPPER 1 Log in to see
prices
B19
FUL 8677
Bushing A-3713, A-3723, A4772 FOR #1 AND #2 HOUSING LOWER 2 Log in to see
prices
B20
FUL X-8C-830
Hex Head Screw/Washer Assy K-3677 X-8C-826 .500-13 X 1.490, USE 2 PCS FOR IRON HOUSING, USE 4 PCS FOR ALUMINUM HOUSING 4 Log in to see
prices
B20
FUL X-8C-831
Hex Head Screw/Washer Assy X-8C-822 .500-13 X 3.460, FOR IRON HOUSING 2 Log in to see
prices
B21
FUL 4304023
Plug 4303747 1-1/16" MAGNETIC, O-RING INCLUDED 1 Log in to see
prices
B22
FUL X-8-686
Capscrew 3/8"-16X3/4" 6 Log in to see
prices
B23
FUL 14575
PTO Cover 4302254 1 Log in to see
prices
B24
FUL 4305309
Gasket K-3509 1684 1 Log in to see
prices
B27
FUL 14373
Magnet S-3003, S-3019 3 Log in to see
prices
B28
FUL 18128
Pin 2 Log in to see
prices
B29
FUL X-1-1012
Hex Nut .625-18 2 Log in to see
prices
B30
FUL X-10-1005
Washer X 3 1000 ,X10 1000 ,X10 1004 1.23 X 6.60 2 Log in to see
prices
B31
FUL 14554
Stud 1632 ,6579 5/8" X 2-3/16" 2 Log in to see
prices
B36
FUL 23104
Plug 1712 2 Log in to see
prices
B37
FUL X-8-1005
Capscrew 5/8"-11X1-1/4" 2 Log in to see
prices
B38
FUL 20814
Spacer 2 Log in to see
prices
B39
FUL X-12-802
Pipe Plug X12 800 1/2" 1 Log in to see
prices
B40
FUL X-12-1207
Pipe Plug X12 1202 ,X12 1206 3/4" MAGNETIC 1 Log in to see
prices

Specifications

  Product NameCase (Front)
  Brand NameEaton Fuller
