| Item No. |
Part Number |
Name | Kit/Assys | Replaced Parts | Notes | Qty | Price |
Buy |
|
| A1 |
FUL S-3022
|

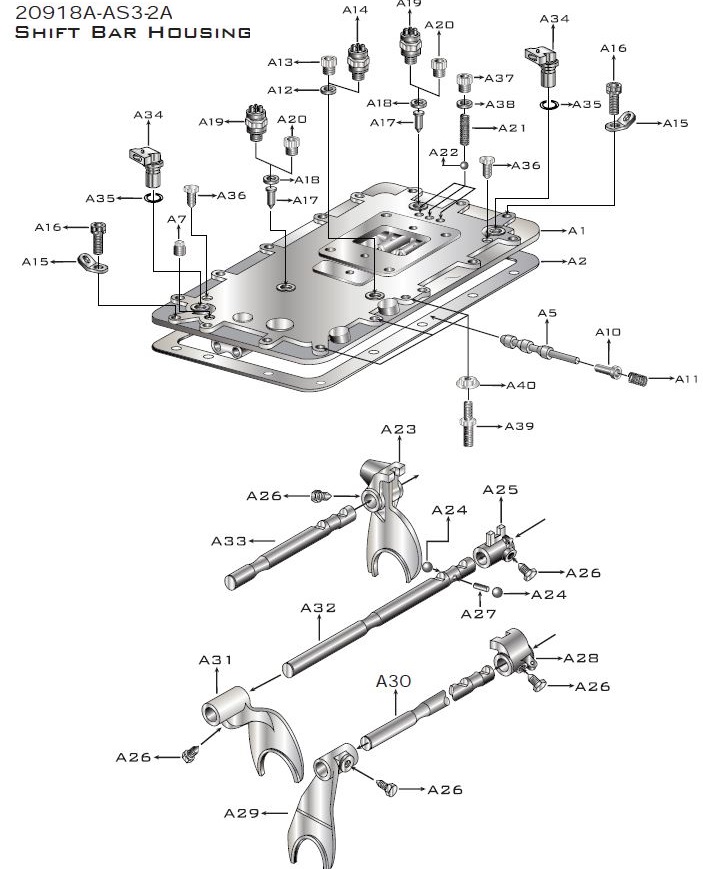

Shift Bar Housing Assy
| | 4305895 | HOUSING ONLY | 1 | Log in to see
prices |
|
|
| A2 |
FUL 4302676
|
Gasket
| K-3509, S-3021, S3022 | 14918 | | 1 | Log in to see
prices |
|
|
| A5 |
FUL 20332
|
Air Valve Shaft
| S-3021 | 17177 | | 1 | Log in to see
prices |
|
|
| A7 |
FUL X-12-603
|
Pipe Plug
| | X12 602 | 3/8" NPT | 1 | Log in to see
prices |
|
|
| A10 |
FUL 21966
|
Plunger
| | | | 1 | Log in to see
prices |
|
|
| A11 |
FUL 4301372
|
Spring
| | | | 1 | Log in to see
prices |
|
|
| A12 |
FUL 17179
|
Gasket
| S-3021, S-3022 | | | 1 | Log in to see
prices |
|
|
| A13 |
FUL 4303655
|
Plug
| S-3021, S-3022 | 17178 | | 1 | Log in to see
prices |
|
|
| A14 |
FUL 22941
|
Neutral Light Switch
| | 12639 | SWITCH NORMALLY CLOSED | 1 | Log in to see
prices |
|
|
| A15 |
FUL 20815
|
Lifting Eye
| | 17105 | | 2 | Log in to see
prices |
|
|
| A16 |
FUL X-8L-602
|
Capscrew
| | | 3/8"-16X1-1/2"- TWO FOR LIFTING EYES, 2 FOR HARNESS BRACKET AND 1 FOR STRAIN RELIEF VALVE | 5 | Log in to see
prices |
|
|
| A16 |
FUL X-8L-604
|
Capscrew
| K-3547 | | 3/8"-16X1-1/4" | 8 | Log in to see
prices |
|
|
| A17 |
FUL 15899
|
Pin
| | | | 2 | Log in to see
prices |
|
|
| A18 |
FUL 15900
|
Gasket
| S-3021, S-3022 | | | 2 | Log in to see
prices |
|
|
| A19 |
FUL 22940
|
Reverse Light Switch
| | 16830 | SWITCH NORMALLY OPEN | 1 | Log in to see
prices |
|
|
| A20 |
FUL 4303656
|
Plug
| S-3021, S-3022 | 15917 | | 1 | Log in to see
prices |
|
|
| A21 |
FUL 691661
|
Compression Spring
| K-3511, K-3513, S3021 | | | 3 | Log in to see
prices |
|
|
| A22 |
FUL X-14-800
|
Steel Ball
| | | 1/2" | 3 | Log in to see
prices |
|
|
| A23 |
FUL 691712
|
Shift Yoke
| S-3021 | 4301376 | REVERSE/1ST | 1 | Log in to see
prices |
|
|
| A24 |
FUL X-14-1200
|
Steel Ball
| | | 3/4" | 2 | Log in to see
prices |
|
|
| A25 |
FUL 14658
|
Shift Block
| S-3021 | | 2ND/3RD | 1 | Log in to see
prices |
|
|
| A26 |
FUL 3220
|
Lockscrew
| S-3021 | | | 5 | Log in to see
prices |
|
|
| A27 |
FUL 1634
|
Interlock Pin
| K-3511, S-3021 | | | 1 | Log in to see
prices |
|
|
| A28 |
FUL 14659
|
Shift Block
| S-3021 | | 4TH/5TH | 1 | Log in to see
prices |
|
|
| A29 |
FUL 691601
|
Shift Yoke
| S-3021 | 4302212 | 4TH/5TH | 1 | Log in to see
prices |
|
|
| A30 |
FUL 4301366
|
Yoke Bar
| S-3021 | | 4TH/5TH | 1 | Log in to see
prices |
|
|
| A31 |
FUL 691600
|
Shift Yoke
| S-3021 | 4302994 | 2ND/3RD | 1 | Log in to see
prices |
|
|
| A32 |
FUL 4301365
|
Yoke Bar
| S-3021 | | 2ND/3RD | 1 | Log in to see
prices |
|
|
| A33 |
FUL 4301364
|
Yoke Bar
| S-3021 | | REVERSE/1ST | 1 | Log in to see
prices |
|
|
| A34 |
FUL K-3231
|
Speed Sensor Kit
| | A - 6398 ,A - 6724 | SINGLE PICK-UP (2 PIN) | 2 | Log in to see
prices |
|
|
| A35 |
FUL 14142
|
-O- Ring
| S-3021 | | | 2 | Log in to see
prices |
|
|
| A36 |
FUL X-8C-409
|
Capscrew
| | | 1/4"-20X5/8" | 2 | Log in to see
prices |
|
|
| A37 |
FUL 4303656
|
Plug
| S-3021, S-3022 | 15917 | | 3 | Log in to see
prices |
|
|
| A38 |
FUL 15900
|
Gasket
| S-3021, S-3022 | | | 3 | Log in to see
prices |
|
|
| A39 |
FUL 4305869
|
Screw 3/8 & 5/16
| | | USED FOR MOUNTING ECU | 3 | Log in to see
prices |
|
|
| A40 |
FUL 4305870
|
Nut Assembly
| K-3734 | | 5/16-18, USED FOR MOUNTING ECU | 3 | Log in to see
prices |
|
|
| A999 |
FUL S-3021
|
Shift Bar Housing Assy
| | 4305895 | COMPLETE | 1 | Log in to see
prices |
|
|
 | |
