Case (Rear) Spicer 10402-9-93-ES52-7A
View Larger

Case (Rear)


See Below  ▼ Spicer
More Products from Spicer
  Share

Overview

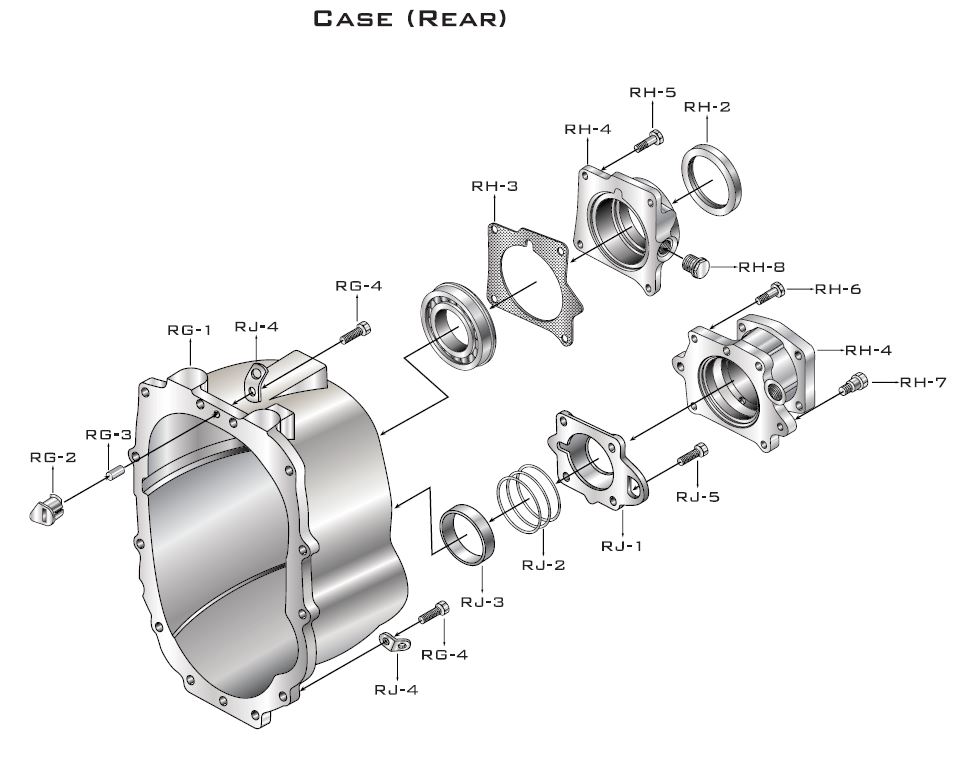

Case (Rear)
Item No. Part Number Name Navistar Part No. Qty Price Buy
101-15-5-1X
Case Assembly - Rear 1681348C91 1 Log in to see
prices
RG-1
N.S.S
Case - Rear (C101-15-3) N.S.S. 1 Log in to see
prices
RG-2
101-477-3
Shift Bar Support - Rear 1681331C1 1 Log in to see
prices
N.S.
545012
Plug - Brake Mounting Holes In Rear Face 441366C1 2 Log in to see
prices
N.S.
545089-1
Plug - Brake Mounting Lugs 1681349C1 2 Log in to see
prices
RG-3
545086
Pin - Dowel - Rear Case To Front Case 1681317C1 2 Log in to see
prices
RG-4
545002-4
Screw - Rear Case (.375" - 16 X 1.250") 26311R11 12 Log in to see
prices
RH-1
See Tab Bills
Cap - Sub - Assy. Mainshaft Rear Bearing 1 Log in to see
prices
40-19-41-2X
Cap - Sub - Assy . M/S Rear Brg. ( 12 X 4 Dcm Brake) ( C40 -19-4) 1669570C91 1 Log in to see
prices
or
40-19-43-2X
Cap - Sub - Assy. Mainshaft Rear Bearing (Air) (C40-19-46) 1669571C91 1 Log in to see
prices
RH-2
63-463-1
Oil Seal 596372C1 1 Log in to see
prices
RH-3
40-223-5
Gasket (For 12 X 4 Dcm Brake Cap ) 596375C2 1 Log in to see
prices
or
40-223-4
Gasket (For Air Cap ) 596376C2 1 Log in to see
prices
RH-4
N.S.S.
Cap - Mainshaft Rear Bearing N.S.S. 1 Log in to see
prices
RH-5
545002-4
Screw - Mainshaft Rear Bearing Cap (Air Cap) 26311R11 4 Log in to see
prices
RH-6
545002-2
Screw-M/S Rear Bearing Cap (.375" - 16X 1.375) (Brake Cap) 4 Log in to see
prices
RH-7
545134
Screw-M/S Rear Bearing Cap (.438" - 14X 1.250) (Brake Cap) 1681334C1 2 Log in to see
prices
RH-8
545021
Plug - Electronic Speedo/ Cruise (.750" -16 Unf -2A) 3290096R1 1 Log in to see
prices
RJ-1
101-22-1
Cap - Countershaft Rear Bearing 2500703C1 1 Log in to see
prices
RJ-2
49-228-1-1
Shim - Countershaft Rear Bearing (.005") 1654876C1 A/R Log in to see
prices
49-228-1-2
Shim - Countershaft Rear Bearing (.010") 1654877C1 A/R Log in to see
prices
49-228-1-3
Shim - Countershaft Rear Bearing (.015") 1654878C1 A/R Log in to see
prices
RJ-3
550978
Cup - Countershaft Rear Bearing ST978 1 Log in to see
prices
RJ-4
330564-1
Lift Hook 2 Log in to see
prices
and
330969-4
Lift Hook 1 Log in to see
prices
RJ-5
545002
Screw - Countershaft Rear Bearing Cap (.375" - 16X 1.000") 4 Log in to see
prices

Specifications

  Product NameCase (Rear)
  Brand NameSpicer
