Home » LD Transfer Case » New Process
NP 126 (2002-Up GMC Trailblazer, Bravada, & Envoy) New Process NV126
View Larger

NP 126 (2002-Up GMC Trailblazer, Bravada, & Envoy)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

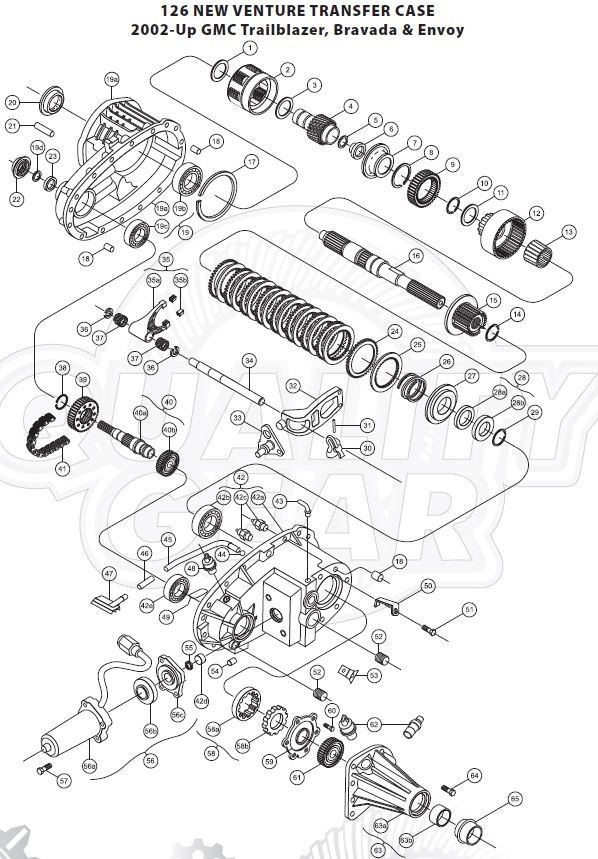

NP 126 (2002-Up GMC Trailblazer, Bravada, & Envoy)
Item No. Part Number Name Notes Price Buy
1
NV29133
 Washer, Input Gear Thrust Frt. Log in to see
prices
2
NV50910
 Assy, Planetary(Complete) Log in to see
prices
3
NV30334
 Washer, Input Gear Thrust Rr. Log in to see
prices
4
NV29993
 Assy, Input Gear Log in to see
prices
5
NV34610
 Seal, Input Pocket Log in to see
prices
6
FC69915
 Assy, Input Pocket & Thrust Brg. Log in to see
prices
6
NV32679
 Bearing, Input Pocket Log in to see
prices
7
NV48976
 Sleeve, Range Log in to see
prices
8
NV22479
 Ring, Retaining 3 Required Log in to see
prices
9
NV29850
 Sprocket, Drive Log in to see
prices
10
NV29830
 Ring, Clutch Retaining Log in to see
prices
11
NV29831
 Washer, Thrust Log in to see
prices
12
NV29832
 Housing, Clutch Log in to see
prices
13
NV24613
 Bearing, Clutch Housing 2 Required Log in to see
prices
14
NV22479
 Ring, Retaining Log in to see
prices
15
NV29939
 Hub, Clutch Log in to see
prices
16
NV29827
 Assy, Mainshaft Log in to see
prices
17
NV31132
 Ring, Front Output Retaining Log in to see
prices
18
NV25583
 Pin, Dowel 12.3mm ODx18.6mm L - 2 Required Log in to see
prices
19
NV49138
 Assy, Front Case Log in to see
prices
19a
--
 Case, Front Half Log in to see
prices
19b
SKF 5210ANRX
 Bearing, Input Can Use 9442326 Log in to see
prices
19c
KOY 6007
 Bearing, Front Output Log in to see
prices
19d
NV17405
 Ring, Front Output Retaining Log in to see
prices
20
CRS 29870
 Seal, Input Log in to see
prices
21
NV31727
 Stud, Transfer Case Adapter M10x1.5x18 - 5 Required Log in to see
prices
22
NV29869
 Seal, Front Output Log in to see
prices
23
NV17821
 Seal, Yoke Log in to see
prices
24
NV29937
 Plate, Clutch Steel Log in to see
prices
25
NV29938
 Plate, Clutch Friction Log in to see
prices
26
NV29839
 Spring, Clutch Log in to see
prices
27
NV29840
 Plate, Clutch Pressure Log in to see
prices
28
NV50971
 Assy, Clutch Pressure Plate Brg. Log in to see
prices
28a
--
 Bearing, Clutch Pressure Plate Log in to see
prices
28b
--
 Washer, Pressure Plate Thrust Log in to see
prices
29
NV22495
 Ring, Retaining Log in to see
prices
30
NV30371
 Collar, Range Shift Log in to see
prices
31
19132965
 Pin, Range Collar Roll Log in to see
prices
32
NV29835
 Lever, Clutch Log in to see
prices
33
NV30633
 Assy, Sector Log in to see
prices
34
NV29823
 Shaft, Shift Log in to see
prices
35
NV41873
 Assy, Range Fork Log in to see
prices
35a
--
 Fork, Range Shift Log in to see
prices
35b
--
 Pad, Shift Fork Log in to see
prices
36
NV30980
 Ring, Range Fork Retaining 2 Required Log in to see
prices
37
NV41875
 Spring, Range Fork 2 Required Log in to see
prices
38
NV22479
 Ring, Retaining Log in to see
prices
38
NV22451
 Ring, Input Retaining Log in to see
prices
39
NV29943
 Sprocket, Driven Log in to see
prices
40
NV29847
 Assy, Front Output Shaft With Wheel Log in to see
prices
40a
--
 Shaft, Input Log in to see
prices
40b
NV30335
 Wheel, Front Output Tone Log in to see
prices
41
NV51413
 Chain 1.25” Wide Log in to see
prices
42
NV49139
 Assy, Rear Case Log in to see
prices
42a
--
 Case, Rear Half Log in to see
prices
42b
NV25820
 Bearing, Rear Output Log in to see
prices
42c
NV30325
 Stud, Control Lever Log in to see
prices
42d
NV29815
 Bearing, Shift Lever Log in to see
prices
42e
6007
 Bearing, Front Log in to see
prices
43
NV17988
 Pipe, Vent With 90° Bend Log in to see
prices
43
NV51411
 Breather Log in to see
prices
44
NV25503
 O-Ring, Oil Pump Suction Log in to see
prices
45
NV25503
 Tube, Oil Log in to see
prices
46
NV35212
 Hose, Connector .3437” Log in to see
prices
47
NV50640
 Filter Log in to see
prices
48
NV22512
 Sensor, Speed 1 Required Log in to see
prices
49
NV51416
 Magnet Log in to see
prices
50
NV41591
 Bracket, Transfer Case Mainshaft side Log in to see
prices
51
NV6101526
 Bolt, Case Half M8x1.25x35mm - 14 Required Log in to see
prices
52
NV51412
 Plug, Drain/Fill 2 Required Log in to see
prices
53
NV41592
 Bracket, Transfer Case Front side Log in to see
prices
54
NV25583
 Pin, Actuator Lock 12.3mm ODx18.6mm L Log in to see
prices
55
NV16706
 Ring, Shift Detent Retaining Log in to see
prices
56
NV49035
 Assy, Actuator Log in to see
prices
56a
--
 Actuator Log in to see
prices
56b
NV49293
 Switch, 4WD Indicator Log in to see
prices
56c
NV46829
 Insulator, Actuator Log in to see
prices
57
NV6101526
 Bolt, Actuator M8x1.25x35mm - 4 Required Log in to see
prices
58
NV47728
 Kit, Oil Pump Gear Log in to see
prices
58a
--
 Gear, Oil Pump Driven Log in to see
prices
58b
--
 Gear, Oil Pump Drive Log in to see
prices
59
NV41223
 Cover, Pump Log in to see
prices
60
NV32280
 Screw, Pump Cover M6x1x18 - 6 Required Log in to see
prices
61
NV29936
 Wheel, Rear Output Shaft Tone Log in to see
prices
62
NV22512
 Sensor, Speed 2 Required Log in to see
prices
63
NV41099
 Assy, Extension Housing Log in to see
prices
63a
--
 Housing, Extension Log in to see
prices
63b
NV17475
 Bushing, Rear Ext. Housing Log in to see
prices
64
NV6101526
 Bolt, Extension Housing M8x1.25x35mm - 5 Required Log in to see
prices
65
18499
 Seal, Rear Output Log in to see
prices
NI
NV49674
 Module, Control Id # 4313, GM#12590220 Log in to see
prices
NI
NV25500
 Connector, Speed Sensor Log in to see
prices
NI
TC226
 Kit, Bearing & Seal With Small Parts Kit Log in to see
prices
NI
SK226
 Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 126 (2002-Up GMC Trailblazer, Bravada, & Envoy)
  Brand NameNew Process

Documents

NV - 126.pdf
