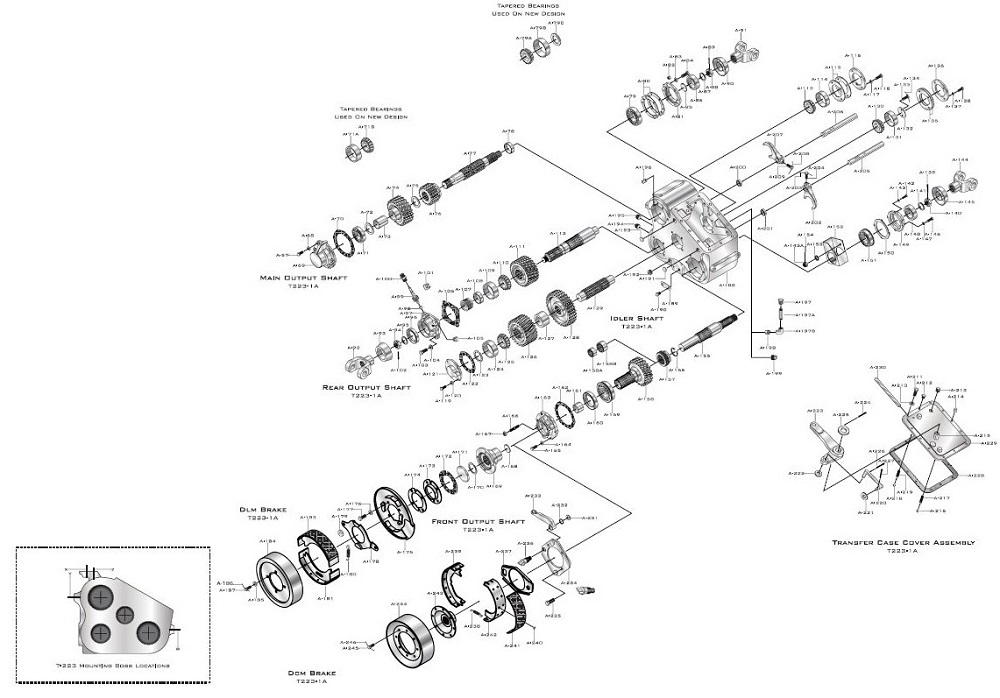

Main Assembly Meritor T-223-1
View Larger

Main Assembly


See Below  ▼ Meritor
More Products from Meritor
  Share

Overview

Main Assembly
Item No. Part Number Name Description Model Qty Price Buy
A67
S-268-2
Capscrew-Input Shaft Rear Bearing Cage 0.38"-16, 1.12" long, grade 8. All 6 Log in to see
prices
A68
1229-K-1597
Washer-Input Shaft Rear Bearing Cage 0.75" O.D., 0.41" I.D., 0.09" thick. All 6 Log in to see
prices
A69
3838-N-196
Cage-Input Shaft Rear Brg 3828-Y-311 cast, 6 drilled holes on 5.00" bolt circle, 2 tapped holes on 5.00" bolt circle, 2 inside angle drilled holes, closed. All except transfer cases equipped with PTO. 1 Log in to see
prices
A70
2297-Z-6656
Gasket-Input Shaft Rear Cap Silicone gasket, use as required.* All Log in to see
prices
A71
1228-S-409
Bearing-Input Shaft Rear 0.53" diameter, 8 balls. See remarks 1 Log in to see
prices
A71A
332
Cup-Input Shaft Rear 3.15" O.D. All 1 Log in to see
prices
A71B
339
Cone-Input Shaft Rear 1.38" bore. All 1 Log in to see
prices
A72
1829-S-721
Washer-Input Shaft Rear Brg 2.31" O.D., 1.39" I.D., 0.16" thick All 1 Log in to see
prices
A73
1825-R-200
Bushing-Direct Drive Gear 1.75" O.D., 1.61" I.D., 1.78" wide, split, 2 holes and 4 grooves, included in item 74, not sold separately. All 1 Log in to see
prices
A74
A-3892-J-1544
Gear Assy.-Direct Drive (1.87-1) 27T, includes item 73, standard, L.H. Helical, 5.23" O.D., includes 17T spline, available as assembly only. A84, A88, A89, A90, A91, A92,A94, A98, A99,A103, A104, A105,C20, C22, C29,C30, C32, C34,C41, C43, C44,E22, E23, M4 1 Log in to see
prices
A74
A-3892-W-1635
Gear Assy.-Direct Drive (2.05-1) 27T, includes item 73, standard, L.H. Helical, 5.23" O.D., includes 16T spline. A84, A88, A89, A90, A91, A92,A94, A98, A99,A103, A104, A105,C20, C22, C29,C30, C32, C34,C41, C43, C44,E22, E23, M4, 1 Log in to see
prices
A74
A-3892-R-1604
Gear Assy.-Direct Drive (2.25-1) 27T, includes item 73, standard, L.H. Helical, 5.23" O.D., includes 15T spline. A84, A88, A89, A90, A91, A92,A94, A98, A99,A103, A104, A105,C20, C22, C29,C30, C32, C34,C41, C43, C44,E22, E23, M4, 1 Log in to see
prices
A74
A-3892-L-1806
Gear Assy.-Direct Drive 27T, includes item 73, heavy duty, R.H. (2.00-1) Helical, 5.23" O.D., spur, 14T spline, 3.22" I.D., available as assembly only. All others 1 Log in to see
prices
A75
1829-P-380
Washer-Direct Drive Gear 2.38" O.D., 1.64" I.D., 0.18" thick with 4 slots. All 1 Log in to see
prices
A76
3892-Z-2444
Gear-Low Speed Sliding (1.87-1) 17T, spur, standard, 3.71" O.D.,15T spline, with shift groove. A84, A88, A89,A90, A91, A94,A103, A104, A105 1 Log in to see
prices
A76
3892-Y-2443
Gear-Low Speed Sliding 16T, spur, standard, 3.48" O.D.,15T spline, with shift groove A98, A99, C20,C22, C29, C30,C41, C43, C44 1 Log in to see
prices
A76
3892-X-2442
Gear-Low Speed Sliding (2.25-1) 15T, spur, standard, 3.29" O.D.,15T spline, with shift groove. C31, C32, C34,E22, E23, M4 1 Log in to see
prices
A76
3892-W-2441
Gear-Low Speed Sliding (2.00-1) 14T, spur, heavy duty, 3.71" O.D.,15T spline, with shift groove. All others 1 Log in to see
prices
A77
MPS-4122
Shaft-Input 12.00" long, 4 splines, 2- 2.00"-15T,1 spline 1.37"-6T, 1 spline 1.50"-10T, Input bearing journal 1.57", induction harden spline 1.47". high gear thick/ thin over all dimension 1.91", input spline 1.50" diameter, 12.13" long, includes item 88. A84, A88, A90,A91, A92, A94,A98, A99, A103,A104, A105,C22, E22, E23 1 Log in to see
prices
A77
MPS-4124
Shaft-Input 12.00" long, 4 splines, 2- 2.00"-15T, 1 spline 1.37"-6T, 1 spline 1.50"-10T, No induction hardening on spline, input bearing journal 1.57", includes item 88. A89 1 Log in to see
prices
A77
MPS-4120
Shaft-Input 12.00" long, 4 splines, 2- 2.00"-15T,1 spline 1.37"-6T, 1 spline 1.50"-10T,Input bearing journal 1.34" diameter induction harden spline length 3.25", includes item 88 A94, C20, C29,C30, C31, C32,C41, C43, C44 1 Log in to see
prices
A77
MPS-4123
Shaft-Input Same as MPS4122 except high gear thick/thin spline over all dimension 1.78", includes item 88. M4 1 Log in to see
prices
A77
MPS-4121
Shaft-Input 12.13" long, 4 splines, 2- 2.00"-15T, 1 spline 1.75"-10T, 1 spline 1.37"-6T, Induction harden 1.47" in thick spline area, input bearing journal 1.75", input spline 1.75", includes item 88. All others 1 Log in to see
prices
A78
1844-C-809
Spacer-Input Shaft 1.94" O.D., 1.59" I.D., 0.77" wide. A89 1 Log in to see
prices
A79
1228-R-408
Bearing-Input Shaft Front 0.69" diameter, 8 balls. See remarks 1 Log in to see
prices
A79A
357
Cone-Input Shaft Front 1.57" I.D. A84, A88, A89,A90, A91, A92, A94, A98, A99, A103, A104, A105, C22, E22, E23, M4 1 Log in to see
prices
A79A
376
Cone-Input Shaft Front 1.77" I.D. All others 1 Log in to see
prices
A79B
353
Cup-Input Shaft Front 3.54" O. D A84, A88, A89. A90, A91, A92, A94, A98, A99, A103, A104, A105, C22, E22, E23, M4 1 Log in to see
prices
A79B
372
Cup-Input Shaft Front 3.94" O.D. All others 1 Log in to see
prices
A79C
1229-F-3048
Washer-Input Shaft Front 1.84" O.D., 1.51" I.D., 0.06" thick. A84, A88, A89,A90, A91, A92, A98, A99, A103, A104, A105, C22, E22, E23, M4 1 Log in to see
prices
A79C
1229-F-2814
Washer-Input Shaft Front 2.12" O.D., 1.51" I.D., 0.125" thick. C20, C29, C30,C31, C34, C41 C43, C44 1 Log in to see
prices
A79C
1229-E-3047
Washer-Input Shaft Front 2.06" O.D., 1.76" I.D., 0.13" thick. All others 1 Log in to see
prices
A80
2803-L-1832
Shim-Input Shaft Front Bearing Cap .003", use as required, 3.60" I.D.,2 notches 168 degrees apart. A84, A88, A89,A90, A91, A92,A94, A99,A103, A104,A105, C22, E22,E23 2 Log in to see
prices
A80
2803-M-1833
Shim-Input Shaft Front Bearing Cap .005", use as required, 3.60" I.D.,2 notches 168 degrees apart. A84, A88, A89,A90, A91, A92,A94, A99,A103, A104,A105, C22, E22,E23 2 Log in to see
prices
A80
2803-N-1834
Shim-Input Shaft Front Bearing Cap .010", use as required, 3.60" I.D.,2 notches 168 degrees apart. A84, A88, A89,A90, A91, A92,A94, A99,A103, A104,A105, C22, E22,E23 4 Log in to see
prices
A80
2803-B-1874
Shim-Input Shaft Front Bearing Cap .003", use as required, 3.60" I.D.,2 notches 85 degrees apart. M4 2 Log in to see
prices
A80
2803-C-1875
Shim-Input Shaft Front Bearing Cap .005", use as required, 3.60" I.D., 2 notches 85 degrees apart. M4 6 Log in to see
prices
A80
2803-D-1876
Shim-Input Shaft Front Bearing Cap .010", use as required, 3.60" I.D., 2 notches 85 degrees apart. M4 1 Log in to see
prices
A80
2803-G-1931
Shim-Input Shaft Front Bearing Cap .003", use as required, 4" I.D.,5.25" O.D. All others 2 Log in to see
prices
A80
2803-H-1932
Shim-Input Shaft Front Bearing .005", use as required, 4" I.D., 5.25" O.D. All others 6 Log in to see
prices
A80
2803-J-1934
Shim-Input Shaft Front Bearing Cap .010", use as required, 4" I.D., 5.25" O.D. All others 4 Log in to see
prices
A81
A-3866-S-721
Cap Assy-Input Shaft Front Bearing Cap 3866-B-1250 cast, includes item 86 (R-408), cast in oil slots about 168° apart, 4.25" bolt circle, 6 holes,2.87" seal bore, 3.55" bearing bore,available as assembly only. A84, A88, A89,A90, A91, A92,A94, A99, A103,A104, C22, E22,E23 1 Log in to see
prices
A81
A-3866-Y-935
Cap Assy-Input Shaft Front Bearing Cap 3866-B-1250 cast, includes item 86 (R-408), same as S-721 except has 1 drilled thru hole 0.13"-27 N.P.S.F. tap thread, available as assembly only A85, A98,A105 1 Log in to see
prices
A81
A1-3866-X-804
Cap Assy-Input Shaft Front Bearing Cap 3866-Z-1274 cast, same as A-3866-X-804 except item 86 is A-1205-T-1242. C20, C29, C31,C32, C41, C43,C44, H46, H47,H48 1 Log in to see
prices
A81
3866-C-757
Cap Assy-Input Shaft Front Bearing Cap 3866-C-757 cast, uses item 86 (R-408), cast in oil slots approx. 67 degrees apart, 4.25" bolt circle, 6 holes, 2.87" seal bore, 3.55" bearing bore. M4 1 Log in to see
prices
A81
A-3866-X-804
Cap Assy-Input Shaft Front Bearing Cap 3866-Z-1274 cast, includes item 86 (A-573). 0.13" tapped hole, 4.75" bolt circle, 6 holes 3.00" seal bore, 3.94" bearing bore. All others 1 Log in to see
prices
A82
P-42
Plug-Input Shaft Front Bearing Cap Hex socket-female, 0.125"-27 thread. A98, A99, A104,A105, C20, C29, C30, C31, C32, C34, C41, C43, C44, H31, H33, H36, H40, H41, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A83
1229-K-1597
Washer-Input Shaft Front Bearing Cap 0.75" O.D., 0.41" I.D., 0.09" thick All 6 Log in to see
prices
A84
S-269-1
Capscrew-Input Shaft Front Bearing Cap .38"-16, 1.12" long, grade 8. All 6 Log in to see
prices
A85
PW-226
Plug-Input Shaft Shipping Cover 1.63" O.D. No longer available. N4, N7 1 Log in to see
prices
A86
A-1805-R-408
Oil Seal-Input Shaft Front Bearing Cap 2.87" O.D., 2.12" shaft, double lip,double or single case with 8 spring,0.44" wide. A84, A88, A89,A90, A91, A92,A94, A98, A99, A104, A105, C22, E22, E23, M4 1 Log in to see
prices
A86
A-1205-T-1242
Oil Seal-Input Shaft Front Bearing Cap 3.00" seal O.D., 0.48" wide, 2.25" shaft, double lip, double case, with spring, replaces A-1805-S-409 with single lip. C20, C29, C30,C31, C32,C34, C41 1 Log in to see
prices
A86A
1229-F-2814
Washer, Thrust 2.12" O.D., 1.51" I.D., 0.125" thick. C41, C43, C44 1 Log in to see
prices
A86A
1229-F-3048
Washer, Thrust 1.84" O.D., 1.51" I.D., 0.06" thick. A103, A104, A105 1 Log in to see
prices
A87
1829-V-100
Washer-Input Shaft 1.75" O.D., 1.03" I.D., 0.16" thick. A84, A88, A89,,A90, A91, A92, A103, C20, C29, C30, C31, C32, C41, C43, C44, E22, E23, M4 1 Log in to see
prices
A87
1829-M-585
Washer-Input Shaft 2.00" O.D., 1.02" I.D., 0.250" thick H56, H57 1 Log in to see
prices
A87
1229-C-4553
Washer-Input Shaft 1.48" O.D., 0.823" I.D., 0.217" thick. H52 1 Log in to see
prices
A87
1229-E-1331
Washer-Input Shaft 1.81" O.D., 0.25" thick, 1.03" I.D. All others 1 Log in to see
prices
A88
1227-C-939
Nut-Input Shaft 1 1.00"-20, 1.312" width across flats, included in item 77. All 1 Log in to see
prices
A89
K-2412
Cotter-Input Shaft Nut 0.13" diameter, 1.50" long. All 1 Log in to see
prices
A90
2847-P-640
Deflector-Input Yoke Not used on 223 models in this book. 1 Log in to see
prices
A91
3897-L-1962
Flange/Yoke-Input 1600 flange, 1.50"-10T spline, 8 holes on 6.13" bolt circle. A89 1 Log in to see
prices
A91
3897-Z-1794
Flange/Yoke-Input 7C yoke, 4 holes, 4.63" apart, 1.50"-10T spline. A90 1 Log in to see
prices
A91
2WCS24-81
Flange/Yoke-Input 1550 flange, 4 holes 0.56" at 80/100°, 4.75" bolt circle, 1.50"-10T spline. A91 1 Log in to see
prices
A91
3897-Q-1369
Flange/Yoke-Input 1350/1410 flange, 4 holes at 80/100°, 3.75" bolt circle, 1.50"-10T spline. A92 1 Log in to see
prices
A91
2WCS24-43
Flange/Yoke-Input 1500 flange, 4 holes 0.25" at 80/100°, 4.75" bolt circle, 1.50"-10T spline. C20, M4 1 Log in to see
prices
A91
3897-K-1441
Flange/Yoke-Input 1410 yoke, 4.22" long, drilled holes for mounting u-joint. C34 1 Log in to see
prices
A91
3897-L-1728
Flange/Yoke-Input 1550 yoke, 1.50"-10T spline, 4 tapped holes 0.31"-24 UNF on 2.07" bolt circle. E23 1 Log in to see
prices
A91
3897-P-1966
Flange/Yoke-Input 1480 yoke, 4 holes, 3.69" apart, 1.75"-10T spline. H41 1 Log in to see
prices
A91
3280-S-7897
Flange/Yoke-Input 1550 yoke, 1.75"-10T spline, 4 holes 0.45" diameter. H47, H55, H56 1 Log in to see
prices
A91
3897-J-1440
Flange/Yoke-Input 4.22" long, drilled holes for mounting u-joint. H52 1 Log in to see
prices
A91
3897-R-1370
Flange/Yoke-Input 1410/ 1480 flange, 4 holes at 80/100°, 3.75" bolt circle, 1.75"-10T spline. H57 1 Log in to see
prices
A92
3897-K-1961
Flange/Yoke-Rear Output 1600 flange, 1.75"-10T spline, 8 holes on 6.13" bolt circle, 2.25" seal O.D. A89 1 Log in to see
prices
A92
3897-Y-1793
Flange/Yoke-Rear Output 7C/ 72N yoke, 4 holes, 4.63" apart, 1.75"-10T spline A90 1 Log in to see
prices
A92
3260-H-1256
Flange/Yoke-Rear Output 1550 flange, 4 holes 0.56" at 80/100°, 4.75" bolt circle, 1.75"-10T spline. A91, A103 1 Log in to see
prices
A92
3897-R-1370
Flange/Yoke-Rear Output 1410/ 1480 flange, 4 holes at 80/100°, 3.75" bolt circle, 1.75"-10T spline. A92, H57 1 Log in to see
prices
A92
2WCS28-32
Flange/Yoke-Rear Output 1500 flange, 4 holes 0.25" at 80/100°, 4.75" bolt circle, 1.75"-10T spline C20, M4 1 Log in to see
prices
A92
3897-J-1440
Flange/Yoke-Rear Output 4.22" long, drilled holes for mounting u-joint. C34, H52 1 Log in to see
prices
A92
3897-M-1729
Flange/Yoke-Rear Output 1550 yoke, 1.75"-10T spline, 4 tapped holes 0.31"-24 UNF on 2.07" bolt circle. E23 1 Log in to see
prices
A92
3897-P-1966
Flange/Yoke-Rear Output 1480 yoke, 4 holes, 3.68" apart, 1.75"-10T spline. H41 Log in to see
prices
A92
3280-S-7897
Flange/Yoke-Rear Output 1550 yoke, 1.75"-10T spline, 4 holes 0.45" diameter. H47 2 Log in to see
prices
A93
2847-P-640
Deflector-Rear Output Yoke Not used on 223 models in this book. 1 Log in to see
prices
A93
2847-S-617
Deflector-Rear Output Yoke 4 holes 0.47" on 4.31" bolt circle, 2 slots 0.23". 23 A98, A99, A104, A105, C41 1 Log in to see
prices
A94
1227-C-939
Nut-Rear Output Shaft 1.00"-20, 1.312" width across flats, included in item 112 All 1 Log in to see
prices
A95
1829-M-585
Washer-Rear Output Shaft Nut 2.00"O.D., 1.02" I.D., 0.250" thick A103, H55, H56, H57 1 Log in to see
prices
A95
1229-C-4553
Washer-Rear Output Shaft Nut 1.48" O.D., 0.823" I.D., 0.217" thick. H52 1 Log in to see
prices
A95
1229-E-1331
Washer-Rear Output Shaft Nut 1.81" O.D., 1.03" I.D., 0.25" thick. All others 1 Log in to see
prices
A96
A-1805-A-573
Oil Seal-Rear Output Shaft 3.00" seal O.D., 0.44" width, 2.25" shaft, double lip, double case, with spring, included in item 97, replaces A-1805-S-409 with single lip only, available as assembly only. All 1 Log in to see
prices
A97
A-3866-E-733
Cap Assy.-Rear Output Shaft 3866-F-1254 cast, 3 holes on 4.50"bolt circle, 4th hole 2.56" from center,open end, includes item 96 and 98,available as assembly only. A84, A88, A89,A90, A91, A92 ,A94, A98, A99,A103, A104,A105, C20, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H53, M4 1 Log in to see
prices
A97
A-3866-G-891
Cap Assy.-Rear Output Shaft 3866-E-733 cast, includes item 96 and 98, same as E-733 except add 0.13"-27 N.P.S.F. threaded hole. All others 1 Log in to see
prices
A98
1199-M-1105
Bushing-Speedometer Driven Gear Flanged, 0.44" flange O.D., 0.03" flange width, 0.31" O.D., 0.25" I.D., 0.34" wide, included in item 97. All 1 Log in to see
prices
A99
1898-V-776
Gear-Speedometer Driven 14T, Helical, 0.73" O.D., 0.38" wide,speedometer gear on shaft. A84, A88, A89,A98, A99, A104,C20, C34, E23, H33, H39, H40, H42, H52, H55, H57, M4 1 Log in to see
prices
A99
3891-C-1849
Gear-Speedometer Driven 15T, Helical, 0.73" O.D., 0.50" wide, speedometer gear on shaft. A91, A103 1 Log in to see
prices
A100
1898-U-671
Sleeve-Speedometer Driven Gear 0.38" thru-hole, 0.88"-18 NS male thread one end, 0.81"-20 UNEF male thread other end, 0.88" nut. A84, A88, A89,A99, A104,C20, E23 ,H33, H39, M4 1 Log in to see
prices
A100
1199-N-1106
Sleeve-Speedometer Driven Gear 0.47" thru-hole, 0.88"-18 NS male thread one end, 0.50" O.D., 0.81"-20 UNEF male thread other end, 0.41" I.D. A91, A103 1 Log in to see
prices
A100
2245-X-50
Sleeve-Speedometer Driven Gear 0.31" thru-hole, 0.88"-18 NS male thread one end, 0.81"-20 UNEF male thread other end, 0.88" nut. C34, H40,H47, H52,H55, H57 1 Log in to see
prices
A101
A-1850-R-18
Plug-Speedometer Hole Metal threaded plug, replaces 1850-Z-104 plastic plug. A85, A90, A92,A98, A99, A105,C29, C30, C31, C32, C41, C43, C44, H41, H43, H44, H48, H53, H56 1 Log in to see
prices
A102
K-2412
Cotter-Rear Output Shaft Nut 0.13" diameter, 1.50" long All 1 Log in to see
prices
A103
S-269-1
Capscrew-Rear Output Cap 0.38"-16, 1.12" long, grade 8. All 4 Log in to see
prices
A104
1229-K-1597
Washer-Rear Output Cap 0.75" O.D., 0.41" I.D., 0.09" thick. 25 All 4 Log in to see
prices
A105
A-1199-C-1043
Breather-Rear Output Shaft Rear 0.13"-27 N.P.T.F., 1.03" long. A98, A99, A104,A105, C29, C30, C30, C31, C32, C34, H31, H33, H36, H39, H40, H41, H44, H46, H47, H48 1 Log in to see
prices
A106
2297-Z-6656
Gasket-Rear Output Cap Silicone gasket, use as required.* All Log in to see
prices
A107
1898-S-799
Gear-Speedometer Drive A84, A88, A89,A91, A99, A103,A104, C23, C29, C30, C31, C32, C34, C41, C43, C44, H33, H39, H40, H47, H52, H53, H55, H56, H57, M4,4T, Helical, 2.22" O.D., 1.75" I.D.,0.75" wide. 1 Log in to see
prices
A108
1844-S-565
Spacer-Rear Output Shaft 2.13" O.D., 1.76" I.D., 1.18" wide. A85, A92 A98, E22, H41 1 Log in to see
prices
A108
1844-J-166
Spacer-Rear Output Shaft 2.13" O.D., 1.76" I.D., 0.42" wide. A84, A88, A89A91, A99, A103, A104, C23, C29, C30, C31, C32, C34, C41, C43, C44, H33, H39, H40, H47, H52, H53, H55, H57, M4 1 Log in to see
prices
A109
25520
Cup-Rear Output Shaft Rear Bearing 3.27" O.D. All 1 Log in to see
prices
A110
25584
Cone-Rear Output Shaft Rear Bearing 1.71" bore. All 1 Log in to see
prices
A111
3892-P-1550
Gear-Rear Output Shaft 27T, L.H. Helical, 5.83" O.D., 1.79"-10T spline. All 1 Log in to see
prices
A112
MPS-4118
Shaft-Rear Output 11.5" long, threaded one end, 1.75"-10T spline, 2.00"-10T spline, includes item 94. All 1 Log in to see
prices
A113
25878
Cone-Rear Output Shaft Forward Bearing 1.38" bore. All 1 Log in to see
prices
A114
25821
Cup-Rear Output Shaft Forward Bearing 2.88" O.D All 1 Log in to see
prices
A115
2803-Z-1846
Shim-Rear Output Forward .003", use as required. All 2 Log in to see
prices
A115
2803-A-1847
Shim-Rear Output Forward .005", use as required. All 2 Log in to see
prices
A115
2803-B-1848
Shim-Rear Output Forward .010", use as required. All 4 Log in to see
prices
A116
3866-C-731
Cap-Rear Output Forward Stamping, 4 holes, 3.63" bolt circle, no flats, on O.D., replaces 3866-S-773 with 2 flats on O.D. All 1 Log in to see
prices
A117
1229-K-1597
Washer-Rear Output Forward Cap 0.75" O.D., 0.41" I.D., 0.09" thick. cap All 4 Log in to see
prices
A118
S-269-1
Capscrew-Rear Output Forward Cap 0.38"-16, 1.12" long, grade 8. All 4 Log in to see
prices
A119
S-269-1
Capscrew-Idler Shaft Rear Cap 0.38"-16, 1.12" long, grade 8. cap All 4 Log in to see
prices
A120
1229-K-1597
Washer-Idler Shaft Rear Cap 0.75" O.D., 0.41" I.D., 0.09" thick. All 4 Log in to see
prices
A121
3866-N-794
Cap-Idler Shaft Rear 3866-M-819 cast, round O.D. with scallop and 2 flats on O.D., 4 holes,, 3.63" bolt circle, closed end. H29, H31, H33,H36, H39, H40,H41, H44, H46,H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A121
3866-C-731
Cap-Idler Shaft Rear Stamping, 4 holes, 3.63" bolt circle, with no flats on O.D., replaces 3866-S-773 with 2 flats on O.D., closed end All others 1 Log in to see
prices
A122
2297-Z-6656
Gasket-Idler Shaft Rear Cap Silicone gasket, use as required.* All Log in to see
prices
A123
1854-E-187
Snap Ring-Idler Shaft Fits over 1.44" diameter shaft. H29, H31, H33, H36, H39, H40, H41, H44, H46, H47, H48, H52, H54, H55, H56, H57 1 Log in to see
prices
A124
31521
Cup-Idler Shaft Rear Brg. 3.00" O.D. All 1 Log in to see
prices
A125
31597
Cone-Idler Shaft Rear Brg. 1.44" bore. All 1 Log in to see
prices
A126
3892-C-1641
Gear-Idler Shaft 28T, R.H., Helical, 5.41" O.D., includes 1.88"-10T spline. All 1 Log in to see
prices
A127
1844-L-480
Spacer-Idler Shaft Gear 2.50" O.D., 1.94" I.D., 1.28" wide. All 1 Log in to see
prices
A128
3892-B-1640
Gear-Low Speed (1.87-1) 33T, standard, spur 6.88" O.D., A90, A91, A94, includes 1.88"-10T spline A84, A88, A89,A90, A91, A94,A98, A99, A103, A104, A105 1 Log in to see
prices
A128
3892-Y-1637
Gear-Low Speed (2.05-1) 34T, standard, spur 7.08" O.D.,includes 1.88"-10T spline. A92, A94, A95,C20, C22, C29,C30, C31, C32, C34, C41, C43, C44 1 Log in to see
prices
A128
3892-T-1606
Gear-Low Speed (2.25-1) 35T, standard, spur 7.28" O.D.,includes 1.88"-10T spline. A94, E22,E23, M4 1 Log in to see
prices
A128
3892-K-1805
Gear-Low Speed (2.00-1) 29T, heavy duty, spur 7.06" O.D., includes 1.88"-10T spline. All others 1 Log in to see
prices
A129
3880-U-723
Shaft-Idler 7.30" long, 1.44" bearing diameter both ends, 1.88"-10T spline Reference TSA-4-43 for further technical information. A84, A88, A89,A90, A91, A92,A94, A98, A99,A103, A104,A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, M4 1 Log in to see
prices
A129
3880-A-807
Shaft-Idler 7.50" long, 1.44" bearing diameter both ends, 1.88"-10T spline. All others 1 Log in to see
prices
A130
31597
Cone-Idler Shaft Front Brg. 1.38" I.D. bore. A84, A88, A89,A90, A91, A92, A94, A98, A99, A103, A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H46, H47, H48, M4 1 Log in to see
prices
A130
HM-89449
Cone-Idler Shaft Front Brg. 1.44" bore. All others 1 Log in to see
prices
A131
31521
Cup-Idler Shaft Front Brg. 0.94" long, 3.00" O.D. A84, A88, A89,A90, A91, A92, A94, A98, A99, A103, A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H46, H47, H48, M4 1 Log in to see
prices
A131
HM-89411
Cup-Idler Shaft Front Brg. 0.91" long, 3.00" O.D. All others 1 Log in to see
prices
A132
1829-H-788
Washer-Idler Shaft Brg. 1.75" O.D., 0.19" thick, with 2 holes 0.39" diameter on 0.88" bolt circle. H29, H31, H33,H36, H39, H40,H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A133
10-X-1292
Capscrew-Idler Shaft Brg. Washer 0.38"-16, 0.88" long, grade 8,1 hole drilled in head. H29, H31, H33,H36, H39, H40,H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 2 Log in to see
prices
A134
LW-163
Lockwire-Idler Shaft Brg.Washer 16 gage, 3.00" long. H29, H31, H33,H36, H39, H40,H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A135
2803-Z-1846
Shim-Idler Shaft Front Brg.Cap .003", use as required. All 2 Log in to see
prices
A135
2803-A-1847
Shim-Idler Shaft Front Brg.Cap .005", use as required. All 2 Log in to see
prices
A135
2803-B-1848
Shim-Idler Shaft Front Brg. Cap .010", use as required. 4 1 Log in to see
prices
A136
3866-C-731
Cap-Idler Shaft Front Brg Stamping, 4 holes, 3.63" bolt circle,no flats on O.D., replaces 3866-S-773 2 flats on O.D. A84, A88, A89,A90, A91, A92,A94, A98, A103,A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, M4 1 Log in to see
prices
A136
3866-N-794
Cap-Idler Shaft Front Brg. 3866-M-819 rough part, round O.D. with scallops, 2 flats, 4 holes on 3.63" bolt circle closed cap. All others 1 Log in to see
prices
A137
1229-K-1597
Washer-Idler Shaft Front Brg. 0.75" O.D., 0.41" I.D., 0.09" thick. All 4 Log in to see
prices
A138
S-269-1
Capscrew-Idler Shaft Front Bearing 0.38"-16, 1.12" long, grade 8. All 4 Log in to see
prices
A139
K-2412
Cotter-Output Shaft Nut 0.13" diameter, 1.50" long. All 1 Log in to see
prices
A140
1227-C-939
Nut-Output Shaft 1.00"-20, 1.312" width across flats,included in items 14 and 155. All 1 Log in to see
prices
A141
1829-V-100
Washer-Output Shaft 1.75" O.D., 1.03" I.D., 0.16" thick. All 1 Log in to see
prices
A142
10-X-830
Capscrew-Oil Catcher 0.38"-16, 1.87" long, grade 8. C20, C29, C30,C31, C32, C34, C41, C43, C44, H29, H32, H33, H36, H39, H44, H46, H48, H53, H54, H56 1 Log in to see
prices
A143A
NL-26-1
Locknut, Oil Catcher Capscrew 0.38"-16 thread, 0.56" width across flats,grade 8. C41, C43, C44,H53, H54, H56 1 Log in to see
prices
A143
1229-K-1597
Washer-Front Brg. Cap 0.75" O.D., 0.41" I.D., 0.09" thick. C20, H29, H32,H33, H36, H39, H44 1 Log in to see
prices
A144
3897-Z-1794
Flange/Yoke-Front Output 7C yoke, 4 holes 4.63" apart, 1.50"-10T spline. A90 1 Log in to see
prices
A144
2WCS24-81
Flange/Yoke-Front Output 1550 flange, 1.50"-10T spline, 4 holes 0.56" at 80/100°, 4.75" bolt circle dia. A91, A103 1 Log in to see
prices
A144
3897-Q-1369
Flange/Yoke-Front Output 1350/ 1410 flange, 4 holes at 80/100°, 3.75" bolt circle, 1.50-10T spline. A92, H57 1 Log in to see
prices
A144
2WCS24-43
Flange/Yoke-Front Output 1500 flange, 4 holes 0.50" at 80/100°, 4.75" bolt circle, 1.50"-10T spline. C20, M4 1 Log in to see
prices
A144
3897-K-1441
Flange/Yoke-Front Output 1410 yoke, 1.50"-10T spline, 2.13" seal O.D. C34, H41, H52 1 Log in to see
prices
A144
3897-L-1728
Flange/Yoke-Front Output 1550 yoke, 1.50"-10T spline, 4 tapped holes 0.31"-24 UNF on 2.07" bolt circle. E23 1 Log in to see
prices
A144
A1-3280-R-7896
Flange/Yoke-Front Output 1550/155N yoke, 1.50"-10T spline, includes item 145. H47, H55 1 Log in to see
prices
A144
155NYS24-6
Flange/Yoke-Front Output 1550/155N yoke, 1.50"-10T spline H56 1 Log in to see
prices
A145
2297-S-695
Deflector-Front Output Yoke "S" shape (cross section), 3.44" O.D., 2.18" I.D., 0.88" wide, included in item 144. H47 1 Log in to see
prices
A146
S-269-1
Capscrew-Front Brg. Cap 0.38"-16, 1.12" long, grade 8. All 4 Log in to see
prices
A147
1229-K-1597
Washer-Front Brg. Cap 0.75" O.D., 0.41" I.D., 0.09" thick. All 4 Log in to see
prices
A148
A-1805-R-408
Oil Seal-Output Shaft Front 2.88" O.D., 2.12" shaft, double lip, double or single case, with spring, 0.44" wide, included in item 149 and 155. All 1 Log in to see
prices
A149
A-3866-B-730
Cap Assy.-Output Shaft Front 3866-D-1292 cast, 4 holes on 4.13" bolt circle, includes item 148, available as assembly only. All 1 Log in to see
prices
A150
2297-Z-6656
Gasket-Output Shaft Front Cap Silicone gasket, use as required.* All Log in to see
prices
A151
1828-V-74
Bearing-Output Shaft Front Ball bearing, 3.15" O.D., 1.57" I.D., 0.71" wide, with snap ring. All 1 Log in to see
prices
A152
2847-Q-849
Oil Catcher-Output Shaft 1.97" both ends. C32, C34, H29, H33, H36, C20, C30, C31,C32, C34, H29, H33, H36, H39, H44, H46, H48 1 Log in to see
prices
A152
3221-S-19
Oil Catcher-Output Shaft 3.62" high, 2.31" long, 1.68"/ 1.56"wide at opposite ends. C29, C41, C43,C44, H53, H54,H56 1 Log in to see
prices
A153
WA-36
Washer-Oil Catcher 0.81" O.D., 0.46" I.D., 0.06" thick. C20, C30, C31,C32, C34, H29, H33, H36, H39, H44, H46 1 Log in to see
prices
A154
K-236
Pin-Oil Catcher 0.09" diameter, 0.75" long. C20, C30, C31,C32, C34, H29, H33, H36, H39, H44, H46 1 Log in to see
prices
A155
MPS-3831
Shaft-Front Output Assembly 11.91" long, 1"-20 thread one end,spline at threaded end 1.49"-10, two bearing journals at opposite end, outer journal 1.25", inner journal 1.50". Includes items 140, 148, 155, 156,157A, 157B, 158, 160, 168, 171,and 197B A84, A88, A89,A90, A91, A92,A94, A99, C22,C30, C31, C32 C34, E22, E23,H31, H40, H41,H46, H47, H48,M4 1 Log in to see
prices
A155
MPS-4217
Shaft-Front Output Assembly 11.91" long, 1"-20 thread one end,spline at threaded end 1.49"-10, two bearing journals at opposite end, outer journal 1.25", inner journal 1.50". Includes items 155, 156, 157A,157B and 158 A98, A103, A104,A105, C18, C23,C29, C43, H52,H53, H54, H55,H56, H57 1 Log in to see
prices
A156
1254-M-91
Snap Ring-Front Output Shaft Included in item 155 (MPS-3831). A103, A104,A105, C20, C29, C31, C32, C34, C41, C43, C44, H29, H33, H36, H39, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A157
2848-E-161
Clutch-Front Output Sliding 23T, thick/thin external spline, 2.92" O.D., has external shift groove, 1.88"-10T spline. All 1 Log in to see
prices
A158
MPS-4217
Gear-Front Output Shaft 27T, L.H. Helical, 5.23" O.D., includes 16T external spline and 23T internal spline, included in MPS-3831. All 1 Log in to see
prices
A158A
1228-B-1380
Bearing-Needle, Outer I.D. 1.25", O.D. 1.50", 1.00" length. All 1 Log in to see
prices
A158B
1228-A-183
Bearing-Needle, Inner I.D. 1.50", O.D. 1.88", 0.88" length. All 1 Log in to see
prices
A159
1828-S-149
Bearing-Front Output Shaft Rear Ball bearing, 3.94" O.D., 2.17" I.D.,0.82" wide, with snap ring. All 1 Log in to see
prices
A160
A-1805-P-536
Oil Seal-Front Output Shaft Rear 3.50" O.D., 2.63" shaft, 0.50" wide,double lip, double case with springs,replaces A-1805-R-356 with single lip only. Included in item 155. A84, A88, A89, A90, A92, A94,A98, A99, A104,A105, C20, C22,C29, C30, C31, C32, C34, C41, E22, E23, H29, H31, H33, H36, H39, H41, H44, H46, H48, M4 1 Log in to see
prices
A161
1244-Q-1629
Spacer-Front Output Shaft 2.62" O.D., 2.19" I.D., 2.25" wide. A91, A103, H40,H47, H53, H55, H57 1 Log in to see
prices
A162
2297-Z-6656
Gasket-Front Output Rear Cap Silicone gasket, use as required.* All 1 Log in to see
prices
A163
A-3866-C-887
Cap Assy.-Front Output Shaft Rear 3866-E-1253 cast, 6 drilled holes on 4.88" bolt circle, 1.16" thick, includes item 160. A84, C29, C43,C44, E22, H46,H54 1 Log in to see
prices
A163
3266-Y-857
Cap Assy.-Front Output Shaft Rear 6 holes, 3.31" long. A91, A103, H40,H47, H55, H57 1 Log in to see
prices
A163
A-3866-W-777
Cap Assy.-Front Output Shaft Rear 3866-E-1253 cast, same as C-887 except 4 additional drilled holes on 4.31" bolt circle on either side of slot on O.D. are not equal distance, includes item 160, available as an assembly only. A99, C30,C31, C34,C41, H39 1 Log in to see
prices
A163
A-3866-R-1162
Cap Assy.-Front Output Shaft Rear 3866-D-732 cast, 6 and 4 holes,2.82" long, includes item 160. H29, H36,H52, H53 1 Log in to see
prices
A163
A-3866-D-732
Cap Assy.-Front Output Shaft Rear 3866-E-1253 cast, Same as W-777 except drilled holes on sides of slot on O.D. are equal distance, includes item 160. Available as an assembly only. All others 1 Log in to see
prices
A164
1229-K-1597
Washer-Front Output Shaft Rear 0.75" O.D., 0.41" I.D., 0.09" thick All 6 Log in to see
prices
A165
S-2610-2
Capscrew-Front Output Shaft Rear Cap 0.38"-16, 1.25" long, grade 8. H40, H42, H55,H57 6 Log in to see
prices
A165
S-269-1
Capscrew-Front Output Shaft Rear Cap 0.38"-16, 1.12" long, grade 8. 6 6 Log in to see
prices
A166
4-X-840
Stud-Rear Output Shaft 0.38"-16 both ends, 1.81" long. H29, H36,H53, H54 6 Log in to see
prices
A167
N-16-1
Nut-Rear Output Shaft 0.38"-24, grade 8 H29, H36,H53, H54 6 Log in to see
prices
A168
PW-225
Expansion Plug-Front Output Shaft 1.56" O.D., 0.08" thick, included in item 155. A84, A88, A89,A90, A92, A94,A98, A99, A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H29, H31, H33, H36, H39, H41, H44, H46, H52, H53, H54, H56, M4 1 Log in to see
prices
A169
3897-F-1332
Hub-Brake 5.50" O.D., 4.50" bolt circle,2.78" long. A84, A88, A89A90, A92, A94,A99, A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H31, H33, H39, H40, H41, H44, H46, H48, H54, H56, M4 1 Log in to see
prices
A169
3897-R-3008
Hub-Brake 6.56" O.D., 5.75" bolt circle, 4.53" long. H29, H36 1 Log in to see
prices
A170
1854-W-257
Snap Ring-Brake Hub Fits over 2.12" diameter shaft. Included in item 155. All 1 Log in to see
prices
A171
PW-252
Expansion Plug-Brake Hub 3.25" O.D., 0.134" thick, disc shape,included in item 155. A84, A88, A89,A90, A92, A94,A98, A99, A104, A105, C20, C22, C29, C30, C31, C32, C34, C41, C43, C44, E22, E23, H29, H31, H33, H36, H39, H41, H44, H46, H48, H52, H53, H54, H56, M4 1 Log in to see
prices
A188
3875-Q-433
Case-Transfer 5875-P-432 casting, less interlock notches. W and Y mounting bosses. A84, A88, A89,A90, A92, A94 1 Log in to see
prices
A188
3875-K-531
Case-Transfer 5875-P-432 casting, same as Q-433 except tapped hole for P.T.O. with pump and oil level hole location. W and Y mounting bosses A85 1 Log in to see
prices
A188
3290-Q-1005
Case-Transfer 5875-P-432 casting, same as Q-433 except oil fill plug 15° below output gear center. W and Y mounting bosses. A91, A103 1 Log in to see
prices
A188
3290-F-1072
Case-Transfer 5875-P-432 casting, same as Q-443 except for drain and oil level hole locations. A98, A105, C31 1 Log in to see
prices
A188
3875-Z-884
Case-Transfer 5875-K-453 casting, 4.13" bolt circle- 4 holes, 2 holes 3.63" bolt circle-4 holes each, 4.25" bolt circle-6 holes, hole size 0.38"-16. W and Z mounting bosses. A99, A104 1 Log in to see
prices
A188
3875-V-438
Case-Transfer 5875-P-432 casting, same as Q-433 except with interlock notches and reposition holes for clocking brake. W and Y mounting bosses. C22 1 Log in to see
prices
A188
3290-R-1084
Case-Transfer 3875-Z-520 casting, W, Y, and Z mounting bosses, 3.63" bolt circle 4 holes, 4.88" bolt circle 6 holes, 4.50" bolt circle-4 holes, 5.00" bolt circle-6 holes, 0.38"-16 dia. holes. L.H. offset with interlock notches. W, Y, and Z mounting bosses. C34 1 Log in to see
prices
A188
3875-A-469
Case-Transfer 5875-Z-468 casting, same as Q-433 except for oil level and drain location. W and X mounting bosses. E22, E23 1 Log in to see
prices
A188
3290-G-1073
Case-Transfer 5875-Z-520 casting, same as Q-433 except for drain and oil level hole location. W, Y and Z mounting bosses. H31 1 Log in to see
prices
A188
3290-E-1071
Case-Transfer 5875-K-453 casting, same as Z-884 except with interlock notches different bore size at input and tapped hole for oil. W and Z mounting bosses All others 1 Log in to see
prices
A189
1199-K-1493
Name Plate 3.00" x 1.25", 2 holes 1.30" diameter. All 1 Log in to see
prices
A190
9-X-16
Screw-Name Plate 1.25" length, 0.32" diameter. All 2 Log in to see
prices
A191
1199-K-3287
Expansion Plug-Shift Shaft 0.05" thick, cup shape. C20, C41, C44,H40, H47, H52, H53, H55, H57 1 Log in to see
prices
A191
PW-214
Expansion Plug-Shift Shaft 0.08" thick, disc shape. All others 1 Log in to see
prices
A192
P-24
Plug-Oil Drain Non-magnetic, female square socket,0.25"-18 thread. A97, A98,A105, C20, C29,C30, C31, C32, C34, C41, C43, C44, H29, H31, H33, H40, H41, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A192
1850-T-150
Plug-Oil Drain Magnetic-male square head,0.75"-15 thread. A89, A98, A99,A103, A104, A105,C29, C30, C31, C32, C34, C41, C43, C44, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A192
1250-G-475
Plug-Oil Drain Magnetic-0.62" square one end, 0.71" other end, 0.75"-14 P.T.F. C29 1 Log in to see
prices
A193
1199-K-3287
Expansion Plug-Shift Shaft 0.05" thick, cup shape. C20, C29, C30,C31, C32, H40, H47 1 Log in to see
prices
A193
PW-214
Expansion Plug-Shift Shaft 0.08" thick, 0.875" O.D., disc shape. All others 1 Log in to see
prices
A194
P-112
Plug-Oil Drain Male, square head, 0.75"-14 thread. A84, A88, A90,A91, A92, A94, A98, A103, C20, C22, C29, C30, C32, C34, E22, E23, H29, H31, H33, H36, H40, H41, H44, H46, H47, H48, M4 1 Log in to see
prices
A195
P-112
Plug-Oil Level Male, square head, 0.75"-14 thread. A84, A88, A89,A90, A91, A92, A94, C20, C22, C30, C32, C34, E22, E23, H32, H33, H39, M4 1 Log in to see
prices
A196
1898-X-856
Oil Catcher-Input 0.38" diameter, 1.00" long. H29, H31, H33,H36, H39, H40, H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A197
P-112
Plug-Oil High Level Male, square head, 0.75"-14 thread H29, H31, H36,H39, H40, H41, H44 1 Log in to see
prices
A197
P-212
Plug-Oil High Level Female, square socket, 0.75"-14 thread. H33 1 Log in to see
prices
A197
1199-J-894
Plug-Oil High Level 0.75" standard pipe thread, cap plug, not available at this time 1 Log in to see
prices
A197A
1898-A-261
Pipe-Nipple Oil Level 6 pint capacity, 3.75" long, 0.75"-14 N.P.T.F., not available at this time 1 Log in to see
prices
A197A
2296-W-1063
Pipe-Nipple Oil Level 5 pint capacity, 2.50" long, 0.75"-14 N.P.T.F., not available at this time 1 Log in to see
prices
A197B
1898-C-835
Elbow-High Oil Level 0.75"-14 N.P.T.F., 90 degrees, not available at this time 1 Log in to see
prices
A197B
1898-S-201
Elbow-High Oil Level Use for 3 and 4 pint capacity, 0.75"-14 N.P.T.F., not available at this time. 1 Log in to see
prices
A197B
1898-X-258
Elbow-High Oil Level 45 degree elbow, 1.50" one end, 0.69" other end, 0.75" standard pipe thread Included in item 155. H29, H31, H33,H36, H39, H40,H41, H44, H46,H47, H48, H52, H53, H54, H55, H56, H57 1 Log in to see
prices
A198
1898-D-836
Nipple 0.75" standard pipe thread, 0.50" long, 0.82" I.D., 1.05" O.D. 1 Log in to see
prices
A199
P-112
Plug-Oil Level Male, square head, 0.75"-14 thread. A84, A88, A89,A104, A105, H29, H36, H40, H41, H44 1 Log in to see
prices
A199
P-112
Plug-Oil Level Male, square head, 0.75"-14 thread. C41, C43, C44,H52, H53, H54, H55, H56, H57 2 Log in to see
prices
A200
A-1205-N-1132
Oil Seal-Shift Shaft 1.26" O.D., 0.75" shaft, single lip and dirt lip with spring, 0.25" wide, replaces A-1805-S-305 with single lip only All 1 Log in to see
prices
A201
A-1205-N-1132
Oil Seal-Shift Shaft 1.26" O.D., 0.75" shaft, single lip and dirt lip with spring, 0.25" wide, replaces A-1805-S-305 with single lip only. All 1 Log in to see
prices
A202
2849-G-241
Shift Fork-Declutch 2849-Z-338 forging., small fork tang, 0.19" wide, 2.25" fork opening M4 1 Log in to see
prices
A202
2849-L-220
Shift Fork-Declutch 2849-T-332 forging, small fork tang, 0.13" wide, 2.25" fork opening All others 1 Log in to see
prices
A203
LW-166
Lockwire-Shift Fork 16 gage, 6.00" long. All 1 Log in to see
prices
A204
26-X-54
Lockscrew-Shift Fork 0.38"-24 thread, 1.15" long, 0.09" diameter double drill square head. All 1 Log in to see
prices
A205
2843-T-410
Shift Shaft-Declutch 7.25" long, 2 equal ball detents 0.16" deep from ball detent end, setscrew hole bottom right quadrant C20, C22, C30, C31, C32, C34,C41, C44, H40,H47, H48, H52, H55, H56, H57 1 Log in to see
prices
A205
2244-M-39
Shift Shaft-Declutch 7.25" long, tap drill 1.00" deep- 0.44"-20 UNF, 0.68" deep, 0.75" O.D. C29, C43, H53 1 Log in to see
prices
A205
2843-W-439
Shift Shaft-Declutch Same as T-410 except unequal ball detent, depth 0.13" and 0.21". No longer available. E22, E23, 1 Log in to see
prices
A205
2843-Q-459
Shift Shaft-Declutch Same as T-410 except 7.13" long and ball detent end setscrew hole bottom, left quadrant M4 1 Log in to see
prices
A205
2843-C-393
Shift Shaft-Declutch Same as T-410 except 2 equal ball detents 0.19" deep All others 1 Log in to see
prices
A206
2843-B-392
Shift Shaft- Hi-Low 7.28" long, 2 equal ball detents, 0.19" deep from ball detent end, setscrew hole upper right quadrant. A84, A88, A89,A90, A91, A92 A94, A98, A99 A103, A104, A105 1 Log in to see
prices
A206
2297-P-2226
Shift Shaft- Hi-Low Same as B-392 except 7.41" long and 2 equal ball detents 0.23" deep. C20, C29, C30,C31, C32, C34,C41, C43, C44, H40, H47, H52, H53, H55, H57 1 Log in to see
prices
A206
2843-S-409
Shift Shaft- Hi-Low Same as B-392 except extra slot added at ball detent area. No longer available C22 1 Log in to see
prices
A206
2843-X-440
Shift Shaft- Hi-Low Same as B-392 except 2 unequal ball detents 0.16" and 0.19" deep. E22, E23 1 Log in to see
prices
A206
2843-U-463
Shift Shaft- Hi-Low Same as K-453 except extra slot added at ball detent area. H48, H56 1 Log in to see
prices
A206
2843-P-458
Shift Shaft- Hi-Low 7.63" long, 2 equal ball detents 0.19" deep from ball detent end, setscrew hole upper left quadrant. M4 1 Log in to see
prices
A207
2849-U-281
Shift Fork- Hi-Low 2849-Z-338 forg., 2.38" fork opening, inner fork width 0.19". M4 1 Log in to see
prices
A207
2849-V-282
Shift Fork- Hi-Low Same as U-281 except 0.75" diameter hole, inner fork width 0.06". All others 1 Log in to see
prices
A208
LW-166
Lockwire-Shift Fork 16 gage, 6.00" long. All 1 Log in to see
prices
A209
26-X-54
Lockscrew-Shift Fork 0.38"-24 thread, 1.15" long, 0.09" diameter double drill square head. All 1 Log in to see
prices
A210
1229-K-1597
Washer-Case And Top Cover 0.75" O.D., 0.41" I.D., 0.09" thick C43, H29, H31,H33, H36, H39, H40, H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 14 Log in to see
prices
A210
1229-K-1597
Washer-Case And Top Cover 0.75" O.D., 0.41" I.D., 0.09" thick. M4 12 Log in to see
prices
A210
1229-K-1597
Washer-Case And Top Cover 0.75" O.D., 0.41" I.D., 0.09" thick. All others 10 Log in to see
prices
A211
S-268-2
Capscrew-Case And Top Cover 0.38"-16, 1.00" long, grade 8. C43, H29, H31, H33, H36, H39, H40, H41, H44, H46, H47, H48, H52, H53, H54, H55, H56, H57 14 Log in to see
prices
A211
S-268-2
Capscrew-Case And Top Cover 0.38"-16, 1.00" long, grade 8. M4 12 Log in to see
prices
A211
S-268-2
Capscrew-Case And Top Cover 0.38"-16, 1.00" long, grade 8. All others 10 Log in to see
prices
A212
A-1199-C-1043
Breather-Oil 0.13"-27 N.P.T.F., 1.03" long. A84, A88, A89,A90, A91, A92, A94, A103, A104, A105, C20, C22, C41, C43, C44, E22, E23, H29, H52, H53, H54, H55, H56, H57, M4 1 Log in to see
prices
A212
P-42
Plug Hex socket-female, 0.125"-27 thread. A99, H43, H46 1 Log in to see
prices
A213
S-2610-2
Capscrew-Case Top Cover 0.38"-16, 1.25" long, grade 8 1 Log in to see
prices
A214
1846-X-284
Dowel-T-Case And Cover 0.38" diameter, 0.88" long. All 2 Log in to see
prices
A215
1846-B-262
Pin-Brake Bell Crank 1.75" long, 0.75" diameter,0.16" diameter hole. A88, A89, A90,A92, A94, A98,A99, A104, A105, C20, C22, C31, C32, C34, C41, E23, H43, H48 1 Log in to see
prices
A216
1898-E-57
Ball-Shift Shaft Lock 0.44" diameter ball. All 1 Log in to see
prices
A217
2858-A-1
Spring-Shift Shaft Lock 13 coils, 1.88" free length. A99, A104, C30,C31, C32, C44, E22, E23 1 Log in to see
prices
A217
2858-C-237
Spring-Shift Shaft Lock 10.75 coils, 1.48" free length C34, H29, H31,H33, H36, H39, H41, H44, H46, H48, H54, H56, M4 1 Log in to see
prices
A217
2858-B-236
Spring-Shift Shaft Lock 9.25 coils, 1.28" free length. All others 1 Log in to see
prices
A218
1898-E-57
Ball-Shift Lock 0.44" diameter ball. All 1 Log in to see
prices
A219
2858-A-1
Spring-Shift Shaft Lock 13 coils, 1.88" free length. A99, A104, C41, E22, E23 1 Log in to see
prices
A219
2858-B-236
Spring-Shift Shaft Lock 9.25 coils, 1.28" free length. All others 1 Log in to see
prices
A220
1845-A-27
Pull Rod-Brake Not used on 223 models in this book 1 Log in to see
prices
A221
WA-36
Washer-Brake Pull Rod Not used on 223 models in this book. 1 Log in to see
prices
A222
WA-36
Washer-Brake Pull Rod Not used on 223 models in this book. 1 Log in to see
prices
A223
302-T-540
Bellcrank-Brake Operating Not used on 223 models in this book. 1 Log in to see
prices
A224
K-248
Cotter-Bellcrank Pin Not used on 223 models in this book. 1 Log in to see
prices
A225
WA-310
Washer-Bellcrank Pin Not used on 223 models in this book 1 Log in to see
prices
A226
K-236
Cotter-Brake Pull Rod Not used on 223 models in this book. 1 Log in to see
prices
A227
K-236
Cotter-Brake Pull Rod Not used on 223 models in this book. 1 Log in to see
prices
A228
2297-Z-6656
Gasket-Cover Silicone gasket-use as required.* 1 Log in to see
prices
A229
3855-B-210
Cover Assy.- T-Case Top 3855-E-447 rough part, 8 mounting holes 0.41" and 2 dowel holes 0.40". A84, A91, A103,E22 1 Log in to see
prices
A229
A-3855-G-189
Cover Assy.- T-Case Top 3855-C-445 rough part, same as N-196 except with 0.75" hole.Includes item 215. A88, A89, A90,A92, A94, A98,A99, A104, A105,C20, C41, E23 1 Log in to see
prices
A229
A-3855-N-196
Cover Assy.- T-Case Top 3855-C-445 rough part, with interlock,8 mounting holes 0.40" and 2 dowel holes 0.38". Includes item 215, available as assembly only. C22, C29, C30,C31, C32, C34,C43, C44, H48,H53, H56 1 Log in to see
prices
A229
3855-J-270
Cover Assy.- T-Case Top 3855-E-447 rough part, 12 thru-holes,2 dowel holes 0.39" diameter and 2 holes 0.36" diameter. H29, H31, H33,H36, H39, H41,H44, H46 1 Log in to see
prices
A229
3855-S-279
Cover Assy.- T-Case Top 3855-C-445 rough part, same as J-270 except add 0.93" thru hole thru 2 lower bosses for interlock. H40, H47, H52,H54, H55, H57 1 Log in to see
prices
A229
3855-L-272
Cover Assy.- T-Case Top 3855-B-444 rough part, 10 thru holes, 2 dowel holes, 1 breather hole. M4 1 Log in to see
prices
A230
1846-D-264
Shaft-Shift Interlock Pin 0.38" diameter, 6.62" long. C20, C22, C29,C30, C31, C32, C34, C41, C44, H40, H47, H48, H52, H53, H55, H56, H57 1 Log in to see
prices
A172
2297-Z-6656
Gasket-Brake Oil Deflector Silicone gasket, use as required.* A88, A89,A90, A92, C20, C22, E23, H41, H44 Log in to see
prices
A173
2847-S-617
Oil Deflector-Brake 4 holes on 4.31" bolt circle,2 notches, 4 flats. A88, A89, A90,A92, A94, A98,A99, A104, A105, C20, C22, C32, C34, C41, E23, H41, H44 1 Log in to see
prices
A174
1829-Z-754
Washer-Brake Oil Deflector 5.00" O.D., 3.56" I.D., 0.09" thick with 2 holes on 4.31" bolt circle. A88, A89, A90,A92, A94, A98,A99, A104, A105, C20, C22, C32, C34, C41, E23, H41, H44 1 Log in to see
prices
A175
A1-3736-U-229
Backing Plate Assy. 10.20" O.D., 3.50" I.D., 0.47" diameter-4 holes on 4.13" bolt circle. A88, A89,A90, A92,A104, A105, C20, C22, C41, E23, H41,H44 1 Log in to see
prices
A176
1229-E-1513
Washer-Brake Mounting Capscrew 0.81" O.D., 0.47" I.D., 0.09" thick. A88, A89, A90,A92, A94, A98, A99, A104, A105, C20, C22, C32, C34, C41, E23, H41, H44 1 Log in to see
prices
A177
S-278A-2
Capscrew-Brake Mounting 0.44"-14, 1.00" long, loctite patch,grade 8. A88, A89, A90,A92, A94, A98,A99, A104, A105, C20, C22, C32, C34, C41, E23, H41, H44 1 Log in to see
prices
A178
2247-K-1259
Lever-Brake Center hole diameter of 4.00", length from center of linkage hole to center of roller hole approx. 10.42". A88, A89,A90, A92,A104, A105,C20, C22, C41, E23, H41, H44 1 Log in to see
prices
A179
2297-L-6720
Roller-Brake 1.00" O.D., 0.56" I.D., 0.25" thick. A88, A89, A90,A92, A94, A98, A99, A104, A105, C20, C22, C32, C34, C41, E23, H41, H44 1 Log in to see
prices
A180
2258-Q-719
Spring-Brake Shoe Return Tension spring, 0.50" O.D., 17 coils,2.09" free length. A88, A89,A90, A92,A104, A105, C20, C22, C41, E23, H41, H44 4 Log in to see
prices
A180
2258-T-1268
Spring-Brake Shoe Return 1.88" free length, 0.43" O.D. 0.88" solid height A94, C34 1 Log in to see
prices
A181
A6-3722-L-194
Brake Shoe And Lining Assy. Includes item 182 and 183.Replaces A4-3722-L-194. A88, A89,A90, A92,A104, A105, C22, C41, E23, H41, H44 2 Log in to see
prices
A182
,RV-354
Rivet-Lining To Shoe Included in item 181 and 183. A88, A89,A90, A92, A104, A105, C20, C22, C41, E23, H41, H44 20 Log in to see
prices
A183
2000-S-1397
Lining Kit-Brake Shoe Brake linings and rivets. Included in item 181. A88, A89,A90, A92,A104, A105, C20, C22, C41, E23, H41, H44 1 Log in to see
prices
A184
3719-Y-51
Drum-Brake 3.63" pilot diameter, 0.45" punch-4 holes on 4.50" bolt circle. A88, A89,A90, A92,A104, A105, C20, C22, C41, E23, H41, H44 1 Log in to see
prices
A185
1229-E-1513
Washer-Brake Drum Capscrew 0.81" O.D., 0.47" I.D., 0.09" thick. A88, A89, A90,A92, A94, A99,A104, A105, C20, C22, C32, C34, C41, E23, H41, H44, H56 4 Log in to see
prices
A186
LW-1616
Lockwire-Brake Drum Capscrew 16 gage, 16.00" long. A88, A89,A90, A92, A104, A105, C20, C22, C41, E23, H41, H44 1 Log in to see
prices
A187
S-276D-2
Capscrew-Brake Drum 0.44"-14, 0.75" long, 1 hole drilled in head,grade 8. A88, A89,A90, A92,A104, A105, C20, C22, C41, E23, H41, H44, H56 4 Log in to see
prices
A231
1779-Z-260
Nut-Lock 0.56"-12, 1.01" across flats. H29, H36, H52 1 Log in to see
prices
A232
WA-39
Washer-Brake 1.188" O.D., 0.59" I.D., 0.09" thick. H29, H36, H52 1 Log in to see
prices
A233
372-X-206
Lever-Brake 5.25" from center line outer hole to 1.00" bore. H29, H52 1 Log in to see
prices
A233
372-B-210
Lever-Brake 6.50" from center line outer hole to 1.00" bore. H36 1 Log in to see
prices
A234
A-3736-D-472
Backing Plate Assy. 0.50" diameter-4 holes on 5.20" bolt circle. H29, H36, H52 1 Log in to see
prices
A235
S-289A-2
Capscrew-Brake Mounting 0.50"-13, 1.13" long with loctite patch. H29, H36, H52 4 Log in to see
prices
A236
2710-U-151
Camshaft 2710-X-1154 forging, 32 serrations equally spaced. H29, H36, H52 1 Log in to see
prices
A237
A-3787-Q-17
Strut Assy. 9.40" long, 0.56" thick. H29, H36, H52 1 Log in to see
prices
A238
2758-A-53
Spring-Brake Shoe Return 11 coils, 0.75" diameter, 2.75" long. H29, H36, H52 4 Log in to see
prices
A239
A2-3722-G-501
Brake Shoe And Lining Assy. Includes lining and rivets. H29, H36, H52 1 Log in to see
prices
A240
RV-875
Rivet-Lining To Shoe H29, H36, H52 24 Log in to see
prices
A241
2000-J-1362
Lining Kit-Brake Shoe Includes brake shoe H29, H36, H52 1 Log in to see
prices
A242
A2-3722-G-501
Brake Shoe And Lining Assy Includes lining and rivets H29, H36, H52 1 Log in to see
prices
A243
3897-R-3008
Hub-Brake 6.56" O.D., 4.34" long, 0.36"-24 UNF,4 holes on 5.75" bolt circle diameter. H29, H36, H52,H53 1 Log in to see
prices
A244
A-3819-E-525
Drum-Brake Mounted on item 243 using item 186. H29, H36, H52 1 Log in to see
prices
A245
S-166D-2
Capscrew-Brake Drum 0.38"-24, 0.75" long, 1 long drilled in head, grade 8. H29, H36, H52 4 Log in to see
prices
A246
LW-1616
Lockwire-Brake Drum Capscrew 16 gage, 16.00" long. H29, H36, H52 1 Log in to see
prices

Specifications

  Product NameMain Assembly
  Brand NameMeritor
