NP 226 (2002-Up GMC Envoy) New Process NV226
View Larger

NP 226 (2002-Up GMC Envoy)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

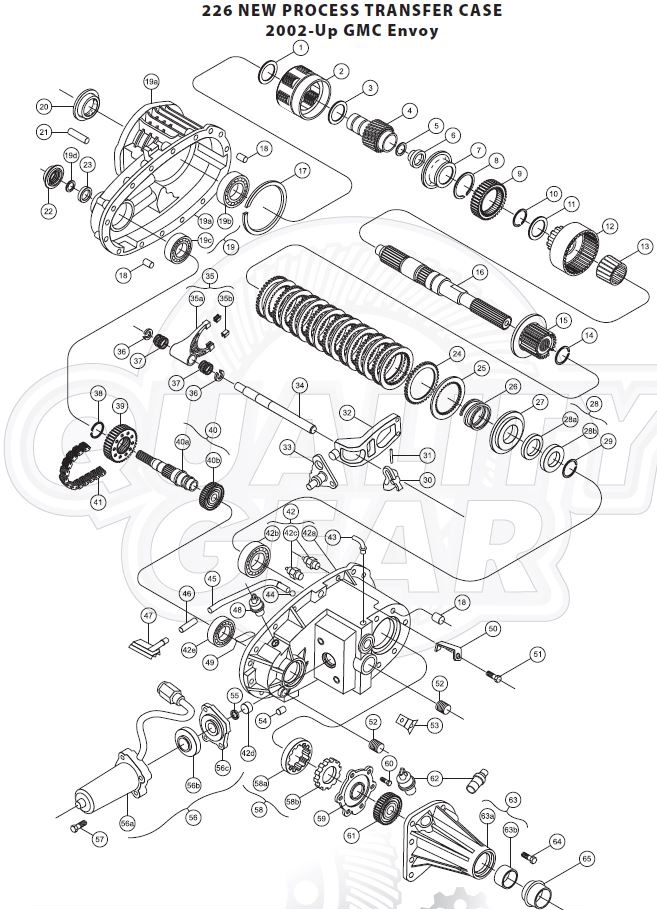

NP 226 (2002-Up GMC Envoy)
Item No. Part Number Name Notes Price Buy
1
NV29133
Washer, Input Gear Thrust Frt Log in to see
prices
2
NV50910
Assy, Planetary(Complete) Log in to see
prices
3
NV30334
Washer, Input Gear Thrust Rr Log in to see
prices
4
NV29864
Assy, Input Gear Log in to see
prices
5
NV34610
Seal, Input Pocket Log in to see
prices
6
FC69915
Assy, Input Pocket & Thrust Brg Log in to see
prices
6
NV32679
Bearing, Input Pocket Log in to see
prices
7
NV48976
Sleeve, Range Log in to see
prices
8
NV22479
Ring, Retaining 3 Req'D Log in to see
prices
9
NV29850
Sprocket, Drive Log in to see
prices
10
NV29830
Ring, Clutch Retaining Log in to see
prices
11
NV29831
Washer, Thrust Log in to see
prices
12
NV29832
Housing, Clutch Log in to see
prices
13
NV24613
Bearing, Clutch Housing 2 Req'D Log in to see
prices
14
NV22479
Ring, Retaining Log in to see
prices
15
NV29939
Hub, Clutch Log in to see
prices
16
NV29827
Assy, Mainshaft Log in to see
prices
17
NV31132
Ring, Front Output Retaining Log in to see
prices
18
NV25583
Dowel 12.3Mm Odx18.6Mm L - 2 Req'D Log in to see
prices
19
NV49138
Assy, Front Case Log in to see
prices
19A
nss
Case, Front Half Log in to see
prices
19B
SKF 5210ANRX
Bearing, Input Can Use 9442326 Log in to see
prices
19C
KOY 6007
Bearing, Front Output Log in to see
prices
19D
NV17405
Ring, Front Output Retaining Log in to see
prices
20
CRS 29870
Seal, Input Log in to see
prices
21
NV31727
Stud, Transfer Case Adapter M10X1.5X18 - 5 Req'D Log in to see
prices
22
NV29869
Seal, Front Output Log in to see
prices
23
NV17821
Seal, Yoke Log in to see
prices
24
NV29937
Plate, Clutch Steel | 9 Required Log in to see
prices
25
NV29938
Plate, Clutch Friction | 9 Required Log in to see
prices
26
NV29939
Spring, Clutch Log in to see
prices
27
NV29840
Plate, Clutch Pressure Log in to see
prices
28
NV50971
Assy, Clutch Pressure Plate Brg Log in to see
prices
28a
nss
Bearing, Clutch Pressure Plate Log in to see
prices
28b
nss
Washer, Pressure Plate Thrust Log in to see
prices
29
NV22495
Ring, Retaining Log in to see
prices
30
NV30371
Collar, Range Shift Log in to see
prices
31
19132965
Pin, Range Collar Roll Log in to see
prices
32
NV29835
Lever, Clutch Log in to see
prices
33
NV29816
Assy, Sector Log in to see
prices
34
NV29823
Shaft, Shift Log in to see
prices
35
NV41873
Assy, Range Fork Log in to see
prices
35a
nss
Fork, Range Shift Log in to see
prices
35b
nss
Pad, Shift Fork Log in to see
prices
36
NV30980
Ring, Range Fork Retaining 2 Req'D Log in to see
prices
37
NV41875
Spring, Range 2 Req'D Log in to see
prices
38
NV22451
Ring, Input Retaining Log in to see
prices
38
NV22479
Ring, Retaining Log in to see
prices
39
NV29943
Sprocket, Driven Log in to see
prices
40
NV29847
Assy, Front Output Shaft W/ Wheel Log in to see
prices
40A
nss
Shaft, Input Log in to see
prices
40B
NV30335
Wheel, Front Output Tone Log in to see
prices
41
NV51413
Chain 1.25" Wide Log in to see
prices
42
NV49139
Assy, Rear Case Log in to see
prices
42a
nss
Case, Rear Half Log in to see
prices
42B
KOY 6308
Bearing, Rear Output Log in to see
prices
42C
NV30325
Stud, Control Lever Log in to see
prices
42D
NV29815
Bearing, Shift Lever Log in to see
prices
42E
KOY 6007
Bearing, Front Log in to see
prices
43
NV17988
Pipe, Vent W/ 90* Bend Log in to see
prices
43
NV51411
Breather Log in to see
prices
44
NV25503
O-Ring, Oil Pump Suction Log in to see
prices
45
NV47809
Pipe, Oil Pump Suction Log in to see
prices
45
NV25503
Tube, Oil Log in to see
prices
46
n/a
Hose, Connector .343" Log in to see
prices
47
NV25502
Filter Log in to see
prices
48
NV22512
Sensor, Speed Two Way Female W/ O-Ring Log in to see
prices
49
NV51416
Magnet Log in to see
prices
50
NV41591
Bracket, Tcase Mainshaft Side Log in to see
prices
50
NV31912
Bracket, Tcase Mainshaft Side Log in to see
prices
51
NV6101526
Bolt, Case Half M8X1.25X35Mm - 14 Req'D Log in to see
prices
52
NV51412
Plug, Drain/Fill 2 Req'D Log in to see
prices
53
NV41592
Bracket, Tcase Front Side Log in to see
prices
53
NV31913
Bracket, Tcase Front Side Log in to see
prices
54
NV25583
Pin, Actuator Lock 12.3Mm Odx18.6Mm L Log in to see
prices
55
NV16706
Ring, Shift Detent Retaining Log in to see
prices
56
NV49036
Assy, Actuator Log in to see
prices
56A
nss
Actuator Log in to see
prices
56B
NV49293
Switch, 4WD Indicator Log in to see
prices
56C
NV46829
Insulator, Actuator Log in to see
prices
57
NV27664
Bolt, Actuator M8X1.25X35Mm - 4 Req'D Log in to see
prices
58
NV47728
Kit, Oil Pump Gear Log in to see
prices
58a
nss
Gear, Oil Pump Driven Log in to see
prices
58b
nss
Gear, Oil Pump Drive Log in to see
prices
59
NV41223
Cover, Pump Log in to see
prices
60
NV32280
Screw, Pump Cover M6X1X18 - 6 Req'D Log in to see
prices
61
NV29936
Wheel, Rear Output Shaft Tone Log in to see
prices
62
n/a
Sensor, Speed Log in to see
prices
63
NV41099
Assy, Extension Housing Log in to see
prices
63A
nss
Housing, Extension Log in to see
prices
63B
NV17475
Bushing, Rear Ext. Housing Log in to see
prices
64
NV6101526
Bolt, Extension Housing M8X1.25X35Mm - 5 Req'D Log in to see
prices
65
18499
Seal, Rear Output Log in to see
prices
Ni
NV49151
Module, Control Id # 6448 Log in to see
prices
Ni
NV49674
Module, Control Id # 4313 Log in to see
prices
Ni
NV51410
Screw, ID Tag Log in to see
prices
Ni
NV25500
Connector, Speed Sensor Log in to see
prices
Ni
TC226
Kit, Bearing & Seal W/ Small Parts Kit Log in to see
prices
Ni
SK226
Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 226 (2002-Up GMC Envoy)
  Brand NameNew Process

Documents

NV - 226.pdf
