NP 231 (1986-97 Dodge Pickup & Dakota) New Process NV231D
View Larger

NP 231 (1986-97 Dodge Pickup & Dakota)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

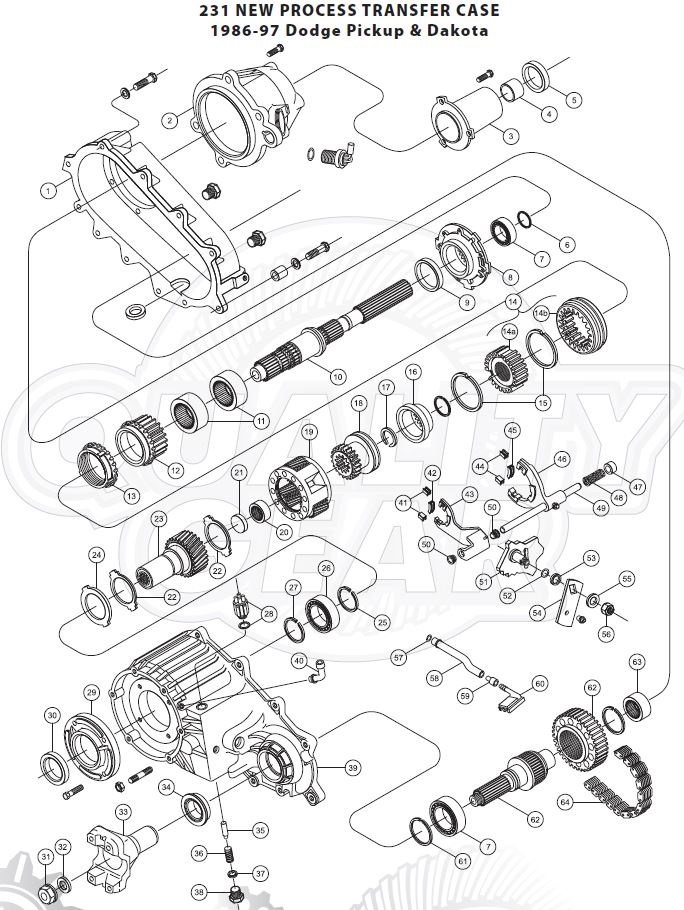

NP 231 (1986-97 Dodge Pickup & Dakota)
Item No. Part Number Name Notes Price Buy
1
NV16721
Case, Rear Half 1988-93 Log in to see
prices
1
NV17393
Case, Rear Half 1994-97 C16117At Log in to see
prices
2
NV16220
Retainer, Rear 1988-90 Log in to see
prices
2
NV16564
Retainer, Rear 1991-93 Log in to see
prices
2
NV17794
Retainer, Rear 1994-97 Ram 1500 Pickup Assy# 52098314, 52098502, 52098357 Log in to see
prices
2
NV17391
Retainer, Rear 1994-97 Dakota Exc Above #S Log in to see
prices
2
NV26675
Retainer, Rear W/O Speedo Opening Assy# 52095022 Log in to see
prices
3
NV16354
Housing, Rear Extension 1988-97 Assy# 52098023, 52098024 Log in to see
prices
3
NV17477
Housing, Rear Extension 1994-97 Ram 1500 Pickup Assy# 52098314, 52098502, 52098357 Log in to see
prices
4
2801726
Bushing, Extension Housing 1991-97 Log in to see
prices
5
CRS 15546
Seal, Rear Output Log in to see
prices
5
FUL 18507
Seal, Rear Output 1994-97 Ram 1500 Pickup Log in to see
prices
6
4338951
Ring, Retaining 1988-93 Log in to see
prices
6
NV16569
Ring, Retaining 1994-97 Dakota, All Exc Below Used Log in to see
prices
6
NV96711B
Ring, Retaining 1994-97 Ram 1500 Pickup, 085" Thick, 1.575" Od, 1.267" Id, Log in to see
prices
7
KOY 6206
Bearing, Output All Exc. Below Log in to see
prices
7
BRG 6207
Bearing, Output 1993-96 Log in to see
prices
7
SKF 5210ANRX
Bearing, Output 1989-92 Log in to see
prices
8
NV16209
Oil Pump Log in to see
prices
9
CRS 22306
Seal, Oil Pump Log in to see
prices
10
NV16353
Mainshaft 1988-93 S34-37-38-13L-26 Spl. 1.12" Od, 18.00" Oal Log in to see
prices
10
NV17843
Mainshaft 1994-97 W/ 3.9L S34-37-38-13L-27 Spl. 1.12" Od, 18.25" Oal Log in to see
prices
10
NV19014
Mainshaft 1993-96 W/ 5.2L & 5.9L S34-37-38-32 Spl. 1.375" Od, 18.50" Oal Log in to see
prices
10
NV17610
Mainshaft 1993-96 W/ 3.9L & 5.9L S34-37-38-13L-27 Spl. 1.175" Od, 18.3125" Oal Log in to see
prices
10
NV17268
Mainshaft 1994-97 W/ 5.2L & 5.9L S34-37-38-32 Spl. 1.375" Od, Log in to see
prices
11
B2050
Bearing, Drive Sprocket Log in to see
prices
12
NV16203
Sprocket, Drive 1988-90 24T, 24 Synchro Teeth, 3.602" Od, 2.29" Id Log in to see
prices
12
NV16202
Sprocket, Drive 1991-92 W/3.9L, 24T, 24 Synchro Teeth, 3.602" Od, 2.29" Id Log in to see
prices
12
NV16622
Sprocket, Drive 1991-92 W/ 5.2L Log in to see
prices
12
NV17501
Sprocket,Drive 1994-97 Dakota W/ 3.9L & Standard Trans. Log in to see
prices
12
NV17511
Sprocket, Drive 1991-93 W/ 5.2L V8 Log in to see
prices
12
NV19043
Sprocket, Drive 1994-97 Ram 1500 Pickup W/ Standard Trans. Log in to see
prices
12
NV19043
Sprocket, Drive 1994-97 Ram 1500 Pickup W/ Automatic Trans. Log in to see
prices
12
NV19041
Sprocket, Drive 1994-97 Dakota W/ V6 & Auto Trans. Log in to see
prices
12
NV19042
Sprocket, Drive 1994-97 Dakota W/ V8 & Auto Trans. Log in to see
prices
13
NV15547
Ring, Synchro Stop 1988-93 Log in to see
prices
13
NV17779
Ring, Synchro Stop 1994-97 Log in to see
prices
14
NV33403
Assy, Mode Shift Synchro 48T Dodge Log in to see
prices
14A
NV17432
Hub, Synchro 1993-96 Al Exc. Below Log in to see
prices
14A
NV17772
Hub, Synchro 1994-97 Ram 1500 Pickup Log in to see
prices
14B
NV16415
Sleeve, Synchro 1993-96 Log in to see
prices
14B
NV17773
Sleeve, Synchro 1994-97 Automatic Trans Log in to see
prices
14B
NV17823
Sleeve, Synchro 1994-97 Ram 1500 Pickup Log in to see
prices
15
NV15658
Spring, Synchro 1988-93 Log in to see
prices
15
NV17778
Spring, Synchro 1994-97 Log in to see
prices
16
8338860
Plate, Retaining 1988-93 Log in to see
prices
16
NV17546
Plate, Retaining 1994-97 Log in to see
prices
17
NV16205
Ring, Retaining 1988-90 Log in to see
prices
17
83503144
Ring, Retaining 1990-93 Log in to see
prices
18
NV19114
Hub, Range Shift 1988-89 Log in to see
prices
18
NV19114
Hub, Range Shift 1991-97 Log in to see
prices
18
NV19114
Hub, Range Shift 1993-96 29T-34 Spl. Log in to see
prices
18
NV17824
Hub, Range Shift 1994-97 29T-34 Spl. Ram 1500 Pickup Log in to see
prices
19
NV16174
Assy, Planetary Carrier 1988-89 Log in to see
prices
19
NV16551
Assy, Planetary Carrier 1990-97 29T-19 X 3 Gears, 5.412" Od, 2.36" Id Log in to see
prices
19
NV17868
Assy, Planetary Carrier 1994-97 Automatic Trans Log in to see
prices
20
FC66561
Bearing, Input Pocket Log in to see
prices
21
9442326
Plug, Input Pocket 1988-93 - #9421756 Log in to see
prices
22
NV16437
Washer, Thrust 2 Req'D Log in to see
prices
23
NV16697
Gear, Input 1988-89 L53T-29-23 Spl., 5.00" Oal, 1.94" Od, 1.20" Id Log in to see
prices
23
NV16760
Gear, Input 1990-97 L53T-29-23 Spl., 5.0625" Oal, 1.16" Od, 1.937" Id Log in to see
prices
23
NV17949
Gear, Input 23T 1994-97 Automatic Trans. Log in to see
prices
23
NV19061
Gear, Input 23T 1993-96 Log in to see
prices
24
NV17483
Ring, Planetary Carrier Lock Log in to see
prices
25
NV16243
Ring, Retaining Log in to see
prices
26
SKF 5210ANRX
Bearing, Input 1988-97 Log in to see
prices
26
BRG 6010NR
Bearing, Input 1993-96 Log in to see
prices
27
NV99088C
Ring, Retaining Log in to see
prices
28
NV16073
Switch, Vacuum 1988-97 Log in to see
prices
28
NV15241
Switch, Vacuum 1991-97 Electric Log in to see
prices
28
NV15832
Switch, Vacuum 1993-96 Log in to see
prices
29
NV16187
Retainer, Input Bearing 1988-Up Log in to see
prices
29
NV16188
Retainer, Input Bearing 1986-96 Log in to see
prices
30
CRS 19244
Seal, Front Input 1988-97 Log in to see
prices
31
NV15579
Nut, Yoke 1988-96 Log in to see
prices
32
NV15578
Washer, Rubber 1988-96 Log in to see
prices
33
NV16363
Yoke, Front Output 1993-96 All Exc Below Log in to see
prices
33
NV17796
Yoke, Front Output Assy# 52098314, 52098502, 52098357 Log in to see
prices
34
CRS 11778
Seal, Front Output Log in to see
prices
35
NV16754
Plunger, Shift Detent 1993-96 Log in to see
prices
36
NV17071
Spring, Shift Detent 1993-96 Log in to see
prices
37
NV15715
O-Ring, Shift Detent 1993-96 Log in to see
prices
38
53008216
Screw, Shift Detent 1993-96 Log in to see
prices
39
NV16165
Case, Front Half 1988 - 10/16/89 Log in to see
prices
39
NV17026
Case, Front Half 10/17/89-90 - C16118AF Log in to see
prices
39
NV17027
Case, Front Half 1993-96 - C16118An Log in to see
prices
39
NV17932
Case, Front Half 1994-97 W/ Automatic Trans - C16118S Log in to see
prices
40
NV17988
Vent, Air 1993-96 Log in to see
prices
Ni
52097541
Vent, Tube & Clip 1993-96 Log in to see
prices
Ni
J4006047
Clamp 1993-96 Log in to see
prices
Ni
4443176
Hose, Vent 1993-96 Log in to see
prices
Ni
J4006047
Clamp 1993-96 Log in to see
prices
41
NV15221
Pad, Range Fork 2 Req'D Log in to see
prices
42
NV15556
Pad, Range Fork Center Log in to see
prices
43
NV16976
Fork, Range Log in to see
prices
44
NV13795
Pad, Mode Fork 2 Req'D Log in to see
prices
45
NV15221
Pad, Mode Fork Center 1993-96 Log in to see
prices
46
NV16267
Assy, Mode Fork 1988-93 Inc. Fork, Rail & Pads W/ 10.25" Shaft Log in to see
prices
46
NV17237
Assy, Mode Fork Inc. Fork, Rail & Pads 9.875" Shaft Log in to see
prices
46
NV17502
Assy, Mode Fork Inc. Fork, Rail & Pads Log in to see
prices
46
NV17790
Fork, Mode 1994-97 Ram 1500 Pickup - #C17769 Log in to see
prices
47
NV16447
Cup Log in to see
prices
48
NV16199
Spring, Shift Fork 1993-96 All Exc Assy# 52098314, 52098402 Log in to see
prices
49
NV16267
Rail, Shift 1988-96 Log in to see
prices
50
3467791
Grommet, Shift Fork 1993-96 All Exc Assy# 52098314, 52098402 Log in to see
prices
51
NV17788
Sector, Shift 1993-96 Assy# 52098314 Log in to see
prices
51
NV17373
Sector, Shift 1993-96 Exc. Assy# 52098314 Log in to see
prices
52
NV13725
O-Ring, Shift Sector 1993-96 Log in to see
prices
53
NV13726
Retainer, O-Ring 1993-96 Log in to see
prices
54
4338763
Lever, Shift Assy# 52098023, 52098024, 52098543, 52098497, 52098498 Log in to see
prices
54
NV17910
Lever, Shift Assy# 52098314, 52098402, 52098502, 52098357 Log in to see
prices
55
2436163
Washer, Shift Lever 1993-96 Log in to see
prices
56
142545
Nut, Shift Lever 1993-96 Log in to see
prices
57
NV16214
O-Ring, Oil Pick Up 1993-96 Log in to see
prices
58
NV16215
Tube, Oil Pick Up 1993-96 Log in to see
prices
59
NV16218
Connector, Tube 1993-96 Log in to see
prices
60
NV16217
Filter 1993-96 Log in to see
prices
61
NV15516
Ring, Retaining Log in to see
prices
62
NV16206
Shaft, Front Output Assy# 52098023, 52098542, 52098497 Log in to see
prices
62
NV16619
Shaft, Front Output 1991-97 W/ V8, Exc Above Log in to see
prices
63
NTN J2416
Bearing, Front Output Inner 1.875" Od Log in to see
prices
64
NV16417
Chain 1.00" Wide 31 Links 1988-96 Log in to see
prices
64
1350-143-001
Chain 1.25" Wide 1991-92 5.2L Log in to see
prices
64
NV17167
Chain 1.35" Wide 31 Link 1991-97 V8 Log in to see
prices
Ni
NV17779
Ring, Synchro Stop 1993-96 Log in to see
prices
Ni
TC231
Kit, Bearing & Seal Log in to see
prices
Ni
SK231U
Kit, Seal & Gasket Log in to see
prices
Ni
SFI207
Kit, Shift Fork Insert Log in to see
prices
Ni
SP207-50
Kit, Small Parts Log in to see
prices

Specifications

  Product NameNP 231 (1986-97 Dodge Pickup & Dakota)
  Brand NameNew Process

Documents

NV - 231 Dodge.pdf
