NP 231 (1987-97 Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Wrangler) New Process NV231J
View Larger

NP 231 (1987-97 Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Wrangler)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

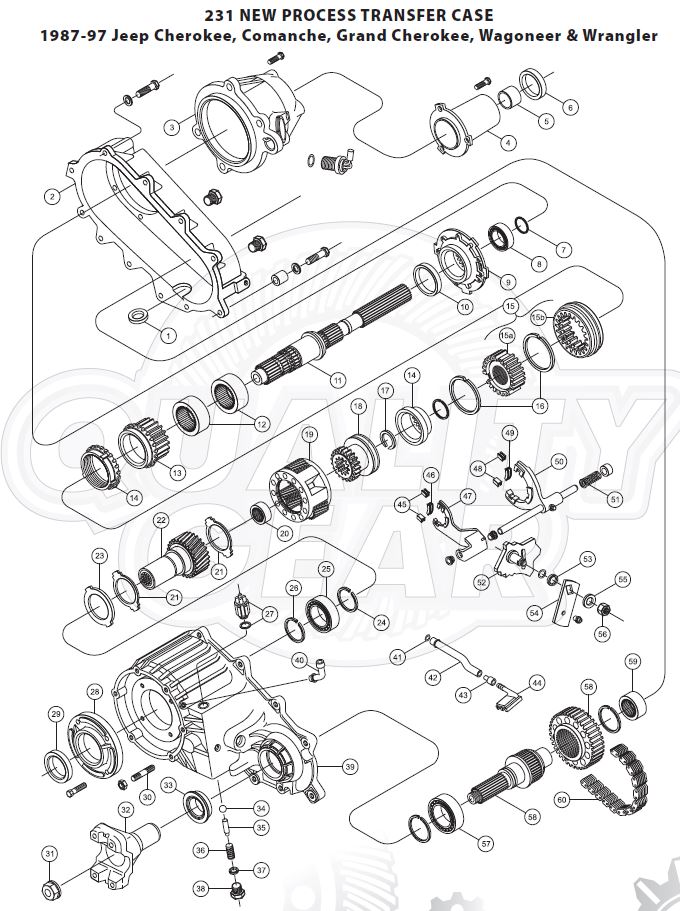

NP 231 (1987-97 Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Wrangler)
Item No. Part Number Name Notes Price Buy
1
NV95472
Magnet Log in to see
prices
2
NV17872
Case, Rear Half 1994-97 C16117At Log in to see
prices
2
NV17393
Case, Rear Half 1994-96 C16117At Log in to see
prices
2
NV17872
Case, Rear Half 1994-96 Log in to see
prices
2
NV26343
Case, Rear Half 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
2
NV16429
Case, Rear Half 1987-93 C16117Ae Log in to see
prices
3
NV16220
Retainer, Rear 1987-93 Cherokee, Comanche, Wagoneer, 1994-96 4 Cyl. Log in to see
prices
3
NV16564
Retainer, Rear 1987-93 Grand Cherokee, Wrangler, Log in to see
prices
3
NV17391
Retainer, Rear 1994-96 Log in to see
prices
3
NV34705
Retainer, Rear 1997-Up Wrangler1994-96 4 Cyl. Log in to see
prices
3
NV31811
Retainer, Rear 2002-Up Liberty Log in to see
prices
4
NV16222
Housing, Rear Extension 1991-97 All, 1987-90 Wrangler Log in to see
prices
5
NV16081
Bushing, Rear Extension 1987-90 Log in to see
prices
5
NV16428
Bushing, Rear Extension 1991-93 Log in to see
prices
5
2801726
Bushing, Rear Extension 1994-97 Log in to see
prices
6
CRS 15047
Seal, Rear Output Log in to see
prices
7
NV15574
Ring, Retaining Log in to see
prices
8
SCH1810
Bearing, Output Log in to see
prices
9
NV16209
Housing, Oil Pump 1987-Up Log in to see
prices
9
NV24956
Oil Pump 2002-Up Liberty Log in to see
prices
10
CRS 22306
Seal, Oil Pump Log in to see
prices
11
NV16201
Mainshaft 1987-96 34-37-38-13-27 Spl., 15.875" Oal, 1.9675" Dia Log in to see
prices
11
NV17609
Mainshaft 1997 2.2780" Dia. Log in to see
prices
11
NV43444
Mainshaft 1997-Up Wrangler Log in to see
prices
11
NV31806
Mainshaft 2002-Up Liberty Log in to see
prices
12
B5020
Bearing, Mainshaft 2 Req'D Log in to see
prices
13
NV16202
Sprocket, Drive 1987-97 24T-24 Spl., 3.602" Od, 2.290" Id Log in to see
prices
13
NV17501
Sprocket, Drive 1994-97 Log in to see
prices
13
NV19041
Sprocket, Drive 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
13
NV17712
Sprocket, Drive 1994-97 Log in to see
prices
14
NV15547
Ring, Synchro Stop Log in to see
prices
15
NV33403
Assy, Mode Shift Synchro Hub 42(48T), Sleeve 23T-37 Spl., Log in to see
prices
15A
NV45661
Hub, Synchro 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
15B
NV17823
Sleeve, Synchro 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
16
NV15658
Spring, Synchro Log in to see
prices
17
83503144
Ring, Retaining 1987-93 Log in to see
prices
17
NV16205
Ring, Retaining 1994-97 Log in to see
prices
17
J8134454
Ring, Retaining 1987-90 Log in to see
prices
18
NV16186
Hub, Range Shift 1987-90 Log in to see
prices
18
NV19114
Hub, Range Shift 1987-97 29T-34 Spl., 2.490" Od, 1.667" Id Log in to see
prices
18
NV17824
Hub, Range Shift 1997 Log in to see
prices
18
NV25795
Hub, Range Shift 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
19
NV16174
Assy, Planetary Carrier 1987-90 Log in to see
prices
19
NV16551
Assy, Planetary Carrier 1987-97 29T-19 X 3 Gears, 5.437" Od, 2.360" Id Log in to see
prices
19
4338903
Assy, Planetary Carrier 1994-97 Log in to see
prices
19
NV17868
Assy, Planetary Carrier 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
20
FC66561
Bearing, Input Pocket Log in to see
prices
21
NV16437
Washer, Thrust .060" Thick 2 Req'D Log in to see
prices
22
NV17450
Gear, Input 1994-97 L53T-29-23 Spl., 4.25" Oal Log in to see
prices
22
NV17948
Gear, Input 1994-97 Log in to see
prices
22
NV17946
Gear, Input 1994-97 Log in to see
prices
22
NV17950
Gear, Input 1994-97 Log in to see
prices
22
NV17949
Gear, Input 1994-97 L53T-29-23 Spl., 5.0625" Oal Log in to see
prices
22
NV16758
Gear, Input 1987-97 L53T-29-21 Spl., 4.125" Oal Log in to see
prices
22
NV16760
Gear, Input 1987-97 L53T-29-23 Spl., 5.0625" Oal Log in to see
prices
22
NV16761
Gear, Input 1987-90 Log in to see
prices
22
NV16228
Gear, Input 1987-90 L53T-29-21 Spl., 4.125" Oal Log in to see
prices
22
4505826
Gear, Input 1987-90 Log in to see
prices
22
NV16735
Gear, Input 1987-90 L53T-29-23 Spl., 4.125" Oal Log in to see
prices
22
NV16759
Gear, Input 1987-97 L53T-29-23 Spl., 4.125" Oal Log in to see
prices
22
NV27122
Gear, Input 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
23
NV17483
Plate, Lock Log in to see
prices
24
83503527
Ring, Retaining 1987-90 Log in to see
prices
24
NV16243
Ring, Retaining .063" Thick 1991-97 Log in to see
prices
24
NV17483
Ring, Planetary Carrier Lock .13" Thick Log in to see
prices
25
SKF 5210ANRX
Bearing, Input Log in to see
prices
26
NV16243
Ring, Retaining 3821558 Log in to see
prices
27
NV15832
Switch, Vacuum Log in to see
prices
27
NV15241
Switch, Electric Log in to see
prices
27
NV40877
Switch, Electric 5 Position Log in to see
prices
28
NV16187
Retainer, Front Bearing 1987-96 Log in to see
prices
28
NV16188
Retainer, Front Bearing 1997 Log in to see
prices
28
NV51170
Retainer, Front Bearing 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
29
CRS 19244
Seal, Input Log in to see
prices
30
NV15053
Stud, Mounting Log in to see
prices
31
NV15579
Nut, Flange Log in to see
prices
32
83503161
Flange, Front Output 1987-90 Cherokee, Comanche, Wagoneer, Wrangler Log in to see
prices
32
NV16138
Flange, Front Output 1987-97 Grand Cherokee, Wrangler Log in to see
prices
32
NV16363
Flange, Front Output 1991-97 Cherokee, Grand Cherokee Log in to see
prices
32
NV20370
Flange, Front Output 1994-Up Log in to see
prices
33
CRS 11778
Seal, Front Output Log in to see
prices
34
NV25645
Ball, Poppet 2002-Up Liberty Log in to see
prices
35
NV16754
Plunger, Poppet Log in to see
prices
36
NV17071
Spring, Poppet Plunger Log in to see
prices
37
NV15715
O-Ring, Poppet Screw Log in to see
prices
38
NV23989
Screw, Poppet Spring Log in to see
prices
39
NV17932
Case, Front Half 1987-94 C16118S Log in to see
prices
39
NV17027
Case, Front Half 1994-96 C16118An Log in to see
prices
39
NV20356
Case, Front Half 1994-Up C16118Af Assy# 52098471, 52098473, 52098480, 52098469 Log in to see
prices
39
NV19118
Case, Front Half 1994-96 C16122 Assy# 52098384, 52098385 Log in to see
prices
39
NV19115
Case, Front Half 1994-96 C17240 Assy# 52098383 Log in to see
prices
39
NV33280
Case, Front Half 2002-Up Liberty Log in to see
prices
40
NV17988
Vent Log in to see
prices
41
NV16214
O-Ring, Oil Pump Suction Tube Log in to see
prices
42
NV16215
Tube, Oil Suction Log in to see
prices
43
NV16218
Connector, Oil Tube to Filter Log in to see
prices
44
NV16217
Filter Log in to see
prices
45
NV13795
Pad, Range Fork 2 Req'D Log in to see
prices
46
NV15556
Pad, Range Fork Center Log in to see
prices
47
NV16976
Fork, Range 1987-97 Log in to see
prices
47
NV17833
Fork, Range 1997-Up Wrangler, 2002-Up Liberty Log in to see
prices
48
NV15221
Pad, Mode Fork 2 Req'D Log in to see
prices
49
NV15221
Pad, Mode Fork Center Log in to see
prices
50
NV16267
Fork, Mode 1987-93 All, 1994-96 Cherokee, Wrangler W/ Rail Log in to see
prices
50
NV17502
Fork, Mode 1994-Up All, 1997 Grand Cherokee W/ Rail Log in to see
prices
51
NV16199
Spring, Shift Fork Log in to see
prices
52
NV17373
Assy, Sector & Shaft Log in to see
prices
52
NV42703
Assy, Sector 2002-Up Liberty Log in to see
prices
Ni
NV27758
Bolt, Sector 2002-Up Liberty Log in to see
prices
53
NV15574
Ring, O-Ring Retainer Log in to see
prices
54
NV45198
Assy, Lever 1997-Up Wrangler Log in to see
prices
54
NV48305
Assy, Lever 2002-Up Liberty Log in to see
prices
55
2436163
Washer, Shift Lever Log in to see
prices
56
NV13992
Nut, Shift Lever Log in to see
prices
57
KOY 6206
Bearing, Front Output Log in to see
prices
58
NV16206
Shaft, Front Output 1987-Up 1.50" Od Pilot, 24T-26 Spl., 7.50" Oal Log in to see
prices
58
NV30966
Shaft, Front Output 2002-Up Liberty Log in to see
prices
59
NTN J2416
Bearing, Front Output Inner 1.875" Od Log in to see
prices
60
NV16417
Chain 1.00" Wide, Log in to see
prices
Ni
NV34700
Boot, Rear Output Rubber 1997-Up Wrangler Log in to see
prices
Ni
NV46473
Boot, Rear Output Rubber 2002-Up Liberty Log in to see
prices
Ni
NV34701
Damper 1997-Up Wrangler Log in to see
prices
Ni
TC231
Kit, Bearing & Seal Log in to see
prices
Ni
SK231U
Kit, Seal & Gasket Log in to see
prices
Ni
SFI207
Kit, Shift Fork Insert Log in to see
prices
Ni
SP207-50
Kit, Small Parts Log in to see
prices

Specifications

  Product NameNP 231 (1987-97 Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Wrangler)
  Brand NameNew Process

Documents

NV - 231 Jeep.pdf
