NP 233 (2001-Up Dodge Dakota & Durango Part Time) New Process NV233D
View Larger

NP 233 (2001-Up Dodge Dakota & Durango Part Time)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

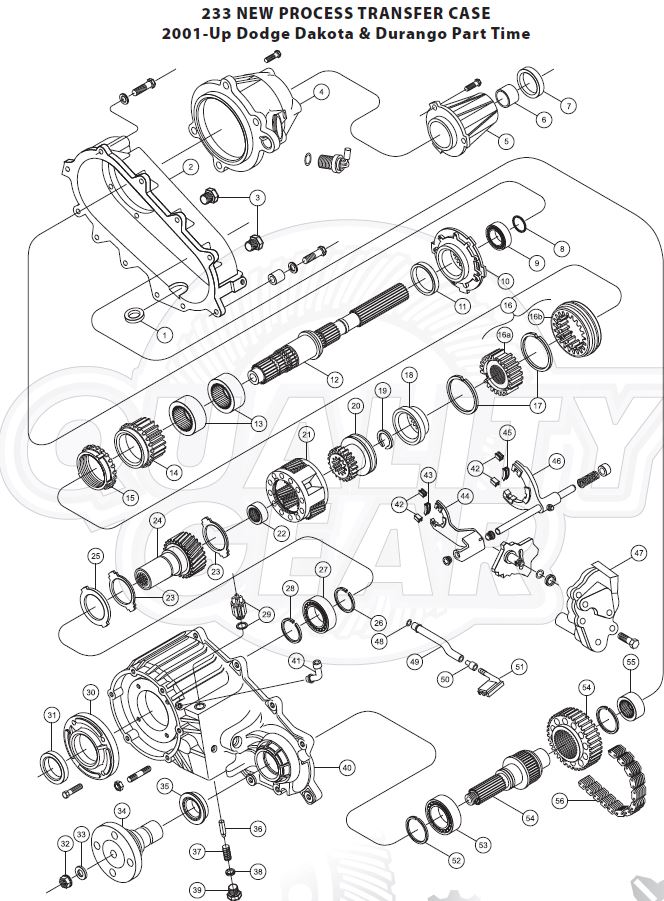

NP 233 (2001-Up Dodge Dakota & Durango Part Time)
Item No. Part Number Name Notes Price Buy
1
NV95472
 Magnet Log in to see
prices
2
NV44368
 Case, Rear Half Log in to see
prices
3
NV22398
 Plug, Drain/Fill 2 Req'D Log in to see
prices
4
NV26675
 Retainer, Rear Log in to see
prices
5
NV37799
 Housing, Rear Extension Log in to see
prices
6
N/A
 Bushing, Extension Housing Log in to see
prices
7
18499
 Seal, Output Rear Log in to see
prices
8
NV99088C
 Ring, Retaining Log in to see
prices
9
16488
 Bearing, Output Log in to see
prices
10
NV16209
 Oil Pump Log in to see
prices
11
CRS 22306
 Seal, Oil Pump Log in to see
prices
12
NV31653
 Mainshaft Log in to see
prices
13
N/A
 Bearing, Drive Sprocket Log in to see
prices
14
NV19042
 Sprocket, Drive Log in to see
prices
15
N/A
 Ring, Synchro Sto Log in to see
prices
16
NV45661
 Assy, Synchronizer Log in to see
prices
16A
NV17432
 Hub, Synchro Assy Log in to see
prices
16B
NV17823
 Sleeve, Synchro Assy Log in to see
prices
17
N/A
 Spring, Synchro Ring Log in to see
prices
18
N/A
 Plate, Retaining Log in to see
prices
19
NV16205
 Ring, Synchro Hub Snap Log in to see
prices
20
NV17982
 Sleeve, Range Log in to see
prices
21
NV17868
 Assy, Planetary Carrier Log in to see
prices
22
FC66561
 Bearing, Input Pilot Log in to see
prices
23
NV16437
 Washer, Thrust 2 Req'D Log in to see
prices
24
NV19041
 Gear, Input Log in to see
prices
25
NV17483
 Ring, Planetary Carrier Lock Log in to see
prices
26
NV16243
 Ring, Retaining Log in to see
prices
27
SKF 5210ANRX
 Bearing, Input Log in to see
prices
28
1942063
 Ring, Retaining Log in to see
prices
29
56045484AB
 Switch Log in to see
prices
30
NV51170
 Retainer, Input Bearing Log in to see
prices
31
19293
 Seal, Input Log in to see
prices
32
NV15579
 Nut, Yoke Log in to see
prices
33
NV15578
 Washer, Rubber Log in to see
prices
34
NV38663
 Assy, Flange Log in to see
prices
35
19293
 Seal, Front Output Log in to see
prices
36
NV16754
 Plunger, Poppet Log in to see
prices
37
NV17174
 Spring, Poppet Plunger Log in to see
prices
38
NV15715
 O-Ring, Poppet Screw Log in to see
prices
39
NV23989
 Screw, Poppet Spring Log in to see
prices
40
NV49601
 Case, Front Half Log in to see
prices
41
NV17988
 Vent Log in to see
prices
42
NV15221
 Pad, Shift Fork 2 Req'D Log in to see
prices
43
NV13795
 Pad, Range Fork Center Log in to see
prices
44
NV37851
 Fork, Range Shift Log in to see
prices
45
NV13795
 Pad, Mode Fork Center Log in to see
prices
46
NV17363
 Fork, Mode Shift Log in to see
prices
47
NV44920
 Actuator, Shift Log in to see
prices
48
NV16214
 O-Ring, Oil Suction Tube Log in to see
prices
49
NV16215
 Tube, Oil Suction Log in to see
prices
50
NV16218
 Connector, Oil Tube to Filter Log in to see
prices
51
NV16217
 Filter Log in to see
prices
52
NV15516
 Ring, Front Output Bearing Snap Log in to see
prices
53
KOY 6206
 Bearing, Front Output Log in to see
prices
54
NV30966
 Shaft, Front Output Log in to see
prices
55
NTN J2416
 Bearing, Front Output Inner Log in to see
prices
56
NV16417
 Chain 1.00" Wide Log in to see
prices
Ni
6501289
 Stud 2 Req'D Log in to see
prices
Ni
TC231
 Kit, Bearing & Seal Log in to see
prices
Ni
SK231
 Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 233 (2001-Up Dodge Dakota & Durango Part Time)
  Brand NameNew Process

Documents

NV - 233 Dodge.pdf
