NP 236 (1998-Up Chevrolet Blazer) New Process NV236C
View Larger

NP 236 (1998-Up Chevrolet Blazer)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

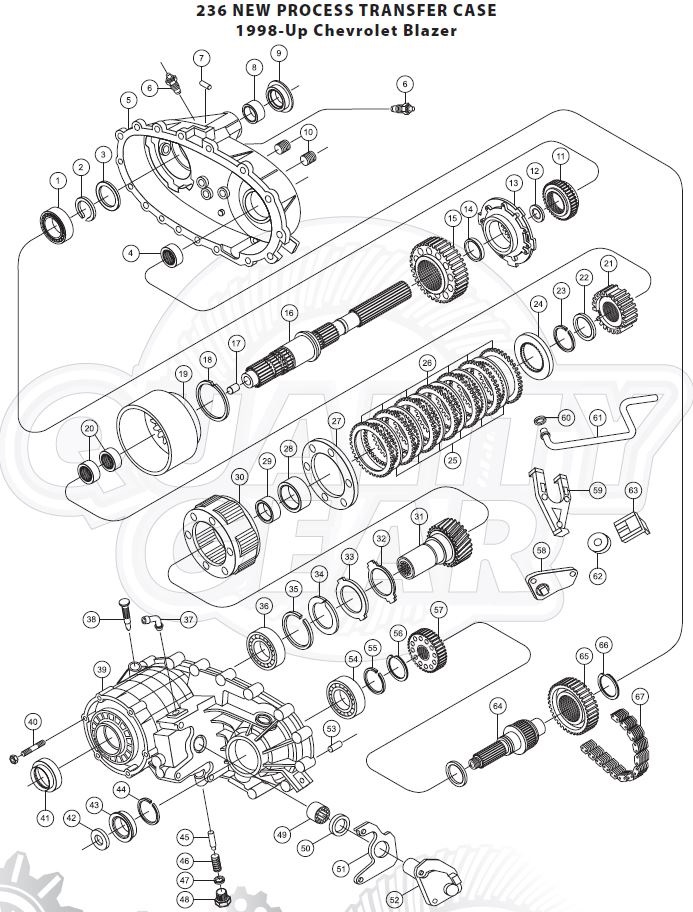

NP 236 (1998-Up Chevrolet Blazer)
Item No. Part Number Name Notes Price Buy
1
KOY 6307NR
 Bearing, Mainshaft Rear Log in to see
prices
2
NV96711B
 Ring, Retaining Mainshaft Front Bearing Log in to see
prices
3
215546
 Ring, Retaining Mainshaft Rear Bearing Log in to see
prices
4
J2416
 Bearing, Front Output Inner Log in to see
prices
5
NV31334
 Case, Rear Half Log in to see
prices
Ni
NV54319
 Sleeve, Wear Log in to see
prices
Ni
NV42200
 Bolt, Case Half 13 Req'D Log in to see
prices
6
NV22512
 Sensor, Vehicle Speed 2 Req'D Log in to see
prices
7
NV27313
 Plug, Access Hole Log in to see
prices
8
NV17475
 Bushing, Extension Housing Log in to see
prices
9
CRS 19317
 Seal, Rear Output Log in to see
prices
10
NV30412
 Plug, Fill Log in to see
prices
11
NV22449
 Wheel, Upper Tone Log in to see
prices
12
NV16684
 Ring, Oil Pump Retaining Log in to see
prices
13
NV16686
 Oil Pump Log in to see
prices
14
NV27985
 Washer, Oil Pump Log in to see
prices
15
NV31268
 Sprocket, Drive Log in to see
prices
Ni
NV22451
 Ring, Drive Sprocket Retaining Log in to see
prices
16
NV48508
 Assy, Mainshaft 8 Plate Log in to see
prices
16
NV42996
 Mainshaft Log in to see
prices
Ni
BRG 6011
 Bearing, Mainshaft Front Log in to see
prices
17
NV17984
 Plug, Oil Restrictor Log in to see
prices
18
NV22479
 Ring, Retaining Exc. Trailblazer Log in to see
prices
18
NV22495
 Ring, Retaining Trailblazer Log in to see
prices
19
NV24854
 Housing, Clutch Exc. Trailblazer Log in to see
prices
19
NV29832
 Housing, Clutch Trailblazer Log in to see
prices
20
FC69343
 Bearing, Clutch Hub Log in to see
prices
20
FC69343
 Bearing, Clutch Hub Log in to see
prices
21
NV22472
 Hub, Clutch Exc. Trailblazer Log in to see
prices
21
NV29939
 Hub, Clutch Trailblazer Log in to see
prices
22
NV28399
 Washer, Clutch Hub Log in to see
prices
Ni
NV27746
 Spring, Clutch Exc. Trailblazer Log in to see
prices
Ni
NV29839
 Spring, Clutch Trailblazer Log in to see
prices
23
NV22479
 Ring, Clutch Spring Retaining Log in to see
prices
24
NV29780
 Shim, Clutch Plate Log in to see
prices
25
NV4461047
 Plate, Clutch Steel 9 Req'D Log in to see
prices
26+
NV27747
 Plate, Clutch Friction, 10 Req'D Log in to see
prices
27
NV22496
 Plate, Clutch Pressure 1998-00 Log in to see
prices
27
NV29010
 Plate, Clutch Pressure 2000-01 Log in to see
prices
27
NV27745
 Plate, Clutch Pressure 2001 Log in to see
prices
27
NV29840
 Plate, Clutch Pressure Trailblazer Log in to see
prices
28
NV52876
 Hub, Clutch Log in to see
prices
29
FC66561
 Bearing, Input Pocket Log in to see
prices
30
NV37424
 Assy, Planetary Carrier Nv17868 Log in to see
prices
31
NV17978
 Assy, Input Shaft 27 Spl. Log in to see
prices
32
NV27135
 Washer, Thrust Log in to see
prices
Ni
NV16437
 Washer, Input Thrust Log in to see
prices
33
NV17483
 Plate, Lock Log in to see
prices
34
NV27135
 Washer, Thrust Log in to see
prices
35
NV16442
 Ring, Input Bearing Retaining .064" Thick Log in to see
prices
36
KOY 6010
 Bearing, Input Log in to see
prices
37
NV26162
 Vent Log in to see
prices
38
NV22461
 Pin, Clutch Lever Pivot Log in to see
prices
39
NV25367
 Case, Front Half Log in to see
prices
40
NV22517
 Stud, Mounting M8X1.25 - M10X1.5 Log in to see
prices
41
CRS 18878
 Seal, Input Log in to see
prices
42
NV17821
 Seal, Frt. Output Shaft To Yoke Log in to see
prices
43
NV22452
 Seal, Front Output Case To Shaft Log in to see
prices
44
NV96711B
 Ring, Frt. Output Brg Retaining Log in to see
prices
45
NV29781
 Plunger, Poppet Log in to see
prices
46
NV17174
 Spring, Poppet Log in to see
prices
47
NV15715
 O-Ring, Poppet Log in to see
prices
48
NV22511
 Screw, Poppet Log in to see
prices
49
NV22440
 Bearing, Shift Shaft Log in to see
prices
50
NV16706
 Ring, Shift Lever Retaining Log in to see
prices
51
NV24740
 Spacer, Isolator Log in to see
prices
52
NV27873
 Motor, Encoder Log in to see
prices
Ni
NV22446
 Bolt, Encoder Motor 3 Req'D Log in to see
prices
53
NV13627
 Pin, Case Half Dowel 2 Req'D Log in to see
prices
54
BRG 6207
 Bearing, Front Output Shaft Log in to see
prices
55
1300-139-027
 Ring, Frt. Output Brg Retaining Log in to see
prices
56
NV17405
 Ring, Retaining Log in to see
prices
57
NV25794
 Wheel, Lower Tone Log in to see
prices
Ni
NV23748
 Rail, Shift Log in to see
prices
58
NV47473
 Assy, Sector Log in to see
prices
Ni
NV17267
 Spring, Shift Fork Log in to see
prices
Ni
12475008
 Pad, Shift Fork Log in to see
prices
Ni
NV25402
 Pad, Shift Fork Center Log in to see
prices
Ni
NV16457
 Bushing, Shift Fork Log in to see
prices
Ni
NV16456
 Washer, Shift Fork Log in to see
prices
Ni
NV26542
 Assy, Range Fork Log in to see
prices
59
NV30081
 Lever, Clutch Log in to see
prices
60
NV16214
 O-Ring, Suction Tube Log in to see
prices
61
NV47530
 Tube, Oil Pickup Log in to see
prices
62
NV95472
 Magnet Log in to see
prices
63
NV16217
 Filter Log in to see
prices
64
NV22447
 Shaft, Front Output Log in to see
prices
65
NV22450
 Sprocket, Driven Log in to see
prices
66
NV22451
 Ring, Driven Sprocket Retaining Log in to see
prices
67
NV22500
 Chain 1.00" Wide Log in to see
prices
Ni
TC236
 Kit, Bearing & Seal Log in to see
prices
Ni
SK236
 Kit, Seal & Gasket Log in to see
prices
Ni
BRNY
 Wear Protector Log in to see
prices

Specifications

  Product NameNP 236 (1998-Up Chevrolet Blazer)
  Brand NameNew Process

Documents

NV - 236 Chevrolet.pdf
