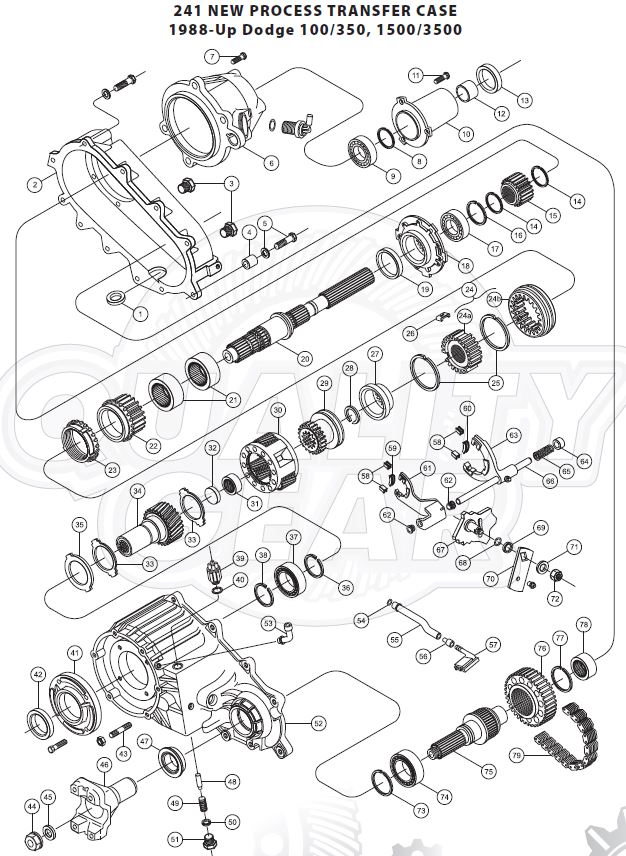

| Item No. |
Part Number |
Name | Notes | Price |
Buy |
|
| 1 |
NV95472
|
Magnet
| | Log in to see
prices |
|
|
| 2 |
NV16348
|
Case, Rear Half
| 1988-93 | Log in to see
prices |
|
|
| 2 |
NV21653
|
Case, Rear Half
| 1994-97 | Log in to see
prices |
|
|
| 2 |
NV41902
|
Case, Rear Half
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 3 |
NV22398
|
Plug, Drain/Fill
| 2 Req'D | Log in to see
prices |
|
|
| 4 |
5222757
|
Pin, Case Alignment Dowel
| 2 Req'D | Log in to see
prices |
|
|
| 5 |
NV15142
|
Washer, Case Dowel
| 2 Req'D | Log in to see
prices |
|
|
| 5 |
NV61573
|
Bolt, Case Half
| | Log in to see
prices |
|
|
| 5 |
NV6101526
|
Bolt, Case Half
| 17 Req'D 2002-Up | Log in to see
prices |
|
|
| 6 |
NV16349
|
Retainer, Rear
| 1988-90 | Log in to see
prices |
|
|
| 6 |
NV17537
|
Retainer, Rear
| 1994-97 | Log in to see
prices |
|
|
| 6 |
NV22404
|
Retainer, Rear
| 1993-96 | Log in to see
prices |
|
|
| 6 |
NV21654
|
Retainer, Rear
| 1993-96 Except Above Numbers | Log in to see
prices |
|
|
| 7 |
6500318
|
Screw, Rear Retainer
| | Log in to see
prices |
|
|
| 8 |
1300-139-027
|
Ring, Rear Bearing Snap
| | Log in to see
prices |
|
|
| 9 |
BRG 6207
|
Bearing, Rear Output
| | Log in to see
prices |
|
|
| 10 |
NV17477
|
Housing, Extension
| 1994-97 Ram Pickup | Log in to see
prices |
|
|
| 10 |
NV16354
|
Housing, Extension
| 1994-97 Dakota | Log in to see
prices |
|
|
| 10 |
NV17462
|
Housing, Extension
| 1988-99 | Log in to see
prices |
|
|
| 10 |
NV37803
|
Housing, Extension
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 11 |
NV61573
|
Screw, Extension Housing
| | Log in to see
prices |
|
|
| 12 |
NV15346
|
Bushing, Extension Housing
| | Log in to see
prices |
|
|
| 12 |
NV18172
|
Bushing, Extension Housing
| 2.34" Od X 2.08" Wide | Log in to see
prices |
|
|
| 13 |
CRS 15546
|
Seal, Output Rear
| 1988-93 #4167735 | Log in to see
prices |
|
|
| 13 |
CRS 18992
|
Seal, Output Rear
| 1994-97 Ram Pickup #4746258 | Log in to see
prices |
|
|
| 14 |
NV13955
|
Ring, Speedo Gear Snap
| .06" Thick 2 Req'D | Log in to see
prices |
|
|
| 15 |
NV16276
|
Gear, Speedo
| 1988-97 | Log in to see
prices |
|
|
| 15 |
NV22397
|
Gear, Speedo
| 1994-96 31 Spl., 2.00" Od, 1.66" Id, 1.28" Oal | Log in to see
prices |
|
|
| 16 |
NV96711B
|
Ring, Retaining
| 1994-97 Ram Pickup .085" Thick | Log in to see
prices |
|
|
| 17 |
BRG 6207
|
Bearing, Mainshaft
| 1993-96 | Log in to see
prices |
|
|
| 18 |
NV16209
|
Oil Pump
| | Log in to see
prices |
|
|
| Ni |
449212
|
Screw, Pump Retaining
| | Log in to see
prices |
|
|
| 19 |
CRS 22306
|
Seal, Oil Pump
| | Log in to see
prices |
|
|
| 20 |
NV16343
|
Mainshaft
| 1988-93 | Log in to see
prices |
|
|
| 20 |
NV20482
|
Mainshaft
| 1994-01 34T-37-38-32 Spl. 1.37" Od, 18.50" Oal | Log in to see
prices |
|
|
| 20 |
NV20480
|
Mainshaft
| 1994-99 Heavy Duty, 34T-37-38-32 Spl. 1.37" Od, 18.25" Oal | Log in to see
prices |
|
|
| 20 |
NV22393
|
Mainshaft
| 1993-96 34T-37-31-36 Spl. 1.612" Od, 19.375" Oal | Log in to see
prices |
|
|
| 20 |
NV24955
|
Mainshaft
| 2002-Up Heavy Duty | Log in to see
prices |
|
|
| 20 |
NV42795
|
Mainshaft
| 2002-Up Standard Duty Ram 1500 | Log in to see
prices |
|
|
| 20 |
NV31801
|
Mainshaft
| 2002-Up Standard Duty Ram 2500 | Log in to see
prices |
|
|
| 21 |
B5020
|
Bearing, Drive Sprocket
| 2 Req'D | Log in to see
prices |
|
|
| 22 |
NV16247
|
Sprocket, Drive
| 1988-94 20 Ext Teeth, 24T, 5.16" Od, 1.98" Id | Log in to see
prices |
|
|
| 22 |
NV17814
|
Sprocket, Drive
| 199-9Up Standard Duty, 34 Ext Teeth, | Log in to see
prices |
|
|
| 22 |
NV17813
|
Sprocket, Drive
| 1995-Up Heavy Duty, 34 Ext Teeth, 30T, 5.1875" Od, 2.280" Id | Log in to see
prices |
|
|
| 22 |
NV38984
|
Sprocket, Drive
| 2002 Ram Standard Duty | Log in to see
prices |
|
|
| 22 |
NV31269
|
Sprocket, Drive
| 2002-Up Ram1500 30T, 5.19" Od, 2.25" Id Exc 2002 Ram | Log in to see
prices |
|
|
| 23 |
NV15547
|
Ring, Synchro
| 1988-93 48T | Log in to see
prices |
|
|
| 23 |
NV17779
|
Ring, Synchro
| 1994-02 Heavy Duty | Log in to see
prices |
|
|
| 24 |
NV33403
|
Assy, Synchronizer
| 1988-93 | Log in to see
prices |
|
|
| 24B |
NV17773
|
Sleeve, Synchro Assy
| 1994-02 Exc Below | Log in to see
prices |
|
|
| 24B |
NV26082
|
Sleeve, Synchro Assy
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 24A |
NV17772
|
Hub, Synchro Assy
| 1994-02 Exc Below | Log in to see
prices |
|
|
| 24A |
NV39969
|
Hub, Synchro Assy
| 2002 Ram Electric Shift | Log in to see
prices |
|
|
| 24A |
NV39961
|
Hub, Synchro Assy
| 2002 Ram Mechanical Shift | Log in to see
prices |
|
|
| 25 |
NV15658
|
Spring, Synchro
| 1988-93 2 Req'D | Log in to see
prices |
|
|
| 25 |
NV17778
|
Spring, Synchro
| 1994-02 Exc Below 2 Req'D | Log in to see
prices |
|
|
| 25 |
NV22451
|
Spring, Synchro
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 26 |
NV15213
|
Key, Synchronizer
| | Log in to see
prices |
|
|
| 27 |
4338860
|
Plate, Retaining
| 1988-93 | Log in to see
prices |
|
|
| 28 |
NV16205
|
Ring, Synchro Hub Snap
| 1988-93 .075" Thick, 2.10" Od, 1.714" Id | Log in to see
prices |
|
|
| 28 |
NV17520
|
Ring, Synchro Hub Snap
| 1994-97 Heavy Duty | Log in to see
prices |
|
|
| 29 |
NV16186
|
Hub, Range Shift
| 1988-89 | Log in to see
prices |
|
|
| 29 |
NV19114
|
Hub, Range Shift
| 1990-93 | Log in to see
prices |
|
|
| 29 |
NV17521
|
Hub, Range Shift
| 1994-97 29 Ext Teeth, 34 Spl., 2.24" Od, 1.76" Id, 3.21" Oal | Log in to see
prices |
|
|
| 29 |
NV17375
|
Hub, Range Shift
| 1993-96 29 Ext Teeth, 34 Spl., 2.14" Od, 1.76" Id, 2.41" Oal | Log in to see
prices |
|
|
| 29 |
NV17824
|
Hub, Range Shift
| 1994-97 29 Ext Teeth, 34 Spl., 2.49" Od, 1.667" Id, Ram Pickup | Log in to see
prices |
|
|
| 29 |
NV36153
|
Hub, Range Shift
| 2002 Dodge Ram | Log in to see
prices |
|
|
| 30 |
NV16273
|
Assy, Planetary Carrier
| 1988-89 29T-19 X 6 Gears, 5.437" Od, 2.36" Id | Log in to see
prices |
|
|
| 30 |
NV16550
|
Assy, Planetary Carrier
| 1990-93 29T-19 X 6 Gears, 5.437" Od, 2.36" Id | Log in to see
prices |
|
|
| 30 |
NV16174
|
Assy, Planetary Carrier
| 1994-97 Standard Duty | Log in to see
prices |
|
|
| 30 |
NV17517
|
Assy, Planetary Carrier
| 1993-96 38T-29-19 X 6 Gears 5.437" Od, 2.36" Id | Log in to see
prices |
|
|
| 30 |
NV37425
|
Assy, Planetary Carrier
| 1993-96 29T-19 X 6 Gears 5.437" Od, 2.36" Id | Log in to see
prices |
|
|
| 30 |
NV17944
|
Assy, Planetary Carrier
| 1993-96 38T-29-19 X 6 Gears 5.437" Od, 2.36" Id | Log in to see
prices |
|
|
| 30 |
NV17869
|
Assy, Planetary Carrier
| 6 Pinion W/ Pto 6010Nr | Log in to see
prices |
|
|
| 30 |
NV17868
|
Assy, Planetary
| 2002-Up Ram1500 | Log in to see
prices |
|
|
| 31 |
4338913
|
Bearing, Input Pocket
| 1988-93 | Log in to see
prices |
|
|
| 31 |
FC66561
|
Bearing, Input Pocket
| 1994-Up | Log in to see
prices |
|
|
| 32 |
24500867
|
Plug, Input Spline
| | Log in to see
prices |
|
|
| 33 |
NV16437
|
Washer,Thrust
| .066" Thick 2 Req'D | Log in to see
prices |
|
|
| 34 |
NV22390
|
Gear, Input
| 1993-96 R53T-29 Int Teeth, 23 Spl., 1.93" Od, 1.24" Id, 5.00" Oal | Log in to see
prices |
|
|
| 34 |
NV21288
|
Gear, Input
| 1993-96 R53T-29 Int Teeth, 23 Spl., 1.93"Od, 1.24" Id, 4.40" Oal | Log in to see
prices |
|
|
| 34 |
2412902
|
Gear, Input
| 1994-97 Heavy Duty 29 Spl. 5.00" Oal | Log in to see
prices |
|
|
| 34 |
NV32179
|
Gear, Input
| 2000-Up Automatic Trans | Log in to see
prices |
|
|
| 34 |
NV38207
|
Gear, Input
| 2002-Up Ram1500 | Log in to see
prices |
|
|
| 34 |
NV16697
|
Gear, Input
| 1988-90 R53T-29 Int Teeth, 23 Spl. 5.00" Oal | Log in to see
prices |
|
|
| 34 |
NV16760
|
Gear, Input
| 1991-93 R53T-29 Int Teeth, 23 Spl. 1.93" Od, 1.25" Id, 5.11" Oal | Log in to see
prices |
|
|
| 34 |
NV17541
|
Gear, Input
| 1993-97 Standard Duty, R53T-29 Int Teeth, 27 Spl., 1.95" Od, 1.50" Id,5.00" Oal | Log in to see
prices |
|
|
| 34 |
NV16539
|
Gear, Input
| 1994-97 Heavy Duty, R53T-29 Int Teeth, 23 Spl., 1.93" Od, 1.24" Id, 5.00" Oal | Log in to see
prices |
|
|
| 34 |
NV17953
|
Gear, Input
| 1993-96 | Log in to see
prices |
|
|
| 34 |
NV17954
|
Gear, Input
| 1993-96 R53T-29 Int Teeth, 27 Spl., 1.93" Od, 1.50" Id, 5.00" Oal | Log in to see
prices |
|
|
| 35 |
NV17483
|
Plate, Lock
| | Log in to see
prices |
|
|
| 36 |
NV16243
|
Ring, Retaining
| 061" Thick, 3.82" Od | Log in to see
prices |
|
|
| 36 |
NV17483
|
Ring, Planetary Carrier Lock
| .126" Thick, 3.61" Od | Log in to see
prices |
|
|
| 37 |
SKF 5210ANRX
|
Bearing, Input
| 1987-93 Thick .935" | Log in to see
prices |
|
|
| 37 |
BRG 6010NR
|
Bearing, Input
| 1994-97 Narrow .63" | Log in to see
prices |
|
|
| 38 |
NV99088C
|
Ring, Retaining
| 1988 & 1994-97 .09" Thick, 2.18" Od | Log in to see
prices |
|
|
| 39 |
NV15832
|
Switch, Vacuum
| 1988-89 | Log in to see
prices |
|
|
| 39 |
NV15832
|
Switch, Vacuum
| 1990-93 | Log in to see
prices |
|
|
| 39 |
NV16073
|
Switch, Vacuum
| 1991-97 | Log in to see
prices |
|
|
| 39 |
NV46222
|
Switch, Electric
| 2002-Up Ram1500 | Log in to see
prices |
|
|
| 40 |
NV15715
|
O-Ring, Vacuum Switch
| | Log in to see
prices |
|
|
| 41 |
NV16188
|
Retainer, Front Input
| | Log in to see
prices |
|
|
| Ni |
6500318
|
Screw, Input Retainer
| | Log in to see
prices |
|
|
| 42 |
CRS 19244
|
Seal, Input
| | Log in to see
prices |
|
|
| 43 |
NV16699
|
Stud, Mounting
| | Log in to see
prices |
|
|
| 44 |
NV13368
|
Nut, Yoke
| | Log in to see
prices |
|
|
| 45 |
NV15221
|
Washer, Rubber
| | Log in to see
prices |
|
|
| 46 |
NV16370
|
Yoke, Front Output
| | Log in to see
prices |
|
|
| 47 |
CRS 18662
|
Seal, Front Output
| | Log in to see
prices |
|
|
| 48 |
NV16754
|
Plunger, Poppet
| | Log in to see
prices |
|
|
| 49 |
NV16962
|
Spring, Poppet Plunger
| | Log in to see
prices |
|
|
| 49 |
NV17071
|
Spring, Poppet Plunger
| 2002-Up Ram 1500 | Log in to see
prices |
|
|
| 50 |
NV15715
|
O-Ring, Poppet Screw
| | Log in to see
prices |
|
|
| 51 |
NV23989
|
Screw, Poppet
| | Log in to see
prices |
|
|
| 51 |
NV16188
|
Retainer, Input
| All Exc, 2002 Ram 1500 | Log in to see
prices |
|
|
| 52 |
NV16334
|
Case, Front Half
| 1988-92 | Log in to see
prices |
|
|
| 52 |
NV17024
|
Case, Front Half
| 1990-92 | Log in to see
prices |
|
|
| 52 |
NV17512
|
Case, Front Half
| 1995-99 Heavy Duty Cast #17257 | Log in to see
prices |
|
|
| 52 |
NV17800
|
Case, Front Half
| 1995-99 Standard Duty Cast #17240 | Log in to see
prices |
|
|
| 52 |
NV17934
|
Case, Front Half
| 1993-96 | Log in to see
prices |
|
|
| 52 |
NV17942
|
Case, Front Half
| 1993-96 | Log in to see
prices |
|
|
| 52 |
NV21289
|
Case, Front Half
| 1993-96 | Log in to see
prices |
|
|
| 52 |
NV21293
|
Case, Front Half
| 1993-96 | Log in to see
prices |
|
|
| 52 |
NV17027
|
Case, Front Half
| 1993-94 | Log in to see
prices |
|
|
| 52 |
NV32173
|
Case, Front Half
| 2000-Up All Exc. Below | Log in to see
prices |
|
|
| 52 |
NV40952
|
Case, Front Half
| 2002 Pickup | Log in to see
prices |
|
|
| 52 |
NV32176
|
Case, Front Half
| 2000-Up Heavy Duty | Log in to see
prices |
|
|
| Ni |
NV13863
|
Ring, Annulus Gear Snap
| | Log in to see
prices |
|
|
| Ni |
NV16166
|
Gear, Planetary Ring(Annulus)
| 1988-91 Only | Log in to see
prices |
|
|
| 53 |
NV17988
|
Vent
| | Log in to see
prices |
|
|
| 53 |
NV17988
|
Vent
| 2002-Up Ram1500 | Log in to see
prices |
|
|
| 54 |
NV16214
|
Seal, Suction Tube
| | Log in to see
prices |
|
|
| 55 |
NV16215
|
Tube, Oil Suction
| | Log in to see
prices |
|
|
| 56 |
NV16218
|
Connector, Oil Tube To Filter
| | Log in to see
prices |
|
|
| 57 |
NV16217
|
Filter
| | Log in to see
prices |
|
|
| 58 |
NV13795
|
Pad, Shift Fork
| 4 Req'D Can Use 15866 | Log in to see
prices |
|
|
| 59 |
NV15556
|
Pad, Range Fork Center
| 1 Req'D Can Use 15866 | Log in to see
prices |
|
|
| 60 |
NV15221
|
Pad, Mode Fork Center
| 1988-92 1 Req'D Can Use 15866 | Log in to see
prices |
|
|
| 60 |
NV16779
|
Pad, Mode Fork Center
| 1993-96 1 Req'D Can Use 15866 | Log in to see
prices |
|
|
| 61 |
NV16337
|
Assy, Range Shift Fork
| 1988-93 W/ Pads | Log in to see
prices |
|
|
| 61 |
NV17543
|
Assy, Range Shift Fork
| 1994-97 W/ Pads | Log in to see
prices |
|
|
| 61 |
NV17833
|
Assy, Range Shift Fork
| 1998-Up | Log in to see
prices |
|
|
| 62 |
NV16193
|
Bushing, Range Fork
| | Log in to see
prices |
|
|
| 63 |
NV17025
|
Fork, Mode Shift
| 1988-93 Cast #16342 | Log in to see
prices |
|
|
| 63 |
NV17790
|
Fork, Mode Shift
| 1994-02 Ram Pickup Cast #17769 | Log in to see
prices |
|
|
| 63 |
NV17502
|
Fork, Mode Shift
| 1994-97 Dakota | Log in to see
prices |
|
|
| 63 |
NV41605
|
Fork, Mode Shift
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 64 |
NV16447
|
Cup, Shift Rail Spring
| | Log in to see
prices |
|
|
| 65 |
NV17556
|
Spring, Shift Rail
| | Log in to see
prices |
|
|
| 66 |
NV16269
|
Rail, Shift Fork
| | Log in to see
prices |
|
|
| 67 |
NV17349
|
Assy, Sector & Shaft
| | Log in to see
prices |
|
|
| 67 |
NV17767
|
Assy, Sector & Shaft
| | Log in to see
prices |
|
|
| 67 |
NV46235
|
Assy, Sector & Shaft
| | Log in to see
prices |
|
|
| 68 |
NV13725
|
O-Ring, Shift Shaft
| | Log in to see
prices |
|
|
| 69 |
NV13726
|
Retainer, Shift Shaft O-Ring
| | Log in to see
prices |
|
|
| 70 |
NV46235
|
Assy, Shift Lever
| | Log in to see
prices |
|
|
| 70 |
NV48887
|
Assy, Shift Lever
| | Log in to see
prices |
|
|
| 71 |
2436163
|
Washer, Shift Lever Nut
| | Log in to see
prices |
|
|
| 72 |
NV13992
|
Nut, Shift Lever
| | Log in to see
prices |
|
|
| 73 |
4338967
|
Ring, Retaining
| .06" Thick #6310809 | Log in to see
prices |
|
|
| 74 |
KOY 6307NR
|
Bearing, Front Output
| 1988-93 #2124517 | Log in to see
prices |
|
|
| 74 |
BRG 6207
|
Bearing, Front Output
| 1994-97 Ram Pickup | Log in to see
prices |
|
|
| 75 |
NV16484
|
Shaft, Front Output
| 1988-90 | Log in to see
prices |
|
|
| 75 |
NV17535
|
Shaft, Front Output
| 1994 & 2002 Heavy Duty, 61 Spl. 32 Spl. 7.50" Oal, 1.50" Pilot Dia. | Log in to see
prices |
|
|
| 75 |
NV16275
|
Shaft, Front Output
| 1994-02 Standard Duty, 61 Spl. 32 Spl. 7.25" Oal, 1.50" Pilot Dia | Log in to see
prices |
|
|
| 75 |
NV17555
|
Shaft, Front Output
| 1995-2001 Heavy Duty | Log in to see
prices |
|
|
| 75 |
NV37810
|
Shaft, Front Output
| 2002 Ram 1500 | Log in to see
prices |
|
|
| Ni |
NV41899
|
Slinger
| 2002 Ram 1500 | Log in to see
prices |
|
|
| 76 |
NV15307
|
Sprocket, Driven
| 1988-93 35T, 32 Spl. 2.50" Id | Log in to see
prices |
|
|
| 76 |
NV16066
|
Sprocket, Driven
| 1994-97 Heavy Duty 34T, 61 Spl. 1.39" Thick, 5.21" Od | Log in to see
prices |
|
|
| 76 |
NV15307
|
Sprocket, Driven
| 1988-94 Standard Duty 34T, 61 Spl. 1.13" Thick 5.19" Od | Log in to see
prices |
|
|
| 76 |
NV38984
|
Sprocket, Driven
| 2002 Ram Standard Duty | Log in to see
prices |
|
|
| 76 |
NV31269
|
Sprocket, Driven
| 2002-Up Ram1500 | Log in to see
prices |
|
|
| 77 |
NV13068
|
Ring, Sprocket Retaining
| 1988-92 .078" Thick, 2.70" Od | Log in to see
prices |
|
|
| 77 |
NV96711B
|
Ring, Sprocket Retaining
| 1993-96 .085" Thick, 1.58" Od | Log in to see
prices |
|
|
| 78 |
NTN J2416
|
Bearing, Front Output Inner
| 1.875" Od | Log in to see
prices |
|
|
| 79 |
NV13798
|
Chain
| 1.25" Wide 1988-90 | Log in to see
prices |
|
|
| 79 |
4470-143-001
|
Chain
| 1.50" Wide 1993-96 Heavy Duty | Log in to see
prices |
|
|
| 79 |
4401-143-001
|
Chain
| 1.32" Wide 1993-96 Standard Duty | Log in to see
prices |
|
|
| 79 |
NV31534
|
Chain
| 1.25" Wide 2002-Up Ram1500 | Log in to see
prices |
|
|
| Ni |
TC241U
|
Kit, Bearing & Seal
| | Log in to see
prices |
|
|
| Ni |
TC241DHD
|
Kit, Bearing & Seal
| Heavy Duty | Log in to see
prices |
|
|
| Ni |
SK241
|
Kit, Seal & Gasket
| | Log in to see
prices |
|
|
| Ni |
SFI207
|
Kit, Shift Fork Insert
| | Log in to see
prices |
|
|
 | |
NP 119B (1980-83 Eagle w/o Select Trac & 1971-88 Eagle w/ Select Trac)
NP 126 (2002-Up GMC Trailblazer, Bravada, & Envoy)
NP 129 (1980-83 Eagle w/o Select Trac & 1971-88 Eagle w/ Select Trac)
NP 133 (2003-Up Dodge Durango)
NP 136 (1998-Up Chevrolet Astro Van & Blazer)
NP 149 (2001-Up GMC Sierra Pickup)
NP 203 (1972-79 Chevrolet, 1973-80 Dodge, 1974-79 Ford)
NP 205 (1969-91 Chevrolet, 1969-93 Dodge, 1969-79 Ford)
NP 207 (1983-88 Chevrolet S-10, 1987 Dodge Dakota, 1983-90 Jeep)
NP 208 (Non-Synchronized 1980-82 Dodge 100-350, 1980-88 Ford Pickup, Bronco, & 1980-88 Jeep)
