NP 242 (1987-Up Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Liberty) New Process NV242J
View Larger

NP 242 (1987-Up Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Liberty)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

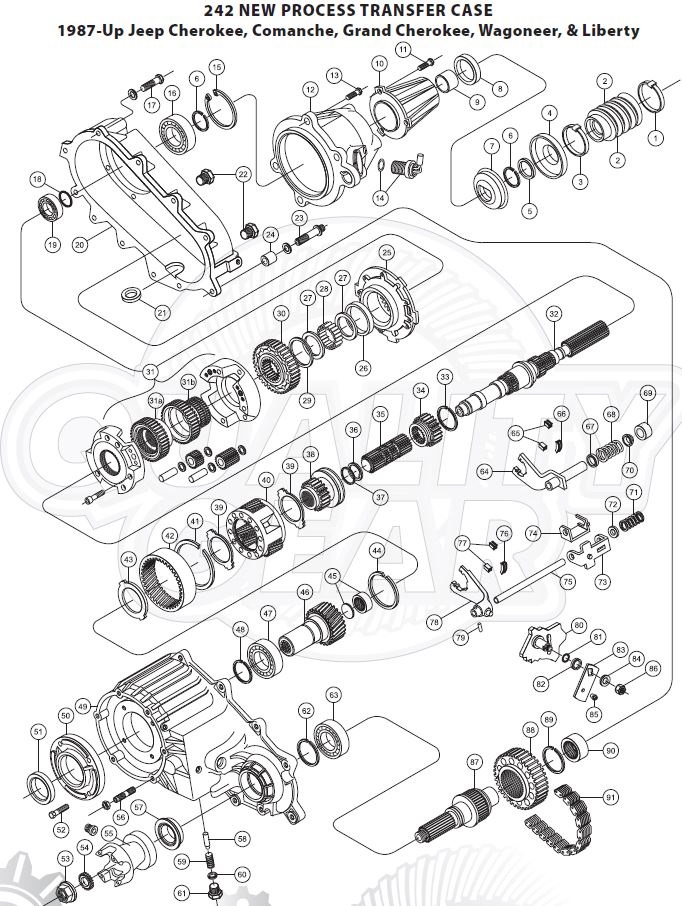

NP 242 (1987-Up Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Liberty)
Item No. Part Number Name Notes Qty Price Buy
1
NV21567
Clamp Log in to see
prices
1
NV31822
Clamp 55.5Mm Log in to see
prices
2
NV21568
Boot Log in to see
prices
2
NV46473
Boot, Rear Output 2002-Up Liberty Log in to see
prices
3
NV21566
Clamp Log in to see
prices
3
NV31821
Clamp 51Mm Log in to see
prices
4
NV19131
Slinger, Washer Log in to see
prices
4
NV15142
Slinger, Washer 2002-Up Liberty Log in to see
prices
5
NV19130
Slinger, Washer Log in to see
prices
5
NV31809
Slinger, Washer Log in to see
prices
6
NV15574
Ring, Retaining 2 Req'D Log in to see
prices
7
NV19131
Slinger, Washer Log in to see
prices
7
NV15142
Slinger, Washer 2002-Up Liberty Log in to see
prices
8
CRS 15047
Seal, Rear Output All Exc Below Log in to see
prices
8
CRS 18102
Seal, Rear Output Models #52098383, 52098384, 52098385, 52098496 Log in to see
prices
9
NV16081
Bushing, Extension Housing Log in to see
prices
10
NV16222
Housing, Extension 1987-96 Cherokee, 1993-98 Grand Cherokee, All Wagoneer & Commanche Includes Bushing Log in to see
prices
10
NV16188
Housing, Extension 1997-00 Cherokee Includes Bushing Log in to see
prices
11
NV61573
Screw, Extension Housing 3 Req'D Log in to see
prices
12
NV16463
Retainer, Rear 1987-96 Cherokee, All Wagoneer, Commanche Log in to see
prices
12
NV17359
Retainer, Rear 1993-96 Grand Cherokee Log in to see
prices
12
NV19123
Retainer, Rear 1994-97 Models #52098384, 52098385 Log in to see
prices
12
NV19126
Retainer, Rear 191997-01 Cherokee, 1997-98 Grand Cherokee Log in to see
prices
12
NV26933
Retainer, Rear 1999-2000 Cherokee, 2001-2002 Cherokee V6 Log in to see
prices
12
NV26571
Retainer, Rear 2001-02 Grand Cherokee V8 Log in to see
prices
12
NV31921
Retainer, Rear 2002 Liberty Log in to see
prices
Ni
NV16458
Dowel, Retainer Alignment Log in to see
prices
13
NV61573
Screw, Rear Retainer 4 Req'D Log in to see
prices
14
56006755
Switch, Vacuum Zj Log in to see
prices
14
NV16314
Switch, Electric Xj Log in to see
prices
14
NV40877
Switch, Electric 5 Position Log in to see
prices
15
NV19128
Ring, Retaining Log in to see
prices
16
KOY 6206
Bearing, Rear Output Log in to see
prices
17
NV61573
Bolt, Case Half 8 Req'D Log in to see
prices
18
NV15574
Ring, Retaining Log in to see
prices
18
NV24959
Ring, Retaining 2002-Up Liberty 2 Req'D Log in to see
prices
19
KOY 6206
Bearing, Mainshaft 1987-02 All Exc Liberty Log in to see
prices
19
BRG 6207
Bearing, Mainshaft Models #52098383 Thru 85 Log in to see
prices
20
NV16476
Case, Rear Half All Exc Below Log in to see
prices
20
NV30066
Case, Rear Half 2000-02 Grand Cherokee, 2002-Up Liberty Log in to see
prices
20
NV31926
Case, Rear Half 2002 Liberty Log in to see
prices
21
NV95472
Magnet Log in to see
prices
22
NV15054
Plug, Drain/Fill 2 Req'D Log in to see
prices
22
NV22398
Plug, Drain/Fill 2 Req'D 2002-Up Liberty Log in to see
prices
23
NV61575
Bolt, Dowel Case 2 Req'D Log in to see
prices
24
NV13627
Dowel, Case Alignment 2 Req'D Log in to see
prices
25
NV16209
Oil Pump 1987-02 All Exc Liberty Log in to see
prices
25
NV24956
Oil Pump 2002 Liberty Log in to see
prices
25
NV24956
Oil Pump 2003-Up Liberty Log in to see
prices
Ni
NV16252
Tube, Oil Suction Log in to see
prices
Ni
NV17510
Tube, Oil Suction 2002-Up Liberty Log in to see
prices
Ni
NV16218
Hose, Tube to Filter Connection Log in to see
prices
Ni
NV16217
Filter Log in to see
prices
Ni
NV16214
Seal, Oil Suction Tube 1987-02 All Log in to see
prices
26
CRS 22306
Seal, Oil Pump Log in to see
prices
27
NV16292
Spacer 2 Req'D Log in to see
prices
28
Q8308
Bearing, Drive Sprocket Needle Log in to see
prices
29
NV13877
Ring, Retaining Log in to see
prices
30
NV16345
Sprocket, Drive All Exc Below Log in to see
prices
30
NV16443
Sprocket, Drive Grande Cherokee V8, Liberty Log in to see
prices
31
NV16470
Assy, Differential All Exc Below Log in to see
prices
31
NV26406
Assy, Differential 2001-2002 Grand Cherokee V8 Log in to see
prices
31
NV32740
Assy, Differential 2002 Liberty Log in to see
prices
31A
NV16443
Gear, Differential Front Log in to see
prices
31B
NV16288
Gear, Differential Rear Log in to see
prices
32
NV16445
Mainshaft 1987-96 Exc Below, 1997 All Log in to see
prices
32
NV19121
Mainshaft 1997-2000 Cherokee & Grand Cherokee Log in to see
prices
32
NV33076
Mainshaft 2001 Cherokee Log in to see
prices
32
NV33069
Mainshaft 2000-02 Grand Cherokee Exc Below Log in to see
prices
32
NV24731
Mainshaft 2000-02 Grand Cherokee V8 Log in to see
prices
32
NV31919
Mainshaft 2002 Liberty Log in to see
prices
32
NV41597
Mainshaft 2003-Up Liberty Log in to see
prices
33
NV16297
Ring, Retaining Log in to see
prices
34
NV16432
Sleeve, Mode Clutch Log in to see
prices
35
NV16433
Sleeve, Intermediate 1987-96 All Exc Below Log in to see
prices
35
NV21065
Sleeve, Intermediate 1997-Up Grand Cherokee, 2002 Liberty Log in to see
prices
36
NV16467
Washer Log in to see
prices
37
NV16466
Ring, Retaining Log in to see
prices
38
NV16431
Sleeve, Range Shift 1987-88 Cherokee, Commanche, & Wagoneer Log in to see
prices
38
83506203
Sleeve, Range Shift 1989-90 Cherokee, Commanche, & Wagoneer Log in to see
prices
38
FUL 16662
Sleeve, Range Shift 1987-96 All, 1991-96 Exc Below Log in to see
prices
38
NV21066
Sleeve, Range Shift 1997-02 All Exc Below Log in to see
prices
38
NV21400
Sleeve, Range Shift 1999-2002 Grand Cherokee 6 Cyl., & Liberty Log in to see
prices
39
NV16437
Washer, Thrust 2 Req'D Log in to see
prices
40
NV16551
Assy, Planetary Carrier 1987-88 All,1989-96 Exc Below Log in to see
prices
40
NV16174
Assy, Planetary Carrier 1988 Cherokee & Commanche, 1987-88 Wagoneer Log in to see
prices
40
NV17868
Assy, Planetary Carrier Model # 52098383 Thru 85, 1997 All Log in to see
prices
40
NV17868
Assy, Planetary Carrier 2002-Up Liberty Log in to see
prices
41
NV13863
Ring, Annulus Retaining 1991-97 Log in to see
prices
42
NV16166
Gear, Planetary Ring (Annulus) Log in to see
prices
43
NV17483
Washer, Thrust Log in to see
prices
44
83503527
Ring, Planetary Carrier Lock 1991-93 Exc 1993 Grand Cherokee Log in to see
prices
44
NV16243
Ring, Planetary Carrier Lock 1994-02 All, 1993 Grand Cherokee Log in to see
prices
45
4338913
Bearing, Input Shaft Pilot 1987-96 Log in to see
prices
45
FC66561
Bearing, Input Shaft Pilot 1997-01 Log in to see
prices
46
NV17108
Gear, Input 1991-93 Cherokee & Grand Cherokee 23 Spl. Exc Below Log in to see
prices
46
NV17947
Gear, Input 1994-96 Grand Cherokee Model #52098531 Log in to see
prices
46
NV17951
Gear, Input 1994-96 Cherokee Model # 52098315, 52098317 Log in to see
prices
46
NV19061
Gear, Input 1994-01 Cherokee, 1997-98 Grand Cherokee 53T-23 Spl. Log in to see
prices
46
NV26401
Gear, Input 1999-2002 Grand Cherokee Exc Below, & Liberty Log in to see
prices
46
NV27304
Gear, Input 2001-2002 Grand Cherokee V8 Log in to see
prices
46
NV26402
Gear, Input 2002 Liberty Log in to see
prices
46
NV16482
Gear, Input 1987-88 23 Spl. Log in to see
prices
46
NV17449
Gear, Input 53T-23 Int Spl Model #52097528 Log in to see
prices
46
NV16761
Gear, Input 1987-90 Cherokee, All Wagoneer, Commanche 21 Spl. Log in to see
prices
46
NV16758
Gear, Input 1989-90 21 Int Spl.,46 Log in to see
prices
47
SKF 5210ANRX
Bearing, Input 1987-93 Log in to see
prices
47
BRG 6010NR
Bearing, Input 1994-02 Log in to see
prices
48
NV99088C
Ring, Retaining Log in to see
prices
49
NV17034
Case, Front Half 1987-93 Cherokee, All Commanche & Wagoneer Log in to see
prices
49
NV17357
Case, Front Half 1991-94 Grand Cherokee Models #52097528, 53009359 Log in to see
prices
49
NV17938
Case, Front Half 1994-97 Cherokee Model #52098315, 52098317 Log in to see
prices
49
NV17940
Case, Front Half 1994-97 Grand Cherokee Model #52098531 Log in to see
prices
49
NV24401
Case, Front Half 1997-01 Cherokee, 1997-98 Grand Cherokee V6 Log in to see
prices
49
NV19115
Case, Front Half 1997-98 Grand Cherokee V8 Log in to see
prices
49
NV26398
Case, Front Half 1999 Grand Cherokee Log in to see
prices
49
NV30154
Case, Front Half 2000-02 Grand Cherokee Log in to see
prices
49
NV32736
Case, Front Half 2002 Liberty Log in to see
prices
Ni
NV17988
Vent Log in to see
prices
50
NV16188
Retainer, Input Log in to see
prices
50
NV37798
Retainer, Input 2002-Up Liberty Log in to see
prices
51
CRS 19244
Seal, Input All Exc Below Log in to see
prices
51
CRS 19255
Seal, Input 1993-00 Grand Cherokee Log in to see
prices
51
19293
Seal, Input 01-04 Grand Cherokee, Liberty Log in to see
prices
52
6500318
Screw, Input Retainer Log in to see
prices
53
NV13368
Nut, Yoke Log in to see
prices
54
NV13695
Washer, Rubber Log in to see
prices
55
NV27428
Yoke, Front Output 1999-2000 Grande Cherokee, 2001 Grand Cherokee V6 Exc Below Log in to see
prices
55
NV22555
Yoke, Front Output Log in to see
prices
55
NV19055
Yoke, Front Output All Cherokee, Commanche, & Wagoneer, 1993-98 Grand Cherokee Log in to see
prices
55
NV42007
Yoke, Front Output 2000-Up Grand Cherokee V8 Log in to see
prices
NV38666
Yoke, Front Output 2002 Liberty 55 Log in to see
prices
55
NV47217
Flange, Front Output 2002-Up Liberty Log in to see
prices
56
NV15053
Stud, Front Mounting Log in to see
prices
57
CRS 18662
Seal, Front Output 1987-05 Log in to see
prices
58
NV16754
Plunger, Poppet Log in to see
prices
58
NV25645
Ball, Poppet 2002-Up Liberty Log in to see
prices
59
NV16962
Spring, Poppet Plunger Log in to see
prices
59
NV26223
Spring, Poppet Plunger 2002-Up Liberty Log in to see
prices
60
NV16173
O-Ring, Poppet Screw Log in to see
prices
NV16758
Screw, Poppet Log in to see
prices
61
NV23989
Screw, Poppet Log in to see
prices
61
1300-139-027
Ring, Retaining 2002-Up Liberty Log in to see
prices
62
638109
Ring, Retaining 1987-93 Log in to see
prices
62
BRG 6207
Bearing, Front Output 1994-02 Log in to see
prices
63
NV16460
Fork, Mode Shift 1987-05 Log in to see
prices
64
NV17363
Fork, Mode Shift 1987-02 Cherokee, 1987-90 Commache, 1987-90 Wagoneer Log in to see
prices
64
NV47222
Fork, Mode Shift 1997-2001 Cherokee, 1993-02 Grande Cherokee, 2002 Liberty Log in to see
prices
64
NV13795
Pad, Mode Fork 2003-Up Liberty Log in to see
prices
65
NV15556
Pad, Mode Fork Center 2 Req'D Log in to see
prices
66
NV16456
Washer, Mode Shift Rail Log in to see
prices
67
NV16453
Spring, Mode Shift Rail 1991-97 Log in to see
prices
68
NV15624
Bushing, Mode Shift Rail Log in to see
prices
69
NV15624
Bushing, Mode Shift Rail Log in to see
prices
69
NV16459
Sleeve, Mode Shift Rail Log in to see
prices
70
NV16446
Spring, Range Shift Rail Log in to see
prices
71
NV16447
Cup, Range Shift Rail Log in to see
prices
72
NV16474
Bracket, Outer Log in to see
prices
73
NV16310
Bracket, Inner Log in to see
prices
74
NV16449
Rail, Range Fork Shift Log in to see
prices
75
NV15044
Pad, Range Fork Center 1991-97 Log in to see
prices
76
NV13795
Pad, Range Fork Log in to see
prices
77
NV21222
Fork, Range Fork 2 Req'D Log in to see
prices
78
NV91386
Pin, Range Fork Log in to see
prices
79
NV16279
Sector, Shift Log in to see
prices
80
NV17352
Sector, Shift All exc below Log in to see
prices
80
NV42705
Assy, Sector 1993-97 Grand Cherokee Log in to see
prices
80
NV13725
Seal, Shift Lever 2002-Up Liberty Log in to see
prices
81
NV13726
Ring, Shift Lever Retaining Log in to see
prices
82
NV16396
Lever, Shift Log in to see
prices
83
NV49633
Assy, Shift Lever Log in to see
prices
Ni
J4001104
Washer, Shift Lever 2002-Up Liberty Log in to see
prices
84
NV16568
Bushing, Shift Lever Log in to see
prices
85
J8130813
Nut, Shift Lever Log in to see
prices
86
NV16275
Shaft, Front Output Log in to see
prices
87
NV17482
Shaft, Front Output 1987-01 All, 1993 Grand Cherokee, 1997-98 Grand Cherokee Log in to see
prices
87
NV17881
Shaft, Front Output 1993 Zj W/Sprocket, 1994-96 Grand Cherokee Log in to see
prices
87
NV16365
Sprocket, Driven 1999-Up Grand Cherokee, 2002-Up Liberty Log in to see
prices
88
NV16345
Sprocket, Driven Exc Below Log in to see
prices
88
NV26408
Sprocket, Driven Model #52098383 Log in to see
prices
88
NV41011
Sprocket, Driven 2001-02 Grand Cherokee Log in to see
prices
88
NV13068
Ring, Retaining 2003-Up Liberty Log in to see
prices
89
NTN J2416
Bearing, Front Output Inner Log in to see
prices
90
NV16418
Chain Log in to see
prices
91
NV23750
Chain 1.00' Wide 1987-97 #83504575 Log in to see
prices
91
NV22500
Chain 1.25" Wide W/ V8 Log in to see
prices
91
NV16457
Bushing, Shift Rail Retainer 1.00" Wide 2002-Up Liberty Log in to see
prices
Ni
NV16428
Bushing, Shift Rail Retainer 1991-97 Cherokee Log in to see
prices
Ni
TC242
Kit, Bearing & Seal 1993-97 Grand Cherokee Log in to see
prices
Ni
TC242A
Kit, Bearing & Seal Old Style Input Log in to see
prices
Ni
SK242
Kit, Seal & Gasket New Style W/ Updated Input Bearing Log in to see
prices
Ni
SFI207
Kit, Shift Fork Inserts Log in to see
prices

Specifications

  Product NameNP 242 (1987-Up Jeep Cherokee, Comanche, Grand Cherokee, Wagoneer, & Liberty)
  Brand NameNew Process

Documents

NV - 242 Jeep.pdf
