NP 243 (2002-Up Dodge Pickup Ram 1500) New Process NV243D
View Larger

NP 243 (2002-Up Dodge Pickup Ram 1500)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

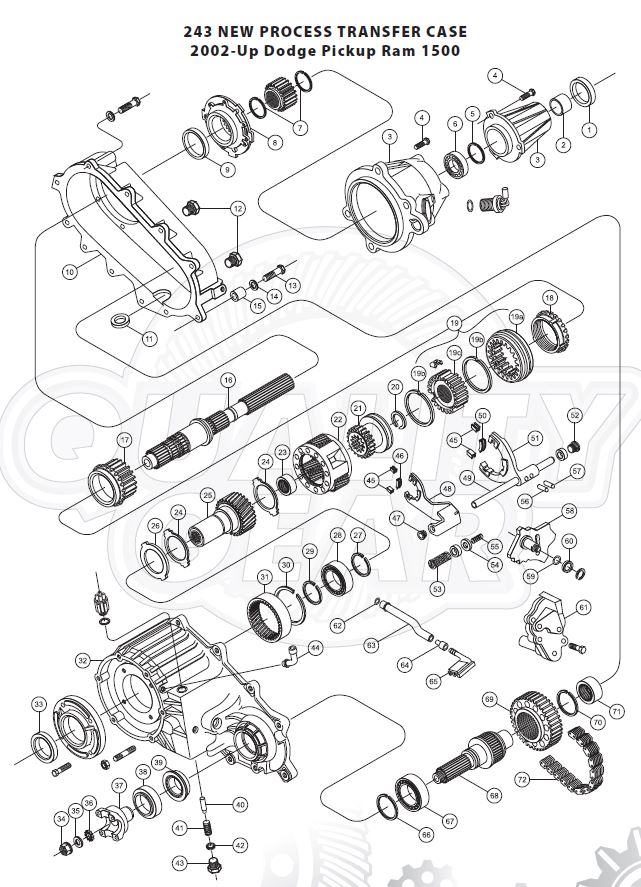

NP 243 (2002-Up Dodge Pickup Ram 1500)
Item No. Part Number Name Notes Price Buy
1
CRS 18662
Seal, Rear Output Log in to see
prices
2
NV16428
Bushing, Extension Housing Log in to see
prices
3
NV37803
Housing, Extension Log in to see
prices
4
NV61573
Bolt, Extension Housing Log in to see
prices
5
NV22451
Ring, Rear Bearing Retaining Log in to see
prices
6
NTN 6207
Bearing, Rear Output Log in to see
prices
7
NV22451
Ring, Retaining 2 Req'D Log in to see
prices
8
NV16209
Oil Pump Log in to see
prices
9
22306
Seal, Oil Pump Log in to see
prices
10
NV41902
Case, Rear Half Log in to see
prices
11
NV30510
Magnet Log in to see
prices
12
NV22398
Plug, Drain/Fill 2 Req'D Log in to see
prices
13
NV23635
Bolt, Case Half 17 Req'D Log in to see
prices
14
NV15142
Washer, Case Bolt Log in to see
prices
15
5222757
Pin, Case Alignment Dowel 2 Req'D Log in to see
prices
16
NV49071
Mainshaft Log in to see
prices
17
NV38984
Sprocket, Drive Log in to see
prices
18
NV20938
Ring, Blocking Log in to see
prices
19
NV54069
Assy, Synchronizer Log in to see
prices
19A
NV26082
Sleeve, Synchronizer Mode Log in to see
prices
19B
NV27884
Spring, Synchronizer 2 Req'D Log in to see
prices
19C
NV39969
Hub, Mode Electric Shift Log in to see
prices
Ni
NV39961
Hub, Drive Sprocket Log in to see
prices
20
NV44716
Ring, Synchronizer Retaining Log in to see
prices
21
NV43218
Sleeve, Range Log in to see
prices
22
NV17868
Assy, Planetary Carrier Log in to see
prices
Ni
NV16397
Ring, Planetary Carrier Lock Log in to see
prices
23
FC66561
Bearing, Input Pocket Log in to see
prices
24
NV16437
Washer, Input Shaft 2 Req'D Log in to see
prices
25
NV38207
Shaft, Input Log in to see
prices
Ni
9421756
Plug, Input Spline Log in to see
prices
26
NV17483
Plate, Input Bearing Log in to see
prices
27
NV16243
Ring, Retaining .064" Thick Log in to see
prices
28
KOY 6307-2RSNRX
Bearing, Input Log in to see
prices
29
NV99088C
Ring, Input Bearing Snap Log in to see
prices
30
NV13863
Ring, Annulus Retaining Log in to see
prices
31
--
Gear, Planetary Ring(Annulus) Included W/ #32 Log in to see
prices
32
NV40954
Case, Front Half Log in to see
prices
33
CRS 19244
Seal, Input Log in to see
prices
34
NV13368
Nut, Yoke Log in to see
prices
35
2436163
Washer, Yoke .9375"X.2031" Od Log in to see
prices
36
NV15221
Washer, Rubber Log in to see
prices
37
NV17880
Yoke, Front Output Log in to see
prices
38
NV41899
Deflector, Front Output Log in to see
prices
Ni
NV39027
Boot, Front Output Log in to see
prices
39
CRS 18662
Seal, Front Output Log in to see
prices
40
NV16754
Plunger, Shift Detent Log in to see
prices
41
NV17174
Spring, Shift Detent Plunger Log in to see
prices
42
NV15715
Seal, Shift Detent Plunger .648" Od Log in to see
prices
43
NV23989
Bolt, Shift Detent Spring Log in to see
prices
44
NV17988
Vent Pipe Log in to see
prices
45
NV36154
Pad, Shift Fork 4 Req'D Log in to see
prices
46
NV25402
Pad, Range Shift Fork Center Log in to see
prices
47
NV16457
Bushing, Range Fork Log in to see
prices
48
NV47385
Fork, Range Shift Log in to see
prices
49
NV16269
Rail, Shift Log in to see
prices
50
NV16779
Pad, Mode Shift Fork Center Log in to see
prices
51
NV41605
Fork, Mode Shift Log in to see
prices
52
NV16447
Cup, Shift Detent Spring Log in to see
prices
53
NV17267
Spring, Shift Fork 2 Req'D Log in to see
prices
54
NV16456
Washer, Shift Lever Log in to see
prices
55
NV13816
Spring, Shift Fork Shift Detent Log in to see
prices
56
--
Roller, Shift Detent Included W/ #50 Log in to see
prices
57
NV27336
Roller, Rear Gear Log in to see
prices
58
NV49678
Lever, Shift Detent Log in to see
prices
59
NV13725
Seal, Shift Detent Lever Log in to see
prices
60
NV13726
Retainer, O-Ring Log in to see
prices
61
NV44920
Motor, Encoder Log in to see
prices
61
NV48408
Motor, Encoder Log in to see
prices
62
NV25503
Seal, Oil Tube Log in to see
prices
63
NV39028
Pipe, Oil Pump Suction Log in to see
prices
64
NV25500
Connector, Pipe to Filter Log in to see
prices
65
NV50640
Filter Log in to see
prices
66
NV96711B
Ring, Front Output Brg Snap Log in to see
prices
67
NTN 6207
Bearing, Front Output Log in to see
prices
68
NV37810
Shaft, Front Output Log in to see
prices
69
NV38984
Sprocket, Driven Log in to see
prices
70
NV13068
Ring, Sprocket Retaining Log in to see
prices
71
NTN J2416
Bearing, Front Output Inner Log in to see
prices
72
4401 143 001
Chain 1.375" Wide 1993-98 Dodge Log in to see
prices
72
NV38985
Chain 1.25" Wide 2002-May 2004 Log in to see
prices
72
NV31534
Chain 1.00" Wide May 2004-Up Log in to see
prices
Ni
NV27720
Assy, Clutch Gear Log in to see
prices
Ni
NV16699
Stud, Mounting Log in to see
prices
Ni
TC243
Kit, Bearing & Seal Log in to see
prices
Ni
SK243
Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 243 (2002-Up Dodge Pickup Ram 1500)
  Brand NameNew Process

Documents

NV - 243 Dodge.pdf
