Home » LD Transfer Case » New Process
NP 247 (1999-Up Jeep Grand Cherokee) New Process NV247
View Larger

NP 247 (1999-Up Jeep Grand Cherokee)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

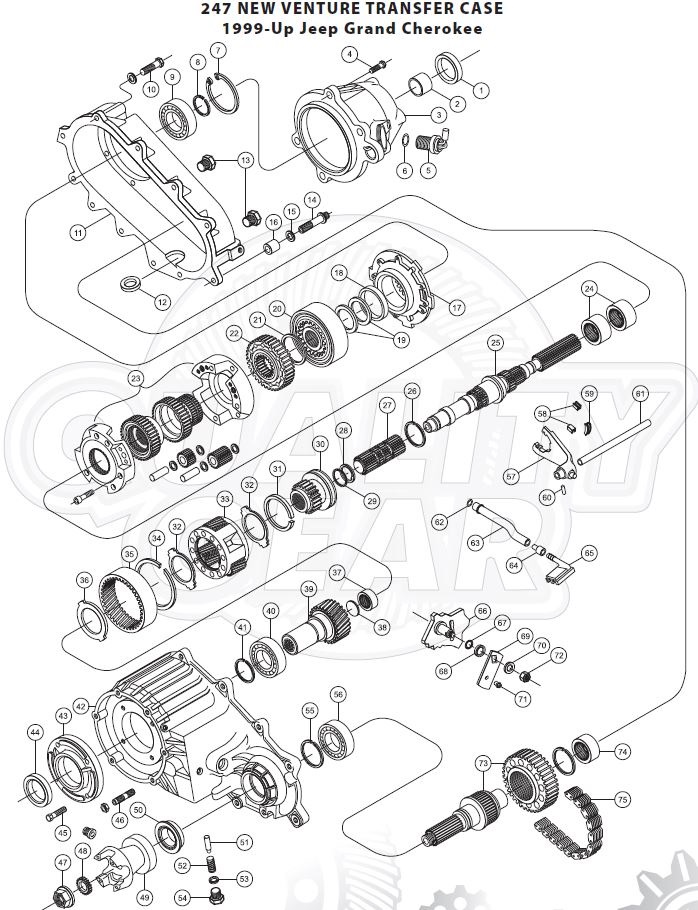

NP 247 (1999-Up Jeep Grand Cherokee)
Item No. Part Number Name Notes Price Buy
1
CRS 15047
 Seal, Rear Output Log in to see
prices
2
NV16696
 Bushing, Rear Retainer Log in to see
prices
3
NV25810
 Retainer, Rear All Exc Below Log in to see
prices
3
NV42202
 Retainer, Rear 2001-02 I-6 Log in to see
prices
4
NV44243
 Bolt, Rear Retainer 4 Req'D Log in to see
prices
5
56006755
 Switch Log in to see
prices
6
NV15715
 O-Ring, Speed Sensor Log in to see
prices
7
NV16691
 Ring, Retaining Log in to see
prices
8
4467478
 Ring, Mainshaft Brg Snap Log in to see
prices
9
6206N
 Bearing, Rear Output Log in to see
prices
10
NV61573
 Bolt, Case Half 6 Req'D Log in to see
prices
11
NV46229
 Case, Rear Half Log in to see
prices
12
NV95472
 Magnet Log in to see
prices
13
NV15054
 Plug, Drain/Fill 2 Req'D Log in to see
prices
13
NV22398
 Plug, Drain/Fill 2 Req'D 2001-Up Log in to see
prices
14
NV61575
 Bolt, Case Dowel 2 Req'D Log in to see
prices
15
NV15142
 Washer, Dowel 2 Req'D Log in to see
prices
16
NV13627
 Pin, Case Alignment Dowel 2 Req'D Log in to see
prices
17
NV33261
 Oil Pump Log in to see
prices
18
CRS 22306
 Seal, Oil Pump Log in to see
prices
19
NV16684
 Ring, Retaining Log in to see
prices
20
NV25457
 Assy, Viscous Coupling Log in to see
prices
21
NV25464
 Ring, Sprocket Retainer Log in to see
prices
22
NV25446
 Sprocket, Drive Log in to see
prices
23
NV26946
 Assy, Differential Log in to see
prices
24
B5020
 Bearing, Mainshaft Pilot 2 Req'D Log in to see
prices
25
NV49588
 Mainshaft Log in to see
prices
26
NV16297
 Ring, Differential Gear Snap Log in to see
prices
27
NV16659
 Shaft, Intermediate Log in to see
prices
28
NV16467
 Washer, Clutch Shaft Log in to see
prices
29
NV16466
 Ring, Intermediate Shaft Snap Log in to see
prices
30
NV26948
 Clutch, Sliding Log in to see
prices
31
NV16243
 Ring, Carrier Lock Snap Log in to see
prices
32
NV17483
 Plate, Carrier Lock Log in to see
prices
33
NV17868
 Assy, Planetary Carrier 1999-01 Log in to see
prices
33
NV37424
 Assy, Planetary Carrier 2002-Up Log in to see
prices
34
NV13863
 Ring, Annulus Retainer Log in to see
prices
35
NV16166
 Gear, Planetary Ring(Annulus) Log in to see
prices
36
NV17612
 Washer, Input Thrust Log in to see
prices
37
FC66561
 Bearing, Input Pocket Log in to see
prices
38
--
 Plug, Input Log in to see
prices
39
NV49587
 Shaft, Input All Exc V8 Log in to see
prices
39
NV27304
 Shaft, Input w/ V8 Log in to see
prices
40
BRG 6010
 Bearing, Input Log in to see
prices
41
1300-139-027
 Ring, Retaining Log in to see
prices
42
NV27297
 Case, Front Half Log in to see
prices
Ni
NV17988
 Vent Log in to see
prices
Ni
NV17988
 Vent 2001-Up Log in to see
prices
43
NV37798
 Retainer, Input Log in to see
prices
44
CRS 19244
 Seal, Input 2 Req'D Log in to see
prices
45
6500318
 Screw, Input Retainer Log in to see
prices
46
NV15053
 Stud, Case Mounting Log in to see
prices
46
NV27303
 Stud, Case Mounting 2001-Up Log in to see
prices
47
NV13368
 Nut, Yoke Log in to see
prices
48
NV13695
 Washer, Yoke Log in to see
prices
48
611689
 Washer, Rubber Log in to see
prices
49
NV27428
 Yoke, Front Output 1999-2000 All, 2001 W/ V6 Log in to see
prices
49
NV42007
 Yoke, Front Output 2001 W/ V8 Log in to see
prices
50
CRS 18662
 Seal, Front Output Log in to see
prices
51
NV16754
 Plunger, Poppet Log in to see
prices
52
NV17071
 Spring, Plunger Log in to see
prices
53
NV15715
 O-Ring, Poppet Screw Log in to see
prices
54
NV16756
 Screw, Poppet Log in to see
prices
54
NV23989
 Screw, Poppet 2001-Up Log in to see
prices
55
853851
 Ring, Retaining Nv89331A Log in to see
prices
56
6207-VSP55
 Bearing, Front Output Log in to see
prices
57
NV17833
 Fork, Range Shift Log in to see
prices
58
NV13795
 Pad, Shift Fork 2 Req'D Can Use Nv15866 Log in to see
prices
59
NV15044
 Pad, Shift Fork Center Can Use Nv15866 Log in to see
prices
60
NV91386
 Pin, Fork to Rail Log in to see
prices
61
NV16449
 Rail, Shift Log in to see
prices
62
NV16214
 O-Ring, Oil Tube Log in to see
prices
63
NV25499
 Tube, Oil Suction Log in to see
prices
63
NV25501
 Tube, Oil Suction Log in to see
prices
64
NV25500
 Connector, Tube to Filter Log in to see
prices
65
NV25502
 Filter Log in to see
prices
66
NV26945
 Assy, Sector Log in to see
prices
67
NV13725
 O-Ring, Sector Shaft Log in to see
prices
68
NV13726
 Retainer, Sector Shaft O-Ring Log in to see
prices
69
NV26958
 Assy, Lever & Grommet Log in to see
prices
70
2436163
 Washer, Lever Log in to see
prices
71
NV16568
 Grommet Log in to see
prices
72
NV13992
 Nut, Lever Log in to see
prices
73
NV25832
 Shaft, Front Output Log in to see
prices
74
NTN J2416
 Bearing, Front Output Inner Log in to see
prices
75
NV30965
 Chain 1.00" Wide Log in to see
prices
Ni
TC247
 Kit, Bearing & Seal Log in to see
prices
Ni
SK247
 Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 247 (1999-Up Jeep Grand Cherokee)
  Brand NameNew Process

Documents

NV - 247.pdf
