Home » LD Transfer Case » New Process
NP 249 (1992-98 Jeep Grand Cherokee) New Process NV249
View Larger

NP 249 (1992-98 Jeep Grand Cherokee)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

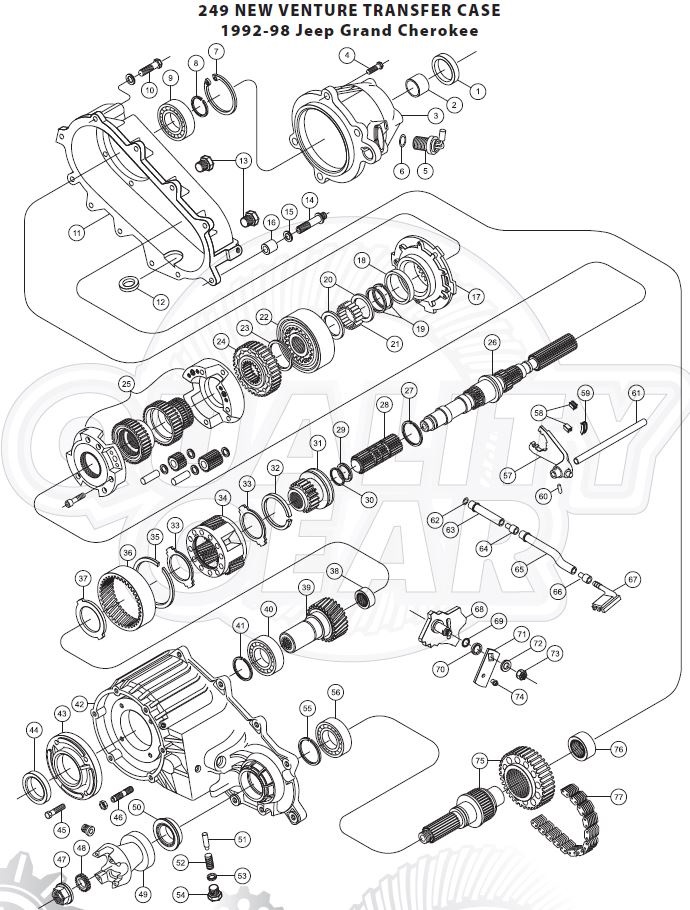

NP 249 (1992-98 Jeep Grand Cherokee)
Item No. Part Number Name Notes Price Buy
1
CRS 15047
 Seal, Rear Output Log in to see
prices
2
NV16696
 Bushing, Rear Retainer Log in to see
prices
3
NV17554
 Retainer, Rear Log in to see
prices
4
NV44243
 Bolt, Rear Retainer 4 Req'D Log in to see
prices
5
56006755
 Switch Log in to see
prices
6
NV15715
 O-Ring, Speed Sensor Log in to see
prices
7
NV16691
 Ring, Retaining Log in to see
prices
8
4467478
 Ring, Mainshaft Brg Snap Log in to see
prices
9
6206N
 Bearing, Rear Output Log in to see
prices
10
NV61573
 Bolt, Case Half 6 Req'D Log in to see
prices
11
NV16667
 Case, Rear Half 1996-96 All, 1997-98 W/Inline 6 Cyl. Log in to see
prices
11
NV26343
 Case, Rear Half 1997-98 w/ V8 Log in to see
prices
12
NV95472
 Magnet Log in to see
prices
13
NV15054
 Plug, Drain/Fill 2 Req'D Log in to see
prices
Ni
NV17549
 Gear, Sprocket Carrier Log in to see
prices
14
NV61575
 Bolt, Case Dowel 2 Req'D Log in to see
prices
15
NV15142
 Washer, Dowel Log in to see
prices
16
NV13627
 Pin, Case Alignment Dowel Log in to see
prices
17
NV16686
 Oil Pump Log in to see
prices
18
CRS 22306
 Seal, Oil Pump Log in to see
prices
19
NV16684
 Ring, Retaining 2 Req'D Log in to see
prices
20
NV16292
 Spacer, Needle Bearing 2 Req'D Log in to see
prices
21
C672Q
 Bearing, Mainshaft Pilot Log in to see
prices
22
NV17396
 Assy, Viscous Coupling 1993-96 Log in to see
prices
22
NV26677
 Assy, Viscous Coupling 1997-98 Log in to see
prices
23
NV13877
 Ring, Sprocket Retainer Log in to see
prices
24
NV17548
 Sprocket, Drive Log in to see
prices
25
NV17509
 Assy, Differential Log in to see
prices
26
NV17547
 Mainshaft 1993-95 Log in to see
prices
26
NV19063
 Mainshaft 1996-98 Log in to see
prices
27
NV16297
 Ring, Differential Gear Snap Log in to see
prices
28
NV16659
 Shaft, Intermediate Log in to see
prices
29
NV16467
 Washer, Clutch Shaft Log in to see
prices
30
NV16466
 Ring, Intermediate Shaft Snap Log in to see
prices
31
NV16662
 Clutch, Sliding 1993-95 Log in to see
prices
31
NV19068
 Clutch, Sliding 1996-98 Log in to see
prices
32
NV16243
 Ring, Carrier Lock Snap Log in to see
prices
33
NV16437
 Washer, Input Thrust 2 Req’d Log in to see
prices
34
NV16551
 Assy, Planetary Carrier 1992-93 Log in to see
prices
34
NV17868
 Assy, Planetary Carrier 1994-1998 Log in to see
prices
35
NV13863
 Ring, Annulus Retainer Included W/ #42 Log in to see
prices
36
NV16166
 Gear, Planetary Ring(Annulus) Included W/ #42 Log in to see
prices
37
NV17483
 Ring, Carrier Lock Log in to see
prices
38
FC66561
 Bearing, Input Pocket Log in to see
prices
39
NV17108
 Shaft, Input 1992-93 W/ 5210Anrx Bearing Log in to see
prices
39
NV17449
 Shaft, Input 1992-96 Assy #52097530 Log in to see
prices
39
NV17952
 Shaft, Input 1994-95 Assy #52098682, 52098535 Log in to see
prices
39
NV19061
 Shaft, Input 1996-98 Log in to see
prices
40
BRG 6010
 Bearing, Input 1995-98 Thin Log in to see
prices
40
SKF 5210ANRX
 Bearing, Input 1992-94 Wide, 1994-96 Assy #52097529, 52097530, 1996-98 W/ V8 Log in to see
prices
41
1300-139-027
 Ring, Retaining Log in to see
prices
42
NV17238
 Case, Front Half 1992-93 Log in to see
prices
42
NV17936
 Case, Front Half 1994-95 Log in to see
prices
42
NV19057
 Case, Front Half 1996-98 Log in to see
prices
Ni
NV16090
 Vent Log in to see
prices
43
NV16187
 Retainer, Input Log in to see
prices
44
CRS 19244
 Seal, Input 2 Req'D Log in to see
prices
45
6500318
 Screw, Input Retainer Log in to see
prices
46
NV15053
 Stud, Case Mounting Log in to see
prices
47
NV13368
 Nut, Yoke Log in to see
prices
47
NV13992
 Nut, Yoke Log in to see
prices
48
NV13695
 Washer, Yoke Log in to see
prices
48
NV13695
 Washer, Rubber Log in to see
prices
49
NV22555
 Yoke, Front Output 1993-95 Log in to see
prices
49
NV19055
 Yoke, Front Output 1996-98 Log in to see
prices
50
CRS 18662
 Seal, Front Output Log in to see
prices
51
NV16754
 Plunger, Poppet Log in to see
prices
52
NV17071
 Spring, Plunger Log in to see
prices
53
NV15715
 O-Ring, Poppet Screw Log in to see
prices
54
NV16756
 Screw, Poppet Log in to see
prices
55
1300-139-027
 Ring, Retaining Log in to see
prices
56
6207VSP55
 Bearing, Front Output Log in to see
prices
57
NV21222
 Fork, Range Shift 1992-95 Log in to see
prices
57
NV17833
 Fork, Range Shift 1996-98 Log in to see
prices
58
NV13795
 Pad, Shift Fork 2 Req'D Can Use Nv15866 Log in to see
prices
59
NV15044
 Pad, Shift Fork Center Can Use Nv15866 Log in to see
prices
60
NV91386
 Pin, Fork to Rail Log in to see
prices
61
NV16449
 Rail, Shift Log in to see
prices
62
NV16214
 O-Ring, Oil Tube Log in to see
prices
63
NV16669
 Tube, Oil Suction Upper Log in to see
prices
64
NV16689
 Connector, Upper Log in to see
prices
65
NV17551
 Tube, Oil Suction Lower Log in to see
prices
66
NV16218
 Connector, Lower Log in to see
prices
67
NV16217
 Filter Log in to see
prices
68
NV17243
 Assy, Sector Log in to see
prices
69
NV13725
 O-Ring, Sector Shaft Log in to see
prices
70
NV13726
 Retainer, Sector Shaft O-Ring Log in to see
prices
71
NV17253
 Assy, Lever & Grommet Log in to see
prices
72
2436163
 Washer, Lever Log in to see
prices
73
NV13992
 Nut, Lever Log in to see
prices
74
NV16568
 Grommet Log in to see
prices
75
NV17555
 Shaft, Front Output Log in to see
prices
76
NTN J2416
 Bearing, Front Output Inner Log in to see
prices
77
NV17550
 Chain 1.25” wide Log in to see
prices
Ni
NV16692
 Gear, Speedo Log in to see
prices
Ni
2801398
 Gasket, Extension Housing Log in to see
prices
Ni
TC247
 Kit, Bearing & Seal 1992-95 Assy #52097526, 52097530, 52098267, 52098682 Log in to see
prices
Ni
TC247JA
 Kit, Bearing & Seal 1994-Up Log in to see
prices
Ni
SK247
 Kit, Seal & Gasket Log in to see
prices

Specifications

  Product NameNP 249 (1992-98 Jeep Grand Cherokee)
  Brand NameNew Process

Documents

NV - 249.pdf
