NP 263 (2000-Up Chevrolet Silverado) New Process NV263
View Larger

NP 263 (2000-Up Chevrolet Silverado)


See Below  ▼ New Process
More Products from New Process
  Share

Overview

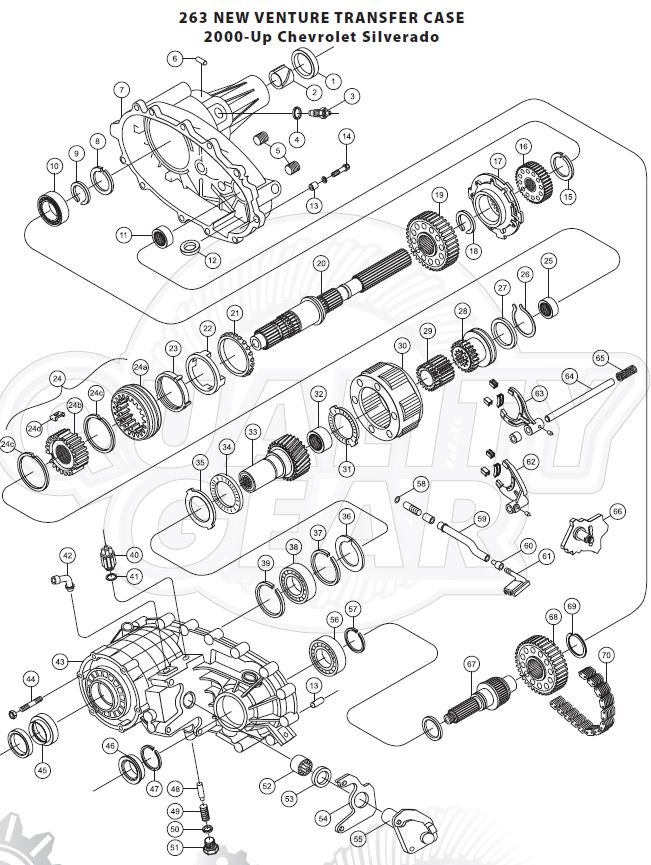

NP 263 (2000-Up Chevrolet Silverado)
Item No. Part Number Name Notes Price Buy
1
NV22507
Seal, Rear Output Od: 3.125" Log in to see
prices
1
NV31816
Seal, Rear Output Od: 3.50" Log in to see
prices
2
NV17475
Bushing, Rear Output Shd Log in to see
prices
2
NV18172
Bushing, Rear Output Id: 2.200", Od: 2.340", Wide: 2.080" Log in to see
prices
3
NV22512
Vehicle Speed Sensor W/ O-Ring Log in to see
prices
4
--
O-Ring, Vehicle Speed Sensor Log in to see
prices
5
NV30412
Plug, Drain/Fill Log in to see
prices
6
NV27313
Plug, Rubber Access Log in to see
prices
6
NV41500
Plug, Rubber Access Log in to see
prices
7
NV25900
Case, Rear Half Shd | Cast #: 25909 Log in to see
prices
7
NV30961
Case, Rear Half Cast #: 30605 Log in to see
prices
8
NV22506
Snap Ring, Rear Output Bearing Outer Shd Log in to see
prices
9
NV21969
Snap Ring, Rear Output Bearing Inner Log in to see
prices
9
NV24959
Snap Ring, Rear Output Bearing Inner Shd Log in to see
prices
10
6208N
Bearing, Rear Output Log in to see
prices
10
6208VS41
Bearing, Rear Output Log in to see
prices
11
B5020
Bearing, Front Output Inner Log in to see
prices
12
NV95472
Magnet Log in to see
prices
13
NV13627
Dowel, Case Alignment 2 Req'D Log in to see
prices
14
NV28650
Bolt, Case Half M10 X 1.58 X 40Mm | 17 Required Log in to see
prices
15
NV21969
Retaining Ring Log in to see
prices
16
NV24576
Tone Wheel Log in to see
prices
16
NV25902
Tone Wheel Shd Log in to see
prices
17
NV16209
Oil Pump Housing 38T Log in to see
prices
17
NV25904
Oil Pump 49T | Heavy Duty Gerotor Log in to see
prices
18
NV21969
Retaining Ring Log in to see
prices
19
NV40910
Drive Sprocket 40T Log in to see
prices
20
NV47936
Mainshaft 31 Spline | Allison Shd Log in to see
prices
20
NV48714
Mainshaft 32 Spline Log in to see
prices
21
NV52745
Ring, Synchro Middle Log in to see
prices
22
NV27722
Ring, Synchro Inner Log in to see
prices
23
NV26081
Ring, Synchro Outer Log in to see
prices
24
NV50449
Synchronizer Assembly W/O Synchro Rings Log in to see
prices
24A
--
Synchro Sleeve Log in to see
prices
24B
NV45109
Hub, Drive Clutch Log in to see
prices
24C
NV15658
Synchronizer Spring Log in to see
prices
24D
--
Spacer Log in to see
prices
25
--
Bearing, Mainshaft Pilot Log in to see
prices
26
NV16205
Retaining Ring, Synchro Log in to see
prices
27
NV22451
Retaining Ring, Drive Sprocket Log in to see
prices
28
NV45109
Hub, Mode Log in to see
prices
29
NV17824
Range Sleeve Log in to see
prices
29
NV27761
Range Sleeve Log in to see
prices
29
NV41817
Range Sleeve Log in to see
prices
29
NV43681
Range Sleeve Use When Replacing P/N: Nv29225 With Nv: 41819 Log in to see
prices
30
NV27882
Planetary Carrier Assembly Log in to see
prices
31
NV27135
Thrust Washer Front Log in to see
prices
32
NTN B2110
Bearing, Input Pocket Log in to see
prices
33
NV25908
Input Gear Log in to see
prices
33
NV42740
Input Gear 32 Spline Log in to see
prices
33
NV43996
Input Gear Shd Log in to see
prices
34
NV16437
Thrust Washer Rear Log in to see
prices
35
NV17483
Planetary Carrier Lock Plate Log in to see
prices
36
NV16243
Retaining Ring, Input Bearing Od: 0.8125", 0.6406" Thick Log in to see
prices
37
682653
Retaining Ring 0.094" Thick Log in to see
prices
38
BRG 6010
Input Bearing Log in to see
prices
39
682653
Retaining Ring 0.094" Thick Log in to see
prices
39
NV40504
Retaining Ring Log in to see
prices
40
NV21971
Selector Switch Log in to see
prices
41
NV15715
O-Ring, Selector Switch Od. 0.648" Log in to see
prices
42
NV26162
Vent Log in to see
prices
43
NV29232
Case, Front Half Log in to see
prices
43
NV45544
Case, Front Half Narrow Bearing | Hd Log in to see
prices
43
NV45545
Case, Front Half Wide Bearing | Shd Log in to see
prices
44
NV26070
Stud, Mounting 6 Required | M10 X 1.5 X 27Mm - M10 X 1.5 X 18Mm Log in to see
prices
45
NV22441
Input Seal Log in to see
prices
46
NV30138
Seal, Front Output Log in to see
prices
47
682653
Retaining Ring 0.094" Thick Log in to see
prices
48
NV16754
Plunger, Shift Detent Log in to see
prices
49
NV17174
Spring, Shift Detent Plunger Log in to see
prices
50
NV15715
O-Ring, Shift Detent Bolt Od. 0.648" Log in to see
prices
51
NV22511
Bolt, Shit Detent Plunger Log in to see
prices
52
NV22440
Bearing, Shift Lever Log in to see
prices
53
NV16706
Retainer Ring, Bearing Log in to see
prices
54
NV40972
Insulator, Motor Log in to see
prices
55
NV29295
Motor, Encoder 2 Pin (2003 & Down) Log in to see
prices
55
NV48056
Motor, Encoder Shd ( 2044 & Up) Log in to see
prices
56
BRG 6010
Bearing, Front Output Log in to see
prices
57
NV17483
Retaining Ring Log in to see
prices
58
NV16214
O-Ring, Suction Tube Log in to see
prices
58
NV35214
O-Ring, Suction Tube Shd Log in to see
prices
59
17785
Pipe, Oil Suction Log in to see
prices
60
--
Connector, Filter to Pipe Log in to see
prices
61
NV16217
Filter Log in to see
prices
61
NV50640
Filter Log in to see
prices
62
NV41819
Fork, Range Shift Nla - Replace With Nv41819 Log in to see
prices
62
NV37284
Fork, Insert Log in to see
prices
62
NV41819
Fork, Range Shift If Replacing Nv29225 With Nv41819, Also Required Nv41817 (Illust. # 29). Log in to see
prices
63
NV27756
Fork, Mode Shift Cast #: 28624 Log in to see
prices
64
NV23748
Shift Rail Log in to see
prices
65
NV29228
Spring, Shift Fork Log in to see
prices
66
NV28884
Lever, Shift Detent Log in to see
prices
67
NV25847
Shaft, Front Output Log in to see
prices
68
NV40910
Driven Sprocket 40T Log in to see
prices
69
13863NP
Retaining Ring, Sprocket Log in to see
prices
70
NV22182
Chain 94 Links Log in to see
prices
70
NV21697
Chain 1.50" Wide, Hd (2000 & Up) Log in to see
prices
Ni
25624810
Bolt, Motor Encoder Log in to see
prices
Ni
NV28651
Stud 2 Req'D Log in to see
prices
Ni
SK261
Kit, Seal & Gasket Log in to see
prices
Ni
TC261
Kit, Bearing & Seal Log in to see
prices
Ni
TC263XHD
Kit, Bearing & Seal Shd Log in to see
prices

Specifications

  Product NameNP 263 (2000-Up Chevrolet Silverado)
  Brand NameNew Process

Documents

NV - 263.pdf
