Overview

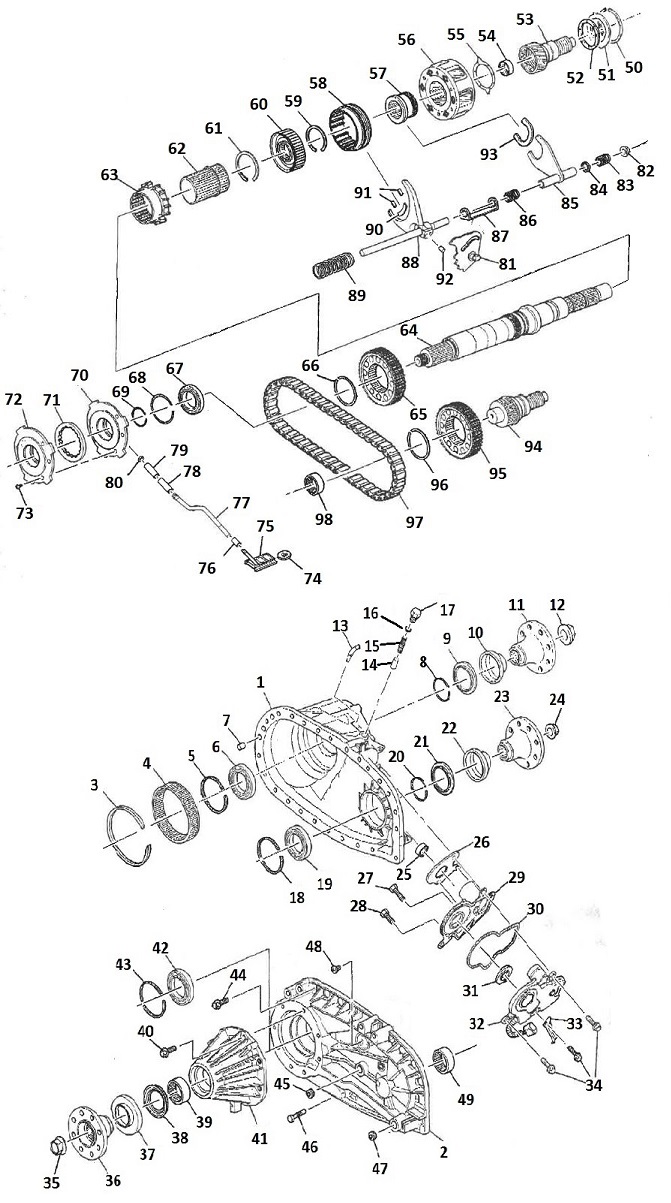

NP 273 (2005-08 GMC Topkick & Kodiak)

Item No. |
Part Number |
Name | Qty | Price |
Buy |
|
1 |
NV45072
|
Case Half, Front NP273
| | Log in to see prices |
|
|
2 |
NV45083
|
Case Half, Rear
| | Log in to see prices |
|
|
3 |
13863NP
|
Snap Ring
| | Log in to see prices |
|
|
4 |
NV21966
|
Drive Sprocket
| | Log in to see prices |
|
|
5 |
F81Z 7N281 AA
|
Snap Ring
| | Log in to see prices |
|
|
6 |
BRG 6211
|
Input Bearing
| | Log in to see prices |
|
|
7 |
88935651
|
Pin
| | Log in to see prices |
|
|
8 |
NV97977
|
Snap Ring
| | Log in to see prices |
|
|
9 |
NV24288
|
Seal
| | Log in to see prices |
|
|
10 |
89059184
|
Slinger
| | Log in to see prices |
|
|
11 |
NV25442
|
Companion Flange, 34 Spline
| | Log in to see prices |
|
|
12 |
NV25441
|
Output Nut
| | Log in to see prices |
|
|
13 |
89059625
|
Vent
| | Log in to see prices |
|
|
14 |
NV16754
|
Detent
| | Log in to see prices |
|
|
15 |
NV17174
|
Spring
| | Log in to see prices |
|
|
16 |
NV15715
|
O-Ring
| | Log in to see prices |
|
|
17 |
12547642
|
Bolt, Detent
| | Log in to see prices |
|
|
18 |
89059185
|
Bearing
| | Log in to see prices |
|
|
19 |
NV45780
|
Ball Bearing
| | Log in to see prices |
|
|
20 |
NV15207
|
Snap Ring
| | Log in to see prices |
|
|
21 |
NV24288
|
Seal
| | Log in to see prices |
|
|
22 |
89059184
|
Slinger
| | Log in to see prices |
|
|
23 |
NV26552
|
Yoke | NP271/273
| | Log in to see prices |
|
|
24 |
NV13368
|
Nut
| | Log in to see prices |
|
|
25 |
NV22440
|
Cylindrical Bearing
| | Log in to see prices |
|
|
26 |
12384973
|
Insulator
| | Log in to see prices |
|
|
27 |
12364989
|
Bolt
| | Log in to see prices |
|
|
27 |
12384988
|
Bolt
| | Log in to see prices |
|
|
28 |
12384988
|
Bolt
| | Log in to see prices |
|
|
28 |
12384989
|
Bolt
| | Log in to see prices |
|
|
29 |
NV48056
|
Shift Motor | NP273
| | Log in to see prices |
|
|
30 |
12384990
|
Seal, Drive Activator
| | Log in to see prices |
|
|
31 |
88962313
|
Sensor
| | Log in to see prices |
|
|
32 |
--
|
Actuator | Four Wheel Drive
| | Log in to see prices |
|
|
33 |
89059215
|
Transfer Case Bracket
| | Log in to see prices |
|
|
34 |
25624810
|
Bolt
| | Log in to see prices |
|
|
35 |
NV25441
|
Output Nut
| | Log in to see prices |
|
|
36 |
NV25442
|
Companion Flange, 34 Spline
| | Log in to see prices |
|
|
37 |
89059184
|
Slinger
| | Log in to see prices |
|
|
38 |
89059646
|
Seal
| | Log in to see prices |
|
|
39 |
89059630
|
Bearing
| | Log in to see prices |
|
|
40 |
89059192
|
Bolt
| | Log in to see prices |
|
|
41 |
89059633
|
Retainer | Output Shaft Bearing
| | Log in to see prices |
|
|
42 |
89059212
|
Bearing
| | Log in to see prices |
|
|
43 |
NV26551
|
Rear Output Bearing Snap Ring
| | Log in to see prices |
|
|
44 |
9405938
|
Bolt | 10-32 x 1/4 Thread
| | Log in to see prices |
|
|
45 |
89059626
|
Plug
| | Log in to see prices |
|
|
46 |
89059201
|
Bolt
| | Log in to see prices |
|
|
47 |
89059626
|
Plug
| | Log in to see prices |
|
|
48 |
9405938
|
Pan Screw | 10-32 x 1/4 Thread
| | Log in to see prices |
|
|
49 |
NTN J2416
|
Bearing
| | Log in to see prices |
|
|
50 |
12470959
|
Thrust Washer
| | Log in to see prices |
|
|
51 |
NV17483
|
Lock Plate
| | Log in to see prices |
|
|
52 |
NV16243
|
Snap Ring
| | Log in to see prices |
|
|
53 |
NV45055
|
Input Gear
| | Log in to see prices |
|
|
54 |
NV42244
|
Input Bearing
| | Log in to see prices |
|
|
55 |
16437
|
Washer
| | Log in to see prices |
|
|
56 |
NV27882
|
Planetary Assembly
| | Log in to see prices |
|
|
57 |
NV45101
|
Range Sleeve
| | Log in to see prices |
|
|
58 |
NV17823
|
Mode Shift Sleeve
| | Log in to see prices |
|
|
59 |
NV44716
|
Snap Ring
| | Log in to see prices |
|
|
60 |
NV45661
|
Synchro Hub
| | Log in to see prices |
|
|
61 |
NV22451
|
Snap Ring
| | Log in to see prices |
|
|
62 |
NV46019
|
Drive Sprocket, Hub
| | Log in to see prices |
|
|
63 |
NV25524
|
Hub | NP271/273
| | Log in to see prices |
|
|
64 |
NV45078
|
Mainshaft
| | Log in to see prices |
|
|
65 |
NV21966
|
Drive Sprocket
| | Log in to see prices |
|
|
66 |
NV22451
|
Snap Ring
| | Log in to see prices |
|
|
67 |
89059212
|
Bearing, Output Shaft
| | Log in to see prices |
|
|
68 |
NV26551
|
Snap Ring, Rear Output Bearing
| | Log in to see prices |
|
|
69 |
NV24281
|
Snap Ring
| | Log in to see prices |
|
|
70 |
NV44650
|
Pump Assembly
| | Log in to see prices |
|
|
71 |
12384994
|
Gear Kit
| | Log in to see prices |
|
|
72 |
--
|
Housing
| | Log in to see prices |
|
|
73 |
--
|
Bolt
| | Log in to see prices |
|
|
74 |
12471607
|
Magnet
| | Log in to see prices |
|
|
75 |
NV27924
|
Screen Pump
| | Log in to see prices |
|
|
76 |
9439340
|
Hose | Fuel & Oil
| | Log in to see prices |
|
|
77 |
NV45560
|
Tube | Oil
| | Log in to see prices |
|
|
78 |
NV44791
|
Upper Tube Connector
| | Log in to see prices |
|
|
79 |
NV44653
|
Pickup Tube
| | Log in to see prices |
|
|
80 |
NV35214
|
Seal
| | Log in to see prices |
|
|
81 |
89059210
|
Shift Lever
| | Log in to see prices |
|
|
82 |
15662236
|
High/Low Shift Fork Bushing
| | Log in to see prices |
|
|
83 |
--
|
Shift Fork Spring
| | Log in to see prices |
|
|
84 |
15665306
|
Washer
| | Log in to see prices |
|
|
85 |
NV24262
|
Mode Fork
| | Log in to see prices |
|
|
86 |
15662307
|
Shift Fork Spring
| | Log in to see prices |
|
|
87 |
--
|
Bracket
| | Log in to see prices |
|
|
88 |
NV24262
|
Mode Fork
| | Log in to see prices |
|
|
89 |
89059191
|
Spring | Shift Lever
| | Log in to see prices |
|
|
90 |
NV15221
|
Centre Fork Insert
| | Log in to see prices |
|
|
91 |
NV28437
|
Shift Fork Pad | 2 Required
| | Log in to see prices |
|
|
92 |
19132965
|
Pin
| | Log in to see prices |
|
|
93 |
NV37284
|
Fork Insert
| | Log in to see prices |
|
|
94 |
NV46018
|
Front Output Shaft
| | Log in to see prices |
|
|
95 |
NV21966
|
Driven Sprocket
| | Log in to see prices |
|
|
96 |
NV22451
|
Snap Ring
| | Log in to see prices |
|
|
97 |
NV24273
|
Chain
| | Log in to see prices |
|
|
98 |
NTN J2416
|
Bearing, Front Output Shaft
| | Log in to see prices |
|
|
Nss |
111
|
Ball Bearing
| 1 | Log in to see prices |
|
|
Nss |
211-B
|
Ball Bearing
| 1 | Log in to see prices |
|
|
Nss |
212-SLV
|
Ball Bearing
| 1 | Log in to see prices |
|
|
Nss |
341022
|
Seal
| 1 | Log in to see prices |
|
|
Nss |
4167969
|
Fork Pads
| 4 | Log in to see prices |
|
|
Nss |
4219073
|
Fork Pads
| 1 | Log in to see prices |
|
|
Nss |
B2416
|
Needle Bearing
| 1 | Log in to see prices |
|
|
Nss |
GTC-NP1
|
Transfer Case Gasket
| 1 | Log in to see prices |
|
|
Nss |
J3416
|
Needle Bearing
| 1 | Log in to see prices |
|
|
Nss |
NV24260
|
Needle Bearing
| 1 | Log in to see prices |
|
|
Nss |
NV24288
|
Seal
| 2 | Log in to see prices |
|
|
Nss |
NV25626
|
Seal
| 1 | Log in to see prices |
|
|
Nss |
OR-109
|
O-ring
| 1 | Log in to see prices |
|
|
Nss |
OR-116
|
O-ring
| 1 | Log in to see prices |
|
|
Nss |
ZM1000
|
Fork Pads
| 1 | Log in to see prices |
|
|
Nss |
ZM1001
|
Thrust Washer
| 2 | Log in to see prices |
|
|
 | |
