Output W New Style Disconnect Dana T220-792-1
View Larger

Output W New Style Disconnect


See Below  ▼ Dana
More Products from Dana
  Share

Overview

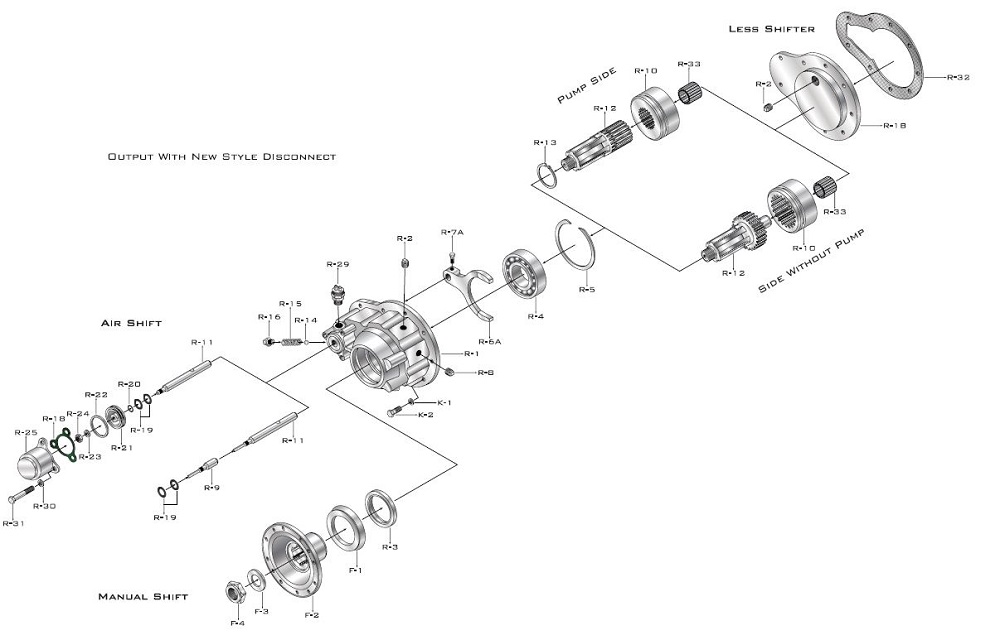

Output W New Style Disconnect
Item No. Part Number Name 420504X 420505X Less Shifter 420506X 420507X Price Buy
R-1
H794-22-4
Cap - Disconnect Housing & Bearing 1 1 - 1 1 Log in to see
prices
R-1B
H738-22-16
Cap - Disconnect Housing & Bearing(Less Shifter) - - 1 - - Log in to see
prices
R-2
500113-1
Plug - Disconnect Cap 1 1 1 1 1 Log in to see
prices
R-3
H60-463-7
Oil Seal - Output Shaft 1 1 - 1 1 Log in to see
prices
R-4
BRG 6312
Bearing Ball 1 1 - 1 1 Log in to see
prices
R-5
H60-381-9
Snap Ring 1 1 - 1 1 Log in to see
prices
R-6A
H738-66-1
Shifter Fork 1 1 - 1 1 Log in to see
prices
R-7A
450685
Bolt 3/8" - 24 X 9/16" Self Locking 1 1 - 1 1 Log in to see
prices
R-8
500114-1
Plug - Pipe 1/2" - 14 1 1 - 1 1 Log in to see
prices
R-9
450686
Cievis-Manual Shift - 1 - - 1 Log in to see
prices
R-10
H738-465-1
Clutch Collar - Disconnect Sliding 1 1 - - - Log in to see
prices
R-10
H738-465-2
Clutch Collar - Disconnect Sliding - - - 1 1 Log in to see
prices
R-11
H794-67-1
Shifter Rod 1 1 - 1 1 Log in to see
prices
R-12
H738-30-3
Disconnect Shaft 1 1 - - - Log in to see
prices
R-12
H738-30-8
Shaft - Output, Disconnect - - - 1 1 Log in to see
prices
R-13
H672-381-2
Shaft - Output, Disconnect - - - 1 1 Log in to see
prices
R-14
378002
Ball - Poppet 1 1 - 1 1 Log in to see
prices
R-15
37P41
Spring - Poppet Ball 1 1 - 1 1 Log in to see
prices
R-16
38P6
Plug - Poppet Ball 5/8" - 18 1 1 - 1 1 Log in to see
prices
R-18
H794-223-5
Gasket - Oil Seal 1 - - 1 - Log in to see
prices
R-19
794-463-2
"O" Ring Seal 2 - - 2 - Log in to see
prices
R-20
80-463-5
"O" Ring Seal 1 - - 1 - Log in to see
prices
R-21
794-136-1
Piston - Airshaft 1 - - 1 - Log in to see
prices
R-22
794-463-1
"O" Ring - Piston 1 - - 1 - Log in to see
prices
R-23
450000
Washer - Shifter Rod 1 - - 1 - Log in to see
prices
R-24
500613-1
Nut - 3/8" - 24 1 - - 1 - Log in to see
prices
R-25
794-19-1
Cap - Shift Cylinder 1 - - 1 - Log in to see
prices
N.S.
500897-7
Plug - Shipping 2 - - 2 - Log in to see
prices
R-29
420503X
Indicator Switch Assembly 1 1 - 1 1 Log in to see
prices
R-30
500357-11
Lockwasher - 3/8" 3 - - 3 - Log in to see
prices
R-31
500398-10
Bolt - 3/8" - 16 X 3" Hex Head 3 - - 3 - Log in to see
prices
F-3
184-W
Washer 1 1 - 1 1 Log in to see
prices
F-4
500898
Nut - Self Locking 1 1 - 1 1 Log in to see
prices
R-33
550715
Bearing - Disconnect Roller 1 1 - - - Log in to see
prices
R-33
550886
Bearing - Disconnect Roller - - - 1 1 Log in to see
prices
K-1
500357-11
Lockwasher - 3/8" 9 9 9 9 9 Log in to see
prices
K-2
500398-12
Bolt - 3/8" - 16 X 1 1/4" Hex Head 9 9 9 9 9 Log in to see
prices
F-1
See Page 3
Slinger A.R. A.R. A.R. A.R. A.R. Log in to see
prices
F-2
See Page 3
Companion Flange Or End Yoke A.R. A.R. A.R. A.R. A.R. Log in to see
prices
R-32
738-223-3
Gasket - Bearing & Disconnect Cap 1 1 1 1 1 Log in to see
prices

Specifications

  Product NameOutput W New Style Disconnect
  Brand NameDana
