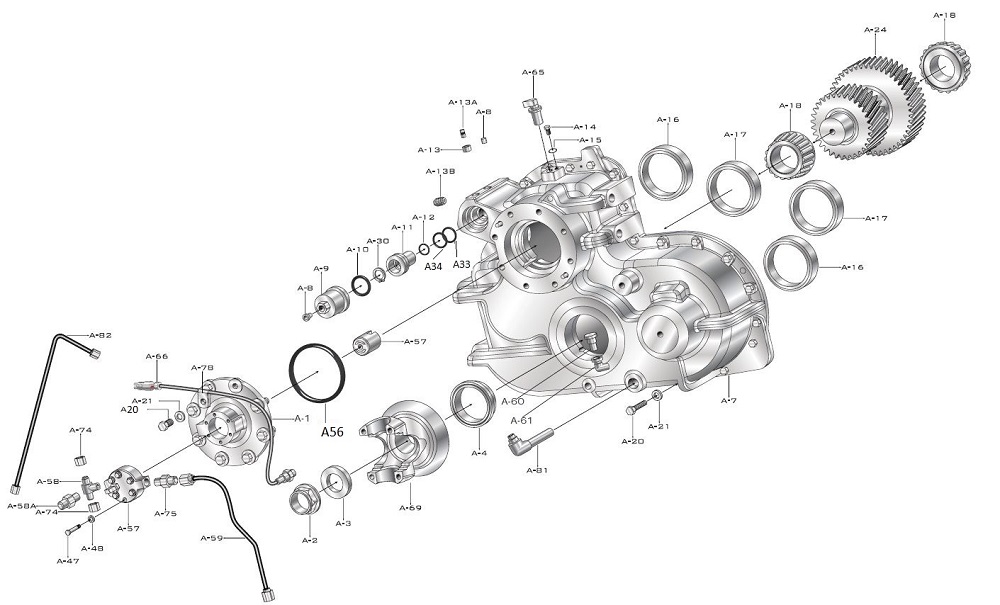

Rear Meritor MTC-4210-2
View Larger

Rear


See Below  ▼ Meritor
More Products from Meritor
  Share

Overview

Rear
Item No. Part Number Name Description Qty Price Buy
A1
3266-N-1444
Cover - Pto 1 Log in to see
prices
A2
40-X-1233
Lock Nut M45 x 1.5 thd. 4 Log in to see
prices
A3
1229-N-1730
Washer 1.79" ID x 3.00" OD x .19" wide 4 Log in to see
prices
A4
R945007
Unitized Seal - Forward & Rear Output 3.25" ID x 4.25" OD x .86" long 2 Log in to see
prices
A7
3289-J-1076
Cover - Transfer Replaced by 3289-D-1096 1 Log in to see
prices
A7
3289-D-1096
Cover - Transfer Thicker wall 1 Log in to see
prices
A8
1779-F-344
Plug (Shipping) 3 Log in to see
prices
A9
3261-A-1067
Shift Cylinder 1 Log in to see
prices
A10
5-X-1326
O-Ring 1.459" ID x .208" thick 2 Log in to see
prices
A11
2230-Q-1369
Piston (Outer) 1 Log in to see
prices
A12
5-X-1290
O-Ring (Inner) .734" ID x .139" thick 2 Log in to see
prices
A13
2206-Q-1447
Reducer Bushing Not for use in vehicles equipped with neutral airline 1 Log in to see
prices
A-13B
A-1199-C-1043
Blow-by Breather Use with 3289-D-1096 cover only 1 Log in to see
prices
A-13A
A-1199-C-1043
Neutral Breather Not for use in vehicles equipped with neutral airline 1 Log in to see
prices
A14
S244-2
Capscrew (Speed Sensor Retainer) 1 Log in to see
prices
A15
1229-X-5094
Washer (Speed Sensor Retainer) 1 Log in to see
prices
A16
HM813810
Bearing Cup 5.00" OD cup 2 Log in to see
prices
A17
HM212011
Bearing Cup 4.8125" OD cup 5 Log in to see
prices
A18
HM212049
Bearing Cone 2.625" ID cone 5 Log in to see
prices
A20
S2714A-2
Capscrew 7/16"-14 thd x 1.75" 34 Log in to see
prices
A21
1229-E-1513
Washer - Hardened .47" ID x .81" OD x .09" wide 34 Log in to see
prices
A24
3892-V-5664
Gear - Idler 1 Log in to see
prices
A30
1229-U-4857
Snap Ring .689" ID 2 Log in to see
prices
A33
5-X-1292
O-Ring 1.17" ID x .139" thick 1 Log in to see
prices
A34
5-X-1291
O-Ring (Housing) .984" ID x .139" thick 2 Log in to see
prices
A47
MS208045-1
Capscrew M8 x 1.25 6 Log in to see
prices
A48
1229-E-1669
Washer - Flat .34" ID x .62" OD x .06" wide 6 Log in to see
prices
A56
5-X-1327
O-Ring 7.483" x .139" thick 1 Log in to see
prices
A57
A-3303-G-1047
Pump Assy Replaces A-3303-P-1030. Must use A-3226-Z-1482 Input Cage 1 Log in to see
prices
A58
2206-V-1348
Male Connector Non-Oil Cooler version 1 Log in to see
prices
A58
2206-C-1485
Male Connector Oil Cooler ready 1 Log in to see
prices
A59
A-2206-R-1344
Tube Assy Non-Oil Cooler version 1 Log in to see
prices
A59
A-2206-A-1483
Tube Assy Oil Cooler ready 1 Log in to see
prices
A60
A-1199-P-1394
Breather Assy 3/8"-18 NPT 1 Log in to see
prices
A61
2206-F-1254
Elbow 3/8"-18 NPT / 3/8"-18 NPT 1 Log in to see
prices
A64
3892-T-5662
Gear - Input (Low) 1 Log in to see
prices
A65
A-3280-U-9849
Speed Sensor Optional 1 Log in to see
prices
A66
3237-W-1167
Engagement Sensor Optional. Do not use with Special Screw (41-X-1022) and Washer (1229-U-1503) 2 Log in to see
prices
A68
RAP or RCE spline code***
Yoke - Front Output 2-3/8"-46T spline (Slinger opt.) 1 Log in to see
prices
A74
2206-E-1513
Male Connector 1/2" NPT x 9/16" 37° Flare Oil Cooler ready 2 Log in to see
prices
A75
A-2296-Q-1161
Loop Tube Oil Cooler ready - for use when cooler not connected 1 Log in to see
prices
A78
3266-D-1538
Pump Housing 1 Log in to see
prices
A81
A-2296-T-1164
Inlet Tube 1 Log in to see
prices
A82
2206-G-1541
Tee 1/4"-18 NPT x 9/16"-18 JIC 1 Log in to see
prices

Specifications

  Product NameRear
  Brand NameMeritor

Documents

MTC-4210 Rear.pdf
