Home » HD Differential » Eaton-Spicer » 15040S

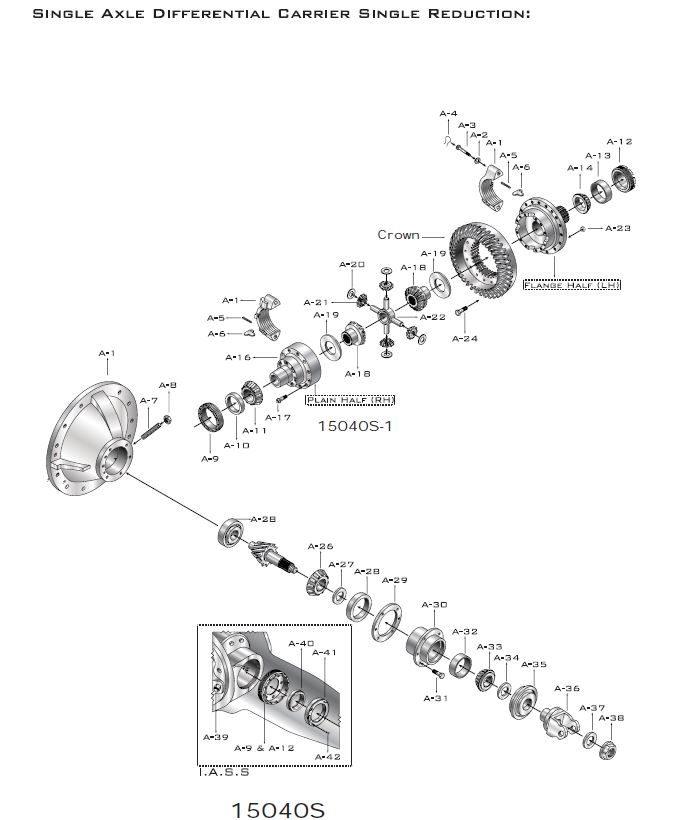

Single Axle-Single Reduction Eaton-Spicer 15040S-1
View Larger

Single Axle-Single Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Single Axle-Single Reduction
Item No. Part Number Name Qty Qty Per Axle Price Buy
121733
 Basic Overhaul Kit(Contents Identified With*) 1 Log in to see
prices
A1
121737
 Diff. Carrier & Bearing Caps 1 1 Log in to see
prices
A1
210316
 Carrier Casting N0. (Nss) 1 1 Log in to see
prices
A1
--
 Units Built After 5-1-90 (Note 1) Log in to see
prices
A2
210175
 Flat Washer 4 4 Log in to see
prices
A3
210134
 Bearing Cap Screw 4 4 Log in to see
prices
A5
90873
 Cotter Pin - Lh 1 1 Log in to see
prices
A7
126193
 Ring Gear Thrust Screw 1 1 Log in to see
prices
A8
210184
 Thrust Screw Jam Nut 1 1 Log in to see
prices
A9
210108
 Diff. Bearing Adjuster - Rh 1 1 Log in to see
prices
A10
90951
 Diff. Bearing Cup Rh* 1 1 Log in to see
prices
A11
40679
 Diff. Bearing Cone - Rh* 1 1 Log in to see
prices
A12
210389
 Diff. Bearing Adjuster -Lh 1 1 Log in to see
prices
A13
KOY 493
 Diff- Bearing Cup - Lh* 1 1 Log in to see
prices
A14
KOY 497
 Diff- Bearing Cone - Lh* 1 1 Log in to see
prices
A14
122233
 Wheel Differential Case Kit - (Ratios 3.36 - 3.90) 1 1 Log in to see
prices
A14
121734
 Wheel Differential Case Kit - (Ratios 4.11 - 4.88) 1 1 Log in to see
prices
A14
121735
 Wheel Differential Case Kit - (Ratios 5.29 - 7.17) 1 Log in to see
prices
A15
126037
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 3.36 - 3.90) 1 1 Log in to see
prices
A15
126036
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 4.11 - 4.88) 1 1 Log in to see
prices
A15
126035
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 5.29 - 7.17) 1 1 Log in to see
prices
A17
210469
 Diff. Case Cap Screw 12 12 Log in to see
prices
A16
126996
 Diff. Case (Plain Half) (Nss) 1 1 Log in to see
prices
A17
118746
 Wheel Diff. Less Side Gear Kit 1 1 Log in to see
prices
A18
110522
 Diff. Side Gear 2 2 Log in to see
prices
A17
114467
 Wheel Diff. Kit 1 1 Log in to see
prices
A19
127837
 Side Gear Thrust Washer* 2 2 Log in to see
prices
A20
25968QG
 Side Pinion Thrust Washer* 4 4 Log in to see
prices
A21
102512
 Side Pinion 4 4 Log in to see
prices
A22
127836QG
 Spider 1 1 Log in to see
prices
A22
121736
 Ring Gear Bolt & Nut Kit 1 1 Log in to see
prices
A23
126217
 Nut 16 16 Log in to see
prices
A24
126218
 Bolt 16 16 Log in to see
prices
A25
201353
 Pinion Pilot Bearing* 1 1 Log in to see
prices
A26
33699
 Pinion Bearing Cone (Inner)* 1 1 Log in to see
prices
A28
KOY 55437
 Pinion Bearing Cup (Inner)* 1 1 Log in to see
prices
A29
107567QG
 Pinion Bearing Cage Shims .003* Log in to see
prices
A29
107568QG
 Pinion Bearing Cage Shims .005* Log in to see
prices
A29
107569QG
 Pinion Bearing Cage Shims .010* Log in to see
prices
A29
107570
 Pinion Bearing Cage Shims .020* Log in to see
prices
A29
--
 Pinion Bearing Cage Shims .030* (NLA) Log in to see
prices
A29
115551
 Oil Seal & Shim Kit 1 1 Log in to see
prices
A29
210340
 Pinion Bearing Cage Cup Assy. Incl 30 & 32. 1 1 Log in to see
prices
A30
210339
 Cage (Nss) 1 1 Log in to see
prices
A31
210115
 Bearing Cage Cap Screw 6 6 Log in to see
prices
A32
49849
 Pinion Bearing Cup (Outer)* 1 1 Log in to see
prices
A33
49848
 Pinion Bearing Cone (Outer)* 1 1 Log in to see
prices
A35
119427
 Pinion Oil Seal* 1 1 Log in to see
prices
A37
210114
 Washer 1 1 Log in to see
prices
A38
210133
 Pinion Nut 1 1 Log in to see
prices
A38
RTV 1473
 Gasket Compound* Log in to see
prices

Specifications

  Product NameSingle Axle-Single Reduction
  Brand NameEaton-Spicer

Documents

15040S Single Axle-Single Reduction.pdf
