Home » HD Differential » Eaton-Spicer » 21060S

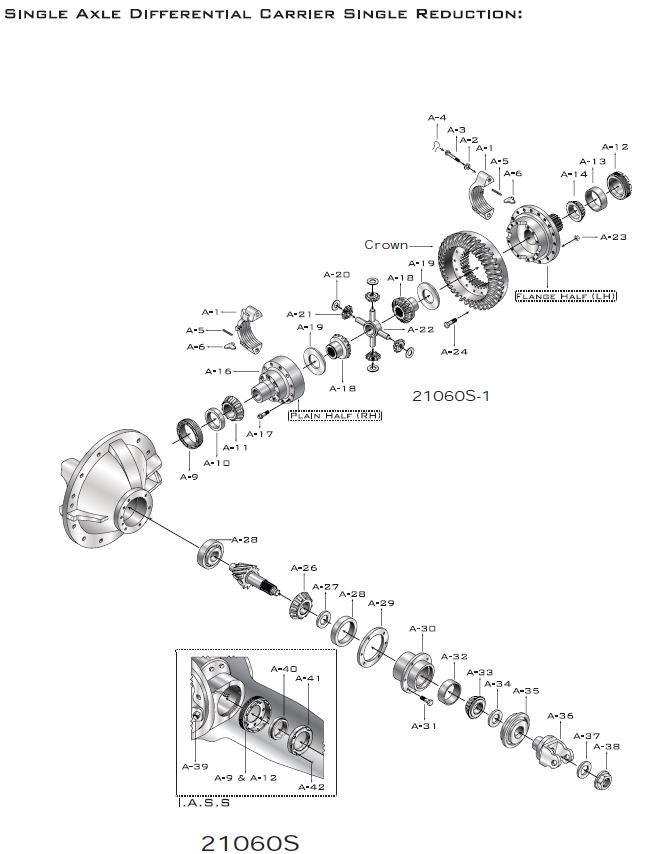

Single Axle-Single Reduction Eaton-Spicer 21060S-1
View Larger

Single Axle-Single Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

Single Axle-Single Reduction
Item No. Part Number Name Qty Per Axle Price Buy
216221
 Basic Overhaul Kit (Contents Identified With *)* 1 Log in to see
prices
A1
510018
 Diff. Carrier & Bearing Caps 1 Log in to see
prices
A1
127479
 Carrier Casting Number (Nss) 1 Log in to see
prices
A3
210095
 Bearing Cap Screw 4 Log in to see
prices
A5
90873
 Cotter Pin - Lh 1 Log in to see
prices
A9
129130
 Diff. Bearing Adjuster - Rh 1 Log in to see
prices
A9
128429
 Diff. Bearing Adjuster - R.h. ( I.A.S.S ) Log in to see
prices
A10
KOY 493
 Diff. Bearing Cup - Rh* 1 Log in to see
prices
A11
KOY 497
 Diff. Bearing Cone - Rh* 1 Log in to see
prices
A12
129128
 Diff. Bearing Adjuster - Lh 1 Log in to see
prices
A12
128428
 Diff. Bearing Adjuster - L.h. (I.A.S.S) Log in to see
prices
A13
KOY 563
 Diff. Bearing Cup - Lh* 1 Log in to see
prices
A14
KOY 567
 Diff. Bearing Cone - Lh* 1 Log in to see
prices
A14
216230
 Wheel Differential Case Kit - (Ratios 2.64-3.25) 1 Log in to see
prices
A14
508654QG
 Wheel Differential Case Kit - (Ratios 3.36-3.90) 1 Log in to see
prices
A14
508655
 Wheel Differential Case Kit - (Ratios 4.11-4.88) 1 Log in to see
prices
A14
508656
 Wheel Differential Case Kit - (Ratios 5.29-6.50) 1 Log in to see
prices
A15
127585
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 2.64-3.25) 1 Log in to see
prices
A15
127586
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 3.36-3.90) 1 Log in to see
prices
A15
127574
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 4.11-4.88) 1 Log in to see
prices
A15
127575
 Wheel Differential Case Kit (Flange Half) (NSS) - (Ratios 5.29-6.50) 1 Log in to see
prices
A16
127498
 Diff. Case (Plain Half) (Nss) 1 Log in to see
prices
A17
127465
 Diff. Case Cap Screw 12 Log in to see
prices
A17
217461
 Wheel Differential Kit - (19060S) 1 Log in to see
prices
A17
216229
 Wheel Differential Kit - (21060S/22060S) 1 Log in to see
prices
A17
216228
 Wheel Diff . Less Side Gear Kit 1 Log in to see
prices
A18
127367
 Differential Side Gear - (39 Involute Splines) 2 Log in to see
prices
A18
127368
 Differential Side Gear - (41 Involute Splines) 2 Log in to see
prices
A19
127386
 Side Gear Thrust Washer* 2 Log in to see
prices
A20
127369
 Side Pinion Thrust Washer* 4 Log in to see
prices
A21
127364
 Side Pinion 4 Log in to see
prices
A22
127359
 Spider 1 Log in to see
prices
508652QG
 Ring Gear Bolt & Nut Kit 1 Log in to see
prices
A23
126216
 Nut 16 Log in to see
prices
A24
126219
 Bolt 16 Log in to see
prices
A25
127485
 Pinion Pilot Bearing* 1 Log in to see
prices
A26
KOY 72212C
 Pinion Bearing Cone (Inner)* 1 Log in to see
prices
A28
KOY 72487
 Pinion Bearing Cup (Inner)* 1 Log in to see
prices
A29
127595
 Pinion Bearing Cage Shim .003"* Log in to see
prices
A29
127596
 Pinion Bearing Cage Shim .005"* Log in to see
prices
A29
127597
 Pinion Bearing Cage Shim .010"* Log in to see
prices
A29
127598
 Pinion Bearing Cage Shim .020"* Log in to see
prices
A29
127599
 Pinion Bearing Cage Shim .030"* Log in to see
prices
A29
216225
 Oil Seal & Shim Kit 1 Log in to see
prices
A32
KOY 55437
 Pinion Bearing Cup (Outer)* 1 Log in to see
prices
A35
127591
 Pinion Oil Seal* 1 Log in to see
prices
A38
127589QG
 Pinion Nut 1 Log in to see
prices
A38
RTV 1473
 Gasket Compound* Log in to see
prices
A39
128713
 Connector (I.A.S.S) 2 Log in to see
prices
A40
128081
 Rotor Assembly - (41 Spline) 2 Log in to see
prices
A41
128082
 Sensor Assembly 2 Log in to see
prices
A42
128074
 Fasteners 4 Log in to see
prices

Specifications

  Product NameSingle Axle-Single Reduction
  Brand NameEaton-Spicer

Documents

21060S Single Axle-Single Reduction.pdf
