Single Axle-Single Reduction Eaton-Spicer 23105D-2A
View Larger

Single Axle-Single Reduction


See Below  ▼ Eaton-Spicer
More Products from Eaton-Spicer
  Share

Overview

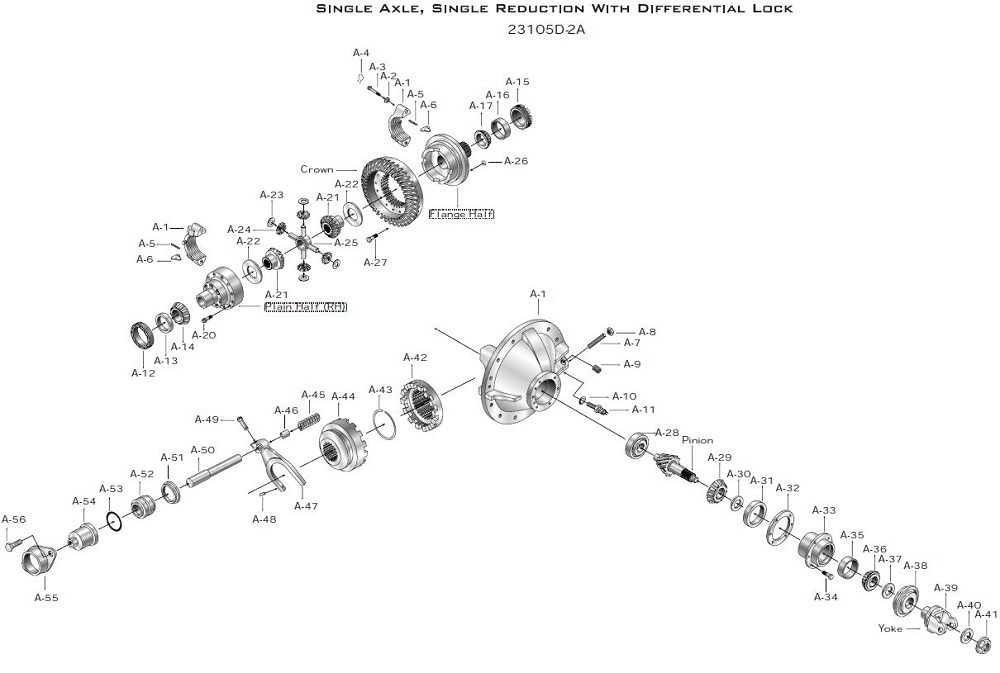

Single Axle-Single Reduction
Item No. Part Number Name Qty Per Axle Price Buy
123297
Basic Overhaul Kit (Contents Ident.With *)* 1 Log in to see
prices
A1
123293
Diff. Carrier & Bearing Caps 1 Log in to see
prices
A1
128376
Carrier Casting No. (Nss) 1 Log in to see
prices
A1
126719
Carrier Casting No.Before 5-5-93 Log in to see
prices
A2
32912
Flat Washer 4 Log in to see
prices
A3
127180
Bearing Cap Screw 4 Log in to see
prices
A5
90876
Cotter Pin - Rh 1 Log in to see
prices
A5
90876
Cotter Pin - Lh 1 Log in to see
prices
A6
14275
Bearing Cap Adjuster Lock -Rh Log in to see
prices
A6
126979
Bearing Cap Adjuster Lock -Lh Log in to see
prices
A7
126193
Ring Gear Thrust Screw 1 Log in to see
prices
A8
210184
Thrust screw Jam Nut 1 Log in to see
prices
A9
90325
Pipe Plug 1 Log in to see
prices
A10
126618
Washer 1 Log in to see
prices
A11
129035
Switch 1 Log in to see
prices
A12
113885
Diff. Bearing Adjuster - Rh 1 Log in to see
prices
A13
83824
Diff. Bearing Cup -Rh* 1 Log in to see
prices
A14
83825
Diff. Bearing Cone -Rh* 1 Log in to see
prices
A15
126729
Diff.Bearing Adjuster -Lh 1 Log in to see
prices
A17
27817
Diff. Bearing Cone - Lh* 1 Log in to see
prices
126729
Diff. Bearing Cup- Lh* 1 Log in to see
prices
123294
Wheel Diff. Case Kit 3.08-3.90 Log in to see
prices
123295
Wheel Diff. Case Kit 4.11-4.33 Log in to see
prices
123296
Wheel Diff. Case Kit 4.63-6.14 Log in to see
prices
A17
126723
Diff.Case(Flange Half) (Nss) 3.08-3.90 Log in to see
prices
126722
Diff.Case(Flange Half) (Nss) 4.11-4.33 Log in to see
prices
A18
126721
Diff.Case(Flange Half) (Nss) 4.63-6.14 Log in to see
prices
A19
113864
Diff. Case (Plain Half) (Nss) 1 Log in to see
prices
A20
88503
Diff. Case Cap Screw 12 Log in to see
prices
A20
114472
Wheel Diff.Kit 1 Log in to see
prices
118749
Wheel Diff. Less Side Gears KIT 1 Log in to see
prices
118749
Single Axle-Single Reduction-32.Wheel Diff. Less Side Gear Kit 1 Log in to see
prices
A21
93401
36 Involute Splines 2 Log in to see
prices
A22
27274QG
Side Gear Thrust Washer* 2 Log in to see
prices
A23
8671
Side Pinion Thrust Washer* 4 Log in to see
prices
A24
86780
Side Pinion 4 Log in to see
prices
A25
86778
Spider 1 Log in to see
prices
119802
Ring Gear Bolt & Nut Kit 1 Log in to see
prices
A26
84497
Nut 16 Log in to see
prices
A27
113888
Bolt 16 Log in to see
prices
A29
126286
Pinion Bearing Cone (Inner)* 1 Log in to see
prices
A31
126287
Pinion Bearing Cup (Inner)* 1 Log in to see
prices
A32
113876
Pinion Bearing Cage Shim .003"* Log in to see
prices
A32
113877
Pinion Bearing Cage Shim .005"* Log in to see
prices
A32
113878
Pinion Bearing Cage Shim .010"* Log in to see
prices
A32
113879
Pinion Bearing Cage Shim .020"* Log in to see
prices
A32
113880
Pinion Bearing Cage Shim .030"* Log in to see
prices

Specifications

  Product NameSingle Axle-Single Reduction
  Brand NameEaton-Spicer
