Axle Housing & Shafts

See Below ▼

More Products from Eaton-Spicer

Overview

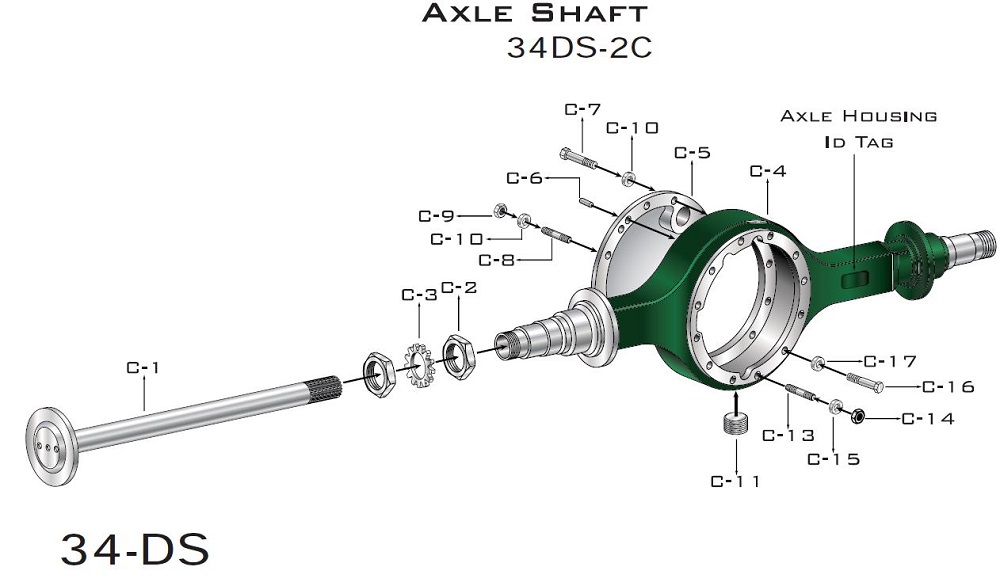

Item No.	Part Number	Name	Flange Holes	Length	Remarks	Qty. Per Axle	Price	Buy
C-1	56980QG	Axle Shaft - (16 Splines, 1.980 O.D., & 34D, D340)	12 (.783") taper holes	40-29/32"			Log in to see prices
C-1	62165QG	Axle Shaft - (16 Splines, 1.980 O.D., & 34D, D340)	12 (.750") taper holes	41-5/16"			Log in to see prices
C-2	19186	Hub Bearing Adjuster Nut (Forward & Rear Axles)			(0.47" thick) D341, 34D	4	Log in to see prices
C-2	11249	Hub Bearing Adjuster Nut (Forward & Rear Axles)			(17/32" thick) all except D341		Log in to see prices
C-2	119881	Hub Bearing Adjuster Nut (Forward & Rear Axles)			(outer) all except D341	2	Log in to see prices
C-2	119882	Hub Bearing Adjuster Nut (Forward & Rear Axles)			(inner) all except D341	2	Log in to see prices
C-3	30714	Bearing Adjuster Lockwasher - (Forward & Rear Axles)				2	Log in to see prices
C-3	11245	Bearing Adjuster Lockwasher - (Forward & Rear Axles)					Log in to see prices
C-3	119883	Bearing Adjuster Lockwasher - (Forward & Rear Axles)			all except D341		Log in to see prices
C-6	7641	Axle Housing Cover Locating Dowel				2	Log in to see prices
C-7	119784	Axle Housing Cover Cap Screw					Log in to see prices
C-8	47500	Axle Housing Cover Stud				11	Log in to see prices
C-9	42364	Nut				11	Log in to see prices
C-10	90415	Lockwasher				11	Log in to see prices
C-11	54254	Magnetic Drain Plug					Log in to see prices
C-12	54254	Magnetic Filler Plug (Rear Axle) (Not Illustrated)			3/4"		Log in to see prices
C-12	75130	Magnetic Filler Plug (Rear Axle) (Not Illustrated)			1"		Log in to see prices
C-13	36435	Stud				10	Log in to see prices
C-14	90208	Nut				10	Log in to see prices
C-15	90422	Lockwasher				10	Log in to see prices
C-16	38589	Cap Screw				2	Log in to see prices
C-17	90422	Lockwasher				2	Log in to see prices
C-13	36435	Stud				12	Log in to see prices
C-14	90208	Nut				12	Log in to see prices
C-15	90422	Lockwasher				12	Log in to see prices
