| Item No. |
Part Number |
Name | Remarks | Carrier | Qty | Price |
Buy |
|

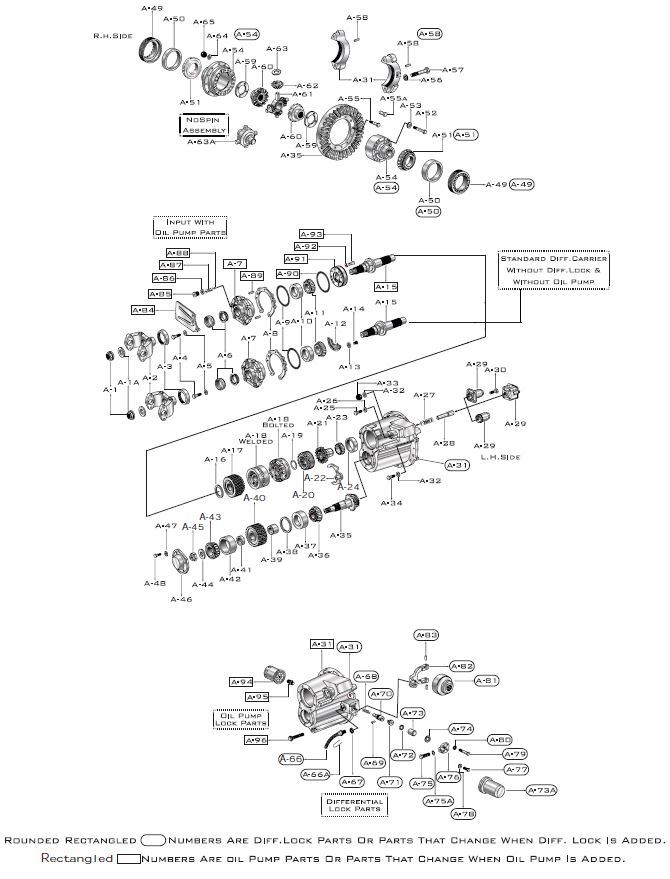

| A1 |
40X1233QG
|
Nut - Input Yoke And Shaft
| Included in KIT 2826 | All after 11/93 | 1 | Log in to see
prices |
|
|
| A1 |
40X1237QG
|
Nut - Input Yoke And Shaft
| Included in KIT 2637 | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A1A |
MER 1229N1730
|
Washer - Input Shaft Nut
| Included in KIT 2826 | All after 11/93 | 1 | Log in to see
prices |
|
|
| A1A |
MER 1229T1736
|
Washer - Input Shaft Nut
| Included in KIT 2637 | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A4 |
MER MS212045-1
|
Capscrew - Input Bearing Cage
| | All | 7 | Log in to see
prices |
|
|
| A5 |
MER 1229C1511
|
Washer - Input Bearing Cage
| | All | 7 | Log in to see
prices |
|
|
| A6 |
MER R945008
|
Oil Seal - Input Bearing Cage
| 3" I.D. | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A6 |
MER A1-1205X2728
|
Oil Seal - Input Bearing Cage
| 3.25" I.D | All after 11/93 | 1 | Log in to see
prices |
|
|
| A7,10 |
MER A-3226V1296
|
Bearing Cage And Cup Assy. - Input
| | All w/o pump after 11/93 | 1 | Log in to see
prices |
|
|
| A7,10 |
MER A-3226B1224
|
Bearing Cage And Cup Assy. - Input
| | All w/o pump prior to 11/93 | 1 | Log in to see
prices |
|
|
| A7,10 |
MER A-3226D1226
|
Bearing Cage And Cup Assy. - Input
| | All with pump after 11/93 | 1 | Log in to see
prices |
|
|
| A7,10 |
MER A-3226Z1222
|
Bearing Cage And Cup Assy. - Input
| | All with pump prior to 11/93 | 1 | Log in to see
prices |
|
|
| A8 |
MER 2203K9241
|
Shim - Input Bearing Cage .075Mm/.003 Inch
| Included in KIT 2429 | All | Use as req | Log in to see
prices |
|
|
| A8 |
MER 2203L9242
|
Shim - Input Bearing Cage .125Mm/.005 Inch
| Included in KIT 2429 | All | Use as req | Log in to see
prices |
|
|
| A8 |
MER 2203M9243
|
Shim - Input Bearing Cage .250Mm/.010 Inch
| Included in KIT 2429 | All | Use as req | Log in to see
prices |
|
|
| A9 |
MER 5X1343
|
O-Ring - Input Bearing Cage
| | Less pump | 1 | Log in to see
prices |
|
|
| A9 |
MER 5X1343
|
O-Ring - Input Bearing Cage
| | With pump | 1 ea. | Log in to see
prices |
|
|
| A9 |
MER 5X1034
|
O-Ring - Input Bearing Cage
| | With pump | 1 ea. | Log in to see
prices |
|
|
| A10 |
KOY 3920
|
Cup - Input Shaft Bearing - Outer
| | All | 1 | Log in to see
prices |
|
|
| A11 |
TIM JM511945
|
Cone - Input Shaft Bearing - Outer
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A11 |
KOY JM511946
|
Cone - Input Shaft Bearing - Outer
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A12 |
MER 3221P1004
|
Baffle - Oil
| | All w/o pump | 1 | Log in to see
prices |
|
|
| A13 |
MER 1229E1669
|
Washer - Oil Baffle
| | All w/o pump | 3 | Log in to see
prices |
|
|
| A14 |
MS-208016-1
|
Capscrew - Oil Baffle
| | All w/o pump | 3 | Log in to see
prices |
|
|
| A15,1 |
KIT 2834
|
Input Shaft And Nut Assy.
| Less pump 2"-39 spline | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A15,1 |
A3297T1346QG
|
Input Shaft And Nut Assy.
| Less pump 2.38"-46 spline | All after 11/93 | 1 | Log in to see
prices |
|
|
| A15,1 |
A3297T1346QG
|
Input Shaft, Nut, Ball Assy.
| 2.38"-46 spline. With pump | All after 11/93 | 1 | Log in to see
prices |
|
|
| A15,1 |
KIT 2835
|
Input Shaft, Nut, Ball Assy.
| Pump driven off flats on the input shaft. 2"-39 spline | All prior to 8/91 | 1 | Log in to see
prices |
|
|
| A15,1 |
KIT 2833
|
Input Shaft, Nut, Ball Assy
| Pump driven off splines on the input shaft. 2"-39 spline | All from 8/91 to 11/93 | 1 | Log in to see
prices |
|
|
| A16 |
1229D4788QG
|
Thrust Washer - Helical Drive Gear
| | All | 1 | Log in to see
prices |
|
|
| A17 |
MER KIT4007
|
Helical Gear And Forward Side Gear
| | All | 1 | Log in to see
prices |
|
|
| A18 |
A3235N2380QG
|
Diff. Case And Pinion Nest Assy. - Inter-Axle
| Bolted | 1978, 1979, 1980, 1981, 1982, 1984, 1986, 1987, 1988 carriers after 10/98 | 1 | Log in to see
prices |
|
|
| A18 |
A3235W2025QG
|
Diff. Case And Pinion Nest Assy. - Inter-Axle
| Welded | All except 1624 / prior to 10/98 | 1 | Log in to see
prices |
|
|
| A18 |
KIT 2743
|
Diff. Case And Pinion Nest Assy. - Inter-Axle
| Bolted | 1624 carrier only | 1 | Log in to see
prices |
|
|
| A18A |
A2-3235-N-2380
|
Case Halves And Fastener Hardware
| | For bolted version only. All after 10/98 | 1 | Log in to see
prices |
|
|
| A18B |
MS210045A-1
|
Bolt
| | For bolted version only. All after 10/98 | 8 | Log in to see
prices |
|
|
| A18C |
MER 1229K1597
|
Washer
| | For bolted version only. All after 10/98 | 8 | Log in to see
prices |
|
|
| A18D |
3278A1119QG
|
Spider
| Included in KIT 2420 | For bolted version only. All after 10/98 | 1 | Log in to see
prices |
|
|
| A18E |
2233U1035QG
|
Pinion Gear
| Included in KIT 2420 | For bolted version only. All after 10/98 | 4 | Log in to see
prices |
|
|
| A18F |
1229T1606QG
|
Pinion Gear Thrust Washer
| Included in KIT 2420 | For bolted version only. All after 10/98 | 4 | Log in to see
prices |
|
|
| A19 |
MER 2297E5335
|
Snap-Ring - Inter-Axle Differential
| | All | 1 | Log in to see
prices |
|
|
| A20 |
3107M1183QG
|
Clutch Collar - Inter-Axle Diff.
| | | 1 | Log in to see
prices |
|
|
| A21 |
2234R1188QG
|
Side Gear - Inter-Axle Diff
| | All | 1 | Log in to see
prices |
|
|
| A22 |
MER 3296Z1326
|
Shift Fork - Inter-Axle Diff.
| | All | 1 | Log in to see
prices |
|
|
| A23 |
KOY JLM710949
|
Cone - Rear Side Gear Bearing
| | All | 1 | Log in to see
prices |
|
|
| A24 |
KOY JLM710910
|
Cup - Rear Side Gear Bearing
| | All | 1 | Log in to see
prices |
|
|
| A25 |
MER 41X1208
|
Adjusting Screw - Shift Shaft
| | All | 1 | Log in to see
prices |
|
|
| A26 |
MER MN-312-1
|
Jam Nut - Adjusting Screw
| | All | 1 | Log in to see
prices |
|
|
| A27 |
MER 2258U411
|
Spring - Shift Shaft Return
| | All except "reverse-air" | 1 | Log in to see
prices |
|
|
| A28 |
MER KIT2825
|
Shift Shaft - Inter-Axle Differential
| | All except "reverse-air" | 1 | Log in to see
prices |
|
|
| A28 |
MER 2244D1070
|
Shift Shaft - Inter-Axle Differential
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2686 and KIT 2445 | 1 | Log in to see
prices |
|
|
| A29 |
A-3261-R-1084
|
Shift Assy. - Inter-Axle Diff. Air
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29 |
MER A-3261L350
|
Shift Assy. - Inter-Axle Diff. Air
| Bolt-on style, serviced as assembly only | | 1 | Log in to see
prices |
|
|
| A29 |
MER KIT2825
|
Shift Assy. - Inter-Axle Diff. Air
| Screw-in style, serviced as assembly only | | 1 | Log in to see
prices |
|
|
| A29A |
1229-P-4280
|
Snap Ring
| Bolt-on style, Navistar only | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29B |
2258-E-1175
|
Spring - Shift
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29C |
2208-R-1058
|
Gasket - Shift Assembly
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29D |
3266-Q-1161
|
Cover - Shift Assembly
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29E |
MER MWA-506
|
Washer - Shift Assembly Capscrew
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 6 | Log in to see
prices |
|
|
| A29F |
MER 41X1080
|
Capscrew - Shift Assembly Short
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 2 | Log in to see
prices |
|
|
| A29G |
MS-206060-1
|
Capscrew - Shift Assembly To Carrier
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 4 | Log in to see
prices |
|
|
| A29H |
5-X-1196
|
O-Ring
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29J |
MER 5X1197
|
O-Ring
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29K |
5-X-1195
|
O-Ring
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29L |
3261-R-1084
|
Bolt-On Style, Navistar Only
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29M |
2230-D-1096
|
Piston - Shift Assembly
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A29N |
MER 1229W1245
|
Snap Ring
| Bolt-on style, Navistar only (reverse-air) | Included in KIT 2445 | 1 | Log in to see
prices |
|
|
| A30 |
MER 41X1209
|
Capscrew - Air Shift Assembly
| | 1624, 1645, 1662, 1677 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-P-1914
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump and thrust screw, w/o main diff. lock. Bolt-on reverse IAD shifter | 3200-P-1914 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER KIT2705
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, diff. lock and bolt-on IAD shifter | All 1624 except Navistar (Reverse-shift | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-T-1918
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, main diff. lock and thrust screw. Bolt-on | 3200-T-1918 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
KIT 2707
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, w/o diff. lock with bolt-on IAD shifter | All 1662 except Navistar (Reverse-shift) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-J-1986
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, w/o diff. lock with screw-in and IAD shifter, with thrust screw | 3200-D-1876, 3200-J-1986 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-X-1662
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, w/o diff. lock, with bolt-on IAD shifter and thrust screw | 3200-X-1662 (Reverse-shift only | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER A2-3200H1984
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, w/o diff. lock, with screw-in IAD shifter | 3200-V-1816, 3200-H-1984 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-G-1853
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, w/o diff. lock, with screw-in IAD shifter, for use with internal ABS sensor | 3200-G-1853 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-D-1902
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, with bolt-on diff. lock and IAD shifter, with thrust screw | 3200-L-1624, 3200-D-1902 (Reverse-shift only) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-E-1903
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, with bolt-on diff. lock and IAD shifter, with thrust screw | 3200-M-1677, 3200-E-1903 (Reverse-shift only) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER A2-3200K1987
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, with screw-in diff. lock and IAD shifter | 3200-W-1817, 3200-P-1888, 3200-K-1987 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER A2-3200L1988
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| With pump, with screw-in diff. lock and IAD shifter, with thrust screw | 3200-E-1877, 3200-H-1906, 3200-L-1988 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-C-1979
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump and main diff. lock, Aluminum carrier | 3200-N-1860, 3200-C-1979 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-S-1917
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump and main diff. lock, Aluminum carrier (for ABS) | 3200-S-1917 (Reverse-shift only) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-F-1852
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump or diff. lock for use with internal ABS sensor, screwin IAD shifter | 3200-F-1852 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-G-1645
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump or diff. lock, for use with bolt-on IAD shifter and thrust screw | 3200-G-1645 (Reverse-shift only) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
KIT 2706
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump or diff. lock, with bolt-on IAD shifter | All 1645 except Navistar (Reverse-shift) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-B-1978
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump or diff. lock, with screw-in IAD shifter | 3200-T-1814, 3200-B-1978 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-D-1980
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump or diff.lock, with screw-in IAD shifter and thrust screw | 3200-B-1874, 3200-D-1980 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER KIT2704
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump, with diff. lock and bolt-on IAD shifter | All 1677 except Navistar (Reverse-shift) | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
MER A2-3200E1981
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump, with screw-in diff. lock and IAD shifter | 3200-U-1815, 3200-R-1890, 3200-E-1981 | 1 | Log in to see
prices |
|
|
| A31, 56, 57 |
A2-3200-F-1982
|
Diff.Carrier And Cap Assy. Kit Incl . Carrier And Cap Assy. And Screw-In Iad Shifter. Main Diff. Lock Components Included Where Applicable
| Without pump, with screw-in diff. lock and IAD shifter, with thrust screw | 3200-C-1875, 3200-G-1905, 3200-F-1982 | 1 | Log in to see
prices |
|
|
| A32 |
MER 40X1016
|
Jam Nut
| | | 1 | Log in to see
prices |
|
|
| A34 |
MER 41X1371
|
Thrust Screw
| | | 1 | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41718-1
|
Drive Gear, Pinion And Nut Assembly 2.64 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
MER A-41676-1
|
Drive Gear, Pinion And Nut Assembly 2.79 Ratio
| 7.17 Ratio Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
MER A-41104-1
|
Drive Gear, Pinion And Nut Assembly 2.93 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
MER A-41508-1
|
Drive Gear, Pinion And Nut Assembly 3.07 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
MER A-41510-1
|
Drive Gear, Pinion And Nut Assembly 3.21 Ratio
| 7.17 Ratio Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41276-1QG
|
Drive Gear, Pinion And Nut Assembly 3.42 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41512-1QG
|
Drive Gear, Pinion And Nut Assembly 3.58 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41514-1QG
|
Drive Gear, Pinion And Nut Assembly 3.73 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41678-1QG
|
Drive Gear, Pinion And Nut Assembly 3.90 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41680-1QG
|
Drive Gear, Pinion And Nut Assembly4.11 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41278-1QG
|
Drive Gear, Pinion And Nut Assembly 4.33 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41562-1QG
|
Drive Gear, Pinion And Nut Assembly 4.56 Ratio
| Some models may not be available in all ratios | | Use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41280-1QG
|
Drive Gear, Pinion And Nut Assembly 4.63 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41282-1QG
|
Drive Gear, Pinion And Nut Assembly 4.88 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-41284-1QG
|
Drive Gear, Pinion And Nut Assembly 5.29 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
MER B-41466-1
|
Drive Gear, Pinion And Nut Assembly 5.86 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
A-41468-1QG
|
Drive Gear, Pinion And Nut Assembly 6.14 Ratio
| Some models may not be available in all ratios | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
A-41470-1QG
|
Drive Gear, Pinion And Nut Assembly 6.43 Ratio
| Some models may not be available in all ratios | | Use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
A-41472-1QG
|
Drive Gear, Pinion And Nut Assembly 6.83 Ratio
| Some models may not be available in all ratios | | Use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
A-41474-1QG
|
Drive Gear, Pinion And Nut Assembly 7.17 Ratio
| Some models may not be available in all ratios | | Use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-42214-1
|
Drive Gear, Pinion And Nut Assembly 3.36 Ratio
| Amboid gearing to be used only if there is a rear/rear Amboid carrier. | | Use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-42216-1
|
Drive Gear, Pinion And Nut Assembly 3.55 Ratio
| Amboid gearing to be used only if there is a rear/rear Amboid carrier. | | use 1 as req. | Log in to see
prices |
|
|
| A35, 44, 45 |
B-42218-1
|
Drive Gear, Pinion And Nut Assembly 3.70 Ratio
| Amboid gearing to be used only if there is a rear/rear Amboid carrier. | | Use 1 as req. | Log in to see
prices |
|
|
| A36 |
KOY H715334
|
Cone - Drive Pinion Inner Bearing
| | All | 1 | Log in to see
prices |
|
|
| A37 |
KOY H715311
|
Cup - Drive Pinion Inner Bearing
| | All | 1 | Log in to see
prices |
|
|
| A38 |
MER 2203F2788
|
Shim - Pinion Inner Bearing Cup .075Mm/.003 Inch
| | All | Use as req. | Log in to see
prices |
|
|
| A38 |
MER 2203G2789
|
Shim - Pinion Inner Bearing Cup .125Mm/.005 Inch
| Included in KIT 1647 and KIT 2429 | All | use 1 as req. | Log in to see
prices |
|
|
| A38 |
MER 2203H2790
|
Shim - Pinion Inner Bearing Cup .250Mm/.010 Inch
| Included in KIT 1647 and KIT 2429 | All | Use as req. | Log in to see
prices |
|
|
| A39 |
MER 1244V1764
|
Spacer - Pinion Bearing Inner
| | All | 1 | Log in to see
prices |
|
|
| A40 |
3892N4902QG
|
Gear - Helical Driven
| | All | 1 | Log in to see
prices |
|
|
| A41 |
2203-D-9806
|
Spacer - Pinion Bearing (Variable Thickness) 5.30 mm/ .209 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
2203-E-9807
|
Spacer - Pinion Bearing (Variable Thickness) 5.33 mm/ .210 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203F9808
|
Spacer - Pinion Bearing (Variable Thickness) 5.35 mm/ .211 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
2203-G-9809
|
Spacer - Pinion Bearing (Variable Thickness) 5.38 mm/ .212 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
2203-H-9810
|
Spacer - Pinion Bearing (Variable Thickness) 5.40 mm/ .213 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
2203-J-9812
|
Spacer - Pinion Bearing (Variable Thickness) 5.50 mm/ .217 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203K9813
|
Spacer - Pinion Bearing (Variable Thickness) 5.60 mm/ .220 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203L9814
|
Spacer - Pinion Bearing (Variable Thickness) 5.70 mm/ .224 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203M9815
|
Spacer - Pinion Bearing (Variable Thickness) 5.80 mm/ .228 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203N9816
|
Spacer - Pinion Bearing (Variable Thickness) 5.90 mm/ .232 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203P9818
|
Spacer - Pinion Bearing (Variable Thickness) 6.00 mm/ .236 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203Q9819
|
Spacer - Pinion Bearing (Variable Thickness) 6.10 mm/ .240 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
2203-R-9820
|
Spacer - Pinion Bearing (Variable Thickness) 6.13 mm/ .241 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203S9821
|
Spacer - Pinion Bearing (Variable Thickness) 6.15 mm/ .242 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203T9822
|
Spacer - Pinion Bearing (Variable Thickness) 6.18 mm/ .243 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A41 |
MER 2203U9823
|
Spacer - Pinion Bearing (Variable Thickness) 6.20 mm/ .244 inch
| Included in KIT 2396 | All | Use 2 as req. | Log in to see
prices |
|
|
| A42 |
KOY 72487
|
Cup - Drive Pinion Outer Bearing
| | All | 1 | Log in to see
prices |
|
|
| A43 |
KOY 72212C
|
Cone - Drive Pinion Outer Bearing
| | All | 1 | Log in to see
prices |
|
|
| A44 |
MER 1229G4063
|
Washer - Drive Pinion Nut
| Use with 40-X-1145 | 145 series only | 1 | Log in to see
prices |
|
|
| A44 |
1229-W-4521
|
Washer - Drive Pinion Nut
| Use with 40-X-1233 | 140, 144, 145 series only | 1 | Log in to see
prices |
|
|
| A45 |
40X1233QG
|
Nut - Drive Pinion
| M45x1.5-6H thd. | 140, 144, 145 series only | 1 | Log in to see
prices |
|
|
| A45 |
MER 40X1145
|
Nut - Drive Pinion
| M50x2-6H thd. | 145 series only | 1 | Log in to see
prices |
|
|
| A46 |
MER 3266C1095
|
Cover - Drive Pinion
| | All | 1 | Log in to see
prices |
|
|
| A47 |
MER 1229K1597
|
Washer - Drive Pinion Cover
| | All | 5 | Log in to see
prices |
|
|
| A48 |
MER MS210020-1
|
Capscrew - Drive Pinion Cover
| | All except aluminum | 5 | Log in to see
prices |
|
|
| A48 |
MS-210030-1
|
Capscrew - Drive Pinion Cover
| | Aluminum only | 5 | Log in to see
prices |
|
|
| A49 |
MER 2214Y1039
|
Adjusting Ring - Diff. Bearing - (L.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A49 |
MER 2214C1095
|
Adjusting Ring - Diff. Bearing - (L.H. and R.H.)
| | All without diff. lock | 2 | Log in to see
prices |
|
|
| A49 |
MER 2214C1095
|
Adjusting Ring - Diff. Bearing - (R.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A50 |
TIM JP10010
|
Cup - Diff. Bearing - (L.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A50 |
KOY JM716610
|
Cup - Diff. Bearing - (L.H. and R.H.)
| | All without diff. lock | 2 | Log in to see
prices |
|
|
| A50 |
KOY JM716610
|
Cup - Diff. Bearing - (R.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A51 |
TIM JP10049
|
Cone - Diff. Bearing - (L.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A51 |
KOY JM716649
|
Cone - Diff. Bearing - (L.H. and R.H.)
| | All without diff. lock | 2 | Log in to see
prices |
|
|
| A51 |
KOY JM716649
|
Cone - Diff. Bearing - (R.H.)
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A52 |
MER 41X1327
|
Capscrew - Main Diff. Case
| Included in KIT 2819 | All | 16 | Log in to see
prices |
|
|
| A53 |
MER 1229D4632
|
Washer - Main Diff. Case
| Included in KIT 2819 | All | 16 | Log in to see
prices |
|
|
| A54, 52, 53 |
MER A2-3235V1920
|
Case Assy. Standard - Main Diff.
| Ratios 2.64, 2.79, 2.93 | With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
MER A8-3235V1920
|
Case Assy. Standard - Main Diff.
| Ratios 2.64, 2.79, 2.93 | Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
MER A2-3235S1839
|
Case Assy. Standard - Main Diff.
| Ratios 3.07, 3.21, 3.36 | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
MER A8-3235S1839
|
Case Assy. Standard - Main Diff.
| Ratios 3.07, 3.21, 3.36 | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
MER A2-3235U1841
|
Case Assy. Standard - Main Diff.
| Ratios 3.42, 3.55, 3.58, 3.70, 3.73, 3.90, 4.11 (All except RT44145 tandem) | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
A8-3235U1841QG
|
Case Assy. Standard - Main Diff.
| Ratios 3.42, 3.55, 3.58, 3.70, 3.73, 3.90, 4.11 (All except RT44145 tandem) | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
KIT2664
|
Case Assy. Standard - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (RT44145 tandem only) | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
KIT 2665
|
Case Assy. Standard - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (RT44145 tandem only) | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
KIT 2648
|
Case Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (RT44145 tandem only) | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
KIT 2647
|
Case Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (RT44145 tandem only) | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
A2-3235W1843QG
|
Case Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (Except RT44145 tandem) | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53 |
A8-3235W1843QG
|
Case Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (Except RT44145 tandem) | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A2-3235-M-2171
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 3.07, 3.21 | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A3-3235-M-2171
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 3.07, 3.21 | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A2-3235-L-2170
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A3-3235-L-2170
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A3-3235-J-2168
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (Except RT44145 tandem) | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 204, 205, 206 |
A2-3235-J-2168
|
Case Assy. With Abs Tubes - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (Except RT44145 tandem) | | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A3-3235-V-1920
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 2.64, 2.79, 2.93 | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A9-3235-V-1920
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 2.64, 2.79, 2.93 | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A10-3235-V-1920
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 2.64, 2.79, 2.93 | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A3-3235-S-1839
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 3.07, 3.21, 3.36 | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A10-3235-S-1839
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 3.07, 3.21, 3.36 | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A9-3235-S-1839
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 3.07, 3.21, 3.36 | Without diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A3-3235-U-1841
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 3.42, 3.55, 3.58, 3.70, 3.73, 3.90, 4.11 (All except RT44145 tandem) | With diff. lock | use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A10-3235-D-2188
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (RT44145 tandem only) | Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A3-3235-W-1843
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A10-3235-W-1843
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A9-3235-W-1843
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A11-3235-T-2152
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (RT44145 tandem only) | With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63 |
A10-3235-T-2152
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (RT44145 tandem only) | Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A4-3235-M-2171
|
Case & Nest Assy. With Abs Tubes - Main Diff.
| Ratios 3.07, 3.21 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A5-3235-M-2171
|
Case & Nest Assy. With Abs Tubes - Main Diff.
| Ratios 3.07, 3.21 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A5-3235-L-2170
|
Case & Nest Assy. With Abs Tubes - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A4-3235-L-2170
|
Case & Nest Assy. With Abs Tubes - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A5-3235-J-2168
|
Case & Nest Assy. With Abs Tubes - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 59, 60, 62, 63, 204, 205, 206 |
A4-3235-J-2168
|
Case & Nest Assy. Standard - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A11-3235-V-1920
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 2.64, 2.79, 2.93 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A12-3235-V-1920
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 2.64, 2.79, 2.93 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A12-3235-S-1839
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 3.07, 3.21 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A11-3235-S-1839
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 3.07, 3.21 | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A11-3235-U-1841
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A12-3235-U-1841
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A4-3235-D-2188
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 3.42, 3.58, 3.73, 3.90, 4.11 (RT44145 tandem only) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A12-3235-W-1843
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A11-3235-W-1843
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (All except RT44145 tandem) | | Use 1 as req. | Log in to see
prices |
|
|
| A54, 52, 53, 63A |
A4-3235-T-2152
|
Case & Nest Assy. With Nospin Diff. - Main Diff.
| Ratios 4.30, 4.56, 4.63, 4.88, 5.29, 5.86, 6.14, 6.43, 6.83, 7.17 (RT44145 tandem only) | | Use 1 as req. | Log in to see
prices |
|
|
| A55 |
MER 41X1216
|
Bolt - Gear To Case
| Included in KIT 2317 | | 12 | Log in to see
prices |
|
|
| A55A |
RV-71016
|
Rivet - Gear To Diff. Case
| For service, rivets can be replaced with KIT 2317 | | 12 | Log in to see
prices |
|
|
| A56 |
42-X-1021
|
Washer - Diff. Bearing Cap
| | All | 4 | Log in to see
prices |
|
|
| A57 |
MS-220120-1
|
Capscrew - Diff. Bearing Cap
| | All except aluminum | 4 | Log in to see
prices |
|
|
| A57 |
41-X-1365
|
Capscrew - Diff. Bearing Cap
| | Aluminum only | 4 | Log in to see
prices |
|
|
| A58 |
MER 1246P1134
|
Pin - Adjusting Ring Lock L.H.
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A58 |
1199R2176QG
|
Pin - Adjusting Ring Lock L.H. And R.H.
| | All without diff. lock | 2 | Log in to see
prices |
|
|
| A58 |
1199R2176QG
|
Pin - Adjusting Ring Lock R.H.
| | All with diff. lock | 1 | Log in to see
prices |
|
|
| A59 |
1229V4624QG
|
Thrust Washer - Side Gear (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All after 11/93 | 2 | Log in to see
prices |
|
|
| A59 |
MER 1229X4522
|
Thrust Washer - Side Gear (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All prior to 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
2234U1269QG
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| Included in KIT 2310 | All 40,000 lb. tandems after 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
MER 2234V1270
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| Included in KIT 2389 | All 34,000 lb. tandems after 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
MER 2234X1272
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| Included in KIT 2696 | RT44145 tandems after 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
MER KIT2759
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All 40,000 lb. tandems prior to 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
KIT 2758
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All 34,000 lb. tandems prior to 11/93 | 2 | Log in to see
prices |
|
|
| A60 |
KIT 2696
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | RT44145 tandems prior to 12/92 | 2 | Log in to see
prices |
|
|
| A60 |
KIT 2760
|
Side Gear - Differential (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | RT44145 tandems from 1/93 to 11/93 | 2 | Log in to see
prices |
|
|
| A61 |
3278S305QG
|
Spider - Differential (Cross) (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All exc 44,000 lb. tandems | 1 | Log in to see
prices |
|
|
| A61 |
MER 3278Y1117F
|
Spider - Differential (Cross) (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| Included in KIT 2696 | 44,000 lb. tandems only | 1 | Log in to see
prices |
|
|
| A62 |
2233J1024QG
|
Gear - Differential Pinion (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | All axles except RT44145 tandems produced after 1/93 | 4 | Log in to see
prices |
|
|
| A62 |
MER 2233X1116
|
Gear - Differential Pinion (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | RT44145 tandems produced after 1/93 | 4 | Log in to see
prices |
|
|
| A63 |
1229R1032QG
|
Thrust Washer - Diff. Pinion (Items 59-63 Are Not Used In Nospin Models. See Item 63A)
| | | 4 | Log in to see
prices |
|
|
| A63A |
275S44
|
Nospin Diff. Nest
| Serviced as assembly only. Replaces items 59-63. | All 34,000 lb. capacity tandems | 1 | Log in to see
prices |
|
|
| A63A |
275S43
|
Nospin Diff. Nest
| Serviced as assembly only. Replaces items 59-63. | All 40,000 & 44,000 lb. capacity tandems | 1 | Log in to see
prices |
|
|
| A64 |
1229U1503QG
|
Washer - Gear To Diff. Case
| Included in KIT 2317 | All | 12 | Log in to see
prices |
|
|
| A65 |
MER 40X1182
|
Nut - Gear To Diff. Case
| Included in KIT 2317 | All | 12 | Log in to see
prices |
|
|
| A66 |
MER KIT4429
|
Sensor/Switch - Main Diff. Lock
| Included in KIT 4455 | | 1 | Log in to see
prices |
|
|
| A66A |
2257-M-1235
|
Clip - Sensor/Switch
| Included in KIT 4455 | | 1 | Log in to see
prices |
|
|
| A66B |
MER 41X1022
|
Plug - Dcdl Switchport (Non Shown)
| Non-DCDL applications only | | 1 | Log in to see
prices |
|
|
| A67 |
MER 1227P1056
|
Lock Nut - Sensor/Switch
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A68 |
MER 2258N1262
|
Spring - Main Diff. Lock
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A68 |
MER 2258L714
|
Spring - Main Diff. Lock
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A69 |
MER 43X1006
|
Roll Pin - Spring Retaining
| | | 1 | Log in to see
prices |
|
|
| A70 |
MER KIT2824
|
Shift Shaft - Main Diff. Lock
| Not Threaded for fork | All after 11/93 | 1 | Log in to see
prices |
|
|
| A70 |
MER 2244L1026
|
Shift Shaft - Main Diff. Lock
| Threaded for fork | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A71 |
MER KIT2824
|
Piston - Main Diff. Lock
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A71 |
MER 2230N170
|
Piston - Main Diff. Lock
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A72 |
MER 5X1198
|
O-Ring Piston
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A72 |
MER 5X1153
|
O-Ring Piston
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A73 |
MER 3196F32
|
Tube - Air Cylinder
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A73A |
MER KIT2824
|
Air Cylinder Assembly - Screw-In
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A73B |
MER 1250U1217
|
Plug - Screw-In Dcdl Cylinder Hole (Not Shown)
| Non-DCDL applications only | | 1 | Log in to see
prices |
|
|
| A74 |
MER 2208H944
|
Gasket - Air Cylinder Cover
| | | 1 | Log in to see
prices |
|
|
| A75 |
MER 41X1333
|
Capscrew - Manual Engaging
| | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A75 |
MER 41X1368
|
Capscrew - Manual Engaging
| | All after 11/93 | 1 | Log in to see
prices |
|
|
| A75A |
MER 5X521
|
O-Ring - Manual Engaging Capscrew
| | | 1 | Log in to see
prices |
|
|
| A76 |
MER 3266F1020
|
Cover - Air Cylinder
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A77 |
MER MS210016-1
|
Plug - Air Cylinder Cover
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A78 |
MER 2208L1000
|
Gasket - Plug
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A79 |
MER 41X1364
|
Capscrew - Air Cylinder Cover
| | Prior to 11/93 | 4 | Log in to see
prices |
|
|
| A80 |
MER MWA-506
|
Washer - Air Cylinder Cover
| | Prior to 11/93 | 4 | Log in to see
prices |
|
|
| A81 |
MER 3107D1018
|
Clutch Collar
| | | 1 | Log in to see
prices |
|
|
| A82 |
MER 3296Z1170
|
Shift Fork
| Not threaded | All after 11/93 | 1 | Log in to see
prices |
|
|
| A82 |
MER 3296W1167
|
Shift Fork
| Threaded | All prior to 11/93 | 1 | Log in to see
prices |
|
|
| A83 |
MER 43X1007
|
Pin - Shift Fork
| Old 3 piece design | | 2 | Log in to see
prices |
|
|
| A84 |
MER 3264N1522
|
Shield - Filter
| | | 1 | Log in to see
prices |
|
|
| A85 |
MER 1250N1080
|
Plug - Oil Pressure Relief Valve
| No longer required as of 5/97 | | 1 | Log in to see
prices |
|
|
| A86 |
MER 1229F4062
|
Washer - Plug
| No longer required as of 5/97 | | 1 | Log in to see
prices |
|
|
| A87 |
MER 2258Z1118
|
Spring - Oil Pressure Relief Valve
| | | 1 | Log in to see
prices |
|
|
| A88 |
MER 2297U5273
|
Pressure Relief Valve - Oil
| | | 1 | Log in to see
prices |
|
|
| A89 |
1246-M-1131
|
Input Cage To Oil Pump Dowels
| No longer used | | 2 | Log in to see
prices |
|
|
| A90 |
MER 5X1034
|
O-Ring, Oil Pump
| | | 1 | Log in to see
prices |
|
|
| A91 |
KIT 2835
|
Oil Pump Assembly
| Serviced as assembly only | Pump driven off flats on input shaft | 1 | Log in to see
prices |
|
|
| A91 |
MER A-3303P1030
|
Oil Pump Assembly
| Serviced as assembly only | Pump driven off splines on input shaft | 1 | Log in to see
prices |
|
|
| A92 |
MER 1229E1669
|
Washer - Oil Pump
| | | 6 | Log in to see
prices |
|
|
| A93 |
MER MS208045-1
|
Capscrew - Oil Pump
| | | 6 | Log in to see
prices |
|
|
| A94 |
MER A-3380W1687
|
Oil Filter
| | | 1 | Log in to see
prices |
|
|
| A95 |
MER 2297Z5278
|
Adapter - Oil Filter
| | | 1 | Log in to see
prices |
|
|
| A96 |
MER A-2297D5334
|
Screen And Plumb Assy. - Oil Filter
| | | 1 | Log in to see
prices |
|
|
| A200 |
2258-U-1243
|
Wave Washer
| | | 2 | Log in to see
prices |
|
|
| A201 |
1229-U-4519
|
Snap Ring
| | | 2 | Log in to see
prices |
|
|
| A202 |
1229-B-4422
|
Snap Ring
| | | 2 | Log in to see
prices |
|
|
| A203 |
SA1-3280-U-8861
|
Sensor Assembly
| | | 2 | Log in to see
prices |
|
|
| A204 |
3216-S-4361
|
Sensor Drive Tube
| 39 Spline | Use KIT 2511 | 2 | Log in to see
prices |
|
|
| A204 |
3216-Q-4359
|
Sensor Drive Tube
| 41 Spline | Use KIT 2512 | 2 | Log in to see
prices |
|
|
| A205 |
42-X-1248
|
Washer Tube Spacing
| | | 2 | Log in to see
prices |
|
|
| A206 |
1229-H-4428
|
Snap Ring Tube Retaining
| | | 2 | Log in to see
prices |
|
|
 |
Housing Assembly
Rear Carrier
