Home » HD Transmission » Eaton Fuller » RT-15613

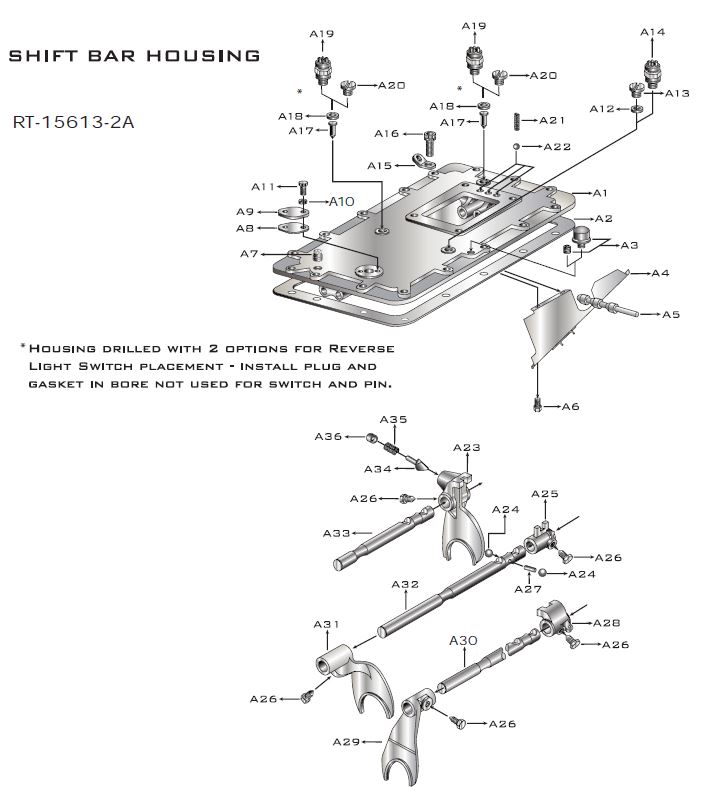

Shift Bar Housing Eaton Fuller 10220-1/92-15613
View Larger

Shift Bar Housing


See Below  ▼ Eaton Fuller
More Products from Eaton Fuller
  Share

Overview

Shift Bar Housing
Item No. Part Number Name Kit/Assys Replaced Parts Notes Qty Price Buy
A1
S-1440
 Shift Bar Hsg (Std) K-1903 15890 15928 ,16913 ,17115 ,17180 ,17182 17428 ,18571 ,18640 ,18644 ,18840 18847 ,19448 ,19449 ,19453 ,19454 19455 ,19605,20074 ,20210 ,20211 21133 ,22955 ,S - 1360 ,S - 1364 ,S - 1376 S - 1377 HOUSING ONLY 1 Log in to see
prices
A2
4302676
 Gasket K-1897, K-1903, K2199, S-1529, S-1531 14918 1 Log in to see
prices
A3
4304602
 Breather 23605 1/4" NPT 1 Log in to see
prices
A3
X-12-404
 Pipe Plug 1/4" NPT 1 Log in to see
prices
A4
20070
 Oil Trough S-1529, S-1531 1 Log in to see
prices
A5
20332
 Air Valve Shaft S-1529, S-1531 17177 1 Log in to see
prices
A6
X-8-423
 Capscrew 1/4"-20X1/2" 2 Log in to see
prices
A7
X-12-603
 Pipe Plug 3/8" NPT 1 Log in to see
prices
A8
20209
 Gasket S-1440, S-1441, S1529, S-1531 1 Log in to see
prices
A9
20199
 Plate S-1440, S-1441, S1529, S-1531 18724 1 Log in to see
prices
A10
X-3-400
 Lockwasher 1/4" 2 Log in to see
prices
A11
X-8-406
 Capscrew 1/4"-20X3/4" 2 Log in to see
prices
A12
17179
 Gasket S-1440, S-1441, S1529, S-1531 1 Log in to see
prices
A13
4303655
 Plug S-1440, S-1441, S1529, S-1531 17178 1 Log in to see
prices
A14
22941
 Neutral Light Switch 12639 SWITCH NORMALLY CLOSED 1 Log in to see
prices
A15
20815
 Lifting Eye S-2262 17105 2 Log in to see
prices
A16
X-8L-602
 Capscrew 3/8"-16X1-1/2" USE W/20815 LIFTING EYES 2 Log in to see
prices
A16
X-8L-604
 Capscrew 3/8"-16X1-1/4"- OR USE 14 PCS OF X8L-604 WITH 2 PCS OF X-8L-602 16 Log in to see
prices
A17
15899
 Pin S-1440, S-1441, S1529, S-1531 1 Log in to see
prices
A18
15900
 Gasket S-1440, S-1441, S1529, S-1531 1 Log in to see
prices
A19
22940
 Reverse Light Switch 16830 SWITCH NORMALLY OPEN 1 Log in to see
prices
A20
4303656
 Plug S-1440, S-1441, S1529, S-1531 15917 1 Log in to see
prices
A21
15918
 Spring K-1793, K-1972, K2341, S-1529, S-1531 3 Log in to see
prices
A22
X-14-800
 Steel Ball 1/2" 3 Log in to see
prices
A23
16131
 Shift Yoke S-1219, S-1531 REVERSE/LO 1 Log in to see
prices
A24
X-14-1200
 Steel Ball 3/4" 2 Log in to see
prices
A25
14658
 Shift Block S-1531 1ST/2ND 1 Log in to see
prices
A26
3220
 Lockscrew S-1529, S-1531 5 Log in to see
prices
A27
1634
 Interlock Pin K-1793, S-1529, S-1531 1 Log in to see
prices
A28
14659
 Shift Block S-1531 3RD/DIRECT 1 Log in to see
prices
A29
16136
 Shift Yoke S-1529, S-1531 3RD/DIRECT 1 Log in to see
prices
A30
16134
 Yoke Bar S-1531 3RD/DIRECT 1 Log in to see
prices
A30
18643
 Yoke Bar K-1903 3RD/DIRECT - W/RATIO CONTROL 1 Log in to see
prices
A31
16135
 Shift Yoke S-1529, S-1531 1ST/2ND 1 Log in to see
prices
A32
16133
 Yoke Bar Log in to see
prices
A33
16132
 Yoke Bar S-1531 REVERSE/LO 1 Log in to see
prices
A34
10019
 Plunger S-1219, S-1529, S-1531 1 Log in to see
prices
A35
6392
 Spring S-1219, S-1529, S-1531 1 Log in to see
prices
A36
8968
 Plug S-1219, S-1529, S-1531 1 Log in to see
prices
A999
S-1531
 Shift Bar Hsg Assy (Std) 20211 ,22955 COMPLETE 1 Log in to see
prices

Specifications

  Product NameShift Bar Housing
  Brand NameEaton Fuller

Documents

RT-15613 Shift Bar Housing.pdf
