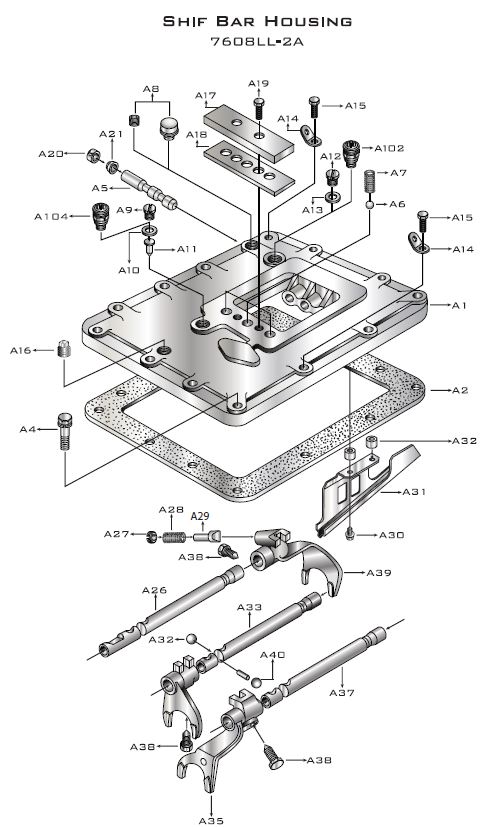

| Item No. |
Part Number |
Name | Kit/Assys | Replaced Parts | Notes | Qty | Price |
Buy |
|
| A1 |
FUL S-1807
|
Shift Bar Hsg
| | 23062 ,4300408 ,S - 1615 | HOUSING ONLY | 1 | Log in to see
prices |
|
|
| A2 |
FUL 15605
|
Gasket
| | | | 1 | Log in to see
prices |
|
|
| A4 |
FUL X-8L-604
|
Capscrew
| | | 3/8"-16X1-1/4" | 13 | Log in to see
prices |
|
|
| A5 |
FUL 20332
|
Air Valve Shaft
| S-2404 | 17177 | | 1 | Log in to see
prices |
|
|
| A6 |
FUL X-14-800
|
Steel Ball
| | | 1/2" | 3 | Log in to see
prices |
|
|
| A7 |
FUL 1064
|
Spring
| K-1995, K-2109, S-2404 | 23605 | 1/4" NPT | 1 | Log in to see
prices |
|
|
| A8 |
FUL 4304602
|
Breather
| K-1700, S-2404 | 23605 | 1/4" NPT | 1 | Log in to see
prices |
|
|
| A8 |
FUL X-12-404
|
Pipe Plug
| | | 1/4" NPT | 1 | Log in to see
prices |
|
|
| A9 |
FUL 4303656
|
Plug
| S-1807, S-2404 | 15917 | | 1 | Log in to see
prices |
|
|
| A10 |
FUL 15900
|
Gasket
| S-1807, S-2404 | | | 1 | Log in to see
prices |
|
|
| A11 |
FUL 15899
|
Pin
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A12 |
FUL 4303655
|
Plug
| S-1807, S-2404 | 17178 | | 1 | Log in to see
prices |
|
|
| A13 |
FUL 17179
|
Gasket
| S-1807, S-2404 | | | 1 | Log in to see
prices |
|
|
| A14 |
FUL 20815
|
Lifting Eye
| | 17105 | | 2 | Log in to see
prices |
|
|
| A15 |
FUL X-8L-602
|
Capscrew
| | | 3/8"-16X1-1/2" USE W/20815 LIFTING EYES | 2 | Log in to see
prices |
|
|
| A16 |
FUL X-12-603
|
Pipe Plug
| | X12 602 | 3/8" NPT | 1 | Log in to see
prices |
|
|
| A17 |
FUL 15132
|
Spring Cover
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A18 |
FUL 15133
|
Gasket
| K-2110, S-2404 | | | 1 | Log in to see
prices |
|
|
| A19 |
FUL X-8L-600
|
Capscrew
| | | 3/8"-16X1" | 2 | Log in to see
prices |
|
|
| A20 |
FUL 18217
|
No Longer Available
| | | USE W/17177 SHAFT ONLY NOT REQUIRED W/NEW 20332 SHAFT | 1 | Log in to see
prices |
|
|
| A21 |
FUL 18218
|
No Longer Available
| | | USE W/17177 SHAFT ONLY NOT REQUIRED W/NEW 20332 SHAFT | 1 | Log in to see
prices |
|
|
| A26 |
FUL 15910
|
Yoke Bar
| S-2404 | | REVERSE/LO | 1 | Log in to see
prices |
|
|
| A27 |
FUL 8968
|
Plug
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A28 |
FUL 6392
|
Spring
| K-2109, S-2404 | | | 1 | Log in to see
prices |
|
|
| A29 |
FUL 10019
|
Plunger
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A30 |
FUL X-8-429
|
Cap Screw
| | | 1/4"-20X3/4" | 2 | Log in to see
prices |
|
|
| A31 |
FUL 23020
|
Oil Trough
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A32 |
FUL 23101
|
Spacer
| S-2404 | | | 1 | Log in to see
prices |
|
|
| A33 |
FUL 15100
|
Yoke Bar
| S-2404 | | 1ST/2ND | 1 | Log in to see
prices |
|
|
| A34 |
FUL 20624
|
Shift Yoke
| S-2404 | | 1ST/2ND | 1 | Log in to see
prices |
|
|
| A35 |
FUL 20622
|
Shift Yoke
| S-2404 | | 3RD/4TH | 1 | Log in to see
prices |
|
|
| A36 |
FUL 1634
|
Interlock Pin
| K-2109, S-2404 | | | 1 | Log in to see
prices |
|
|
| A37 |
FUL 15101
|
Yoke Bar
| S-2404 | | 3RD/4TH | 1 | Log in to see
prices |
|
|
| A38 |
FUL 3220
|
Lockscrew
| S-2404 | | | 3 | Log in to see
prices |
|
|
| A39 |
FUL 20626
|
Shift Yoke
| S-2404 | | REVERSE/LO | 1 | Log in to see
prices |
|
|
| A40 |
FUL X-14-1200
|
Steel Ball
| | | 3/4" | 2 | Log in to see
prices |
|
|
| A102 |
FUL 22941
|
Neutral Light Switch
| | 12639 | SWITCH NORMALLY CLOSED | 1 | Log in to see
prices |
|
|
| A104 |
FUL 22940
|
Reverse Light Switch
| | 16830 | SWITCH NORMALLY OPEN | 1 | Log in to see
prices |
|
|
| A999 |
FUL S-2404
|
Shift Bar Hsg Assy
| | 4300408 | COMPLETE | 1 | Log in to see
prices |
|
|
 | |
