| Item No. |
Part Number |
Name | Remarks | Comments | Qty | Price |
Buy |
|
| A-200 |
MER A2-3226T1112S
|
Output (Thru) Shaft, Bearing Cage And Seal Assy.
| Includes Items 201, 202, 205 thru 211 | | 1 | Log in to see
prices |
|
|
| A-201 |
3297V1010QG
|
Shaft - Output (Thru)
| | | 1 | Log in to see
prices |
|
|
| A-202 |
MER A-3226T1112
|
Bearing Cage & Inner Cup Assy. - Output
| | | 1 | Log in to see
prices |
|
|
| A-202A |
N/A
|
Deflector (No Longer Used)
| | | 1 | Log in to see
prices |
|
|
| A-203 |
MER 1229K1597
|
Washer - Output Bearing Cage Capscrew
| | | 4 | Log in to see
prices |
|
|
| A-204 |
15-X-387
|
Capscrew - Output Bearing Cage
| | | 4 | Log in to see
prices |
|
|
| A-205 |
KOY JLM104910
|
Cups - Innter & Outer Output Bearing
| | | 2 | Log in to see
prices |
|
|
| A-206 |
NTN LM104949
|
Cones - Innter & Outer Output Bearing
| | | 2 | Log in to see
prices |
|
|
| A-207 |
MER 1229P2590
|
Snap Ring (Spacer) - Output Bearing .155 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229Q2591
|
Snap Ring (Spacer) - Output Bearing .158 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229R2592
|
Snap Ring (Spacer) - Output Bearing .161 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229S2593
|
Snap Ring (Spacer) - Output Bearing .164 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229T2594
|
Snap Ring (Spacer) - Output Bearing .167 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229U2595
|
Snap Ring (Spacer) - Output Bearing .170 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229V2596
|
Snap Ring (Spacer) - Output Bearing .173 inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229W2597
|
Snap Ring (Spacer) - Output Bearing .176 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229X2598
|
Snap Ring (Spacer) - Output Bearing .179 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-207 |
MER 1229Y2599
|
Snap Ring (Spacer) - Output Bearing .182 Inch
| Included in KIT 576 | | Use 1 as req. | Log in to see
prices |
|
|
| A-208 |
MER 1229W4131
|
Snap Ring Spacer - Output Bearing/Yoke
| | | 1 | Log in to see
prices |
|
|
| A-209 |
A1205P2590QG
|
Oil Seal - Output Bearing Cage
| 2 piece (seal & sleeve) | | 1 | Log in to see
prices |
|
|
| A-210 |
MER 1229T1736
|
Washer - Yoke Nut (Output)
| Included in KIT 2637 | | 1 | Log in to see
prices |
|
|
| A-211 |
KIT2637QG
|
Nut - Output Yoke
| Included in KIT 2637 | | 1 | Log in to see
prices |
|
|

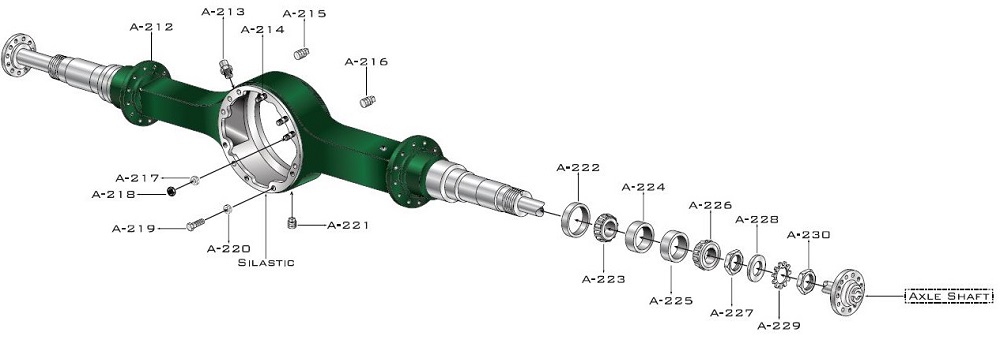

| A-212 |
AS SPECIFIED
|
Axle Housing Assembly
| | | 1 | Log in to see
prices |
|
|
| A-213 |
KIT 2902
|
Breather Assembly - Housing
| | | 1 | Log in to see
prices |
|
|
| A-214 |
4-X-1922
|
Stud - Carrier To Housing Forward-Rear Only
| Long | | 1 | Log in to see
prices |
|
|
| A-214 |
4-X-1921
|
Stud - Carrier To Housing Forward-Rear Only
| Short | For 12 mtg. hole version | 1 | Log in to see
prices |
|
|
| A-214 |
4-X-1921
|
Stud - Carrier To Housing Forward-Rear Only
| Short | For 15 mtg. hole version | 2 | Log in to see
prices |
|
|
| A-215 |
P-28S
|
Plug - Heat Indicator
| | Use as required | 1 | Log in to see
prices |
|
|
| A-216 |
MER P-212
|
Plug - Filler Hole
| | | 1 | Log in to see
prices |
|
|
| A-217 |
MER 1229W1557
|
"Washer - Carrier To Housing Nut" Forward-Rear Only
| | For 12 mtg. hole version | 2 | Log in to see
prices |
|
|
| A-217 |
MER 1229W1557
|
"Washer - Carrier To Housing Nut" Forward-Rear Only
| | For 15 mtg. hole version | 3 | Log in to see
prices |
|
|
| A-218 |
MER N-110-1
|
Nut - Carrier To Housing Stud Forward-Rear Only
| | For 12 mtg. hole version | 2 | Log in to see
prices |
|
|
| A-218 |
MER N-110-1
|
Nut - Carrier To Housing Stud Forward-Rear Only
| | For 15 mtg. hole version | 3 | Log in to see
prices |
|
|
| A-219 |
MER 10X1594
|
Capscrew - Carrier To Housing Forward-Rear Axles, Rp & Rd 23-160/164, 26-160/164
| 1-3/4" Long | For 12 mtg. hole version | 7 | Log in to see
prices |
|
|
| A-219 |
MER 10X1594
|
Capscrew - Carrier To Housing Forward-Rear Axles, Rp & Rd 23-160/164, 26-160/164
| 1-3/4" Long | For 15 mtg. hole version | 9 | Log in to see
prices |
|
|
| A-219 |
MER 10X1594
|
Capscrew - Carrier To Housing Forward-Rear Axles, Rp & Rd 23-160/164, 26-160/164
| 1-3/4" Long | For tapered dowel versions | 5 | Log in to see
prices |
|
|
| A-219 |
10-X-1595
|
Capscrew - Carrier To Housing Forward-Rear Axles, Rp & Rd 23-160/164, 26-160/164
| 2" Long | For tapered dowel versions | 4 | Log in to see
prices |
|
|
| A-219 |
MER 10X1599
|
Capscrew - Carrier To Housing Forward-Rear Axles, Rp & Rd 23-160/164, 26-160/164
| 3-1/2" Long | All forwards | 3 | Log in to see
prices |
|
|
| A-219 |
MER 10X1594
|
Capscrew - Carrier To Housing Rear-Rear & Single Axles, Rs & Rr 23-160/164, 26-160/164
| 1-3/4" Long | | 8 | Log in to see
prices |
|
|
| A-219 |
MER 10X1594
|
Capscrew - Carrier To Housing Rear-Rear & Single Axles, Rs & Rr 23-160/164, 26-160/164
| 1-3/4" Long | For tapered dowel versions | 5 | Log in to see
prices |
|
|
| A-219 |
10-X-1595
|
Capscrew - Carrier To Housing Rear-Rear & Single Axles, Rs & Rr 23-160/164, 26-160/164
| 2" Long | For tapered dowel versions | 3 | Log in to see
prices |
|
|
| A-219 |
10-X-1600
|
Capscrew - Carrier To Housing Rear-Rear & Single Axles, Rs & Rr 23-160/164, 26-160/164
| 3-1/2" Long | | 4 | Log in to see
prices |
|
|
| A-219 |
10-X-1767
|
Capscrew - Carrier To Housing Rear-Rear & Single Axles, Rs & Rr 23-160/164, 26-160/164
| 3-1/2" Long | For tapered dowel versions | 1 | Log in to see
prices |
|
|
| A-220 |
MER 1229W1557
|
Washer - Carrier To Housing Capscrew Forward-Rear Only
| | For 12 mtg. hole version | 10 | Log in to see
prices |
|
|
| A-220 |
MER 1229W1557
|
Washer - Carrier To Housing Capscrew Forward-Rear Only
| | For 15 mtg. hole version | 12 | Log in to see
prices |
|
|
| A-220 |
MER 1229W1557
|
Washer - Carrier To Housing Capscrew Rear-Rear & Singles
| | | 12 | Log in to see
prices |
|
|
| A-221 |
MER 1250E473
|
Plug - Drain (Magnetic)
| | | 1 | Log in to see
prices |
|
|
| A-222 |
NAT 370003A
|
Oil Seal Assembly
| Unitized | | 2 | Log in to see
prices |
|
|
| A-222 |
A-1205-T-696
|
Oil Seal Assembly
| | | 2 | Log in to see
prices |
|
|
| A-222A |
1199E1669
|
Wiper - Housing Spindle Inner (Optional)
| Not shown | Chrome plated | 2 | Log in to see
prices |
|
|
| A-223 |
NTN 594A
|
Cone - Bearing Inner Wheel
| | | 2 | Log in to see
prices |
|
|
| A-224 |
NTN 592A
|
Cup - Bearing Inner Wheel
| | | 2 | Log in to see
prices |
|
|
| A-225 |
KOY 572
|
Cup - Bearing Outer Wheel
| | | 2 | Log in to see
prices |
|
|
| A-226 |
NTN 580
|
Cone - Bearing Outer Wheel
| | | 2 | Log in to see
prices |
|
|
| A-227 |
MER 1227W517
|
Nut - Bearing Adjusting Inner
| | | 2 | Log in to see
prices |
|
|
| A-228 |
1229-U-1009
|
Washer - Adjusting Nut
| Off-highway | | 2 | Log in to see
prices |
|
|
| A-229 |
1229-F-4634S
|
Tanged Washer & Adjusting Nut Washer
| On-highway | | 2 | Log in to see
prices |
|
|
| A-230 |
MER R002305
|
Nut - Outer Jam
| | | 2 | Log in to see
prices |
|
|
 |
Forward Carrier
Rear Carrier
