| Item No. |
Part Number |
Name | Remarks | Carrier | Qty | Price |
Buy |
|

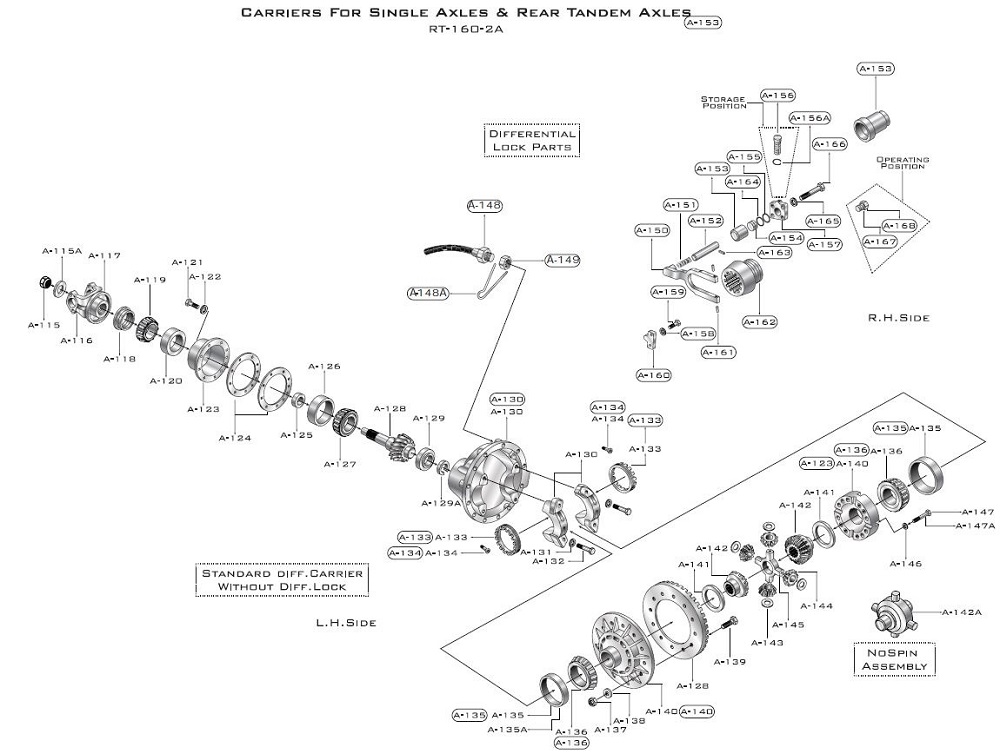

| A-115 |
KIT2638QG
|
Nut - Drive Pinion
| | | 1 | Log in to see
prices |
|
|
| A-115A |
MER 1229N1730
|
Washer - Pinion Nut
| | | 1 | Log in to see
prices |
|
|
| A-116, A-117 |
SEE YOKE CHARTS
|
Input Yoke Assembly
| | | 1 | Log in to see
prices |
|
|
| A-118 |
A1205Q2591QG
|
Oil Seal Assembly - Rear Pinion
| | | 1 | Log in to see
prices |
|
|
| A-119 |
TIM HM813843
|
Cone - Drive Pinion Outer Bearing
| | | 1 | Log in to see
prices |
|
|
| A-120 |
KOY HM813810
|
Cup - Drive Pinion Outer Bearing
| | | 1 | Log in to see
prices |
|
|
| A-121 |
MER MS212045-1
|
Capscrew - Pinion Bearing Cage
| | | 8 | Log in to see
prices |
|
|
| A-122 |
MWA-512
|
Washer - Pinion Bearing Cage
| | | 8 | Log in to see
prices |
|
|
| A-123 |
MER A-3226R1006
|
Pinion Bearing Cage & Cups Assembly
| | | 1 | Log in to see
prices |
|
|
| A-124 |
MER 2803Y2755
|
Shims - Pinion Bearing Cage .002"/.050Mm
| Included in KIT 1592 | | Use 2 as req. | Log in to see
prices |
|
|
| A-124 |
MER 2803Z2756
|
Shims - pinion bearing cage - (.005"/.125mm)
| Included in KIT 1592 | | Use as req. | Log in to see
prices |
|
|
| A-124 |
MER 2803A2757
|
Shims - pinion bearing cage - (.008"/.200mm)
| Included in KIT 1592 | | Use as req. | Log in to see
prices |
|
|
| A-124 |
MER 2803B2758
|
Shims - pinion bearing cage - (.020"/.500mm)
| Included in KIT 1592 | | Use as req. | Log in to see
prices |
|
|
| A-125 |
2803-D-2500
|
Spacers - pinion bearing - (.250"/6.35mm)
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803E2501
|
Spacers - Pinion Bearing .251"/6.38Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803F2502
|
Spacers - Pinion Bearing .252"/6.40Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803N2510
|
Spacers - Pinion Bearing .253"/6.43Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803G2503
|
Spacers - Pinion Bearing .254"/6.45Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803H2504
|
Spacers - Pinion Bearing .256"/6.50Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803J2506
|
Spacers - Pinion Bearing 260"/6.60Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803K2507
|
Spacers - Pinion Bearing .261"/6.63Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803L2508
|
Spacers - Pinion Bearing .262"/6.65Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-125 |
MER 2803M2509
|
Spacers - Pinion Bearing .263"/6.68Mm
| Included in KIT 1593 | | Use 2 as req. | Log in to see
prices |
|
|
| A-126 |
NTN 9220
|
Cup - Drive Pinion Inner Bearing
| | | 1 | Log in to see
prices |
|
|
| A-127 |
NTN 9278
|
Cone - Drive Pinion Inner Bearing
| | | 1 | Log in to see
prices |
|
|
| A-128, A-115 |
B-42776-1
|
Drive Gear, Pinion & Nut Assy.
| 2.50 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
B-43454-1
|
Drive Gear, Pinion & Nut Assy.
| 2.67 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-41572-1
|
Drive Gear, Pinion & Nut Assy.
| 2.80 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41574-1
|
Drive Gear, Pinion & Nut Assy.
| 2.93 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-39898-5
|
Drive Gear, Pinion & Nut Assy.
| 3.07 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42002-1
|
Drive Gear, Pinion & Nut Assy.
| 3.07 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39900-5
|
Drive Gear, Pinion & Nut Assy.
| 3.21 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41990-1
|
Drive Gear, Pinion & Nut Assy.
| 3.21 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39902-5
|
Drive Gear, Pinion & Nut Assy.
| 3.42 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-42004-1
|
Drive Gear, Pinion & Nut Assy.
| 3.42 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-39904-5
|
Drive Gear, Pinion & Nut Assy.
| 3.58 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41992-1
|
Drive Gear, Pinion & Nut Assy.
| 3.58 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39906-5
|
Drive Gear, Pinion & Nut Assy.
| 3.73 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41994-1
|
Drive Gear, Pinion & Nut Assy.
| 3.73 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42466-1
|
Drive Gear, Pinion & Nut Assy.
| 3.91 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39884-5QG
|
Drive Gear, Pinion & Nut Assy.
| 3.91 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39886-5QG
|
Drive Gear, Pinion & Nut Assy.
| 4.10 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-42006-1
|
Drive Gear, Pinion & Nut Assy.
| 4.10 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39888-5QG
|
Drive Gear, Pinion & Nut Assy.
| 4.30 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-41996-1
|
Drive Gear, Pinion & Nut Assy.
| 4.30 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-39890-5QG
|
Drive Gear, Pinion & Nut Assy.
| 4.56 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-41988-1
|
Drive Gear, Pinion & Nut Assy.
| 4.56 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-40024-5QG
|
Drive Gear, Pinion & Nut Assy.
| 4.89 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41998-1
|
Drive Gear, Pinion & Nut Assy.
| 4.89 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-41828-1
|
Drive Gear, Pinion & Nut Assy.
| 5.13 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42468-1
|
Drive Gear, Pinion & Nut Assy.
| 5.13 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42196-1
|
Drive Gear, Pinion & Nut Assy.
| 5.29 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-40104-5QG
|
Drive Gear, Pinion & Nut Assy.
| 5.38 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42000-1
|
Drive Gear, Pinion & Nut Assy.
| 5.38 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42470-1
|
Drive Gear, Pinion & Nut Assy.
| 5.63 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-40106-5QG
|
Drive Gear, Pinion & Nut Assy.
| 5.63 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-42630-1
|
Drive Gear, Pinion & Nut Assy.
| 6.14 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-40110-5
|
Drive Gear, Pinion & Nut Assy.
| 6.14 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-40116-5
|
Drive Gear, Pinion & Nut Assy.
| 6.43 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
MER A-41066-1
|
Drive Gear, Pinion & Nut Assy.
| 6.83 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-128, A-115 |
A-40122-5
|
Drive Gear, Pinion & Nut Assy.
| 7.17 ratio | | Use 1 as req. | Log in to see
prices |
|
|
| A-129 |
MER 1228Y1221
|
Spigot Bearing - Drive Pinion
| One piece bearing | Use for carriers that have been upgraded to snap ring gearsets only | 1 | Log in to see
prices |
|
|
| A-129 |
NTN RU9008UM
|
Spigot Bearing - Drive Pinion
| One piece bearing | Use with new snap ring design | 1 | Log in to see
prices |
|
|
| A-129 |
MER A1-1228P1004
|
Spigot Bearing - Drive Pinion
| Two piece bearing | Use with original non-snap ring design | 1 | Log in to see
prices |
|
|
| A-129A |
MER 46X1029
|
Snap Ring - Spigot Bearing
| Use with 1228-B-1042 and 1228-Y-1221 | | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-A-1821
|
Differential Carrier & Cap Assy. Less Differential Lock
| With thrust screw | 3200-A-1821 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2657
|
Differential Carrier & Cap Assy. Less Differential Lock
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2657A
|
Differential Carrier & Cap Assy. Less Differential Lock
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2657B
|
Differential Carrier & Cap Assy. Less Differential Lock
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
No Longer Available
|
Differential Carrier & Cap Assy. Less Differential Lock
| Aluminum | 3200-E-1825 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-E-1929
|
Differential Carrier & Cap Assy. Less Differential Lock
| Aluminum | 3200-E-1929 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-H-1854
|
Differential Carrier & Cap Assy.
| Aluminum, ABS | 3200-H-1854 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-J-1856
|
Differential Carrier & Cap Assy. Less Differential Lock
| Internal ABS | 3200-J-1856 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-P-1706
|
Differential Carrier & Cap Assy. Less Differential Lock
| 3200-P-1706 | New bearings | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-E-2137
|
Differential Carrier & Cap Assy. Less Differential Lock
| New bearings / tapered dowels | 3200-E-2137 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2634
|
Differential Carrier & Cap Assy. Less Differential Lock
| Aluminum | 3200-V-1712 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-Y-1897
|
Differential Carrier & Cap Assy. Less Differential Lock
| Aluminum | 3200-Y-1897 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2642
|
Differential Carrier & Cap Assy. Less Differential Lock
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-Z-1560 Original design, 3200-T-1658 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2642A
|
Differential Carrier & Cap Assy. Less Differential Lock
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 Original design, 3200-T-1658 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2642B
|
Differential Carrier & Cap Assy. Less differential lock
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-Z-1560 Original design, 3200-T-1658 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2658
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2658A
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2658B
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2658B
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2762
|
Differential Carrier & Cap Assy. With Differential Lock
| Revised diff. lock | 3200-C-1823 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
A2-3200-D-1928
|
Differential Carrier & Cap Assy. With Differential Lock
| Malleable w/screw-in main diff. shifter | 3200-D-1928 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
No Longer Available
|
Differential Carrier & Cap Assy. With Differential Lock
| Aluminum | 3200-E-1825 | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2643
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-Z-1560 Original design, 3200-V-1660 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2643A
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 Original design, 3200-V-1660 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130, A-131, & A-132 |
KIT 2643B
|
Differential Carrier & Cap Assy. With Differential Lock
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-Z-1560 Original design, 3200-V-1660 Wide leg design | 1 | Log in to see
prices |
|
|
| A-130A |
MER 15X1167
|
Thrust Screw (Not Shown)
| | | 1 | Log in to see
prices |
|
|
| A-130B |
MER 1227D472
|
Jam Nut (Not Shown)
| | | 1 | Log in to see
prices |
|
|
| A-131 |
42-X-1024
|
Washer - Diff. Bearing Cap
| | | 4 | Log in to see
prices |
|
|
| A-132 |
41-X-1018
|
Capscrew - Diff. Bearing Cap
| | | 4 | Log in to see
prices |
|
|
| A-133 |
2214-U-1269
|
Adjusting Ring - Diff. Bearing
| LH & RH | 1511, 1560, 1658, 1660 | 2 | Log in to see
prices |
|
|
| A-133 |
MER 2214G1125
|
Adjusting Ring - Diff. Bearing
| LH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 2138 | 1 | Log in to see
prices |
|
|
| A-133 |
MER 2214J1128
|
Adjusting Ring - Diff. Bearing
| RH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 2138 | 1 | Log in to see
prices |
|
|
| A-133 |
KIT 2830
|
Adjusting Ring - Diff. Bearing
| LH | 3200-H-1854 (ABS) | 1 | Log in to see
prices |
|
|
| A-133 |
2214-Z-1144
|
Adjusting Ring - Diff. Bearing
| RH | 3200-H-1854 (ABS) | 1 | Log in to see
prices |
|
|
| A-133 |
2214-Z-1144
|
Adjusting Ring - Diff. Bearing
| LH & RH | 3200-J-1856 (ABS) | 2 | Log in to see
prices |
|
|
| A-133 |
MER 2214G1125
|
Adjusting Ring - Diff. Bearing
| LH & RH | 3200-P-1706 | 2 | Log in to see
prices |
|
|
| A-134 |
19-X-1087
|
Pin - Adjusting Ring
| | ABS carriers | 2 | Log in to see
prices |
|
|
| A-134 |
MER KIT4284
|
Pin - Adjusting Ring
| | All others | 1 | Log in to see
prices |
|
|
| A-135 |
KOY 32021X
|
Cup - Differential Bearing
| LH & RH | 1511, 1560, 1658, 1660 | 2 | Log in to see
prices |
|
|
| A-135 |
NTN 592A
|
Cup - Differential Bearing
| LH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-135 |
NTN 52618
|
Cup - Differential Bearing
| RH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-135 |
NTN 592A
|
Cup - Differential Bearing
| LH & RH | 3200-P-1706 | 2 | Log in to see
prices |
|
|
| A-135A |
2297-T-4180
|
Adhesive - Diff. Bearing Cup
| | | 1 | Log in to see
prices |
|
|
| A-136 |
KOY 32021X
|
Cone - Differential Bearing
| LH & RH | 1511, 1560, 1658, 1660 | 2 | Log in to see
prices |
|
|
| A-136 |
NTN 594A
|
Cone - Differential Bearing
| LH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-136 |
KOY 52400
|
Cone - Differential Bearing
| RH | 1708, 1712, 1823, 1825, 1892, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-136 |
NTN 594A
|
Cone - Differential Bearing
| LH & RH | 3200-P-1706 | 2 | Log in to see
prices |
|
|
| A-137 |
MER 40X1182
|
Nut - Diff. Case To Gear
| Included in KIT 2426 | | 12 | Log in to see
prices |
|
|
| A-138 |
1229U1503QG
|
Washer - Diff. Case To Gear
| Included in KIT 2426 | | 12 | Log in to see
prices |
|
|
| A-139 |
41-X-1276
|
Bolt - Diff. Case To Gear
| Included in KIT 2426 | | 12 | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-S-1813
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-F-1982
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-H-1984
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A13-3235-S-1813
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A13-3235-F-1982
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A13-3235-H-1984
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A1-3235-R-2202
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 2.50, 2.67, 2.80, 2.93 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A1-3235-C-2109
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A1-3235-E-2111
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A1-3235-G-2113
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A3-3235-R-2202
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 2.50, 2.73, 2.80, 2.93 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-F-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A3-3235-C-2109
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-F-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A3-3235-E-2111
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-F-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
MER A3-3235G2113
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-F-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-S-1813
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-F-1982
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A11-3235-H-1984
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A13-3235-S-1813
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-V-1600 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
|
A13-3235-F-1982
|
Case & nest assy. - main diff. All shown are 2.38"-46 axle spline.
| | | | Log in to see
prices |
|
|
|
A13-3235-H-1984
|
Case & nest assy. - main diff. All shown are 2.38"-46 axle spline.
| | | | Log in to see
prices |
|
|
|
A6-3235-C-2109
|
Case & nest assy. - main diff. All shown are 2.38"-46 axle spline.
| | | | Log in to see
prices |
|
|
| A-140 thru A-147 |
A6-3235-E-2111
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, 3200-E-1929, Aluminum, Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A6-3235-G-2113
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, 3200-E-1929, Aluminum, Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A2-3235-S-1813 plus KIT 2318
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 With or Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A3-3235-F-1982
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 With or Without diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147 |
A3-3235-H-1984
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| 3200-Z-1560 With or Without diff. lock | Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A4-3235-R-2176
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A4-3235-S-2177
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A4-3235-T-2178
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A2-3235-R-2176
|
Case & Nest Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A2-3235-S-2177
|
Case & nest assy. - main diff. All shown are 2.38"-46 axle spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-140 thru A-147, A-173, A-174, A-175 |
A2-3235-T-2178
|
Case & nest assy. - main diff. All shown are 2.38"-46 axle spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-S-1813
|
Case & NoSpin assy. - main diff. All shown are 2.38"-46 axle spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-F-1982
|
Case & NoSpin assy. - main diff. All shown are 2.38"-46 axle spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-H-1984
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A7-3235-C-2109
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-P-1706 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A7-3235-E-2111
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-P-1706 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A7-3235-G-2113
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-P-1706 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-S-1813
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-F-1982
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A14-3235-H-1984
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A8-3235-C-2109
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A8-3235-E-2111
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-142A, A-146, A-147 |
A8-3235-G-2113
|
Case & Nospin Assy. - Main Diff. All Shown Are 2.38"-46 Axle Spline.
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A10-3235-S-1813
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A10-3235-F-1982
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A10-3235-H-1984
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A12-3235-S-1813
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A12-3235F1982
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A12-3235-H-1984
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-C-1511 Aluminum With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A-3235-R-2202
|
Case Assy - Main Differential
| Ratios - 2.50, 2.67, 2.80, 2.93 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A-3235C2109
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A-3235E2111
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56,"3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock" | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A-3235G2113
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-P-1706, 3200-A-1821, 3200-E-2137 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A2-3235R2202
|
Case Assy - Main Differential
| Ratios - 2.50, 2.67, 2.80, 2.93 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-T-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A2-3235C2109
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-T-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A2-3235E2111
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-T-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A2-3235G2113
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-R-1708, 3200-V-1712 Alum., 3200-C-1823, 3200-E-1825 Alum., 3200-T-1892, 3200-Y-1897 Alum., 3200-D-1928, 3200-E-1929 Alum., 3200-T-2138 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A10-3235-S-1813
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-T-1658 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A12-3235-F-1982
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-V-1660 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A12-3235-H-1984
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-V-1660 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A5-3235C2109
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, 3200-E-1929, Aluminum, Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A5-3235E2111
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, 3200-E-1929, Aluminum, Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
MER A5-3235G2113
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-V-1712, 3200-E-1825, 3200-Y-1897, 3200-E-1929, Aluminum, Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A-3235-S-1813
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A2-3235-F-1982
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A-3235-H-1984
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-Z-1560 Less diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A2-3235-S-1813
|
Case Assy - Main Differential
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73, 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A2-3235-F-1982
|
Case Assy - Main Differential
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-Z-1560 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146 & A-147 |
A2-3235-H-1984
|
Case Assy - Main Differential
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-Z-1560 With diff. lock | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A5-3235-R-2176
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A5-3235-S-2177
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A3-3235-T-2178
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-H-1854, Internal ABS, Less diff. lock, Aluminum | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A1-3235-R-2176
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 3.07, 3.21, 3.42, 3.58, 3.73 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A1-3235-S-2177
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 3.91, 4.10, 4.30, 4.56 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-140, A-146, A-147, A-173, A-174, A-175 |
A1-3235-T-2178
|
Case Assy - Main Differential (Abs Ready)
| Ratios - 4.89, 5.38, 5.63, 6.14, 6.43, 6.83, 7.17 | 3200-J-1856, Internal ABS, Less diff. lock, Malleable iron | Use 1 as req. | Log in to see
prices |
|
|
| A-141 |
1229L3002QG
|
Thrust Washer - Side Gear
| Included in KIT 2318 | | 2 | Log in to see
prices |
|
|
| A-142 |
2234C1069QG
|
Side Gear - Differential
| Included in KIT 2318 | 46 Spline | 2 | Log in to see
prices |
|
|
| A-142 |
2234-C-1069N
|
Side Gear - Differential
| Coach Quality . Included in KIT 2575 | 46 Spline | Use 1 as req. | Log in to see
prices |
|
|
| A-142 |
MER 2234D1070
|
Side Gear - Differential
| | 50 Spline | 2 | Log in to see
prices |
|
|
| A-142A |
A-3230-C-1043
|
No-Spin Assembly
| | 46 Spline | 1 | Log in to see
prices |
|
|
| A-143 |
1229K3001QG
|
Thrust Washer - Diff. Pinion
| | Included in KIT 2318 | 4 | Log in to see
prices |
|
|
| A-144 |
2233M1001QG
|
Gear - Diff. Pinion
| Included in KIT 2318 | | 4 | Log in to see
prices |
|
|
| A-145 |
3278W335QG
|
Spider Diff.
| Included in KIT 2318 | | 1 | Log in to see
prices |
|
|
| A-146 |
1229U1503QG
|
Washer - Diff. Case
| | | 12 | Log in to see
prices |
|
|
| A-147 |
MER 41X1275
|
Capscrew - Diff. Case
| | | 12 | Log in to see
prices |
|
|
| A-147A |
2297-C-7049
|
Thread Locking Liquid
| | | 1 | Log in to see
prices |
|
|
| A-148 |
MER KIT4429
|
Dcdl Switch Kit
| | | 1 | Log in to see
prices |
|
|
| Not Shown |
MER 41X1022
|
Plug - Sensor Port
| | | 1 | Log in to see
prices |
|
|
| A-149 |
MER 1227P1056
|
Lock Nut - Sensor/Switch
| Prior to 11/93 | Used on carriers with 3266-F-1020 air cyl. cover | 1 | Log in to see
prices |
|
|
| A-150 |
3296-B-184
|
Shift Fork - Main Diff. Lock
| Three pc. design | 3200-Z-1560 | 1 | Log in to see
prices |
|
|
| A-150 |
MER 3296B1172
|
Shift fork - main diff. lock
| One pc. design | After 11/93 | 1 | Log in to see
prices |
|
|
| A-150 |
MER 3296Y1169
|
Shift Fork - Main Diff. Lock
| | One pc. design | 1 | Log in to see
prices |
|
|
| A-151 |
MER 2258N1262
|
Spring - Main Diff. Lock
| | After 11/93 | 1 | Log in to see
prices |
|
|
| A-151 |
MER 2258L714
|
Spring - Main Diff. Lock
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-152 |
MER 2244Y51
|
Shift Shaft - Main Diff. Lock
| | 1511, 1560, 1660 | 1 | Log in to see
prices |
|
|
| A-152 |
MER 2244L1026
|
Shift Shaft - Main Diff. Lock
| | 1708, 1712, 1823 | 2 | Log in to see
prices |
|
|
| A-152 |
MER KIT2824
|
Shift Shaft - Main Diff. Lock
| | 1892, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-152A |
MER 42X1027
|
Washer - Piston (Not Shown)
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-153 |
MER KIT2824
|
Shift Cylinder Housing
| Screw-in style | After 11/93 | 1 | Log in to see
prices |
|
|
| A-153 |
MER 3196F32
|
Tube - Air Cylinder
| Bolt-on style | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-153A |
MER 1250U1217
|
Plug - Cylinder Hole
| | | 1 | Log in to see
prices |
|
|
| A-154 |
MER KIT2824
|
Piston - Main Diff. Lock
| | After 11/93 | 1 | Log in to see
prices |
|
|
| A-154 |
MER 2230N170
|
Piston - Main Diff. Lock
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-155 |
MER 2208H944
|
Gasket - Air Cylinder Cover
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-156 |
MER 41X1368
|
Capscrew - Manual Engaging
| | After 11/93 | 1 | Log in to see
prices |
|
|
| A-156 |
MER 41X1333
|
Capscrew - Manual Engaging
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-156A |
MER 5X521
|
O-Ring
| | | 1 | Log in to see
prices |
|
|
| A-157 |
MER 3266F1020
|
Cover - Air Cylinder
| Bolt-on style | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-158 |
MWA-508
|
Washer - Adjusting Ring Lock Capscrew
| | | 2 | Log in to see
prices |
|
|
| A-159 |
MS-208020-1
|
Capscrew - Adjusting Ring Lock
| | | 2 | Log in to see
prices |
|
|
| A-160 |
MER 1220K89
|
Lock - Adjusting Ring
| | | 1 | Log in to see
prices |
|
|
| A-161 |
MER 43X1007
|
Pin - Shift Fork
| | Three pc. design | 2 | Log in to see
prices |
|
|
| A-162 |
MER 3107F1020
|
Clutch Collar - Main Diff. Lock
| | 1511, 1660, 1628 | 1 | Log in to see
prices |
|
|
| A-162 |
MER 3107B1094
|
Clutch Collar - Main Diff. Lock
| 46 Spline | 1708, 1712, 1823, 1825, 1892 1894, 1897, 1928, 1929, 2138 | 1 | Log in to see
prices |
|
|
| A-162 |
3107-C-1095
|
Clutch Collar - Main Diff. Lock
| 50 Spline | 1708, 1823 | 1 | Log in to see
prices |
|
|
| A-162 |
3107-P-1030
|
Clutch Collar - Main Diff. Lock
| | 3200-Z-1560 | 1 | Log in to see
prices |
|
|
| A-163 |
MER 43X1006
|
Roll Pin - Spring Retaining
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-164 |
MER 5X1198
|
O-Ring - Piston
| | After 11/93 | 1 | Log in to see
prices |
|
|
| A-164 |
MER 5X1153
|
O-Ring - Piston
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-165 |
MER MWA-506
|
Washer - Air Cylinder Cover
| | Prior to 11/93 | 4 | Log in to see
prices |
|
|
| A-166 |
MER 41X1364
|
Capscrew - Air Cylinder Cover
| | Prior to 11/93 | 4 | Log in to see
prices |
|
|
| A-167 |
MER 2208L1000
|
Gasket - Plug
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-168 |
MER MS210016-1
|
Plug - Air Cylinder Cover
| | Prior to 11/93 | 1 | Log in to see
prices |
|
|
| A-169 |
2258-G-1255
|
Wave Washer - Adjusting Ring
| | | 2 | Log in to see
prices |
|
|
| A-170 |
1229-F-4452
|
Snap Ring - Adjusting Ring
| | | 2 | Log in to see
prices |
|
|
| A-171 |
1229-U-4519
|
Snap Ring - Sensor
| | | 2 | Log in to see
prices |
|
|
| A-172A |
1250-T-1216
|
Plug - Sensor Attaching (Not Shown)
| Aluminum only | 3200-H-1854 (LH side) | 1 | Log in to see
prices |
|
|
| A-173 |
3216-G-4375
|
Drive Tube
| | | 2 | Log in to see
prices |
|
|
| A-174 |
42-X-1408
|
Washer - Drive Tube
| | | 2 | Log in to see
prices |
|
|
| A-175 |
1229-D-4528
|
Snap Ring - Drive Tube
| | | 2 | Log in to see
prices |
|
|
| A-172 |
SA2-3280-X-9150
|
Sensor - Abs
| LH side | 3200-H-1854 | 1 | Log in to see
prices |
|
|
| A-172 |
SA1-3280-X-9150
|
Sensor - Abs
| RH side | 3200-H-1854 | 1 | Log in to see
prices |
|
|
| A-172 |
SA1-3280-X-9150
|
Sensor - Abs
| Both sides | 3200-J-1856 | 2 | Log in to see
prices |
|
|
 |
Forward Carrier
Housing Assembly
