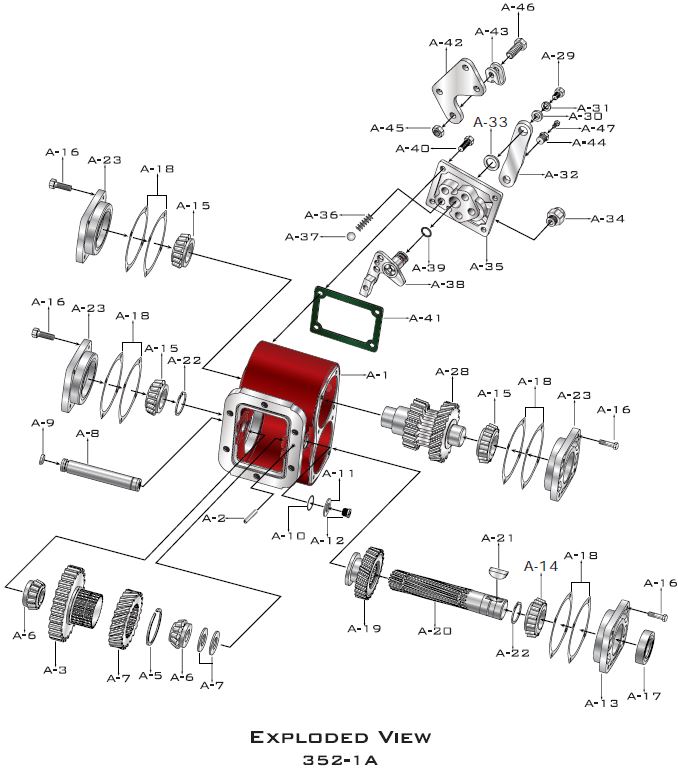

| Item No. |
Part Number |
Name | Qty | Price |
Buy |
|
| A1 |
1P520X
|
Housing, w/Roll pin Standard Mount (Assemblies 3 & 6)
| 1 | Log in to see
prices |
|
|
| A1 |
1P522X
|
Housing, w/Roll pin Standard Mount (Assemblies 4 & 5)
| 1 | Log in to see
prices |
|
|
| A2 |
550597-16
|
Roll Pin, Standard Mount
| 1 | Log in to see
prices |
|
|
| A1 |
1P521X
|
Housing, w/Roll pin Deep Mount (Assemblies 3 & 6)
| 1 | Log in to see
prices |
|
|
| A1 |
1P523X
|
Housing, w/Roll pin Deep Mount (Assemblies 4 & 5)
| 1 | Log in to see
prices |
|
|
| A2 |
500597-14
|
Roll Pin, Deep Mount
| 1 | Log in to see
prices |
|
|
| A4 |
5P1153
|
Gear, Ratio
| 1 | Log in to see
prices |
|
|
| A6 |
379522
|
Retaining Ring
| 1 | Log in to see
prices |
|
|
| A6 |
550439
|
Cone Bearing, Input Gear
| 2 | Log in to see
prices |
|
|
| A7 |
14P15
|
Spacer, Input Gear
| 2 | Log in to see
prices |
|
|
| A8 |
9P74
|
Shaft, Input Idler
| 1 | Log in to see
prices |
|
|
| A9 |
28P191
|
O-Ring
| 1 | Log in to see
prices |
|
|
| A10 |
28P190
|
O-Ring
| 1 | Log in to see
prices |
|
|
| A11 |
379542
|
Retainer, O-Ring
| 1 | Log in to see
prices |
|
|
| A12 |
379484
|
Plug, O-Ring Boss
| 1 | Log in to see
prices |
|
|
| A13 |
328273X
|
Bearing Cap Assembly, Open End (Includes Bearing Cup)
| 1 | Log in to see
prices |
|
|
| A14 |
550532
|
Bearing Cone, Open End
| 1 | Log in to see
prices |
|
|
| A15 |
550397
|
Bearing Cone, Closed End & Reverse Idler Shaft
| 3 | Log in to see
prices |
|
|
| A16 |
378430-10
|
Capscrew , Hex Head (.3125" - 18 x 1.00")
| 16 | Log in to see
prices |
|
|
| A17 |
28P216
|
Oil Seal, Output Shaft
| 1 | Log in to see
prices |
|
|
| A18 |
22P127-1
|
Gasket, Bearing Cap (.010")
| A.R. | Log in to see
prices |
|
|
| A18 |
22P127-2
|
Gasket, Bearing Cap (.020")
| A.R. | Log in to see
prices |
|
|
| A18 |
22P127-3
|
Gasket, Bearing Cap (.015")
| A.R. | Log in to see
prices |
|
|
| A19 |
2P721
|
Sliding Gear, Output
| 1 | Log in to see
prices |
|
|
| A20 |
3P859
|
Shaft, Standard Output 1.250" Rd.
| 1 | Log in to see
prices |
|
|
| A21 |
500007-29
|
Woodruff key
| 1 | Log in to see
prices |
|
|
| A22 |
378391
|
Retaining Ring, Output Shaft
| | Log in to see
prices |
|
|
| A22 |
379522
|
Retaining Ring, Output Shaft
| 2 | Log in to see
prices |
|
|
| A23 |
328274X
|
Bearing Cap Assembly , Closed End (Includes Bearing Cup)
| 3 | Log in to see
prices |
|
|
| A28 |
3P861
|
Reverse Idler Gear & Shaft
| 1 | Log in to see
prices |
|
|
|
328830-1X
|
Cable Shift Cover Assembly (Assemblies 3 & 6)
| 1 | Log in to see
prices |
|
|
|
328830-2X
|
Cable Shift Cover Assembly (Assemblies 4 & 5) (Includes Items 29 Through 40)
| 1 | Log in to see
prices |
|
|
| A29 |
500409-6
|
Screw, Shifter Lever (.3125"-24 X .625")
| 1 | Log in to see
prices |
|
|
| A30 |
500365-22
|
Flat Washer
| 1 | Log in to see
prices |
|
|
| A31 |
500356-10
|
Lock Washer, Shift Lever (.3125")
| 1 | Log in to see
prices |
|
|
| A32 |
51P13
|
Shift Lever
| 1 | Log in to see
prices |
|
|
| A33 |
378004
|
Washer, Shift Lever
| 1 | Log in to see
prices |
|
|
| A34 |
379652
|
Indicator Switch (Normally "On")
| 1 | Log in to see
prices |
|
|
| A35 |
34P74
|
Cover, Shifter
| 1 | Log in to see
prices |
|
|
| A36 |
37P14
|
Poppet Spring, Shifter
| 1 | Log in to see
prices |
|
|
| A37 |
378002
|
Ball, Shifter
| 1 | Log in to see
prices |
|
|
| A38 |
328829-1X
|
Plate & Post Assembly (Assemblies 3 & 6)
| 1 | Log in to see
prices |
|
|
| A38 |
328829-2X
|
Plate & Post Assembly (Assemblies 4 & 5)
| 1 | Log in to see
prices |
|
|
| A39 |
28P191
|
O-Ring, Shifter Post
| 1 | Log in to see
prices |
|
|
| A40 |
378430-8
|
Capscrew, Hex Head (.3125"-18 X .750")
| 3 | Log in to see
prices |
|
|
| A40 |
378430-9
|
Capscrew, Hex Head (.3125"-18 X .875")
| 1 | Log in to see
prices |
|
|
| A41 |
35P8
|
Gasket, Shifter Cover
| 1 | Log in to see
prices |
|
|
| N.S. |
328346-10X
|
Cable Control Assembly (Includes 378441-10 10' Cable & 378502 Knob)
| 1 | Log in to see
prices |
|
|
|
328380X
|
Mounting Parts Kit (Cable Control) (Includes Items 42 Through 47)
| 1 | Log in to see
prices |
|
|
| A42 |
50P17
|
Bracket, Cable Control
| 1 | Log in to see
prices |
|
|
| A43 |
50P19
|
Bracket, Swivel
| 1 | Log in to see
prices |
|
|
| A44 |
378019
|
Pin, Pivot
| 1 | Log in to see
prices |
|
|
| A45 |
378326
|
Nut, Hex
| 1 | Log in to see
prices |
|
|
| A46 |
500396-8
|
Capscrew, Hex Head (.250"-20 X .50")
| 1 | Log in to see
prices |
|
|
| A47 |
500568-4
|
Setscrew (.250"-20 X .50")
| 1 | Log in to see
prices |
|
|
| N.S. |
7170-2X
|
Stud Kit, Standard Mount
| 1 | Log in to see
prices |
|
|
| N.S. |
7170-1X
|
Stud Kit, Deep Mount
| 1 | Log in to see
prices |
|
|
| N.S. |
328948-6X
|
Mounting Gaskets And Installation Instructions
| 1 | Log in to see
prices |
|
|
|
7170-72X
|
Stud Kit, "G" Mount Metric
| | Log in to see
prices |
|
|
| N.S. |
328388-40X
|
Air-O-Matic Shift Installation Kit
| 1 | Log in to see
prices |
|
|
| N.S. |
328751-1X
|
Wire Or Lever Control Installation Kit
| 1 | Log in to see
prices |
|
|
 |
