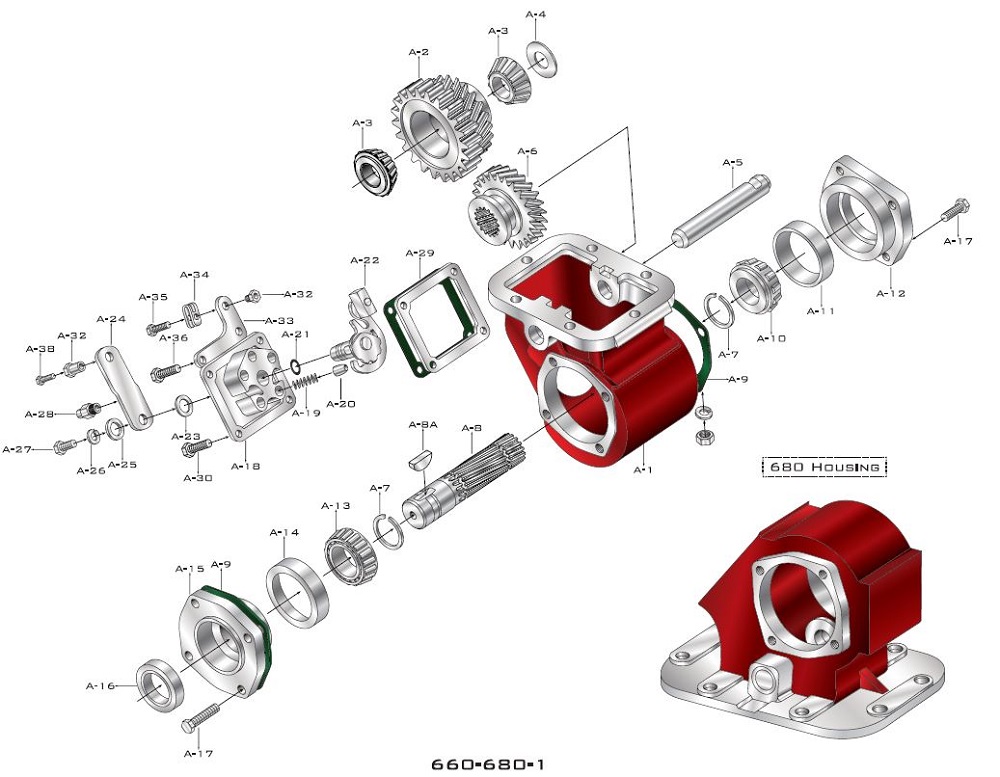

Exploded View Chelsea Parker 680-1
View Larger

Exploded View


See Below  ▼ Chelsea Parker
More Products from Chelsea Parker
  Share

Overview

Exploded View
Item No. Part Number Name Qty Price Buy
A1
1P580
Housing, Standard Mount (“X” & “G” Mounting) Log in to see
prices
1P581
Housing, Deep Mount (“Z” Mounting) Log in to see
prices
1P580XD
Housing, Standard Mount w/ Dowel Pins Log in to see
prices
1P573
Housing, Standard Mount (“X” & “G” Mounting) 1 or Log in to see
prices
1P582
Housing, Deep Mount (“Z” Mounting) 1 Log in to see
prices
A3
550439
Bearing Cone, Input 2 Log in to see
prices
A4
14P74-2
Spacer (.115-.117) A.R. Log in to see
prices
14P74-3
Spacer (.118-.120) A.R. Log in to see
prices
14P74-4
Spacer (.121-.123) A.R. Log in to see
prices
14P74-5
Spacer (.124-.126) A.R. Log in to see
prices
A5
9P71
Idler Shaft, Pressure Lube 1 or Log in to see
prices
9P60
Idler Shaft 1 Log in to see
prices
A7
378391
Lockring 2 Log in to see
prices
A8
3P202
Drive Shaft, Output (1-1/4" Round) 1 Log in to see
prices
A8A
500007-29
Woodruff Key (“XD” Output) 1 Log in to see
prices
A9
22P127-1
Bearing Cap Gasket (.010) A.R. Log in to see
prices
22P127-2
Bearing Cap Gasket (.020) A.R. Log in to see
prices
22P127-3
Bearing Cap Gasket (.015) A.R. Log in to see
prices
A10
550532
Bearing Cone 1 Log in to see
prices
A11
550221
Bearing Race 1 Log in to see
prices
329274X
Bearing Cap Ass’y, Closed End 1 Log in to see
prices
A12
21P131
Bearing Cap Ass'Y, Closed End 1 Log in to see
prices
A13
550397
Bearing Cone (Output) 1 Log in to see
prices
A14
550221
Bearing Race (Output) 1 Log in to see
prices
329273X
Bearing Cap Ass'Y, Open End 1 Log in to see
prices
A15
21P130
Bearing Cap, Open End ("XD" Output) 1 Log in to see
prices
A16
28P216
Oil Seal, Standard Output Shaft 1 Log in to see
prices
A17
378430-10
Hex Capscrew .312"-18 X 1.000 4 Log in to see
prices
329119-1X
Cable Control Cover Assemblies - (Assemblies 3 & 6) 1 Log in to see
prices
329119-2X
Cable Control Cover Assemblies - (Assemblies 4 & 5) 1 Log in to see
prices
329121-1X
For Ratios F & S & U - (Assemblies 3 & 6) 1 Log in to see
prices
329121-2X
For Ratios F & S & U - (Assemblies 4 & 5) 1 Log in to see
prices
A18
34P74
Shifter Cover 1 Log in to see
prices
A19
37P19
Spring 1 Log in to see
prices
A20
63P16
Poppet Pin 1 Log in to see
prices
A21
28P191
O-Ring 1 Log in to see
prices
A22
329118-1X
Post & Plate Assembly for Ratios Q & W - (For Assemblies 3 & 6) 1 Log in to see
prices
A22
329118-2X
Post & Plate Assembly for Ratios Q & W - (For Assemblies 4 & 5) 1 Log in to see
prices
A22
329120-1X
Post & Plate Assembly For Ratios F & S & U - (For Assemblies 3 & 6) 1 Log in to see
prices
A22
329120-2X
Post & Plate Assembly For Ratios F & S & U - (For Assemblies 4 & 5) 1 Log in to see
prices
A23
378004
Flat Washer 1 Log in to see
prices
A24
51P22
Shifter Lever 1 Log in to see
prices
A25
500365-22
Flat Washer 1 Log in to see
prices
A26
500356-10
Lock Washer 1 Log in to see
prices
A27
500409-6
Hex Capscrew 1 Log in to see
prices
A28
380515
Indicator Switch, Pin Style 1 Log in to see
prices
A29
35P8
Gasket, Shift Cover 1 Log in to see
prices
A30
378430-9
Hex Capscrew .312"-18 X .875" 4 Log in to see
prices
328170-200X
Stud Kit, Standard/Deep Mount 1 Log in to see
prices
328170-201X
Stud Kit, Metric Standard Mount 1 Log in to see
prices
328170-76X
Stud Kit, Standard Mount Log in to see
prices
328170-77X
Stud Kit, Deep Mount Log in to see
prices
7170-78X
Stud Kit, Metric Mount Log in to see
prices
7170-72X
Stud Kit, Metric W/Dowel Pin Log in to see
prices
328346-10X
Cable Control Assembly (Includes 378441-10 Cable And 378502 Knob) 1 Log in to see
prices
328380X
Wire Control Parts Bag (Contains Items 31 - 36) 1 Log in to see
prices
A31
378019
Pivot Pin 1 Log in to see
prices
A32
378326
Hex Nut (.250" - 20) 1 Log in to see
prices
A33
50P17
Mounting Bracket 1 Log in to see
prices
A34
50P19
Swivel Bracket 1 Log in to see
prices
A35
500396-8
Hexhead Screw (.250" -20 X .750") 1 Log in to see
prices
A36
500568-4
Set Screw (.250" - 20 X .500") 1 Log in to see
prices
329245X
Shifter Bracket Kit (Special Shift Control And Kit) 1 Log in to see
prices
328388-37X
Air Shift Installation Kit (“A”) 1 Log in to see
prices
328388-47X
Electric/Air Installation Kit 12V (“P”) 1 Log in to see
prices
328388-48X
Electric/Air Installation Kit 24V (“Q”) 1 Log in to see
prices
328388-65X
Air Shift With Control Valve (“S”) 1 Log in to see
prices
328388-72X
Air Shift With Control Valve (“T”) 1 Log in to see
prices
329166-12X
Electric Shift Installation Kit 12V 1 Log in to see
prices
328751-1X
Indicator Light Installation Kit 1 Log in to see
prices
68P18
Name Plate 1 Log in to see
prices
378978
Indicator Light 1 Log in to see
prices
379900
Amp Fuse Holder 1 Log in to see
prices
379252
Butt Connector 2 Log in to see
prices
379640
Booted Connector 1 Log in to see
prices
328948-6X
Gaskets & Installation Instructions Log in to see
prices
328948-8X
Gaskets & Installation Instructions 1 Log in to see
prices

Specifications

  Product NameExploded View
  Brand NameChelsea Parker
