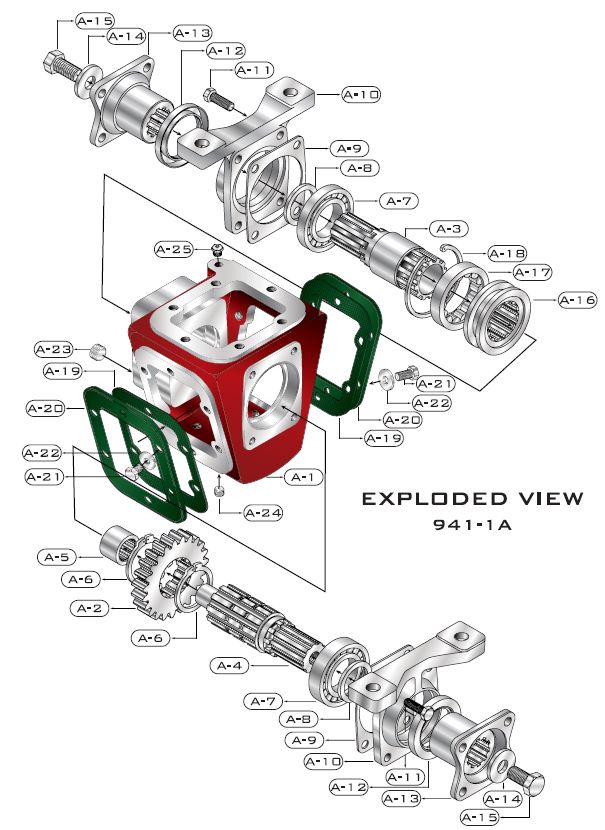

Exploded View Chelsea Parker 941-1A
View Larger

Exploded View


See Below  ▼ Chelsea Parker
More Products from Chelsea Parker
  Share

Overview

Exploded View
Item No. Part Number Name Qty Price Buy
A1
1P475
Housing 1 Log in to see
prices
A2
2P720
P.T.O. Output 1 Log in to see
prices
A3
3P855
Shaft, Output 1 Log in to see
prices
A4
3P856
Shaft, Input 1 Log in to see
prices
A5
550508
Needle Bearing 1 Log in to see
prices
A6
379511
Lockring 2 Log in to see
prices
A7
550311
Ball Bearing 2 Log in to see
prices
A8
4P76
Spacer, Drive Shaft 2 Log in to see
prices
A9
22P63
Gasket 2 Log in to see
prices
A10
21P528
Bearing Cap Log in to see
prices
A11
328431-12
Capscrew, Hex Head (.375"-16 X 1.250") 8 Log in to see
prices
A12
28P261
Oil Seal 2 Log in to see
prices
A13
3-1-2431
Companion Flange 1410 Series 2 Log in to see
prices
4-1-2701
Companion Flange 1550 Series 2 Log in to see
prices
A14
4P130
Washer 2 Log in to see
prices
A15
378435-7
Capscrew, Hex Head (.625"-11 X 1.250") 2 Log in to see
prices
A16
57P28
Clutch 1 Log in to see
prices
A17
560983
Roller Bearing 1 Log in to see
prices
A18
378836
Lockring 1 Log in to see
prices
A19
35P69
Gasket (Used W/Cover Plate Only) 2 Log in to see
prices
A20
34P314
Cover Plate 2 Log in to see
prices
A21
378431-6
Capscrew, Hex Head (.375"-16 X .625") 12 Log in to see
prices
A22
500365-26
Washer .406" X .812" X 065" (Used W/ Cover Plate Only) 12 Log in to see
prices
A23
500113-3
Pipe Plug, (.375"-18 NPTF) 1 Log in to see
prices
A24
379231
Drain Plug, (.125"- 27 X .300") 1 Log in to see
prices
A25
500167-1
Breather 5 P.S.I., (.125"- 27) 1 Log in to see
prices
N.S.
328948-10X
Installation Instructions 1 Log in to see
prices

Specifications

  Product NameExploded View
  Brand NameChelsea Parker
