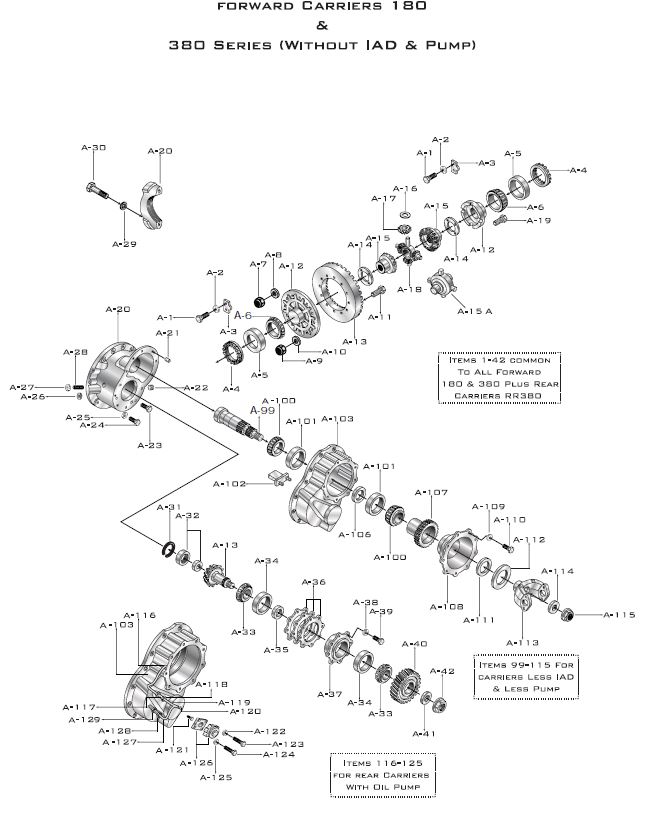

| Item No. |
Part Number |
Name | Remarks | Carrier | Qty | Price |
Buy |
|
| 1 |
S-256A-2
|
Capscrew - Lock Plate
| | All | 4 | Log in to see
prices |
|
|
| 2 |
MER 1229E1669
|
Washer - Lock Plate
| | All | 4 | Log in to see
prices |
|
|
| 3 |
MER 1220B1094
|
Lock Plate - Adjusting Ring
| | All | 2 | Log in to see
prices |
|
|
| 4 |
MER 2214M91
|
Adjusting Rings - Differential Bearing
| RH | All | 1 | Log in to see
prices |
|
|
| 4 |
MER 2214K89
|
Adjusting Rings - Differential Bearing
| LH | All | 1 | Log in to see
prices |
|
|
| 5 |
MER 52618P
|
Cups - differential bearing
| RH - current | | 1 | Log in to see
prices |
|
|
| 5 |
MER KIT4446
|
Cups - Differential Bearing
| RH - old style | | 1 | Log in to see
prices |
|
|
| 5 |
MER KIT4445
|
Cups - Differential Bearing
| LH | All | 1 | Log in to see
prices |
|
|
| 6 |
MER 52387P
|
Cones - Differential Bearing
| RH - current | | 1 | Log in to see
prices |
|
|
| 6 |
MER KIT4446
|
Cones - Differential Bearing
| RH - old style | | 1 | Log in to see
prices |
|
|
| 6 |
MER KIT4445
|
Cones - Differential Bearing
| LH | All | 1 | Log in to see
prices |
|
|
| 7 |
1227-M-1339
|
Nut - Main Differential Case
| | All | 12 | Log in to see
prices |
|
|
| 8 |
MER 1229W1557
|
Washer - Main Differential Case
| | All | 12 | Log in to see
prices |
|
|
| 9 |
1227-N-1340
|
Nut - Gear To Differential Case
| Incl. in KIT 2342 | All | 16 | Log in to see
prices |
|
|
| 10 |
1229-U-1555
|
Washer - Gear To Differential Case
| Incl. in KIT 2342 | All | 16 | Log in to see
prices |
|
|
| 11 |
15-X-1700
|
Bolt - Gear To Differential Case
| Incl. in KIT 2342 | All | 16 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER 3235T1944
|
Case Assembly - Main Differential Sgl. Reduction 3.73
| Dbl. reduction 5.52 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER 3235T1944
|
Case Assembly - Main Differential Sgl. Reduction 4.10
| Dbl. reduction 6.07 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER 3235T1944
|
Case Assembly - Main Differential Sgl. Reduction 4.30
| Dbl. reduction 6.37 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 4.56
| Dbl. reduction 6.75 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 4.89
| Dbl. reduction 7.24 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 5.29
| Dbl. reduction 7.83 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 5.38
| Dbl. reduction 7.96 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 6.14
| Dbl. reduction 9.14 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 6.83
| Dbl. reduction 10.12 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8 19 |
MER A-3235U1945
|
Case Assembly - Main Differential Sgl. Reduction 7.17
| Dbl. reduction 10.62 | All | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A6-3235-T-1944
|
Case & Nest Assy - Main Differential Sgl. Reduction 3.73
| Dbl. reduction 5.52 | All others | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-T-1944
|
Case & Nest Assy - Main Differential Sgl. Reduction 4.10
| Dbl. reduction 6.07 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-T-1944
|
Case & Nest Assy - Main Differential Sgl. Reduction 4.30
| Dbl. reduction 6.37 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A6-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 4.56
| Dbl. reduction 6.75 | All others | | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 4.89
| Dbl. reduction 7.24 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 5.29
| Dbl. reduction 7.83 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 5.38
| Dbl. reduction 7.96 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 6.14
| Dbl. reduction 9.14 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 6.83
| Dbl. reduction 10.12 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 14, 15, 16, 17, 18, 19 |
A7-3235-U-1945
|
Case & Nest Assy - Main Differential Sgl. Reduction 7.17
| Dbl. reduction 10.62 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A5-3235-T-1944
|
"Case & Nospin Assy - Main Differential" Sgl. Reduction 3.73
| Dbl. reduction 5.52 | All others | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-T-1944
|
"Case & Nospin Assy - Main Differential" Sgl. Reduction 4.10
| Dbl. reduction 6.07 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-T-1944
|
"Case & Nospin Assy - Main Differential" Sgl. Reduction 4.30
| Dbl. reduction 6.37 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A5-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 4.56
| Dbl. reduction 6.75 | All others | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 4.89
| Dbl. reduction 7.24 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 5.29
| Dbl. reduction 7.83 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 5.38
| Dbl. reduction 7.96 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 6.14
| Dbl. reduction 9.14 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 6.83
| Dbl. reduction 10.12 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 12, 7, 8, 15A, 19 |
A3-3235-U-1945
|
Case & Nospin Assy - Main Differential Sgl. Reduction 7.17
| Dbl. reduction 10.62 | RT-70-380 2-1/2"" -50 spline | 1 | Log in to see
prices |
|
|
| 13, 42 |
B-40352-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 3.73
| Dbl. reduction 5.52 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
MER B-40354-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 4.10
| Dbl. reduction 6.07 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
MER B-40356-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 4.30
| Dbl. reduction 6.37 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
B-40358-4QG
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 4.56
| Dbl. reduction 6.75 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
B-40360-4QG
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 4.89
| Dbl. reduction 7.24 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
B-40312-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 5.29
| Dbl. reduction 7.83 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
B-40362-4QG
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 5.38
| Dbl. reduction 7.96 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
MER B-40364-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 6.14
| Dbl. reduction 9.14 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
MER B-40366-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 6.83
| Dbl. reduction 10.12 | All | 1 | Log in to see
prices |
|
|
| 13, 42 |
MER B-40368-4
|
Drive Gear, Pinion & Nut Assembly Sgl. Reduction 7.17
| Dbl. reduction 10.62 | All | 1 | Log in to see
prices |
|
|
| 14 |
1229L3002QG
|
Thrust Washer - Side Gear
| | All | 2 | Log in to see
prices |
|
|
| 15 |
2234C1069QG
|
Side Gear - Differential
| 2.35" -46 spline | | 2 | Log in to see
prices |
|
|
| 15 |
MER 2234G1229
|
Side Gear - Differential
| 2.56" -50 spline | | 2 | Log in to see
prices |
|
|
| 15A |
A-3230-E-1045
|
Nospin Assembly
| 2.35" -46 spline | | 1 | Log in to see
prices |
|
|
| 15A |
A-3230-N-1028
|
Nospin Assembly
| 2.56" -50 spline | | 1 | Log in to see
prices |
|
|
| 16 |
1229D992QG
|
Thrust Washer - Differential Pinion
| | All | 4 | Log in to see
prices |
|
|
| 17 |
MER 2233T1112
|
Gear - Differential Pinion
| | All | 4 | Log in to see
prices |
|
|
| 18 |
MER 3278Q381
|
Spider (Cross) - Differential
| | All | 1 | Log in to see
prices |
|
|
| 19 |
15-X-1699
|
Bolt - Main Differential Case
| Long | Pre 4/02 | 8 | Log in to see
prices |
|
|
| 19 |
15-X-1698
|
Bolt - Main Differential Case
| Short | Pre 4/02 | 4 | Log in to see
prices |
|
|
| 19 |
15-X-1699
|
Bolt - Main Differential Case
| | After 4/02 | 12 | Log in to see
prices |
|
|
| 20, 29, 30 |
MER A2-3200M1833
|
Differential Carrier & Cap Assembly
| One pc. bearing assy. | All | 1 | Log in to see
prices |
|
|
| 20, 29, 30 |
A2-3200-M-1625
|
Differential Carrier & Cap Assembly
| Two pc. bearing assy. | All | 1 | Log in to see
prices |
|
|
| 21 |
MER 1246M455
|
Dowel - Helical Gear Cover To Carrier
| | All | 2 | Log in to see
prices |
|
|
| 22 |
P-112
|
Plug - Oil Filter
| | All | 1 | Log in to see
prices |
|
|
| 23 |
MER A-1199Z3328
|
Screen Assembly - Oil Filter
| | All | 1 | Log in to see
prices |
|
|
| 24 |
S-21016-2
|
Capscrew - Carrier To Housing
| Ref. only - not incl. with carrier. See housing section for exploded view of housing. | | 9 | Log in to see
prices |
|
|
| 25 |
1229U1503QG
|
Washer - Carrier To Housing
| Ref. only - not incl. with carrier. See housing section for exploded view of housing. | | 14 | Log in to see
prices |
|
|
| 26 |
MER N-110-1
|
Nut - Carrier To Housing Stud
| | Ref. only - not incl. with carrier. See housing section for exploded view of housing. | 5 | Log in to see
prices |
|
|
| 27 |
MER 1227D472
|
Nut - Thrust Screw Jam
| | All | 1 | Log in to see
prices |
|
|
| 28 |
MER 15X1167
|
Screw - Drive Gear Thrust
| | All | 1 | Log in to see
prices |
|
|
| 29 |
MER 1229M1625
|
Washer - Differential Bearing Cap
| | All | 4 | Log in to see
prices |
|
|
| 30 |
S-11440-2
|
Capscrew - Differential Bearing Cap
| | All | 4 | Log in to see
prices |
|
|
| 31 |
MER 1229L1624
|
Snap Ring - Spigot Bearing One Piece Bearing
| All other ratios | | 1 | Log in to see
prices |
|
|
| 31 |
MER 1229K1623
|
Snap Ring - Spigot Bearing One Piece Bearing
| Sgl. reduction 6.83 | Dbl. reduction 10.12 | 1 | Log in to see
prices |
|
|
| 31 |
MER 1229K1623
|
Snap Ring - Spigot Bearing One Piece Bearing
| Sgl. reduction 7.17 | Dbl. reduction 10.62 | 1 | Log in to see
prices |
|
|
| 31 |
1229-T-4076
|
Snap Ring - Spigot Bearing Two Piece Bearing
| | | 1 | Log in to see
prices |
|
|
| 32, 31 |
MER 1228S1267
|
Bearing - Drive Pinion Spigot (Inner & Outer Race Plus Snap Ring) Current Design One Piece Bearing
| All other ratios | | 1 | Log in to see
prices |
|
|
| 32, 31 |
NTN MUC1309UM
|
Bearing - Drive Pinion Spigot (Inner & Outer Race Plus Snap Ring) Current Design One Piece Bearing
| Sgl. reduction 6.83 | Dbl. reduction 10.12 | 1 | Log in to see
prices |
|
|
| 32, 31 |
NTN MUC1309UM
|
Bearing - Drive Pinion Spigot (Inner & Outer Race Plus Snap Ring)Current Design One Piece Bearing
| Sgl. reduction 7.17 | Dbl. reduction 10.62 | 1 | Log in to see
prices |
|
|
| 32, 31 |
MER A5-1228R1266
|
Bearing - Drive Pinion Spigot (Inner & Outer Race Plus Snap Ring) "Old Design Two Pc. Brg. Incl. Item 31 (1229-T-4076 Snap Ring)."
| All other ratios | All | 1 | Log in to see
prices |
|
|
| 32, 31 |
A4-1228-R-1266
|
Bearing - Drive Pinion Spigot (Inner & Outer Race Plus Snap Ring) "Old Design Two Pc. Brg. Incl. Item 31 (1229-T-4076 Snap Ring)."
| Sgl. reduction 6.83 Sgl. reduction 7.17 | Dbl. reduction 10.12 Dbl. reduction 10.62 | 1 | Log in to see
prices |
|
|
| 33 |
NTN 78250AC
|
Cones - Drive Pinion Inner & Outer Bearing
| | All | 2 | Log in to see
prices |
|
|
| 34 |
NTN 78551
|
Cups - Drive Pinion Inner & Outer Bearing
| | All | 2 | Log in to see
prices |
|
|
| 35 |
2203-U-7899
|
Spacers - Pinion Bearing .326" /8.28Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
2203-V-7900
|
Spacers - Pinion Bearing .327" /8.31Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
2203-W-7901
|
Spacers - Pinion Bearing .328" /8.31Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
2203-X-7902
|
Spacers - Pinion Bearing .329" /8.33Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
2203-Y-7903
|
Spacers - Pinion Bearing .330" /8.38Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203Z7904
|
Spacers - Pinion Bearing .331" /8.41Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203A7905
|
Spacers - Pinion Bearing .332" /8.43Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203B7906
|
Spacers - Pinion Bearing .338" /8.59Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203C7907
|
Spacers - Pinion Bearing .345" /8.76Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203D7908
|
Spacers - Pinion Bearing .352" /8.94Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req. | Log in to see
prices |
|
|
| 35 |
MER 2203E7909
|
Spacers - Pinion Bearing .359" /9.12Mm
| Incl. in KITS 1554, RP180 1625, RP380 & RR380 | All | Use 2 as req | Log in to see
prices |
|
|
| 36 |
2203-Z-6604
|
Shims - Pinion Bearing Cage .003" /.075Mm
| Incl. in KITS 2432, RP180 1625, RP380 & RR830 | all | Use as req. | Log in to see
prices |
|
|
| 36 |
MER 2203A6605
|
Shims - Pinion Bearing Cage .005" /.125Mm
| Incl. in KITS 2432, RP180 1625, RP380 & RR830 | All | Use as req. | Log in to see
prices |
|
|
| 36 |
MER 2203B6606
|
Shims - Pinion Bearing Cage .010" /.254Mm
| Incl. in KITS 2432, RP180 1625, RP380 & RR830 | All | Use as req. | Log in to see
prices |
|
|
| 37, 34 |
MER A-3226Z598
|
Pinion Bearing Cage & Cups Assembly
| | All | 1 | Log in to see
prices |
|
|
| 38 |
MER 1229C1511
|
Washer - Pinion Bearing Cage
| | All | 9 | Log in to see
prices |
|
|
| 39 |
10-X-1669
|
Capscrew - Pinion Bearing Cage
| | All | 9 | Log in to see
prices |
|
|
| 40 |
MER 3892J4014
|
Gear-helical driven
| forward-rear | RP-xx-180 carriers | 1 | Log in to see
prices |
|
|
| 40 |
MER 3892B4708
|
Gear-helical driven
| forward-rear | RP-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 40 |
3892-S-4023
|
Gear-helical driven
| forward-rear .756 overdrive | RP-180/380 | 1 | Log in to see
prices |
|
|
| 40 |
MER 3892D4710
|
Gear-helical driven
| single axles & rear-rear double reduction | RR & RS-xx-380 | 1 | Log in to see
prices |
|
|
| 41 |
MER 1229K2429
|
Washer- drive pinion
| | All | 1 | Log in to see
prices |
|
|
| 42 |
MER 1227P900
|
Nut - Drive Pinion
| Incl. in KITS RR380, RP380 & RP180 1625 | All | 1 | Log in to see
prices |
|
|
| 99, 115 |
NTO A3297M117
|
Input Shaft & Nut Assembly
| forward-rear | RN-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 99, 115 |
A-3297-S-97
|
Input Shaft & Nut Assembly
| rear-rear | RR-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 100 |
KOY 29685
|
"Cones - Input Shaft Bearing" Inner
| | All | 1 | Log in to see
prices |
|
|
| 100 |
KOY 496
|
"Cones - Input Shaft Bearing" Outer
| | All | 1 | Log in to see
prices |
|
|
| 101 |
KOY 29620
|
"Cups - Input Shaft Bearing" Inner
| | All | 1 | Log in to see
prices |
|
|
| 101 |
KOY 493
|
"Cups - Input Shaft Bearing" Outer
| | All | 1 | Log in to see
prices |
|
|
| 102 |
3221-H-8
|
Oil Scoop - Helical Gear Cover
| | All | 1 | Log in to see
prices |
|
|
| 103, 101, 102 |
A1-3266-B-834
|
Cover Assembly - Helical Gear
| | All except rear-rear with pump | 1 | Log in to see
prices |
|
|
| 103, 101, 102, 116, 117, 118, 119, 120, 127, 128, 129 |
A-3266-L-792
|
Cover Assembly - Helical Gear
| | RR-xx-380 carrier (rear-rear) with oil pump | 1 | Log in to see
prices |
|
|
| 104 |
MER 1229C1511
|
Washer - Gear Cover To Carrier
| | All | 14 | Log in to see
prices |
|
|
| 105 |
MER S-2812-2
|
Capscrew - Gear Cover To Carrier
| | All | 14 | Log in to see
prices |
|
|
| 106 |
2203-U-7899
|
Spacers - Input Shaft Bearing .326" /8.28Mm
| | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
2203-V-7900
|
Spacers - Input Shaft Bearing .327" /8.31Mm
| Incl. in KIT 1554 | all | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
2203-X-7902
|
Spacers - Input Shaft Bearing .328" /8.33Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
2203-W-7901
|
Spacers - Input Shaft Bearing .329" /8.36Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
2203-Y-7903
|
Spacers - Input Shaft Bearing .330" /8.38Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203Z7904
|
Spacers - Input Shaft Bearing .331" /8.41Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203A7905
|
Spacers - Input Shaft Bearing .332" /8.43Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203B7906
|
Spacers - Input Shaft Bearing .338" /8.59Mm
| Incl. in KIT 1554 | all | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203C7907
|
Spacers - Input Shaft Bearing .345" /8.76Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203D7908
|
Spacers - Input Shaft Bearing .352" /8.94Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 106 |
MER 2203E7909
|
Spacers - Input Shaft Bearing .359" /9.12Mm
| Incl. in KIT 1554 | All | Use 2 as req. | Log in to see
prices |
|
|
| 107 |
MER 3892F4712
|
Gear - Helical Drive
| | All | 1 | Log in to see
prices |
|
|
| 108 |
A-3266-Y-831
|
Cover - Input
| forward-rear | RN-180/380 carriers | 1 | Log in to see
prices |
|
|
| 108 |
MER A-3266P1446
|
Cover - Input
| rear-rear | RR-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 109 |
MER 1229K1597
|
Washer - Input Cover
| | All | 9 | Log in to see
prices |
|
|
| 110 |
S-2610-2
|
Capscrew - Input Cover
| | All | 9 | Log in to see
prices |
|
|
| 111 |
MER A1-1205X2728
|
Oil Seal - Input Cover
| forward-rear | RN-180/380 carriers | 1 | Log in to see
prices |
|
|
| 111 |
MER R945008
|
Oil Seal - Input Cover
| rear-rear | RR-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 114 |
MER 1229N1730
|
Washer - Input Yoke & Shaft
| forward-rear | RN-180/380 carriers | 1 | Log in to see
prices |
|
|
| 114 |
MER 1229T1736
|
Washer - Input Yoke & Shaft
| rear-rear | RR-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 115 |
1227D940QG
|
Nut - Input Yoke & Shaft
| Forward-rear | RN-180/380 carriers | 1 | Log in to see
prices |
|
|
| 115 |
1227J946QG
|
Nut - Input Yoke & Shaft
| rear-rear | RR-xx-380 carriers | 1 | Log in to see
prices |
|
|
| 116 |
3196-U-21
|
Tube - Finished Steel 11.88" Long
| 3/8" OD x .032" wall | | 1 | Log in to see
prices |
|
|
| 117 |
2257-S-1033
|
Hose Clamp
| | | 4 | Log in to see
prices |
|
|
| 118 |
2296-F-1098
|
Hose 3/8" X 2"
| | | 1 | Log in to see
prices |
|
|
| 119 |
2296-B-106
|
Tube - Finished Steel .94" Radius
| 3/8" OD x .032" wall | | 1 | Log in to see
prices |
|
|
| 120 |
9680368
|
O-Ring
| | | 1 | Log in to see
prices |
|
|
| 121 |
2297-C-3799
|
Button - Pump Drive
| | | 1 | Log in to see
prices |
|
|
| 122 |
MER 1229E1669
|
Washer - Oil Pump Bolt
| | 11/32" ID x 5/8" OD | 3 | Log in to see
prices |
|
|
| 123 |
S-2518-2
|
Bolt - Oil Pump
| 5/16" dia. x 2.24" long | | 3 | Log in to see
prices |
|
|
| 124 |
S-2616-2
|
Bolt - Oil Pump
| 3/8" dia. x 2.25" long | | 1 | Log in to see
prices |
|
|
| 126 |
NTO A3303M13
|
Oil Pump Assembly
| | rear carriers only | 1 | Log in to see
prices |
|
|
| 127 |
3196-T-20
|
Tube - Finished Steel .125" Radius
| 7/16" OD x .032" wall | | 1 | Log in to see
prices |
|
|
| 128 |
2296-G-1099
|
Hose - 7/16" X 2"
| | | 1 | Log in to see
prices |
|
|
| 129 |
2296-A-105
|
Tube - Finished Steel 2" Long
| 7/16" OD x .032" wall | | 1 | Log in to see
prices |
|
|
| 125 |
MER 1229B1666
|
Washer - Oil Pump Bolt
| 13/32" ID x 13/16" OD | | 1 | Log in to see
prices |
|
|
 |
 Single & Tandem.JPG "Rear Carrier"){kind=small}
Rear Carrier.JPG "Forward Carrier W Iad & Pump"){kind=small}
Forward Carrier W Iad & Pump
Housing Assembly
